AM29854DC datasheet, PDF - EEWORLD Datasheet

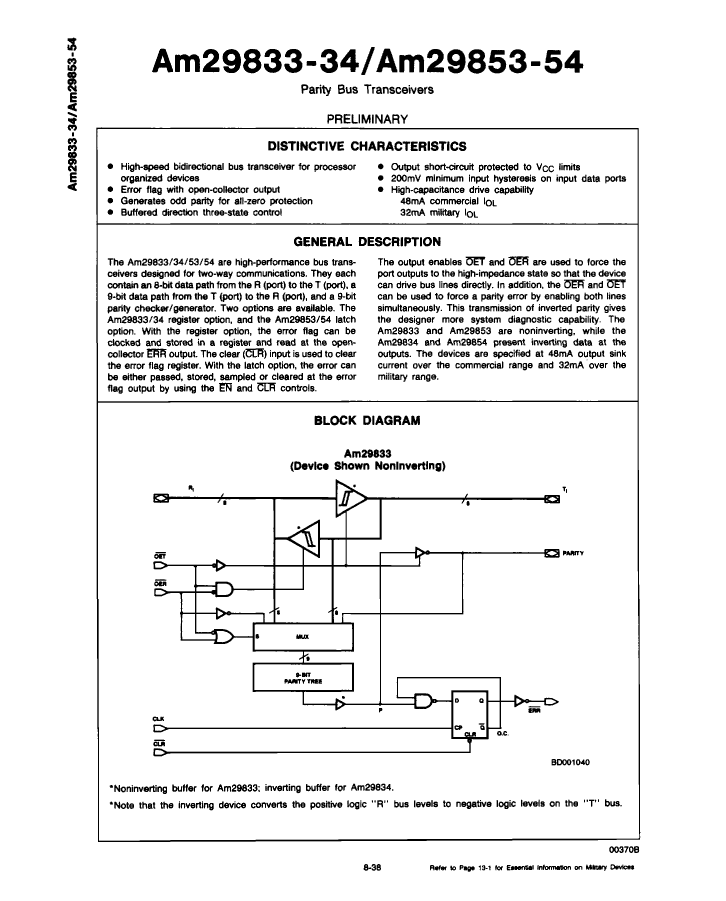

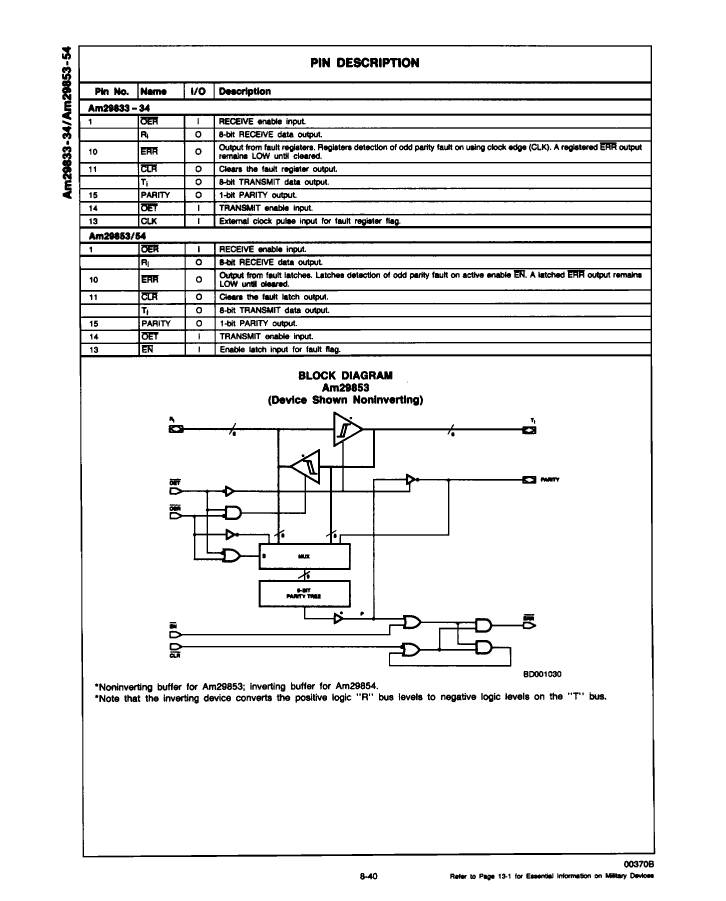

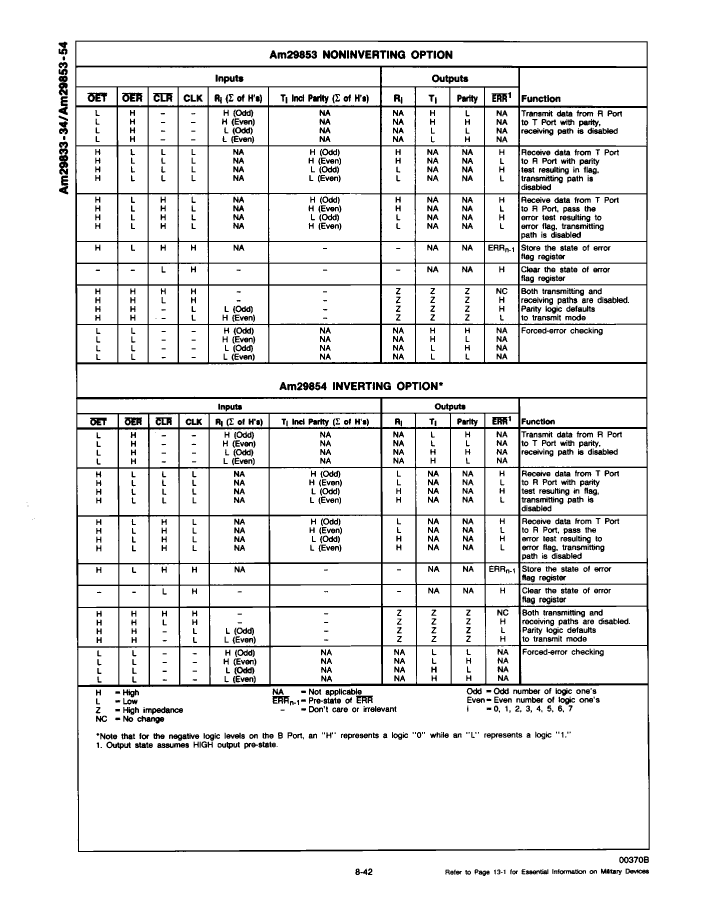

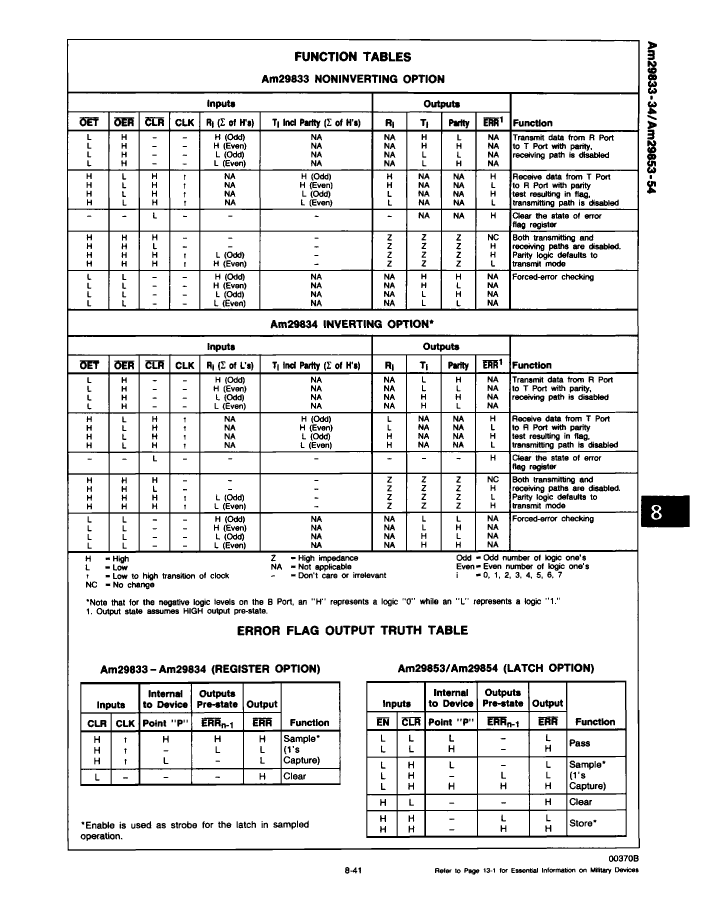

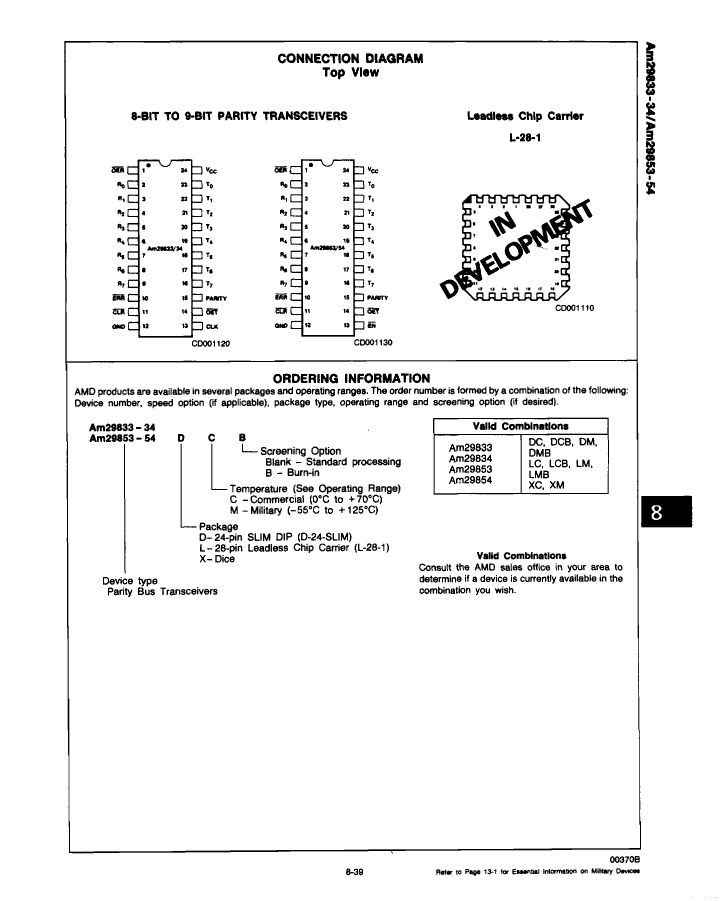

AM29854DC: DescriptionBus Transceiver, S Series, 1-Func, 8-Bit, Inverted Output, TTL, CDIP24, HERMETIC SEALED, SLIM, DIP-24; Categorylogic logic; File Size256KB，10 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric View All

AM29854DC Overview

Bus Transceiver, S Series, 1-Func, 8-Bit, Inverted Output, TTL, CDIP24, HERMETIC SEALED, SLIM, DIP-24

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	DIP
package instruction	HERMETIC SEALED, SLIM, DIP-24
Contacts	24
Reach Compliance Code	unknown
Other features	PARITY GENERATION A TO B; ERROR DETECTION B TO A; ODD PARITY
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
series	S
JESD-30 code	R-CDIP-T24
JESD-609 code	e0
length	32.0675 mm
Load capacitance (CL)	300 pF
Logic integrated circuit type	BUS TRANSCEIVER
MaximumI(ol)	0.048 A
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	195 mA
Prop。Delay @ Nom-Sup	23 ns
propagation delay (tpd)	16 ns
Certification status	Not Qualified
Maximum seat height	5.715 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
translate	N/A
width	7.62 mm
