TC74LVQ157FN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> TC74LVQ157FN

TC74LVQ157FN: DescriptionIC LVQ SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, PDSO16, 0.150 INCH, PLASTIC, SOL-16, Multiplexer/Demultiplexer; Categorylogic logic; File Size120KB，4 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC74LVQ157FN Overview

IC LVQ SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, PDSO16, 0.150 INCH, PLASTIC, SOL-16, Multiplexer/Demultiplexer

TC74LVQ157FN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
Contacts	16
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.012 A
Number of functions	4
Number of entries	2
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	3.3 V
Prop。Delay @ Nom-Sup	10 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

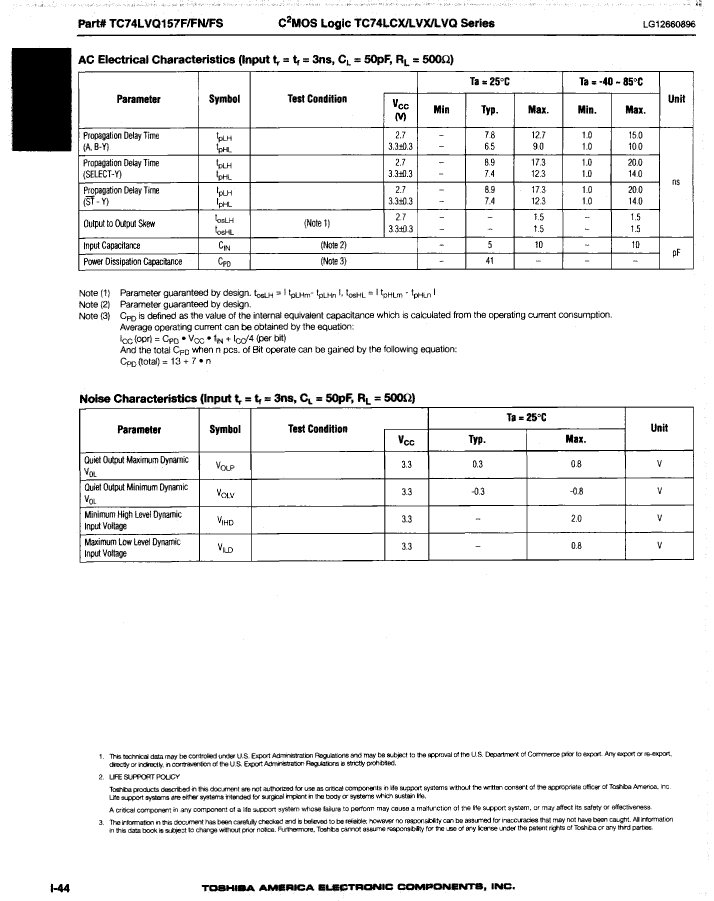

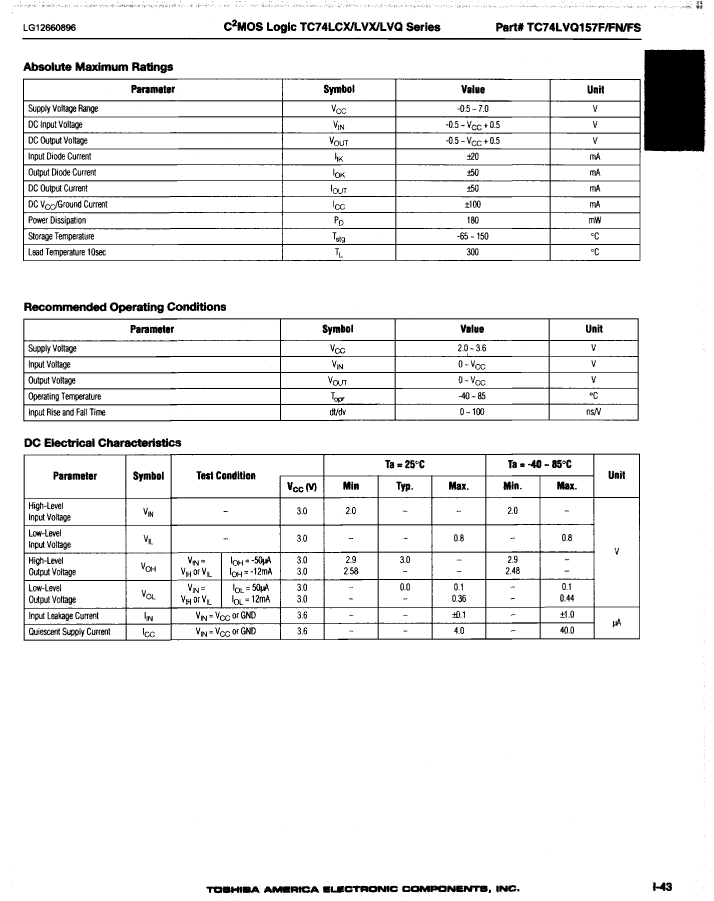

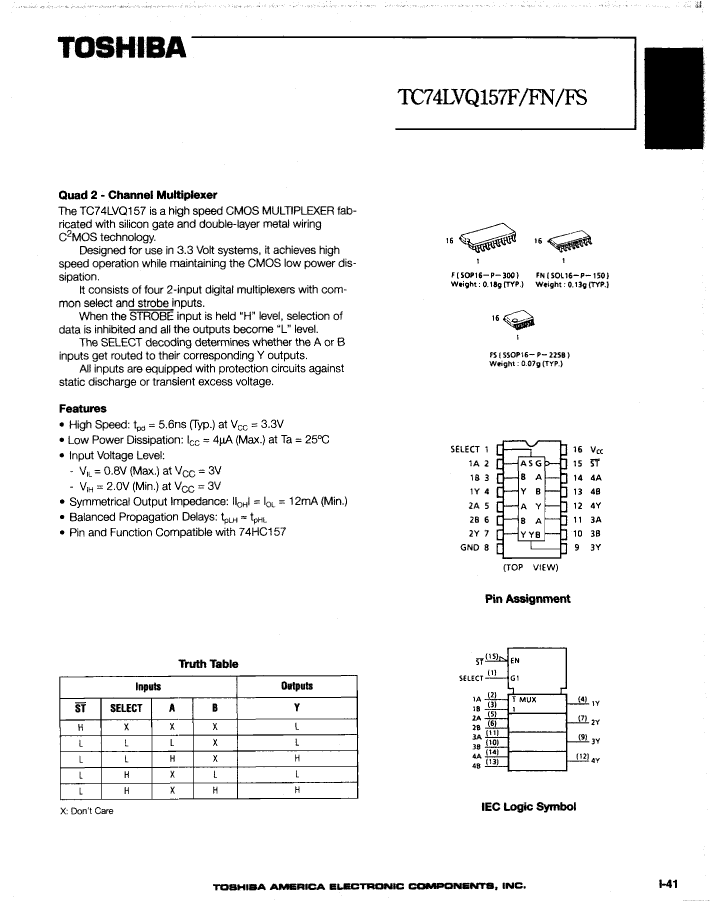

Preview

Download Datasheet

View All

TC74LVQ157FN Related Products

	TC74LVQ157FN	TC74LVQ157FN(ELP)	TC74LVQ157FN(EL)	TC74LVQ157FS(ELP)	TC74LVQ157FS(EL)	TC74LVQ157F(EL)	TC74LVQ157F(ELP)
Description	IC LVQ SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, PDSO16, 0.150 INCH, PLASTIC, SOL-16, Multiplexer/Demultiplexer	IC LVQ SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, PDSO16, 0.150 INCH, PLASTIC, SOL-16, Multiplexer/Demultiplexer	IC LVQ SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, PDSO16, 0.150 INCH, PLASTIC, SOL-16, Multiplexer/Demultiplexer	IC LVQ SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, PDSO16, 0.225 INCH, PLASTIC, SSOP-16, Multiplexer/Demultiplexer	IC LVQ SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, PDSO16, 0.225 INCH, PLASTIC, SSOP-16, Multiplexer/Demultiplexer	IC LVQ SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOP-16, Multiplexer/Demultiplexer	IC LVQ SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, PDSO16, 0.300 INCH, PLASTIC, SOP-16, Multiplexer/Demultiplexer
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC
Contacts	16	16	16	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	4	4	4	4	4	4	4
Number of entries	2	2	2	2	2	2	2
Number of terminals	16	16	16	16	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	LSSOP	LSSOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	0.65 mm	0.65 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
JESD-609 code	e0	-	-	e0	e0	e0	e0
Terminal surface	Tin/Lead (Sn/Pb)	-	-	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Is it lead-free?	-	Contains lead	Contains lead	Contains lead	-	Contains lead	Contains lead
package instruction	-	SOP,	SOP,	LSSOP,	0.225 INCH, PLASTIC, SSOP-16	SOP,	SOP,
series	-	LVQ	LVQ	LVQ	LVQ	LVQ	LVQ
length	-	9.9 mm	9.9 mm	5 mm	5 mm	10.3 mm	10.3 mm
Output times	-	1	1	1	1	1	1
Output polarity	-	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Peak Reflow Temperature (Celsius)	-	240	240	240	240	240	240
propagation delay (tpd)	-	14 ns	14 ns	14 ns	14 ns	14 ns	14 ns
Maximum seat height	-	1.75 mm	1.75 mm	1.6 mm	1.6 mm	1.9 mm	1.9 mm
Maximum supply voltage (Vsup)	-	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	-	2 V	2 V	2 V	2 V	2 V	2 V
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	-	3.9 mm	3.9 mm	4.4 mm	4.4 mm	5.3 mm	5.3 mm
Base Number Matches	-	1	1	1	1	-	-
