MMBD4448-13

Description
Rectifier Diode, 1 Element, 0.25A, 75V V(RRM), Silicon, PLASTIC PACKAGE-3
CategoryDiscrete semiconductor    diode
File Size70KB,2 Pages
ManufacturerDiodes Incorporated
Download Datasheet Parametric View All

MMBD4448-13 Overview

Rectifier Diode, 1 Element, 0.25A, 75V V(RRM), Silicon, PLASTIC PACKAGE-3

MMBD4448-13 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerDiodes Incorporated
package instructionPLASTIC PACKAGE-3
Contacts3
Reach Compliance Codeunknown
ECCN codeEAR99
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
JESD-30 codeR-PDSO-G3
JESD-609 codee0
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
Maximum output current0.25 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)235
Maximum power dissipation0.35 W
Certification statusNot Qualified
Maximum repetitive peak reverse voltage75 V
Maximum reverse recovery time0.004 µs
surface mountYES
Terminal surfaceTIN LEAD
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperature10

MMBD4448-13 Preview

SPICE MODEL: MMBD4448
MMBD4448
SURFACE MOUNT SWITCHING DIODE
Features
·
·
·
·
·
·
·
·
·
·
·
·
·
Fast Switching Speed
Surface Mount Package Ideally Suited for Automatic Insertion
For General Purpose Switching Applications
High Conductance
Available in Lead Free/RoHS Compliant Version (Note 3)
B
C
TOP VIEW
SOT-23
Dim
A
Min
0.37
1.20
2.30
0.89
0.45
1.78
2.80
0.013
0.903
0.45
0.085
Max
0.51
1.40
2.50
1.03
0.60
2.05
3.00
0.10
1.10
0.61
0.180
A
B
C
D
E
G
K
J
L
Mechanical Data
Case: SOT-23
Case material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Solderable per MIL-STD-202, Method 208
Also Available in Lead Free Plating (Matte Tin Finish
annealed over Alloy 42 leadframe). Please see Ordering
Information, Note 5, on Page 2
Polarity: See Diagram
Marking: KA3 (See Page 2)
Weight: 0.008 grams (approx.)
E
D
G
H
M
H
J
K
L
M
a
All Dimensions in mm
Maximum Ratings
@ T
A
= 25°C unless otherwise specified
Characteristic
Non-Repetitive Peak Reverse Voltage
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 1)
Average Rectified Output Current (Note 1)
Non-Repetitive Peak Forward Surge Current @ t = 1.0ms
@ t = 1.0s
Power Dissipation (Note 1)
Thermal Resistance Junction to Ambient Air (Note 1)
Operating and Storage Temperature Range
Symbol
V
RM
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
O
I
FSM
P
d
R
qJA
T
j
, T
STG
MMBD4448
100
75
53
500
250
4.0
2.0
350
357
-65 to +150
Unit
V
V
V
mA
mA
A
mW
°C/W
°C
Electrical Characteristics
Characteristic
Reverse Breakdown Voltage (Note 2)
Forward Voltage (Note 2)
@ T
A
= 25°C unless otherwise specified
Symbol
V
(BR)R
V
F
Min
75
0.62
¾
¾
¾
¾
¾
¾
Max
¾
0.72
0.855
1.0
1.25
2.5
50
30
25
4.0
4.0
Unit
V
V
mA
mA
mA
nA
pF
ns
Test Condition
I
R
= 2.5mA
I
F
= 5.0mA
I
F
= 10mA
I
F
= 100mA
I
F
= 150mA
V
R
= 75V
V
R
= 75V, T
j
= 150°C
V
R
= 25V, T
j
= 150°C
V
R
= 20V
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 10mA,
I
rr
= 0.1 x I
R
, R
L
= 100W
Reverse Current (Note 2)
Total Capacitance
Reverse Recovery Time
Notes:
I
R
C
T
t
rr
1. Part mounted on FR-4 board with recommended pad layout, which can be found on our website
at http://www.diodes.com/datasheets/ap02001.pdf.
2. Short duration test pulse used to minimize self-heating effect.
3. No purposefully added lead.
DS12011 Rev. 10 - 2
1 of 2
www.diodes.com
MMBD4448
ã
Diodes Incorporated
I
F
, INSTANTANEOUS FORWARD CURRENT (mA)
1000
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
10000
T
A
= 125ºC
1000
100
T
A
= 75ºC
100
10
T
A
= -40ºC
T
A
= 0ºC
10
T
A
= 25ºC
1
T
A
= 25ºC
T
A
= 75ºC
T
A
= 125ºC
1
T
A
= 0ºC
T
A
= -40ºC
0.1
0
0.4
0.8
1.2
1.6
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

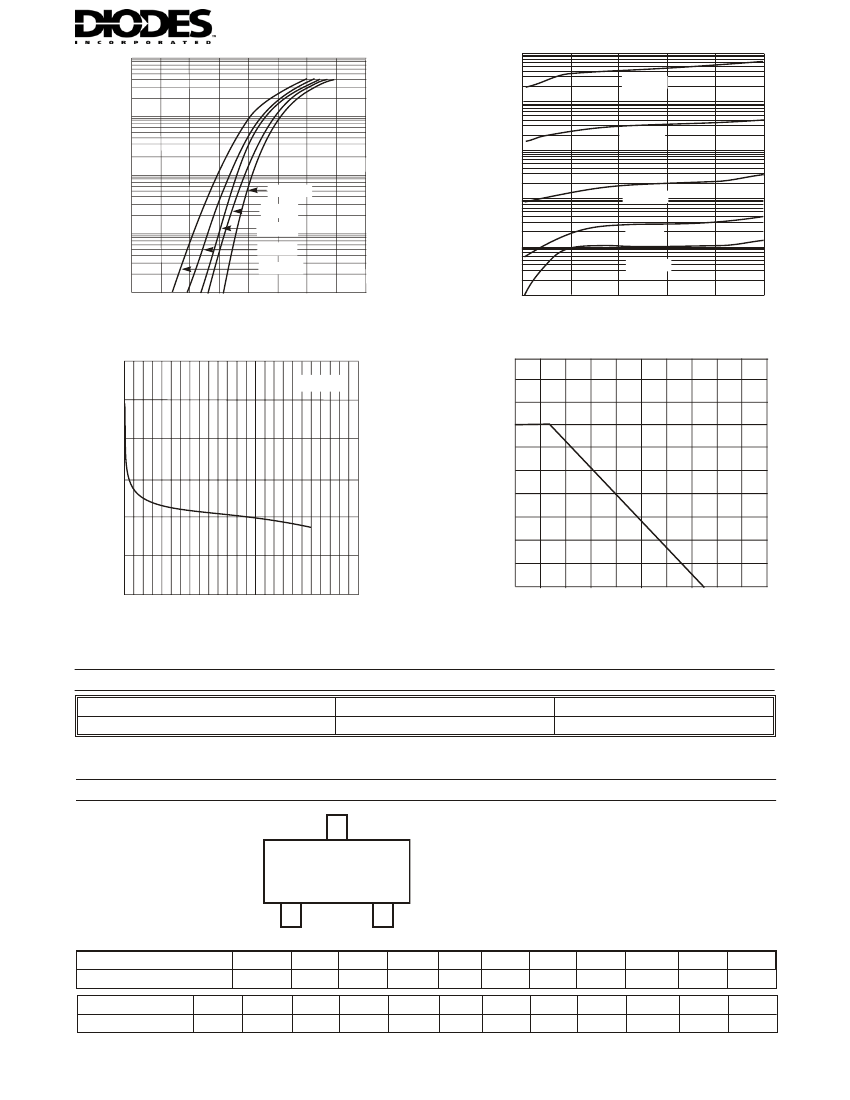

Fig. 1 Typical Forward Characteristics
3
f = 1MHz
0.1
0
20
40
60
80
100
V
R
, REVERSE VOLTAGE (V)
Fig. 2 Typical Reverse Characteristics
500
P
d
, POWER DISSIPATION (mW)
C
T
, TOTAL CAPACITANCE (pF)
2.5
400
2
300
1.5
200
1
100
0.5
0
0
10
20
30
40
50
0
0
100
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 4, Max Power Dissipation vs
Ambient Temperature
200
V
R
, REVERSE VOLTAGE (V)
Fig. 3 Typical Capacitance vs. Reverse Voltage
Ordering Information
Device
MMBD4448-7
Notes:
(Note 4)
Packaging
SOT-23
Shipping
3000/Tape & Reel
4. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
5
.
For Lead Free/RoHS Compliant Version part number, please add "-F" suffix to the part number above. Example: MMBD4448-7-F.
Marking Information
KA3
Date Code Key
Year
Code
Month
Code
Jan
1
1999
K
Feb
2
2000
L
March
3
2001
M
Apr
4
KA3 = Product Type Marking Code
YM = Date Code Marking
Y = Year ex: N = 2002
M = Month ex: 9 = September
YM
2002
N
May
5
2003
P
Jun
6
2004
R
Jul
7
2005
S
Aug
8
2006
T
Sep
9
2007
U
Oct
O
2008
V
Nov
N
2009
W
Dec
D
DS12011 Rev. 10 - 2
2 of 2
www.diodes.com
MMBD4448
