74ACT240CW

Description
Bus Driver, ACT Series, 2-Func, 4-Bit, Inverted Output, CMOS, 20 PINS
Categorylogic    logic
File Size178KB,8 Pages
ManufacturerRochester Electronics
Websitehttps://www.rocelec.com/

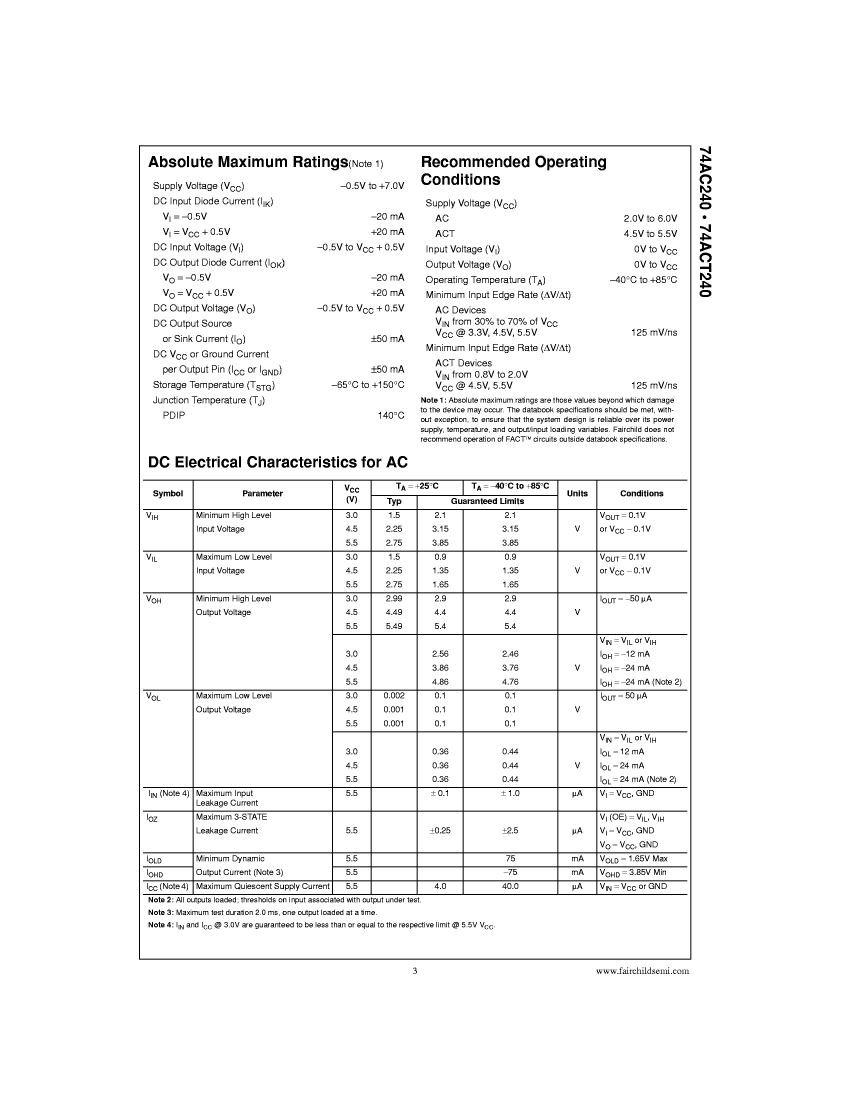

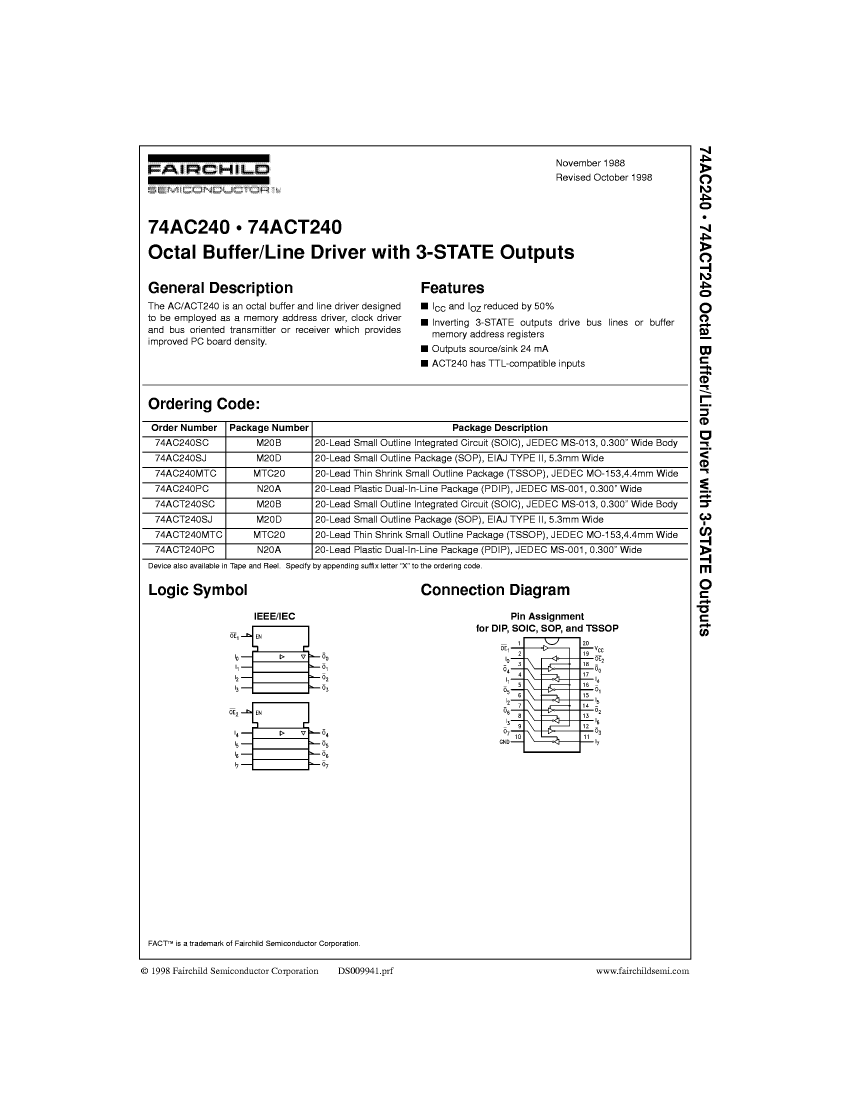

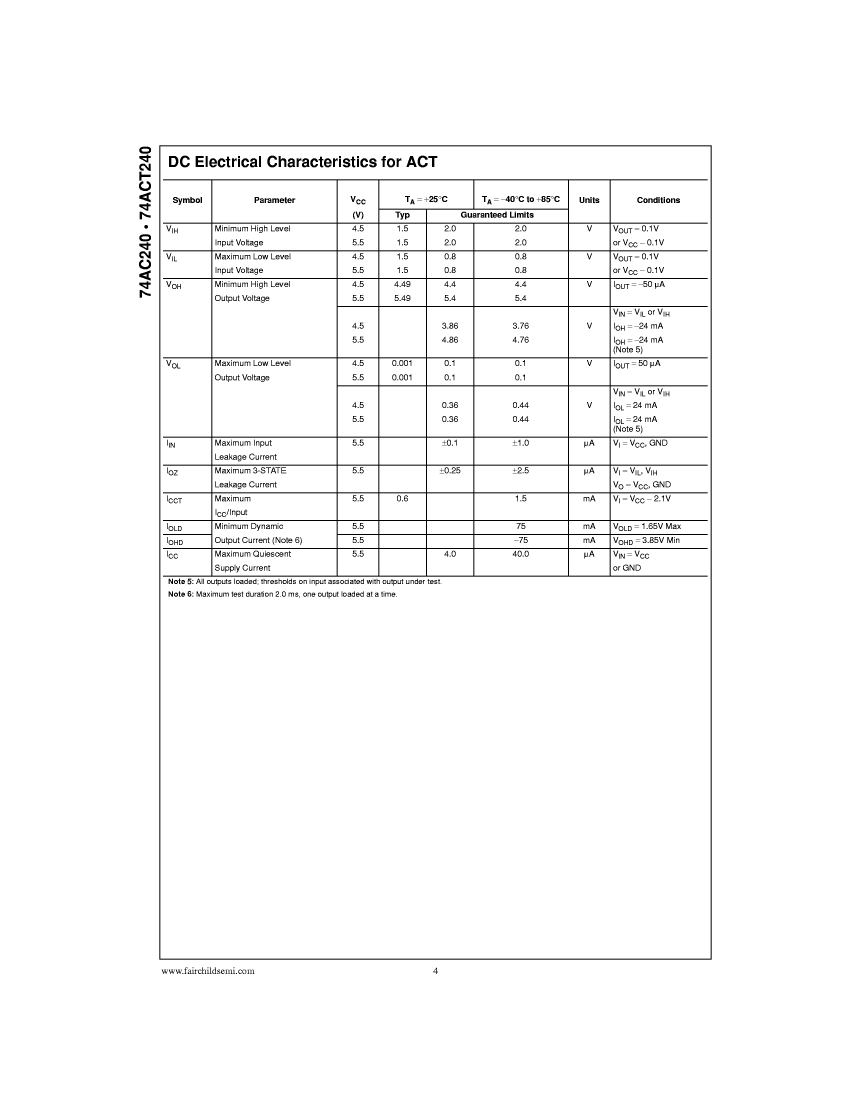

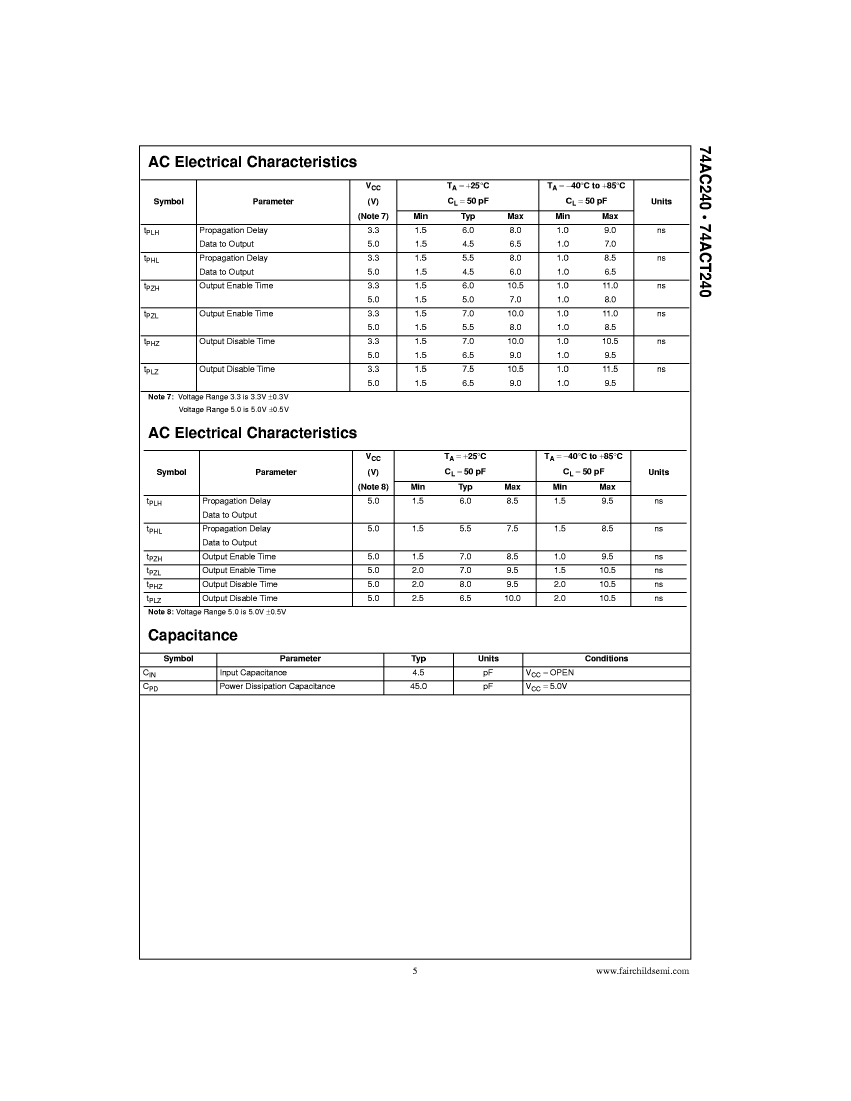

Download Datasheet Parametric View All

74ACT240CW Overview

Bus Driver, ACT Series, 2-Func, 4-Bit, Inverted Output, CMOS, 20 PINS

74ACT240CW Parametric

Parameter NameAttribute value
MakerRochester Electronics
package instructionDIE,
Reach Compliance Codeunknown
seriesACT
JESD-30 codeX-XUUC-N20
Logic integrated circuit typeBUS DRIVER
Number of digits4
Number of functions2
Number of ports2
Number of terminals20
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output characteristics3-STATE
Output polarityINVERTED
Package body materialUNSPECIFIED
encapsulated codeDIE
Package shapeUNSPECIFIED
Package formUNCASED CHIP
propagation delay (tpd)8.5 ns
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal formNO LEAD
Terminal locationUPPER
