PARA LIGHT ELECTRONICS CO., LTD.
4F, No.1, Lane 93, Chien Yi Road, Chung Ho City, Taipei, Taiwan
Tel: 886-2-2225-3733
Fax: 886-2-2225-4800
http://www.para.com.tw
E-mail:
para@para.com.tw
DATA
SHEET
PART NO.: LT670WDT-WW1-R
REV: A / 0
CUSTOMER’S APPROVAL : _______________
DCC : ____________
DRAWING NO. : DS-7A-12-0001
DATE : 2012-1-11 PAGE
1 of 17
PARA-FOR-065
SURFACE MOUNT DEVICE LED
Part No. : LT670WDT-WW1-R
l
Features
Û
Û
Û
Û
Û
Û
l
REV: A / 0
Top view, Wide view angle, Warm White color PLCC 2 package SMD LED .
EIA STD package, packing in 8mm tape on 7" diameter reels (ANSI/EIA-481-B-2001).
Compatible with automatic Pick & Place equipment.
Compatible with IR Reflow soldering and TTW soldering.
Pb free product and acceptable lead-free process.
Meet RoHS Green Product.
Application
＊General
lighting
＊Decorative
and Entertainment Lighting.
＊Indicators.
l
Switch lights.

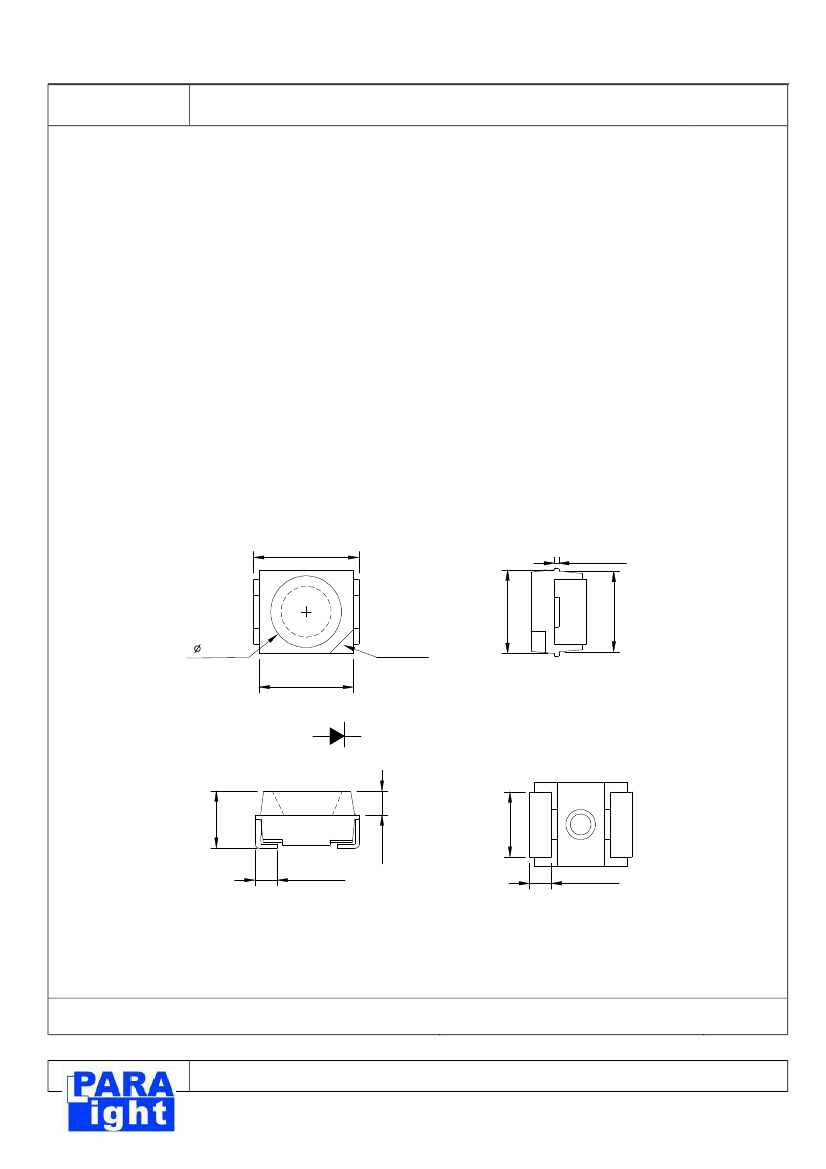

Package Outline Dimensions
TOP VIEW
SIDE VIEW
3.50
0.15
2.40
c 0.80
3.20
POLARITY +
FRONT VIEW
-
BACK VIEW
1.90
0.75
0.80
2.18
0.75
Notes:
1. All dimensions are in millimeters.
2. Tolerance is
±
0.10mm (.004") unless otherwise noted.
DRAWING NO. : DS-7A-12-0001
PARA-FOR-068
DATE : 2012-1-11
2.70
2.80
PAGE
2 of 17
SURFACE MOUNT DEVICE LED
Part No. : LT670WDT-WW1-R
l
Chip Materials
Û
Û
Û
Dice Material : InGaN
Light Color : Warm White
Lens Color : Light Yellow Diffused.
REV: A / 0
l
Absolute Maximum Ratings(Ta=25℃)
Symbol
P
D
I
PF
I
F
V
R
ESD
Topr
Tstg
Parameter
Power Dissipation
Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)
Continuous Forward Current
Reverse Voltage
Electrostatic Discharge Threshold (HBM)
Note A
Operating Temperature Range
Storage Temperature Range
Rating
110
100
20
5
2000
-40 ~ + 85
-40 ~ + 100
Unit
mW
mA
mA
V
V
℃
℃
Note A :
HBM : Human Body Model. Seller gives no other assurances regarding the ability of to
withstand ESD.
l
Electro-Optical Characteristics
(Ta=25℃)
Parameter
Luminous Intensity
Viewing Angle
CIE Chromaticity
CIE Chromaticity
Forward Voltage
Color Rending Index
Symbol
IV
2θ1/2
x
y
VF
CRI
83
Min.
1900
Typ.
2100
120
0.45
0.41
3.20
85
3.60
V
Ra
Max.
Unit
mcd
Deg
Test Condition
IF=20mA
Note 2
IF=20mA
IF = 20mA
IF=20mA
DRAWING NO. : DS-7A-12-0001
PARA-FOR-068
DATE : 2012-1-11
PAGE
3 of 17
SURFACE MOUNT DEVICE LED
Part No. : LT670WDT-WW1-R
Notes:
REV: A / 0
1. Luminous intensity is measured with a light sensor and filter combination that
proximities the CIE eye-response curve.
2.
θ1/2
is the off-axis angle at which the luminous intensity is half the axial luminous
intensity.
3. Caution in ESD :
Static Electricity and surge damages the LED. It is recommended use a wrist band or
anti-electrostatic glove when handling the LED. All devices, equipment and machinery
must be properly grounded.
4. Major standard testing equipment by
“Instrument
System” Model : CAS140B Compact
Array Spectrometer and
“KEITHLEY”
Source Meter Model : 2400.
l

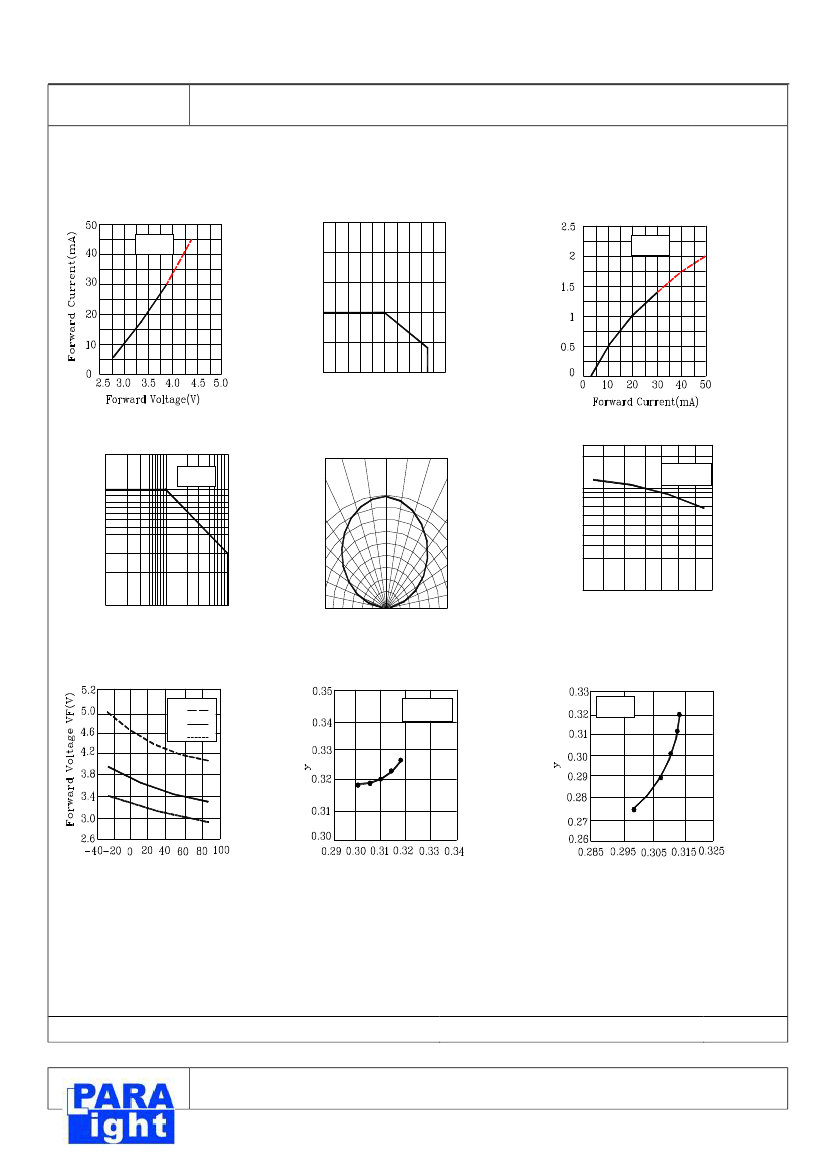

Typical Electro-Optical Characteristics Curves
Fig.1 Relative Intensity vs. Wavelength
DRAWING NO. : DS-7A-12-0001
PARA-FOR-068
DATE : 2012-1-11
PAGE
4 of 17
SURFACE MOUNT DEVICE LED
Part No. : LT670WDT-WW1-R
l
Typical Electro-Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)
50
Ta=25
℃
Relative Luminous lntensity
Normalized of 20mA
Forward Current IF(mA)
40
30
20
10
0
0
20
40
60
80
100
Ta=25
℃
REV: A / 0
Ambient Temperature Ta(
℃
)
Fig.1 Forward Current vs.Forward Voltage
Allowable Forward Current IFP(mA)
200
Ta=25
℃
100
Fig.2 Forward Current Derating Curve
0°
10° 20°
Fig.3 Relative Luminous Intensity vs.Forward Current
Relative luminous intensity
2
IFP=20mA
1
0.5
0.2
0.1
-40 -20
0
20 40
60
80 100
30°
50
30
20
1.0
0.9
0.8
0.7
40°
50°
60°
70°
80°
90°
10
1
5 10 20
50 100
0.5 0.3 0.1 0.2 0.4 0.6
Ambient Temperature Ta(
℃
)
Ambient Temperature Ta(
℃
)
Fig.4 Forward Current Derating Curve
Fig.5 Spatial Distribution
Fig.6 Luminous Intensity vs.Ambient Temperature
IFP=60mA
IFP=20mA
IFP=5mA
IFP=20mA
Ta=25
℃
100mA
50mA
-30
℃
0
℃
85
℃
50
℃
25
℃
1mA
20mA
5mA
Ambient Temperature Ta(
℃
)
x
x
Fig.7 Ambient Temperature vs.Forward Voltage
Fig.8 Ambient Temperature vs.Chromaticity Coordinate
Fig.9 Forward Current vs.Chromaticity Coordinate
DRAWING NO. : DS-7A-12-0001
PARA-FOR-068
DATE : 2012-1-11
PAGE
5 of 17
