87622-8003 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87622-8003

87622-8003: DescriptionRectangular Power Connector, 30 Contact(s), Female, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size242KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

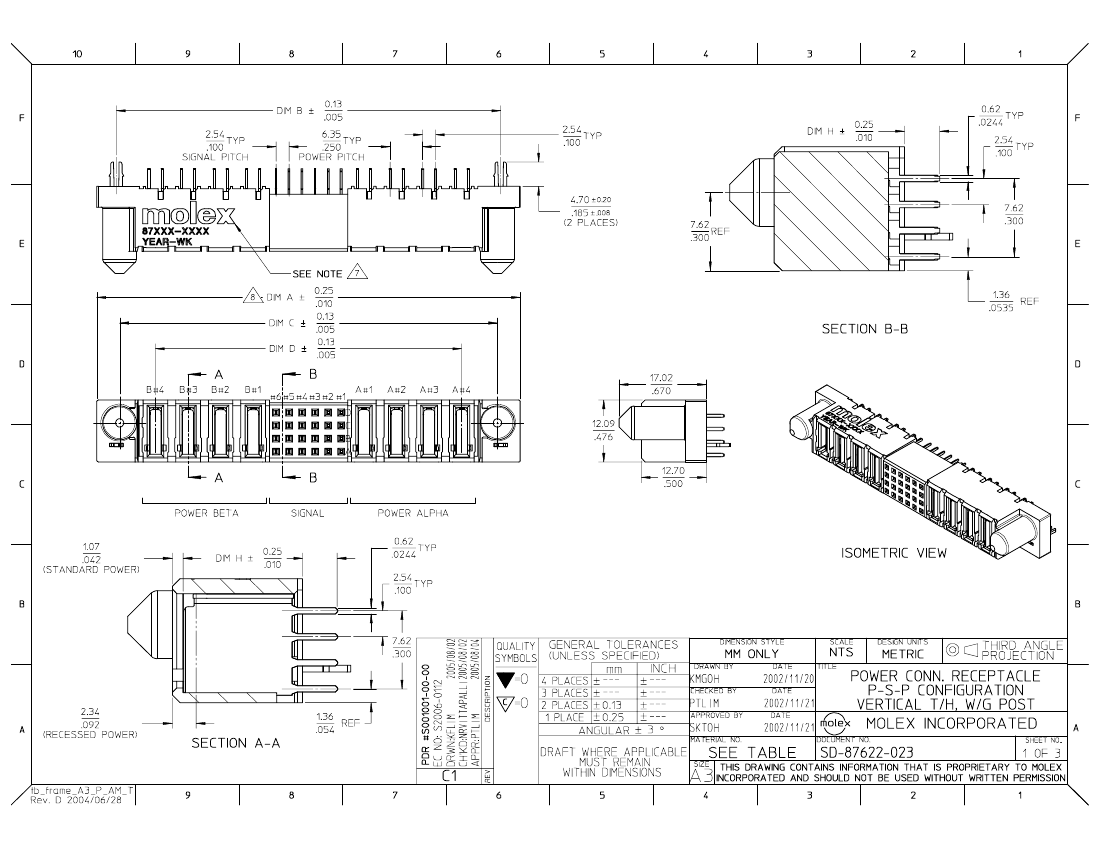

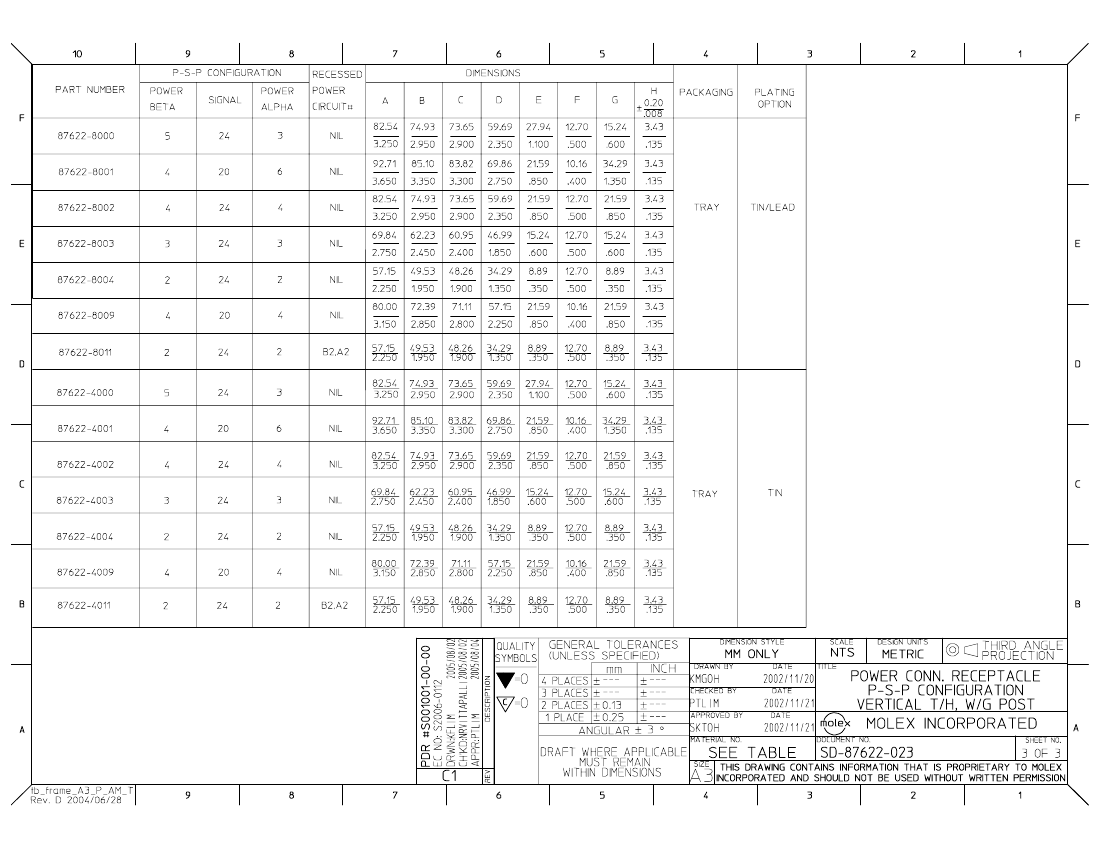

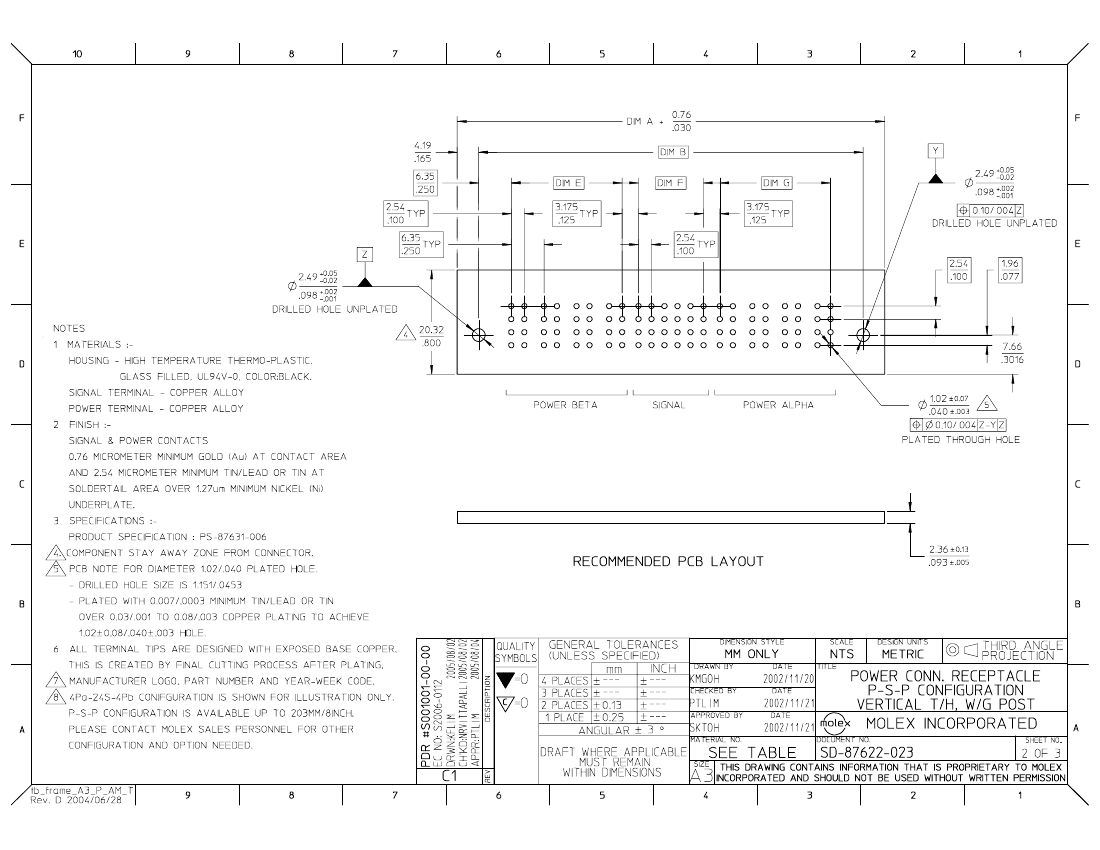

87622-8003 Overview

Rectangular Power Connector, 30 Contact(s), Female, Solder Terminal, Receptacle,

87622-8003 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TRAY PACKAGING
Board mount options	SPLIT BOARD LOCK
body width	0.476 inch
subject depth	0.67 inch
body length	2.75 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S24P6
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VAC V
Durability	100 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	1.0008 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Mixed contacts	YES
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
Rated current (signal)	2.5 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	GLASS FILLED POLYETHYLENE
Terminal length	0.135 inch
Termination type	SOLDER
Total number of contacts	30
UL Flammability Code	94V-0
Evacuation force-minimum value	.0973 N

87622-8003 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

87622-8003 Related Products

	87622-8003	87622-8000	87622-8001	87622-8011	87622-8009	87622-8004	87622-8002
Description	Rectangular Power Connector, 30 Contact(s), Female, Solder Terminal, Receptacle,	Rectangular Power Connector, 32 Contact(s), Female, Solder Terminal, Receptacle	Rectangular Power Connector, 30 Contact(s), Female, Solder Terminal, Receptacle	Rectangular Power Connector, 28 Contact(s), Female, Solder Terminal, Receptacle	Rectangular Power Connector, 28 Contact(s), Female, Solder Terminal, Receptacle	Rectangular Power Connector, 28 Contact(s), Female, Solder Terminal, Receptacle	Rectangular Power Connector, 32 Contact(s), Female, Solder Terminal, Receptacle
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	compliant	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	YES	YES	YES	YES	YES	YES	YES
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	30	32	30	28	28	28	32
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
ECCN code	EAR99	-	EAR99	-	EAR99	EAR99	EAR99
Manufacturer's serial number	-	87622	87622	87622	87622	87622	87622
