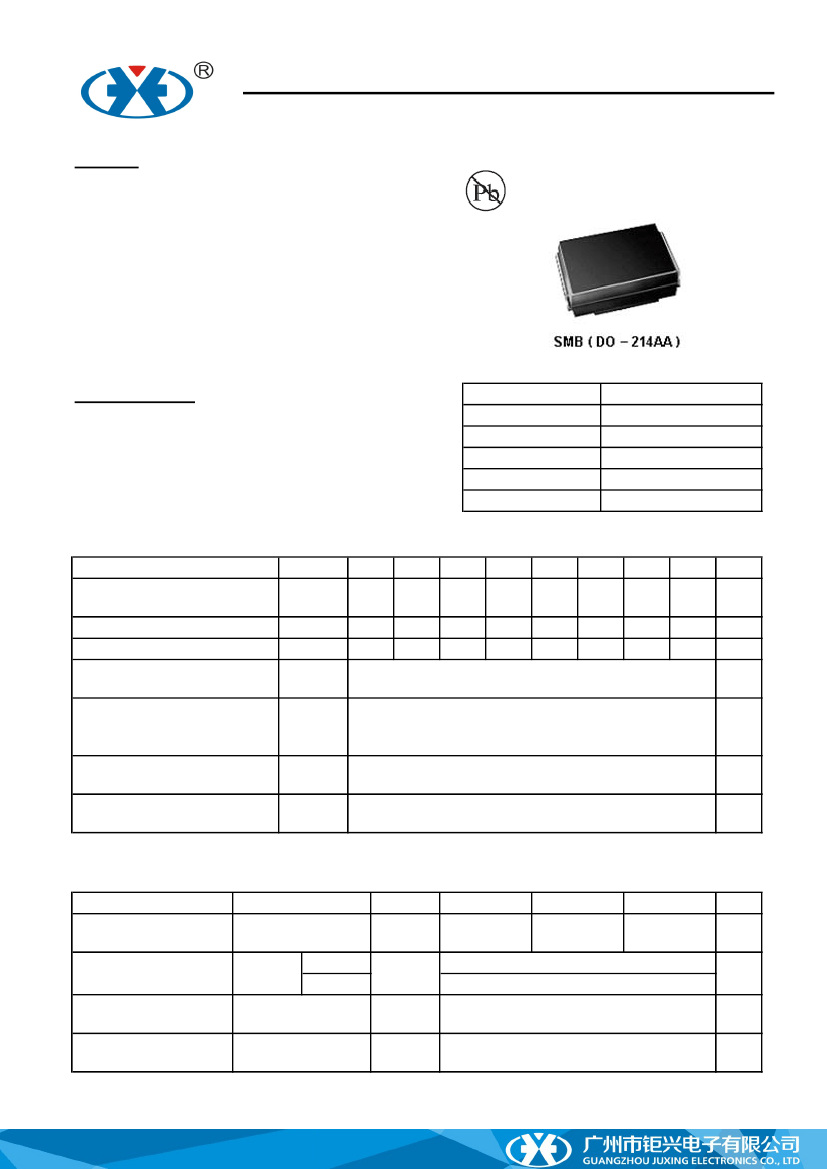

ES3A-ES3J
Surface Mount Superfast Rectifiers
Features
●
●
●
●
●
●
Glass passivated chip junctions
Ideal for automated placement
Ultrafast reverse recovery time
Low profile package
High forward surge capability
High temperature soldering：
260℃/10 seconds at terminals
Component in accordance to
RoHS 2002/95/1 and WEEE 2002/96/EC
●
Major Ratings and Characteristics
Mechanical Date
●
I
F(AV)
V
RRM
I
FSM
t
rr
V
F
T
j
max.
(T
A
= 25 °C unless otherwise noted)
3.0 A
50 V to 600 V
100 A
35 nS
0.95 V, 1.25 V, 1.7 V
150 °C
Case:
JEDEC DO-214AA molded plastic
body over glass passivated chip
Terminals:
Solder plated, solderable per
J-STD-002B and JESD22-B102D
Polarity:
Laser band denotes cathode end
●
●
Maximum Ratings & Thermal Characteristics
Items
Maximum repetitive peak reverse
voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified
current
Peak forward surge current 8.3 ms
single half sine-wave superimposed
on rated load
Thermal resistance from junction to
lead
(1)
Operating junction and storage
temperature range
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
ES3A
50
35
50
ES3B
100
70
100
ES3C
150
105
150
ES3D
200
140
200
3
ES3E
300
210
300
ES3G
400
280
400
ES3H
500
350
500
ES3J
600
420
600
UNIT
V
V
V
A
I
FSM
100
A
R
θJL
T
J
, T
STG
25
–55 to +150
℃/
W
℃
Note 1: Mounted on P.C.B. with 0.28 x 0.28” (7.0 x 7.0mm) copper pad areas.
(T
A
= 25 °C unless otherwise noted)
Electrical Characteristics
Items
Maximum Instantaneous
forward voltage
Maximum reverse current
Reverse recovery time
Typical junction
capacitance
Test conditions
I
F
=3A
(2)
V
R
=V
DC
T
A
=25℃
T
A
=100℃
Symbol
V
F
I
R
t
rr
C
J
ES3A~D
0.95
ES3E~G
1.25
5
50
35
45
ES3H~J
1.70
UNIT
V
μA
nS
pF
I
F
=0.5A I
R
=1A
I
rr
=0.25A
4.0 V ,1MHz
Note 2: Pulse test:300μs pulse width,1% duty cycle.
http://www.trr-jx.com
ES3A-ES3J
Surface Mount Superfast Rectifiers

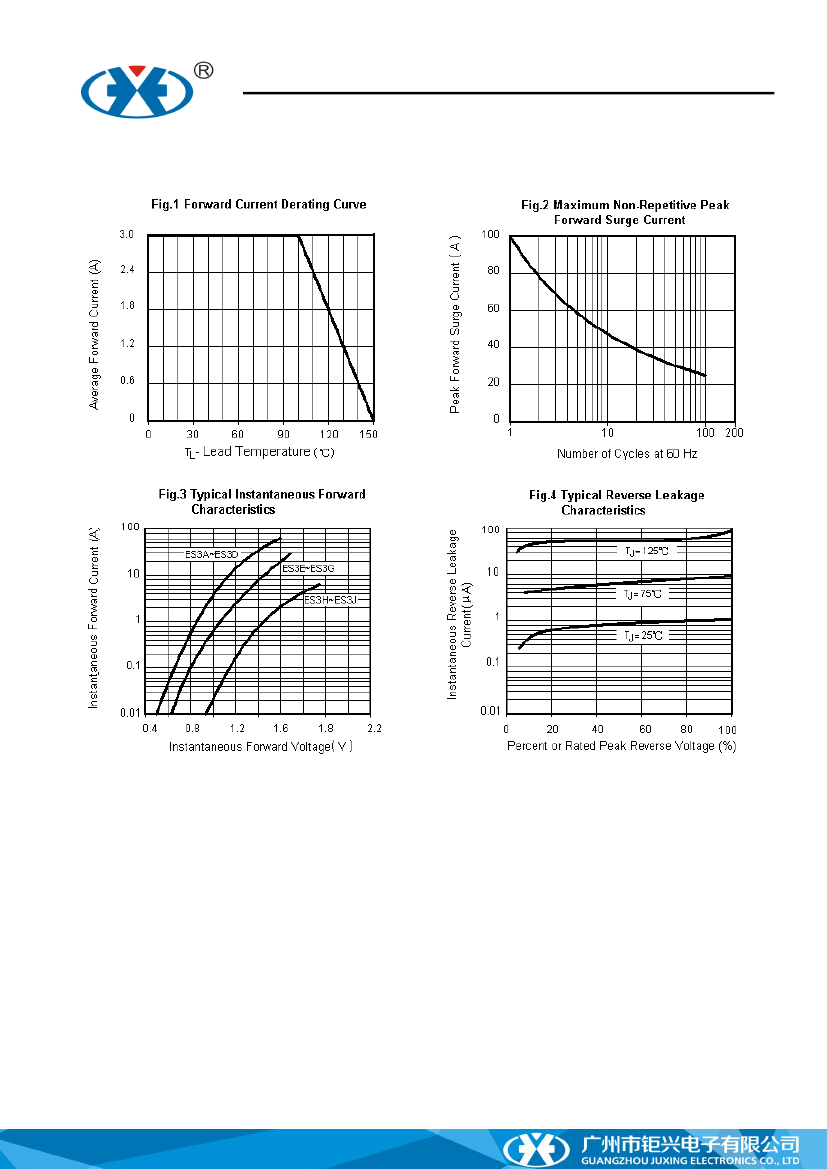

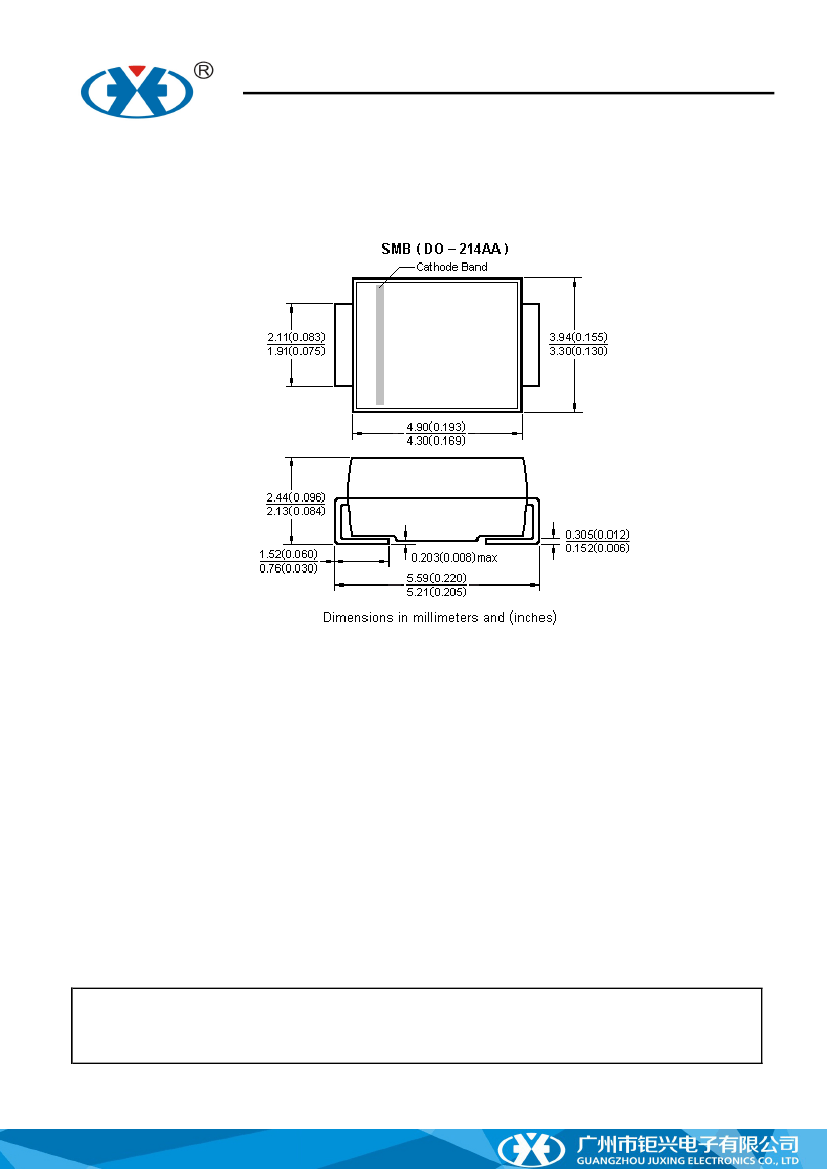

Package Outline
Notice
●
●
Product is intended for use in general electronics applications.
Product should be worked less than the ratings; if exceeded, may cause permanent damage. or introduce latent failure
mechanisms.
The absolute maximum ratings are rated values and must not be exceeded during operation. The following are the general
derating methods you design a circuit with a device.
I
F(AV)
: We recommend that the worst case current be no greater than 80% .
I
FSM
: This rating specifies the non-repetitive peak current. This is only applied for an abnormal operation, which the general
during the lifespan of the device.
T
J
:
Derate this rating when using a device in order to ensure high reliability. We recommend that the device be used at
a T
J
of below 125°C.
●
●
TRR is registered trademark of Rising-sun Technology. Rising-sun Technology reserves the right to make changes to any product in this
specification to improve reliability,functional characteristics,or design without notice.
Rising-sun Technology does not assure any liability arising out of the applications or any product described in this specification.
Rising-sun Technology advises customers to obtain the latest version of the device information before placing orders to verify that the
required information is current.
●
●
http://www.trr-jx.com
