EPM7032VLI44-20 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> EPM7032VLI44-20

Preview

EPM7032VLI44-20: DescriptionEE PLD, 20ns, 32-Cell, CMOS, PQCC44, PLASTIC, LCC-44; CategoryProgrammable logic devices Programmable logic; File Size1MB，70 Pages; ManufacturerAltera (Intel)

Download Datasheet Parametric Compare View All

EPM7032VLI44-20 Overview

EE PLD, 20ns, 32-Cell, CMOS, PQCC44, PLASTIC, LCC-44

EPM7032VLI44-20 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Altera (Intel)
Parts packaging code	LCC
package instruction	PLASTIC, LCC-44
Contacts	44
Reach Compliance Code	compliant
Other features	LABS INTERCONNECTED BY PIA; 2 LABS; 32 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK
maximum clock frequency	62.5 MHz
In-system programmable	NO
JESD-30 code	S-PQCC-J44
JESD-609 code	e0
JTAG BST	NO
length	16.5862 mm
Dedicated input times
Number of I/O lines	32
Number of macro cells	32
Number of terminals	44
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	0 DEDICATED INPUTS, 32 I/O
Output function	MACROCELL
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	220
power supply	3.3 V
Programmable logic type	EE PLD
propagation delay	20 ns
Certification status	Not Qualified
Maximum seat height	4.57 mm
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	16.5862 mm

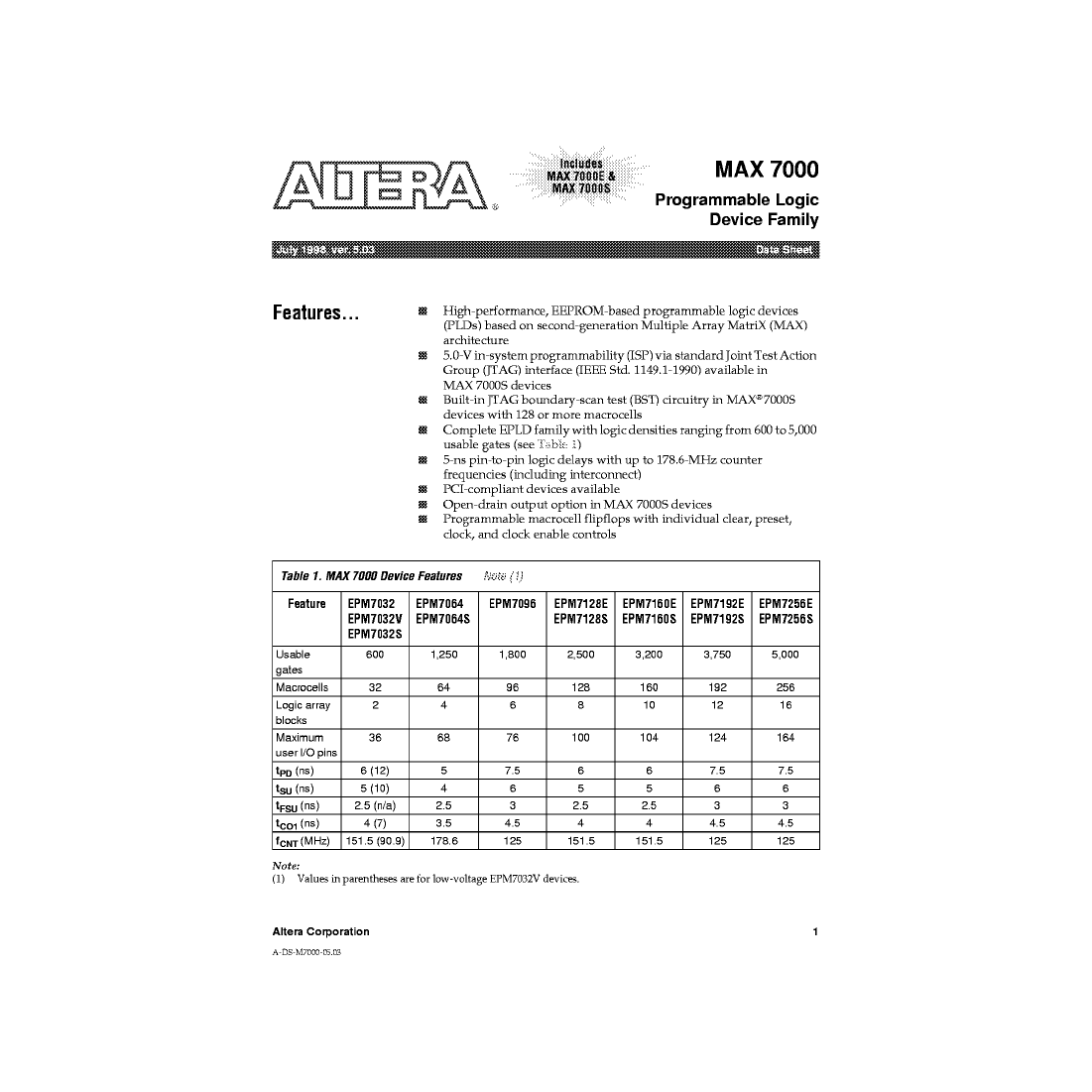

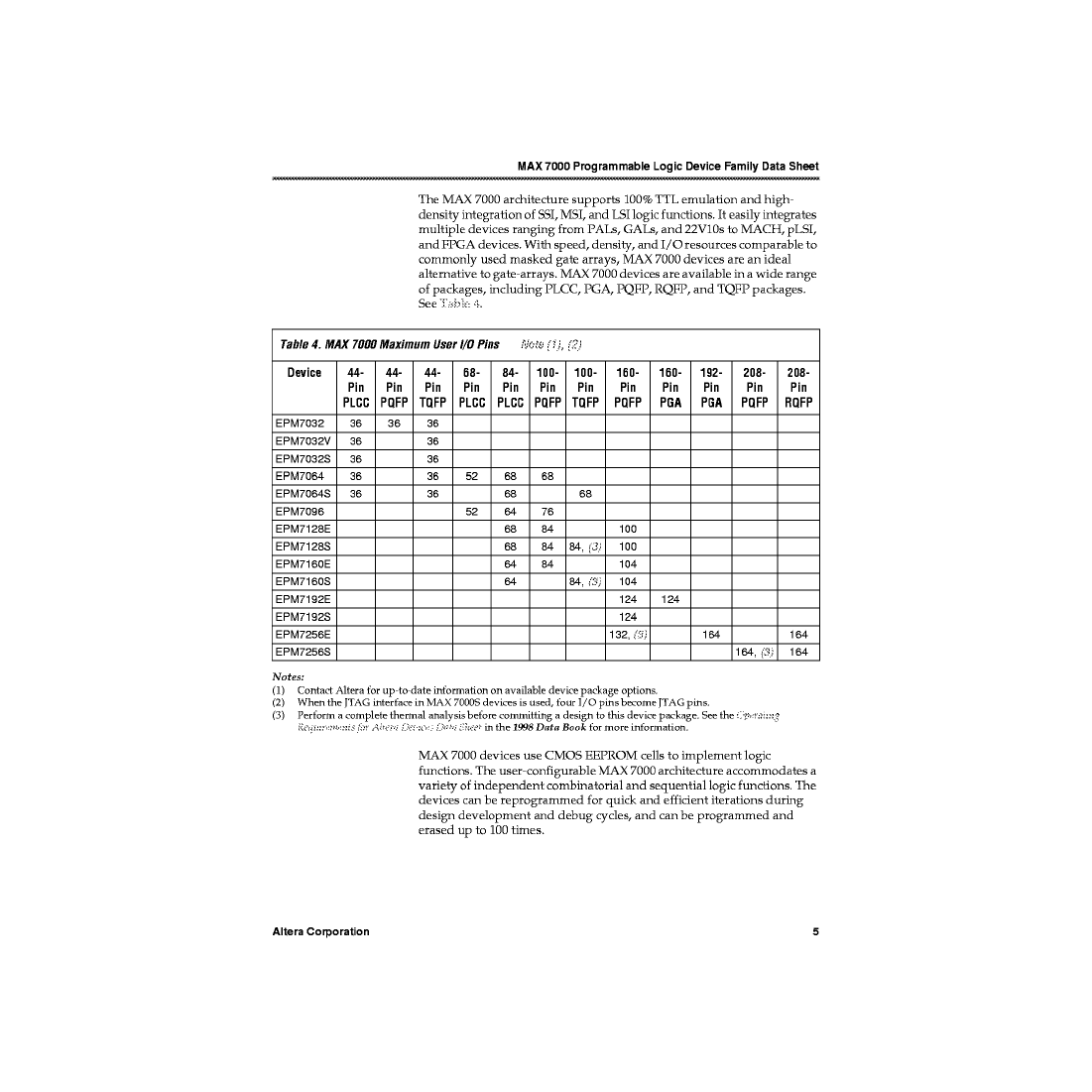

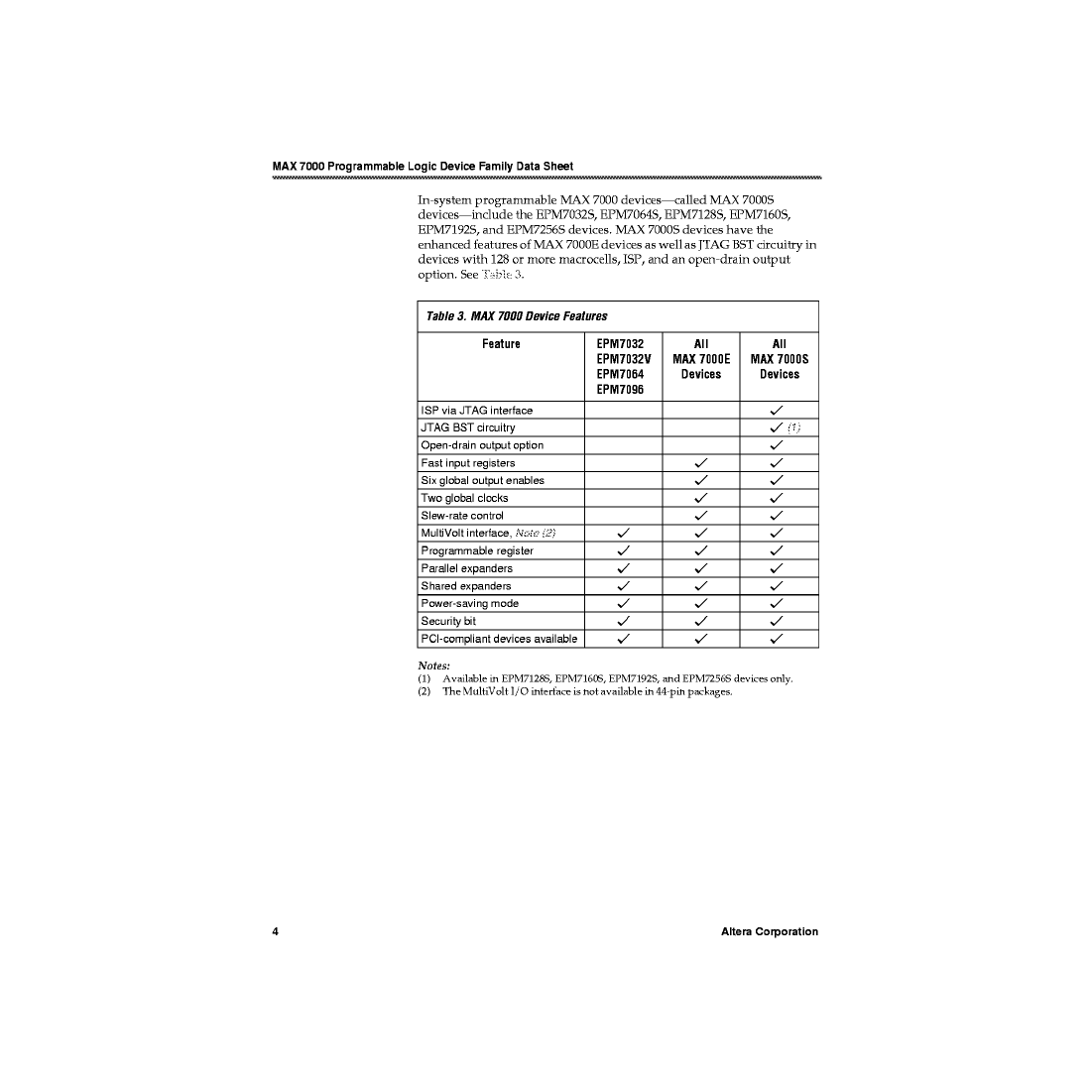

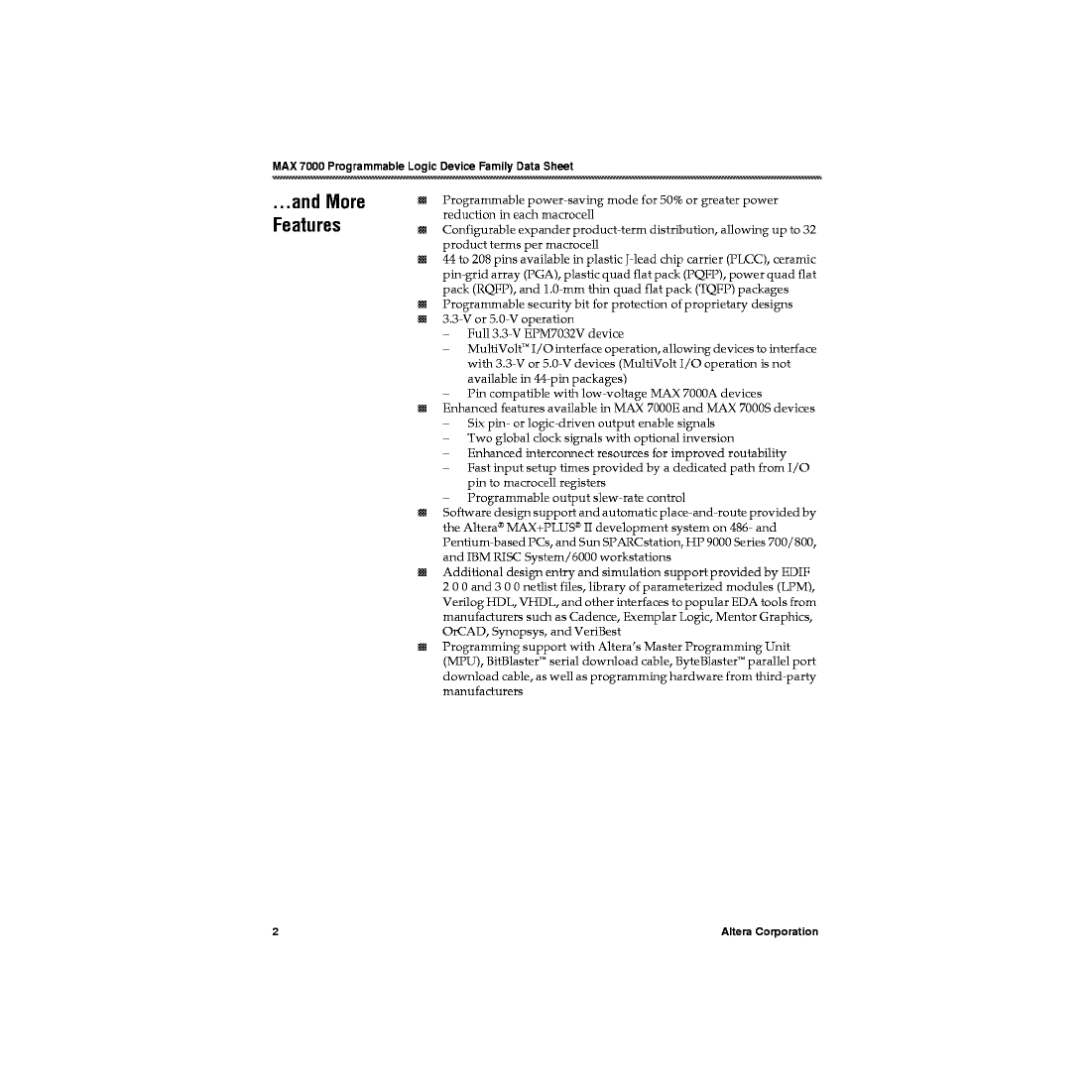

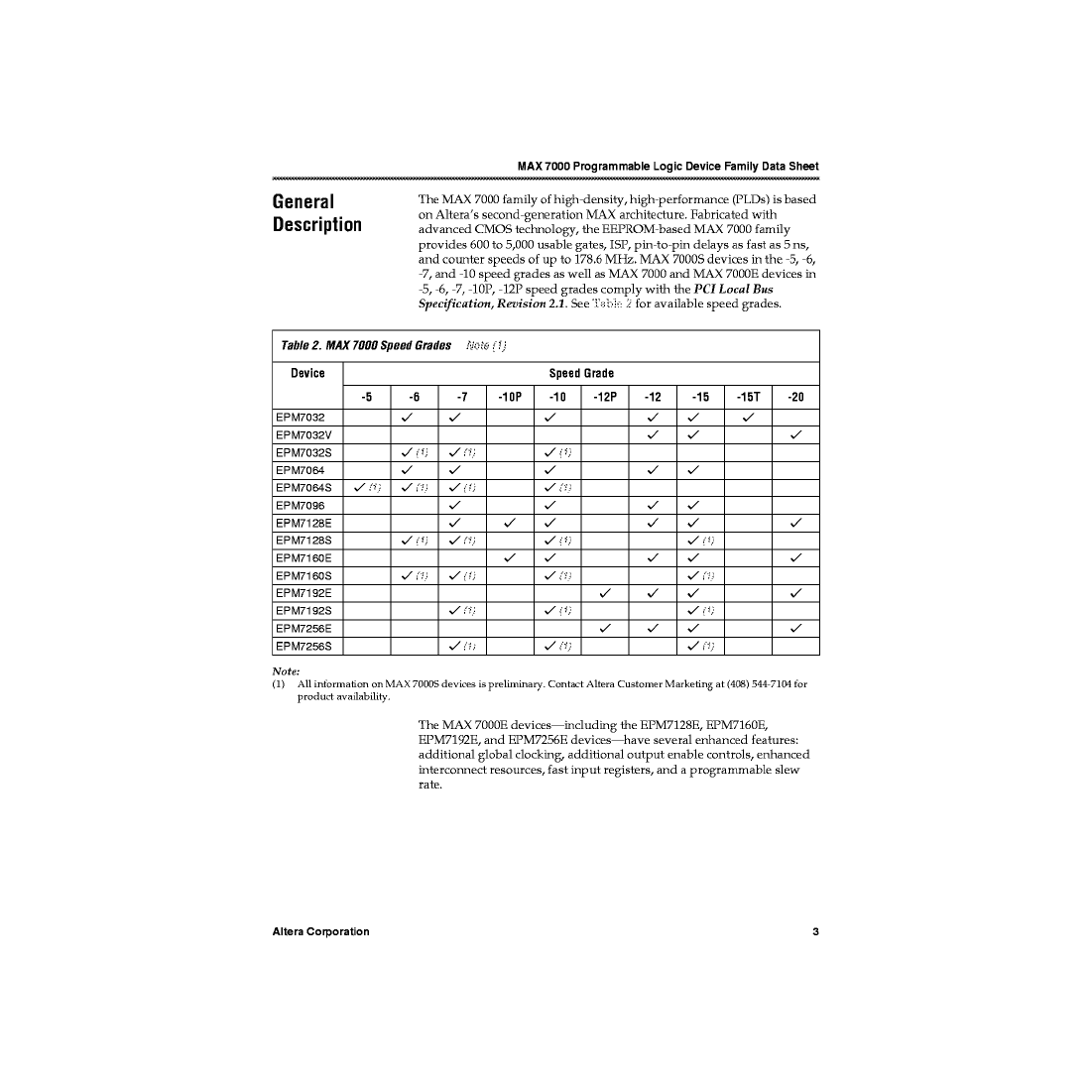

EPM7032VLI44-20 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

EPM7032VLI44-20 Related Products

	EPM7032VLI44-20	EPM7032VLC44-20	EPM7032VLC44-12	EPM7032VTC44-12	EPM7032VTC44-15	EPM7032VLC44-15
Description	EE PLD, 20ns, 32-Cell, CMOS, PQCC44, PLASTIC, LCC-44	EE PLD, 20ns, 32-Cell, CMOS, PQCC44, PLASTIC, LCC-44	EE PLD, 12ns, 32-Cell, CMOS, PQCC44, PLASTIC, LCC-44	EE PLD, 12ns, 32-Cell, CMOS, PQFP44, 1 MM HEIGHT, PLASTIC, TQFP-44	EE PLD, 15ns, 32-Cell, CMOS, PQFP44, 1 MM HEIGHT, PLASTIC, TQFP-44	EE PLD, 15ns, 32-Cell, CMOS, PQCC44, PLASTIC, LCC-44
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Altera (Intel)	Altera (Intel)	Altera (Intel)	Altera (Intel)	Altera (Intel)	Altera (Intel)
Parts packaging code	LCC	LCC	LCC	QFP	QFP	LCC
package instruction	PLASTIC, LCC-44	QCCJ, LDCC44,.7SQ	QCCJ, LDCC44,.7SQ	LQFP, TQFP44,.47SQ,32	LQFP, TQFP44,.47SQ,32	QCCJ, LDCC44,.7SQ
Contacts	44	44	44	44	44	44
Reach Compliance Code	compliant	unknow	unknow	unknow	unknow	unknow
Other features	LABS INTERCONNECTED BY PIA; 2 LABS; 32 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	LABS INTERCONNECTED BY PIA; 2 LABS; 32 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	LABS INTERCONNECTED BY PIA; 2 LABS; 32 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	LABS INTERCONNECTED BY PIA; 2 LABS; 32 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	LABS INTERCONNECTED BY PIA; 2 LABS; 32 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	LABS INTERCONNECTED BY PIA; 2 LABS; 32 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK
maximum clock frequency	62.5 MHz	62.5 MHz	90.9 MHz	90.9 MHz	76.9 MHz	76.9 MHz
In-system programmable	NO	NO	NO	NO	NO	NO
JESD-30 code	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	S-PQFP-G44	S-PQFP-G44	S-PQCC-J44
JESD-609 code	e0	e0	e0	e0	e0	e0
JTAG BST	NO	NO	NO	NO	NO	NO
length	16.5862 mm	16.5862 mm	16.5862 mm	10 mm	10 mm	16.5862 mm
Number of I/O lines	32	32	32	32	32	32
Number of macro cells	32	32	32	32	32	32
Number of terminals	44	44	44	44	44	44
Maximum operating temperature	85 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	0 DEDICATED INPUTS, 32 I/O	0 DEDICATED INPUTS, 32 I/O	0 DEDICATED INPUTS, 32 I/O	0 DEDICATED INPUTS, 32 I/O	0 DEDICATED INPUTS, 32 I/O	0 DEDICATED INPUTS, 32 I/O
Output function	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	QCCJ	LQFP	LQFP	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ	LDCC44,.7SQ	LDCC44,.7SQ	TQFP44,.47SQ,32	TQFP44,.47SQ,32	LDCC44,.7SQ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	220	220	220	220	220	220
power supply	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Programmable logic type	EE PLD	EE PLD	EE PLD	EE PLD	EE PLD	EE PLD
propagation delay	20 ns	20 ns	12 ns	12 ns	15 ns	15 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	4.57 mm	4.57 mm	1.27 mm	1.27 mm	4.57 mm
Maximum supply voltage	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND	J BEND	GULL WING	GULL WING	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	0.8 mm	0.8 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	30	NOT SPECIFIED	NOT SPECIFIED	30
width	16.5862 mm	16.5862 mm	16.5862 mm	10 mm	10 mm	16.5862 mm
ECCN code	-	EAR99	EAR99	EAR99	EAR99	-
