SS22_DO-214AC datasheet, PDF - EEWORLD Datasheet

SS22_DO-214AC: Description2 A, 100 V, SILICON, RECTIFIER DIODE, DO-214AA; Categorysemiconductor Discrete semiconductor; File Size1MB，2 Pages; ManufacturerJuxing Electronic; Websitehttp://www.trr-jx.com

Download Datasheet Parametric Compare View All

SS22_DO-214AC Overview

2 A, 100 V, SILICON, RECTIFIER DIODE, DO-214AA

Parameter Name	Attribute value
Number of terminals	2
Number of components	1
Processing package description	SMB, 2 PIN
state	DISCONTINUED
packaging shape	Rectangle
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	C BEND
Terminal location	pair
Packaging Materials	Plastic/Epoxy
Craftsmanship	SCHOTTKY
structure	single
Diode component materials	silicon
Maximum power consumption limit	1.3 W
Diode type	rectifier diode
application	GENERAL PURPOSE
Phase	1
Maximum repetitive peak reverse voltage	100 V
Maximum average forward current	2 A
Maximum non-repetitive peak forward current	50 A

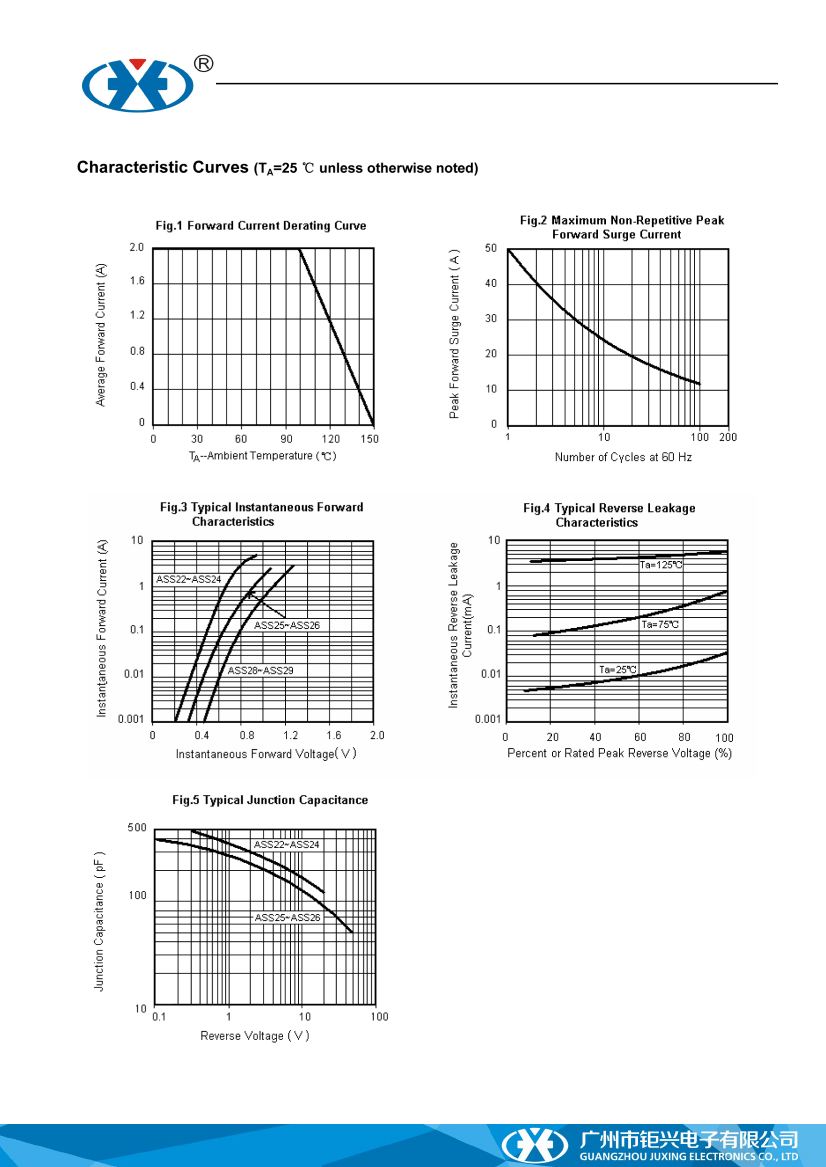

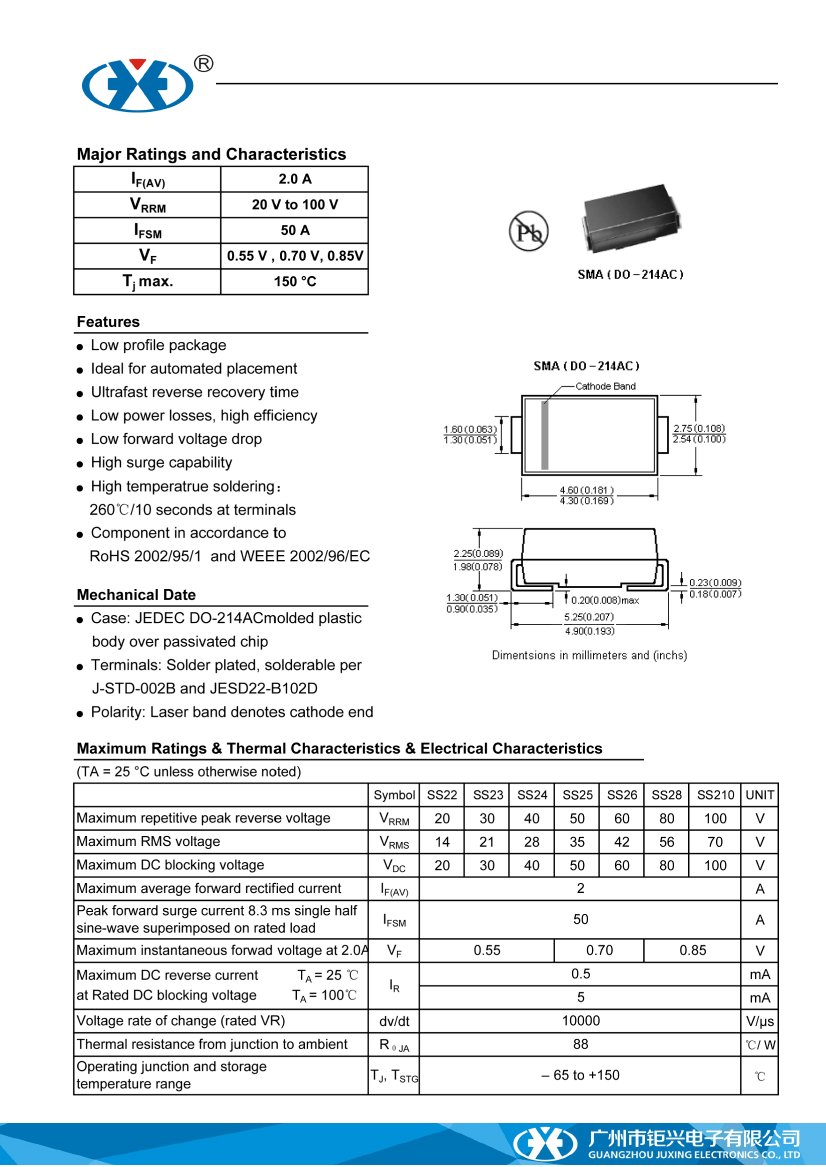

SS22~SS210

Surface Mount Schottky Rectifiers

http://www.trr-jx.com

	SS22_DO-214AC	SS24	SS26
Description	2 A, 100 V, SILICON, RECTIFIER DIODE, DO-214AA	RECTIFIER DIODE	2 A, 60 V, SILICON, RECTIFIER DIODE, DO-214AA
Number of terminals	2	-	2
Number of components	1	-	1
Processing package description	SMB, 2 PIN	-	SMB, 2 PIN
state	DISCONTINUED	ACTIVE	ACTIVE
packaging shape	Rectangle	-	Rectangle
Package Size	SMALL OUTLINE	-	SMALL OUTLINE
surface mount	Yes	-	Yes
Terminal form	C BEND	-	C BEND
Terminal location	pair	-	pair
Packaging Materials	Plastic/Epoxy	-	Plastic/Epoxy
Craftsmanship	SCHOTTKY	-	SCHOTTKY
structure	single	-	single
Diode component materials	silicon	-	silicon
Maximum power consumption limit	1.3 W	-	1.3 W
Diode type	rectifier diode	rectifier diode	rectifier diode
application	GENERAL PURPOSE	-	GENERAL PURPOSE
Phase	1	-	1
Maximum repetitive peak reverse voltage	100 V	-	60 V
Maximum average forward current	2 A	-	2 A
Maximum non-repetitive peak forward current	50 A	-	50 A
