HA4-4902-8 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> HA4-4902-8

Preview

HA4-4902-8: DescriptionHA4-4902-8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size545KB，8 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

HA4-4902-8 Overview

HA4-4902-8

HA4-4902-8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	not_compliant
Amplifier type	COMPARATOR
Maximum bias current (IIB) at 25C	0.15 µA
Maximum input offset voltage	8000 µV
JESD-30 code	S-XQCC-N20
JESD-609 code	e0
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5,+-15 V
Certification status	Not Qualified
Nominal response time	180 ns
Filter level	MIL-STD-883 Class B (Modified)
Maximum slew rate	20 mA
surface mount	YES
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD

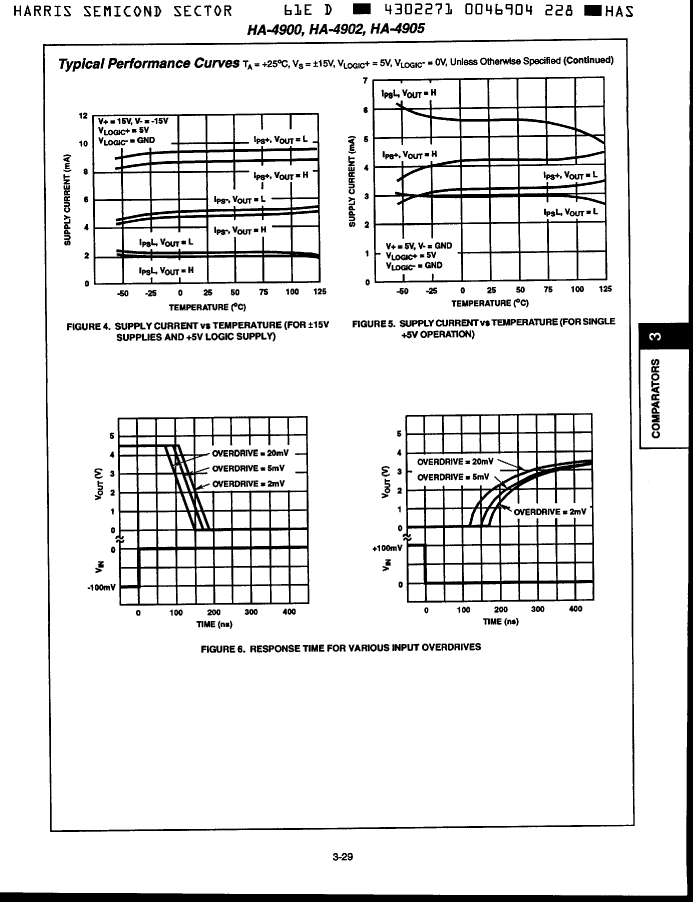

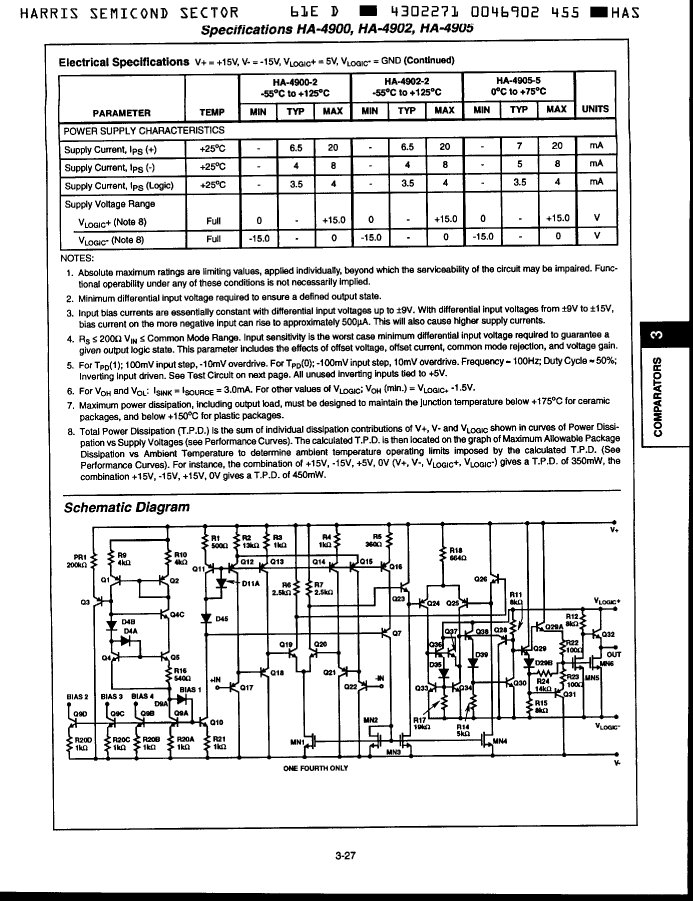

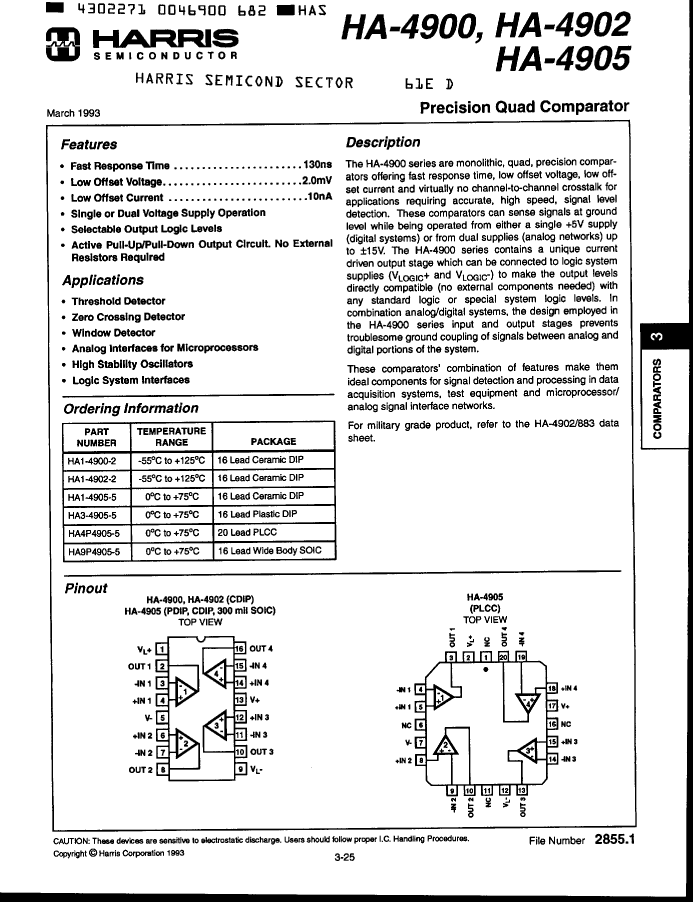

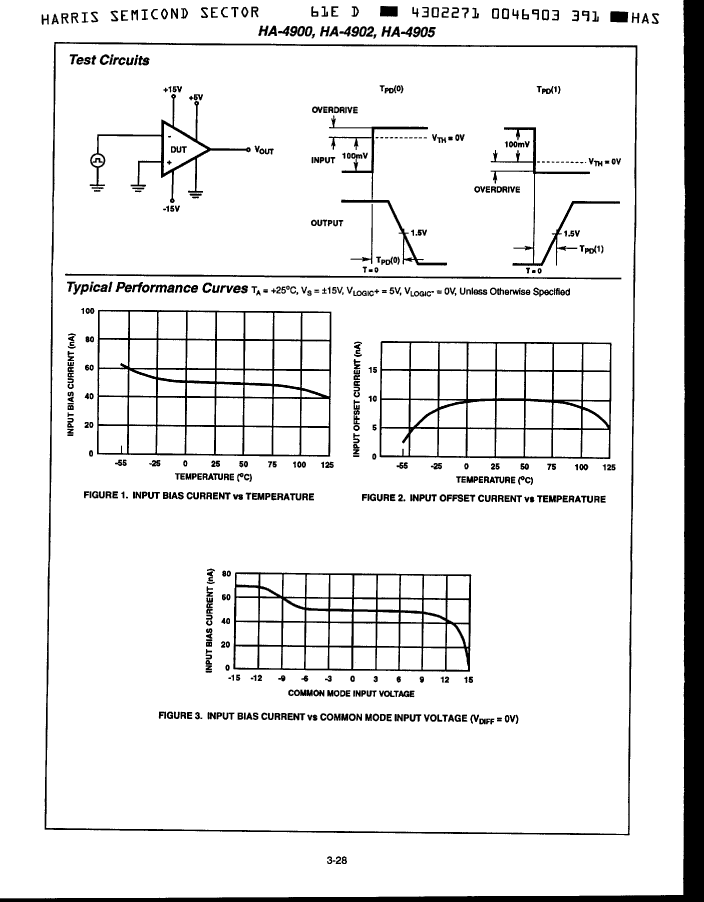

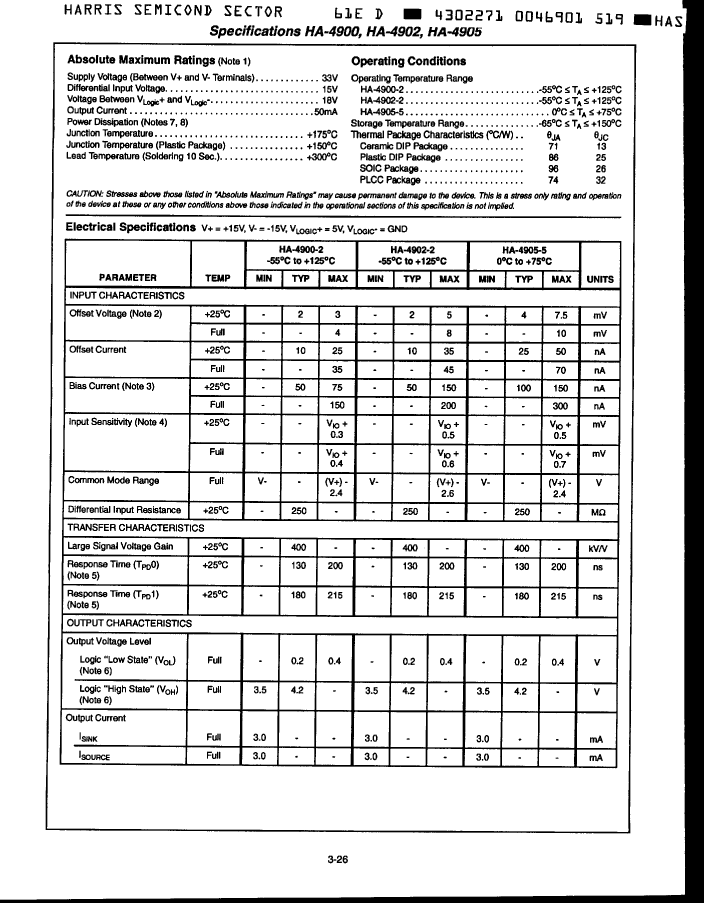

HA4-4902-8 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

HA4-4902-8 Related Products

	HA4-4902-8	5962-01-142-1743	5962-01-194-5683	5962-01-246-7083	HA1-4905-7	HA1-4900-8	HA1-4902-8	HA4-4902-2
Description	HA4-4902-8	IC,VOLT COMPARATOR,QUAD,BIPOLAR,DIP,16PIN,CERAMIC	IC,VOLT COMPARATOR,QUAD,BIPOLAR,DIP,16PIN,CERAMIC	IC,VOLT COMPARATOR,QUAD,BIPOLAR,DIP,16PIN,CERAMIC	HA1-4905-7	IC,VOLT COMPARATOR,QUAD,BIPOLAR,DIP,16PIN,CERAMIC	IC,VOLT COMPARATOR,QUAD,BIPOLAR,DIP,16PIN,CERAMIC	HA4-4902-2
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	_compli
Amplifier type	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR
Maximum bias current (IIB) at 25C	0.15 µA	0.075 µA	0.15 µA	0.15 µA	0.15 µA	0.075 µA	0.15 µA	0.15 µA
Maximum input offset voltage	8000 µV	4000 µV	8000 µV	8000 µV	10000 µV	4000 µV	8000 µV	8000 µV
JESD-30 code	S-XQCC-N20	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	S-XQCC-N20
Number of terminals	20	16	16	16	16	16	16	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	70 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	QCCN	DIP	DIP	DIP	DIP	DIP	DIP	QCCN
Encapsulate equivalent code	LCC20,.35SQ	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	LCC20,.35SQ
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER
power supply	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V
Nominal response time	180 ns	180 ns	180 ns	180 ns	180 ns	180 ns	180 ns	180 ns
Maximum slew rate	20 mA	20 mA	20 mA	20 mA	20 mA	20 mA	20 mA	20 mA
surface mount	YES	NO	NO	NO	NO	NO	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	COMMERCIAL	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	QUAD
package instruction	QCCN, LCC20,.35SQ	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	-	-	-	QCCN, LCC20,.35SQ
JESD-609 code	e0	-	-	-	e0	e0	e0	e0
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883 Class B (Modified)	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-
Terminal surface	Tin/Lead (Sn/Pb)	-	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Parts packaging code	-	DIP	DIP	DIP	DIP	DIP	DIP	-
Contacts	-	16	16	16	16	16	16	-
ECCN code	-	EAR99	EAR99	EAR99	-	EAR99	EAR99	-
