Heavy Duty (RCHS Series)
Front Or
Rear View
17.81 CLEAR
Side View
Light Gray (Textured)
For complete drawing information link
here to our website covering this series.
FEATURES
•

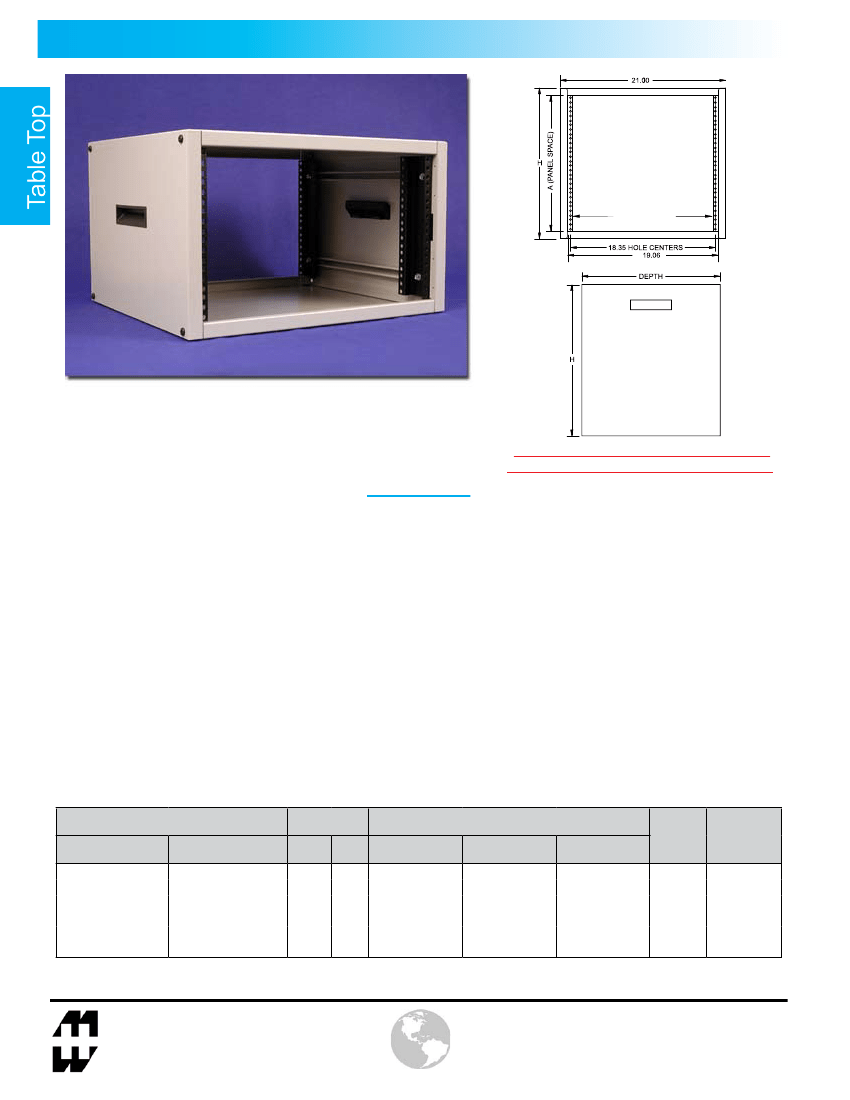

Heavy duty, 16-gauge steel, 19” rack mount - table top cabinet.
•
Choice of three depths - 17.5” (444 mm), 24.5” (622 mm) and 31.5” (800 mm).
•
Panel rails are infinititely adjustable (front to back), round hole punched for 10-32 clip-nuts to full EIA
hole centers (5/8-5/8-1/2 inch spacing).
•
Includes two pairs of rails (for rear support of heavier equipment or shelves), rubber feet, black ABS plastic handles, a
starter pack of 10-32 clip nuts & matching 1421ABK black screws.
•
Supplied unassembled (four cabinet pieces & four rails), shipped in a flat pack container for shipping ease and
protection.
•
Simple assembly using one bolt in each corner to lock the sides to the top and bottom (hardware included).
•
Overall width 21” (533 mm).
•
Overall height 2” (51 mm) additional over panel height.
•
Recommended maximum weight (RCHS1902824 tested) - 800 pounds (364 kg).
•
Front & back lip is .585” (14 mm) so usable depth is reduced by 1.17” (30 mm).
•
Rugged textured powder paint finish.
•
Stocked in Black & Light Gray (RAL7035)
17.5” (444 mm) Deep
Part Number
Black Textured
RCHS1900817BK1
RCHS1901017BK1
RCHS1901417BK1
RCHS1901717BK1
RCHS1902217BK1
RCHS1902817BK1
Light Gray Textured
RCHS1900817LG1
RCHS1901017LG1
RCHS1901417LG1
RCHS1901717LG1
RCHS1902217LG1
RCHS1902817LG1
Panel Height
Inches Units
8.75
10.50
14.00
17.50
22.75
28.00
5U
6U
8U
10U
13U
16U
Height
10.75” (273 mm)
12.50” (318 mm)
16.00” (406 mm)
19.50” (495 mm)
24.75” (629 mm)
30.00” (762 mm)
Overall Dimensions
Width
21.0” (533 mm)
21.0” (533 mm)
21.0” (533 mm)
21.0” (533 mm)
21.0” (533 mm)
21.0” (533 mm)
Depth
17.5” (444 mm)
17.5” (444 mm)
17.5” (444 mm)
17.5” (444 mm)
17.5” (444 mm)
17.5” (444 mm)
Number
of Clip
Nuts
Included
8
16
16
16
16
16
Weight
38# (17.3 kg)
40# (18.2 kg)
42# (19.1 kg)
46# (20.9 kg)
54# (24.5 kg)
60# (27.3 kg)
6
©
Guelph, Ontario (519) 822-2960
St. Laurent, Quebec (514) 343-9010
Cheektowaga, NY (716) 630-7030
CANADA
USA
ww
w.h
a
mm
ond
Basingstoke, UK 01256 812812
EUROPE
mfg
.co
m
Queenstown SA, Australia 61-8-8240-2244
AUSTRALIA
Heavy Duty (RCHS Series)
24.5” (622 mm) Deep
Part Number
Black Textured
RCHS1901024BK1
RCHS1901424BK1
RCHS1901724BK1
RCHS1902224BK1
RCHS1902824BK1
Light Gray Textured
RCHS1901024LG1
RCHS1901424LG1
RCHS1901724LG1
RCHS1902224LG1
RCHS1902824LG1
Panel Height
Inches Units
10.50
14.00
17.50
22.75
28.00
6U
8U
10U
13U
16U
Height
12.50” (318 mm)
16.00” (406 mm)
19.50” (495 mm)
24.75” (629 mm)
30.00” (762 mm)
Overall Dimensions
Width
21.0” (533 mm)
21.0” (533 mm)
21.0” (533 mm)
21.0” (533 mm)
21.0” (533 mm)
Depth
24.5” (622 mm)
24.5” (622 mm)
24.5” (622 mm)
24.5” (622 mm)
24.5” (622 mm)
Number
of Clip
Nuts
Included
16
16
16
16
16
Weight
54# (24.5 kg)
56# (25.5 kg)
60# (27.3 kg)
68# (30.9 kg)
76# (35.5 kg)
31.5” (800 mm) Deep
Part Number
Black Textured
RCHS1901031BK1
RCHS1901431BK1
RCHS1901731BK1
RCHS1902231BK1
RCHS1902831BK1
Light Gray Textured
RCHS1901031LG1
RCHS1901431LG1
RCHS1901731LG1
RCHS1902231LG1
RCHS1902831LG1
Panel Height
Inches Units
10.50
14.00
17.50
22.75
28.00
6U
8U
10U
13U
16U
Height
12.50” (318 mm)
16.00” (406 mm)
19.50” (495 mm)
24.75” (629 mm)
30.00” (762 mm)
Overall Dimensions
Width
21.0” (533 mm)
21.0” (533 mm)
21.0” (533 mm)
21.0” (533 mm)
21.0” (533 mm)
Depth
31.5” (800 mm)
31.5” (800 mm)
31.5” (800 mm)
31.5” (800 mm)
31.5” (800 mm)
Number
of Clip
Nuts
Included
16
16
16
16
16
Weight
64# (29.1 kg)
68# (30.9 kg)
74# (33.6 kg)
82# (37.3 kg)
92# (41.8 kg)

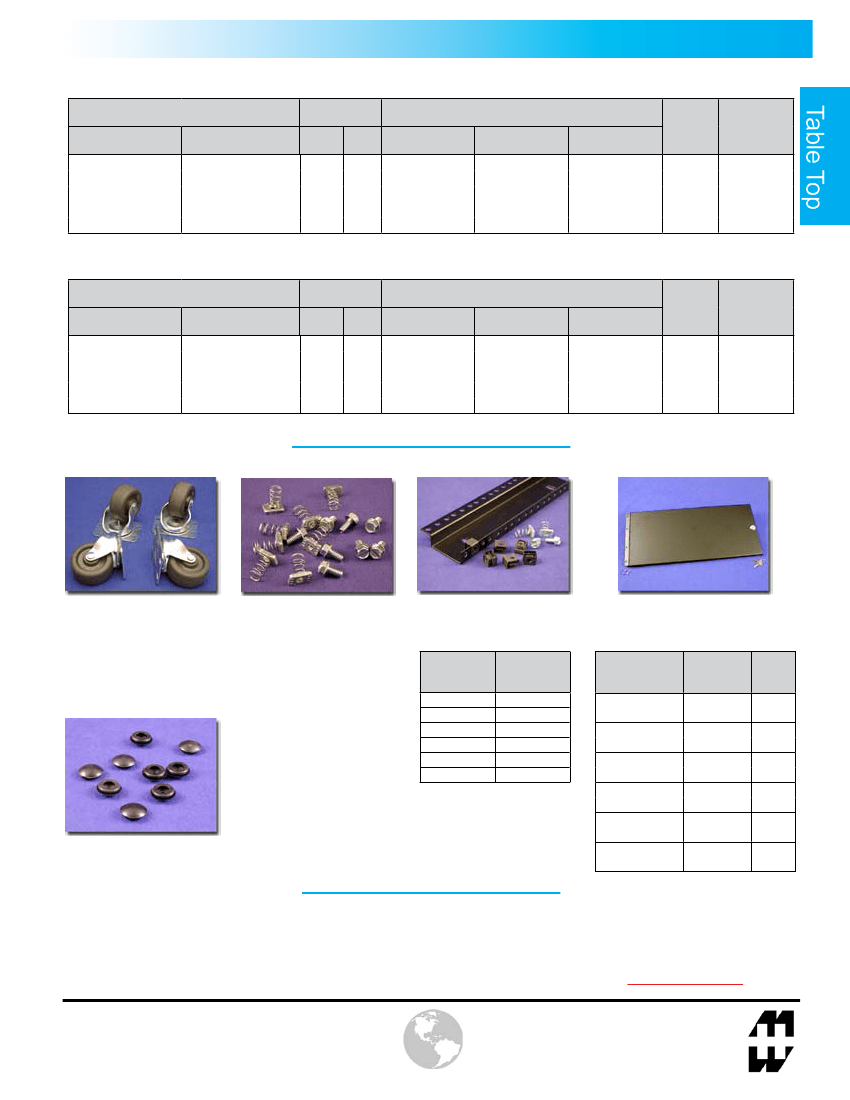

RCHS SERIES ACCESSORIES
Casters
Extra Spring Nuts
Extra Panel Rails
Locking Doors
•
Set of four (4).
•
Weight capacity 600# (273
kg).
•
Includes mounting hardware.
•
Part Number
1425PHD
•
Set of eight (8), spring nuts
and bolts.
•
1/4” X 20 hardware for
horizontal struts.
•
Part Number
1421SN
Extra Rubber Feet
•
Sold in pairs.
•
Includes strut mounting
hardware.
•
Black clip nuts not included.
For
Part Number
Panel
Height
RCHR1908
8.75” (5U)
RCHR1910
10.5” (6U)
RCHR1914
14.0” (8U)
RCHR1917
17.5” (10U)
RCHR1922
22.75” (13U)
RCHR1928
28.0” (16U)
•
Package of 20 rubber feet
•
Part Number
1421RC24
UNIVERSAL ACCESSORIES
•
Rack panels
Page 82
•
Ventilated rack panels
Page 84
•
Panel mount doors & chassis
Page 86
•
Shelves & slides
Page 87
•
Drawers
Page 93
Basingstoke, UK 01256 812812
Queenstown SA, Australia 61-8-8240-2244
•
16 ga. steel door.
•
Includes mounting hardware and two
(2) keys.
•
Hinge mounts on either right or left.
For
Part Number
Color
Panel
Height
RCHD1908BK1
Black
8.75”
(5U)
RCHD1908LG1
Light Gray
RCHD1910BK1
Black
10.5”
(6U)
RCHD1910LG1
Light Gray
RCHD1914BK1
Black
14.0”
(8U)
RCHD1914LG1
Light Gray
RCHD1917BK1
Black
17.5”
(10U)
RCHD1917LG1
Light Gray
RCHD1922BK1
Black
22.75”
(13U)
RCHD1922LG1
Light Gray
RCHD1928BK1
Black
28.0”
(16U)
RCHD1928LG1
Light Gray
•
Cable management
Page 94
•
Cooling
Page 97
•
Rack mount outlet strips
Page 102
•
Hardware
Page 119
•
Visit our web site for our most
recent accessories
ww
w.h
a
mm
Guelph, Ontario (519) 822-2960
St. Laurent, Quebec (514) 343-9010
EUROPE
CANADA
USA
AUSTRALIA
ond
7
©
mfg
.co
m
Cheektowaga, NY (716) 630-7030
