IC,FLIP-FLOP,DUAL,J/K TYPE,LS-TTL,DIP,16PIN,PLASTIC

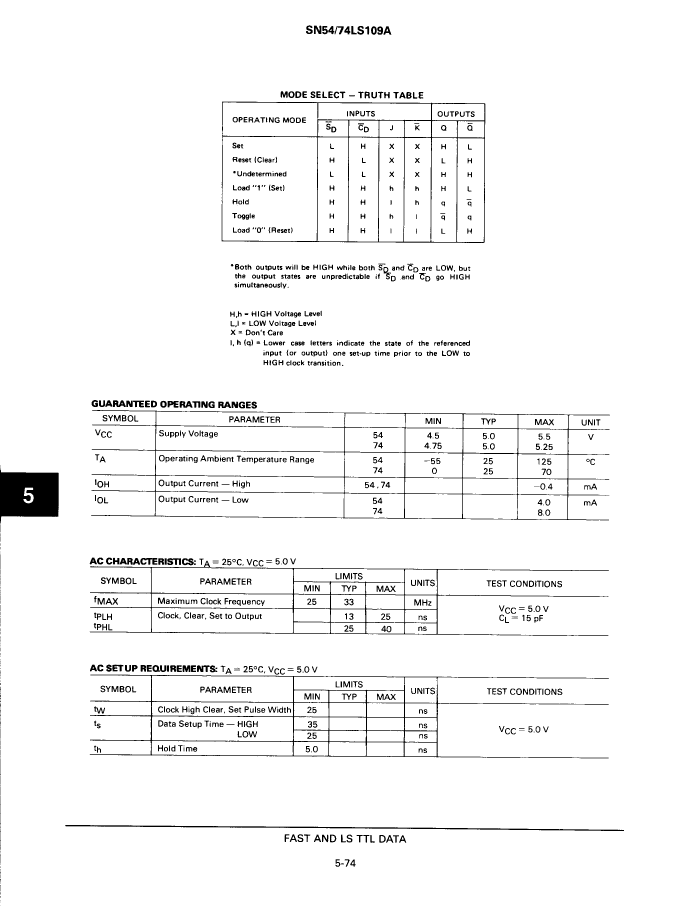

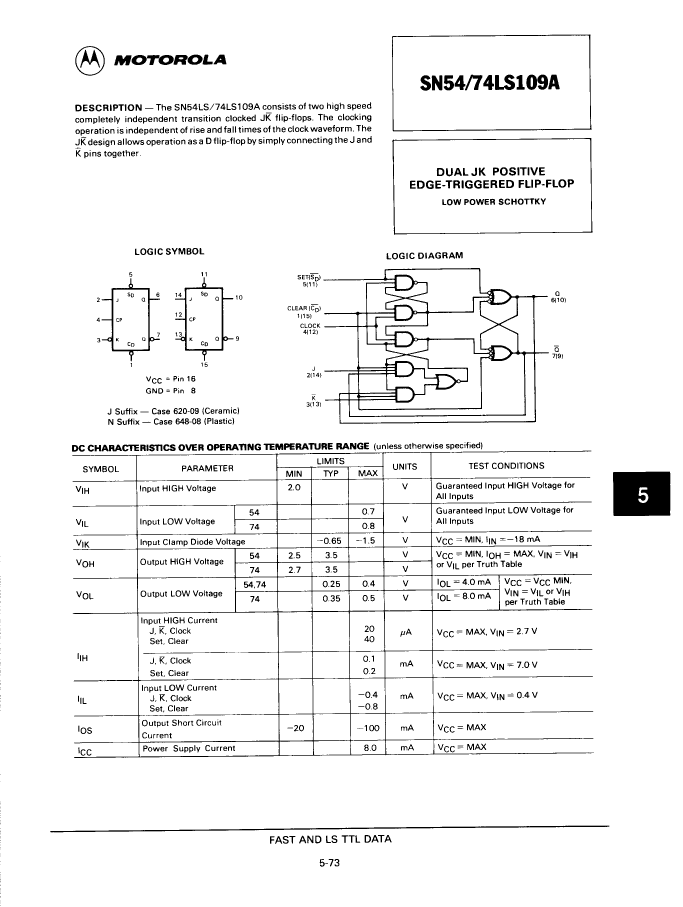

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | NXP |
| package instruction | DIP, DIP16,.3 |
| Reach Compliance Code | unknown |
| JESD-30 code | R-PDIP-T16 |
| JESD-609 code | e0 |
| Logic integrated circuit type | J-K FLIP-FLOP |
| Maximum Frequency@Nom-Sup | 25000000 Hz |
| MaximumI(ol) | 0.008 A |
| Number of functions | 2 |
| Number of terminals | 16 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP16,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | 5 V |
| Maximum supply current (ICC) | 8 mA |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Trigger type | POSITIVE EDGE |
| SN74LS109AND | 54LS109A/BEAJC | SN74LS109AJD | |
|---|---|---|---|
| Description | IC,FLIP-FLOP,DUAL,J/K TYPE,LS-TTL,DIP,16PIN,PLASTIC | IC,FLIP-FLOP,DUAL,J/K TYPE,LS-TTL,DIP,16PIN,CERAMIC | IC,FLIP-FLOP,DUAL,J/K TYPE,LS-TTL,DIP,16PIN,CERAMIC |
| Is it Rohs certified? | incompatible | incompatible | incompatible |
| Maker | NXP | NXP | NXP |
| package instruction | DIP, DIP16,.3 | DIP, DIP16,.3 | DIP, DIP16,.3 |
| Reach Compliance Code | unknown | unknown | unknown |
| JESD-30 code | R-PDIP-T16 | R-XDIP-T16 | R-XDIP-T16 |
| JESD-609 code | e0 | e0 | e0 |
| Logic integrated circuit type | J-K FLIP-FLOP | J-K FLIP-FLOP | J-K FLIP-FLOP |
| Number of functions | 2 | 2 | 2 |
| Number of terminals | 16 | 16 | 16 |
| Maximum operating temperature | 70 °C | 125 °C | 70 °C |
| Package body material | PLASTIC/EPOXY | CERAMIC | CERAMIC |
| encapsulated code | DIP | DIP | DIP |
| Encapsulate equivalent code | DIP16,.3 | DIP16,.3 | DIP16,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE |
| power supply | 5 V | 5 V | 5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO |
| technology | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | MILITARY | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL |
| Trigger type | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE |
| Maximum Frequency@Nom-Sup | 25000000 Hz | 25000000 Hz | - |
| MaximumI(ol) | 0.008 A | 0.004 A | - |
| Maximum supply current (ICC) | 8 mA | 8 mA | - |
