8D515M15SA

Description
MIL Series Connector, 15 Contact(s), Composite, Female, Crimp Terminal, Plug,
CategoryThe connector    The connector
File Size333KB,2 Pages
ManufacturerSOURIAU
Download Datasheet Parametric View All

8D515M15SA Online Shopping

Suppliers Part Number Price MOQ In stock
8D515M15SA - - View Buy Now

8D515M15SA Overview

MIL Series Connector, 15 Contact(s), Composite, Female, Crimp Terminal, Plug,

8D515M15SA Parametric

Parameter NameAttribute value
MakerSOURIAU
Reach Compliance Codeunknown

8D515M15SA Preview

LAYOUT SHOWN AS EXAMPLE
Keying Shown as example
CHARACTERISTICS
-Standard : Based on MIL-DTL-38999 Series III
-Shell Material
-Shell Plating
-Insulator
-Contacts
-Seals & Grommet
-Contact Plating
-Durability
: Composite
: Nickel
: Thermoplastic
: Copper Alloy
: Silicon Elastomer
: Gold over copper Alloy 0.8µm minimum
: 500 Mating cycles
Connector dimension
Dim
Nominal
ØS
32.5 Max
Z'
31.5 Max
VV THREAD
M22x1-6g
SOURIAU shall not be liable for any non-conformity or damage
due to a use of the Products which does not comply with
the Specifications issued by either of the Parties or by a third party
(professional recommendation, technical notice.)
Country
FR
Jurisdiction & Control List
Not Listed
-Delivered with Souriau contacts and Accessories
-Temperature Range
-Salt Spray
-Mass
: -65°C to +200°C
: 2000 hours
: 29.3 g ± 10%
PN: 8D515M15SA
A
ISS
19-10-2016 First Release
DATE
Latest modification - by
Date:
MOD N°
CUSTOMER DRAWING
Designed By:
TITLE
BASIC SERIES:
SHELL TYPE : Plug with RFI Shielding
CONTACT TYPE
SHELL SIZE : 15
PLATING
:
M =
Nickel
: Standard Crimp Contact
ORIENTATION : A
CONTACT TYPE : SOCKET(500 Matings)
CONTACT LAYOUT : 15-15
FORMAT
Composite Plug 8D series
General linear
Tolerances:
±--
8D
5
-
15
M
15
S
A
SCALE
NPRDS / PROJECT
NA
859
This document is the property of
SOURIAU
it must not be reproduced or
communicated without permission
SOURIAU
A3
WWW.SOURIAU.COM
SOURIAU DRG N°
8D515M15SA-C
SHEET
1/2

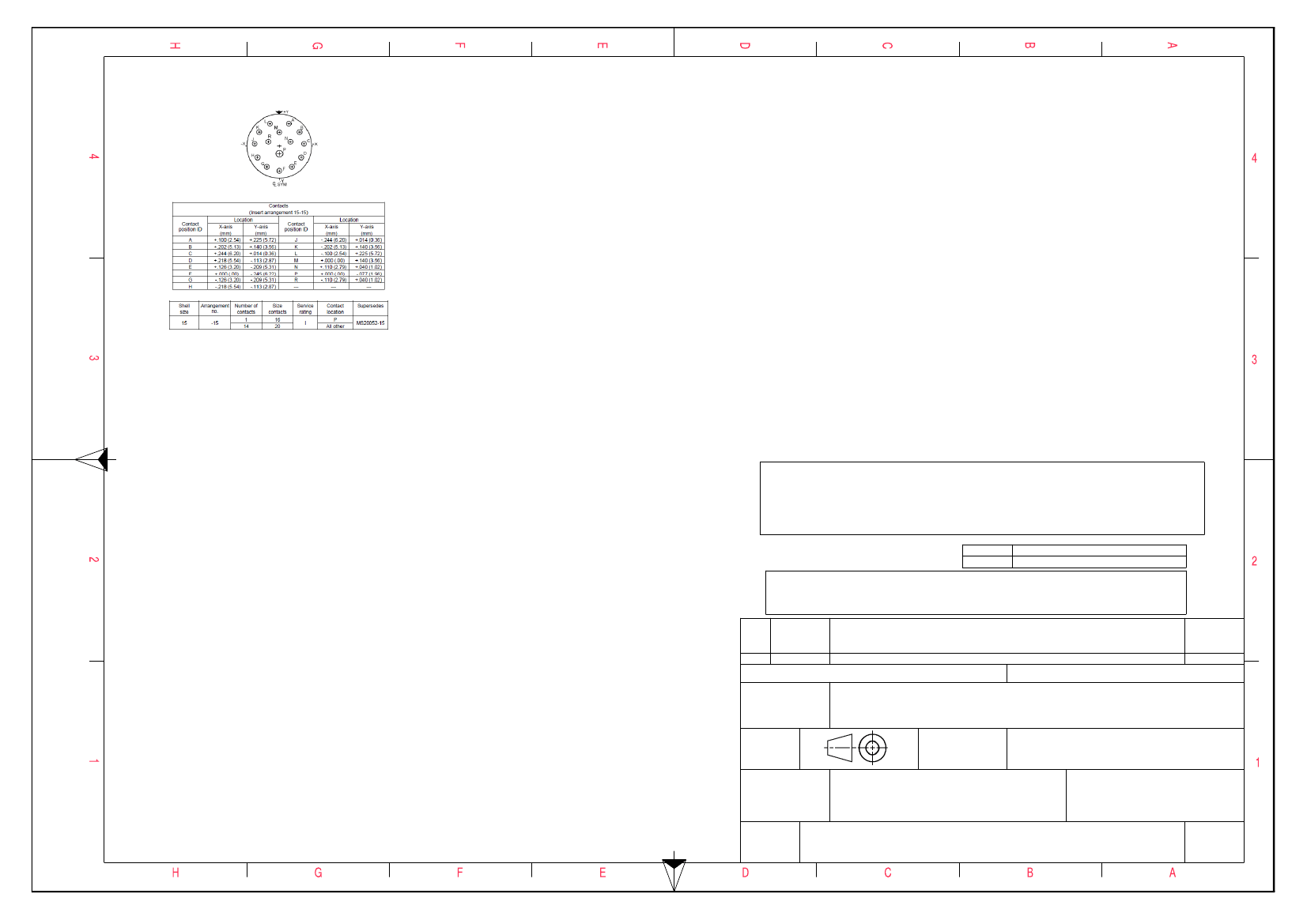

Contact Layout
SOURIAU shall not be liable for any non-conformity or damage
due to a use of the Products which does not comply with
the Specifications issued by either of the Parties or by a third party
(professional recommendation, technical notice.)
Country
FR
Jurisdiction & Control List
Not Listed
PN: 8D515M15SA
A
ISS
19-10-2016 First Release
DATE
Latest modification - by
Date:
MOD N°
CUSTOMER DRAWING
Designed By:
TITLE
SCALE
Composite Plug 8D series
General linear
Tolerances:
±--
NPRDS / PROJECT
NA
859
This document is the property of
SOURIAU
it must not be reproduced or
communicated without permission
SOURIAU
FORMAT
WWW.SOURIAU.COM
A3
SOURIAU DRG N°
8D515M15SA-C
SHEET
2/2
