MX28F2100TMC-90C4 datasheet, PDF

Datasheet> All Categories > storage> storage> MX28F2100TMC-90C4

MX28F2100TMC-90C4: DescriptionFlash, 256KX8, 90ns, PDSO44, 0.500 INCH, PLASTIC, SOP-44; Categorystorage storage; File Size1MB，42 Pages; ManufacturerMacronix; Websitehttp://www.macronix.com/en-us/Pages/default.aspx

Download Datasheet Parametric Compare View All

MX28F2100TMC-90C4 Overview

Flash, 256KX8, 90ns, PDSO44, 0.500 INCH, PLASTIC, SOP-44

MX28F2100TMC-90C4 Parametric

Parameter Name	Attribute value
Maker	Macronix
Parts packaging code	SOIC
package instruction	SOP,
Contacts	44
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	90 ns
Other features	10000 ERASE/PROGRAM CYCLES; CAN ALSO BE CONFIGURED AS 128K X 16
JESD-30 code	R-PDSO-G44
length	28.49 mm
memory density	2097152 bit
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of terminals	44
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Programming voltage	12 V
Certification status	Not Qualified
Maximum seat height	3 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	12.6 mm

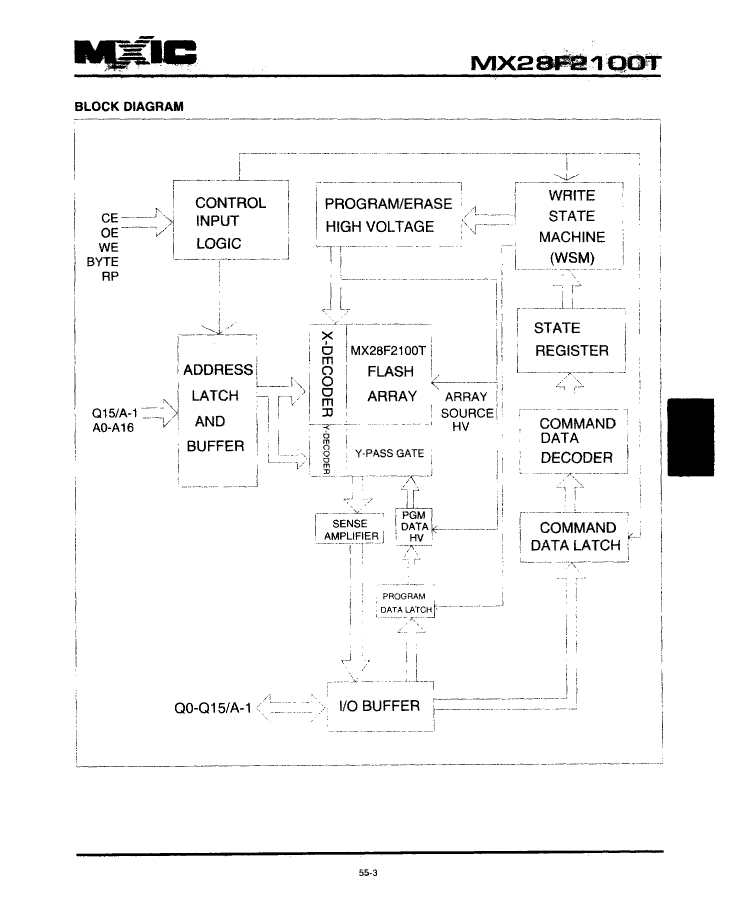

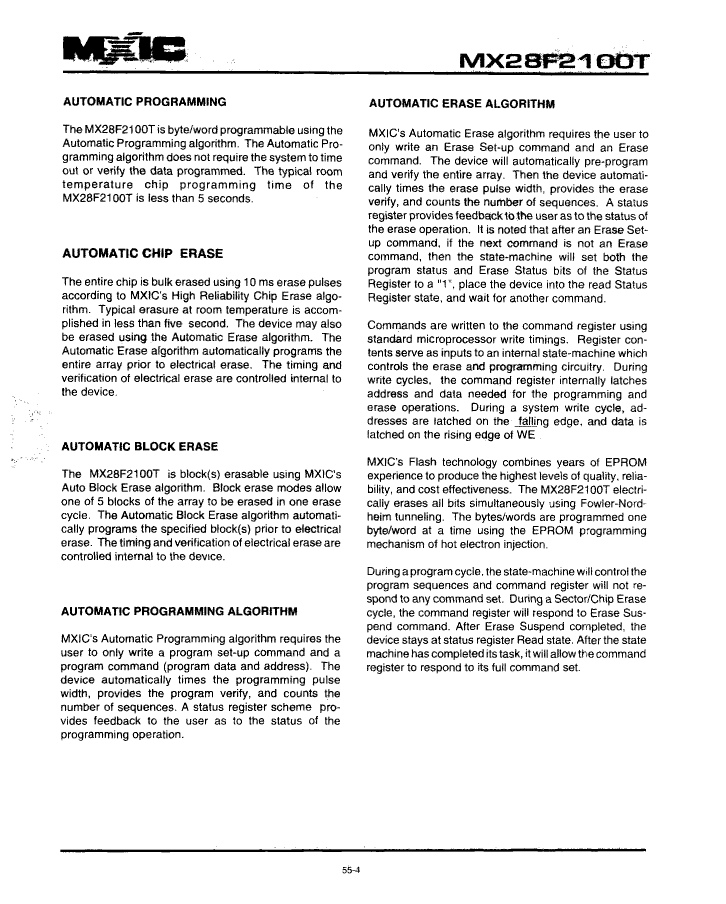

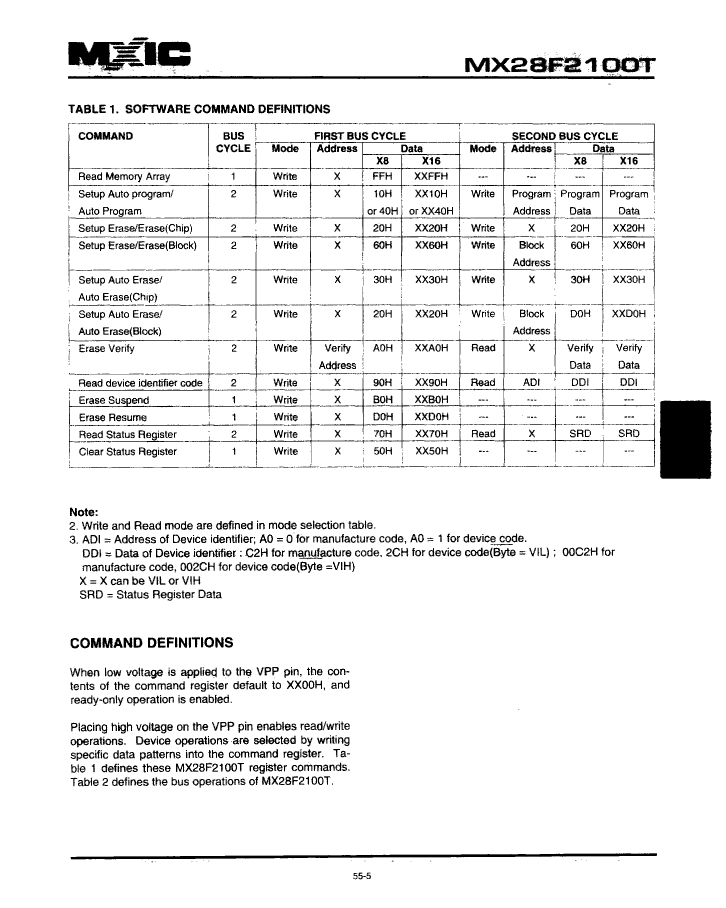

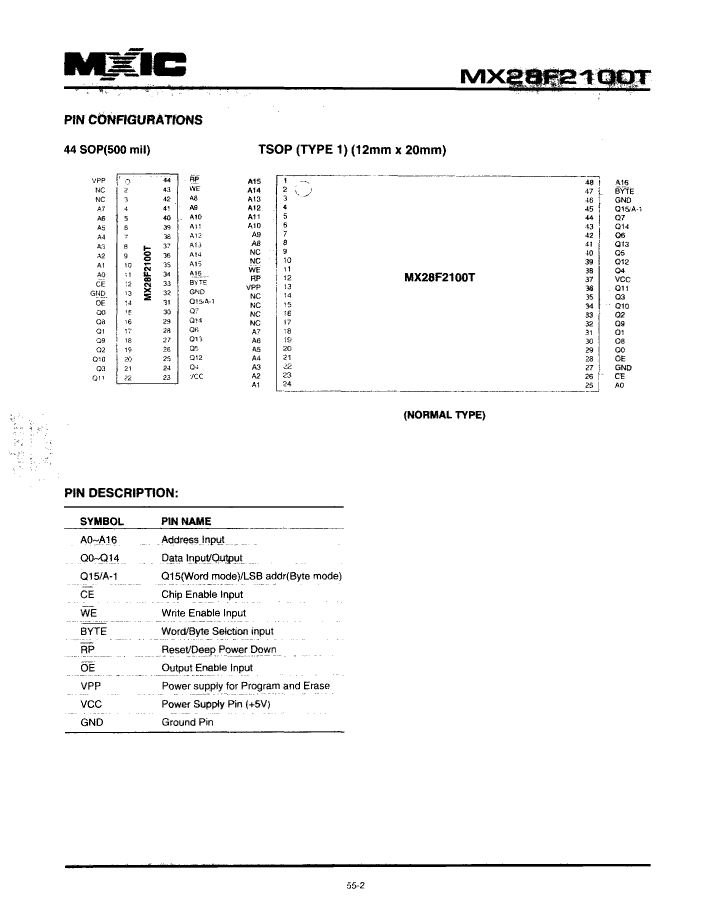

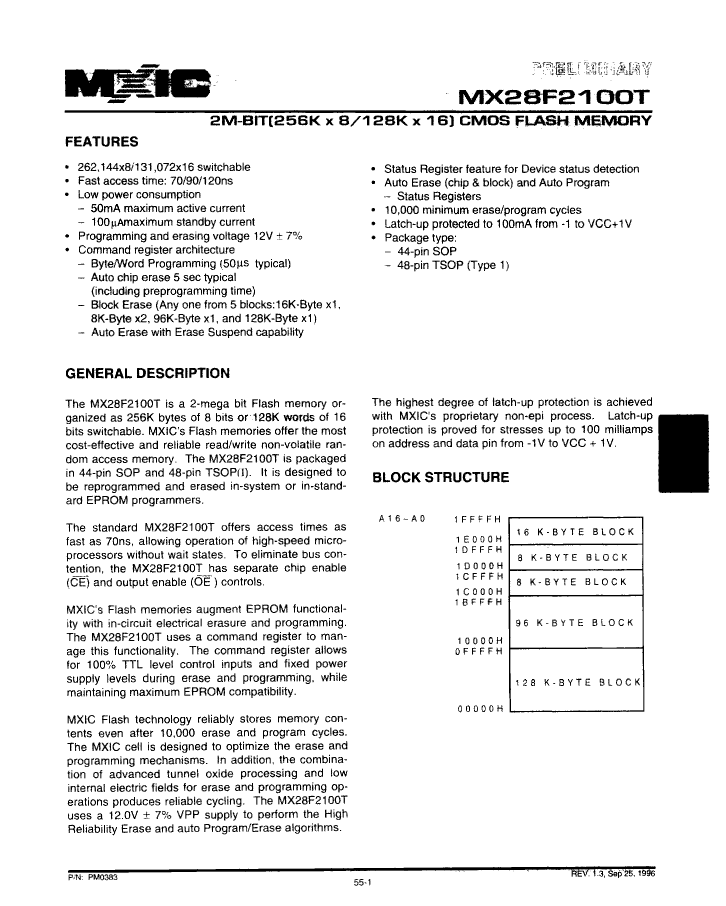

Preview

Download Datasheet

View All

MX28F2100TMC-90C4 Related Products

	MX28F2100TMC-90C4	MX28F2100TMC-70C4	MX28F2100TMC-12C4	MX28F2100TTC-90C4	MX28F2100TTC-12C4	MX28F2100TTC-70C4
Description	Flash, 256KX8, 90ns, PDSO44, 0.500 INCH, PLASTIC, SOP-44	Flash, 256KX8, 70ns, PDSO44, 0.500 INCH, PLASTIC, SOP-44	Flash, 256KX8, 120ns, PDSO44, 0.500 INCH, PLASTIC, SOP-44	Flash, 256KX8, 90ns, PDSO48, 12 X 20 MM, TSOP1-48	Flash, 256KX8, 120ns, PDSO48, 12 X 20 MM, TSOP1-48	Flash, 256KX8, 70ns, PDSO48, 12 X 20 MM, TSOP1-48
Parts packaging code	SOIC	SOIC	SOIC	TSOP1	TSOP1	TSOP1
package instruction	SOP,	0.500 INCH, PLASTIC, SOP-44	SOP,	TSOP1,	TSOP1,	TSOP1,
Contacts	44	44	44	48	48	48
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	90 ns	70 ns	120 ns	90 ns	120 ns	70 ns
Other features	10000 ERASE/PROGRAM CYCLES; CAN ALSO BE CONFIGURED AS 128K X 16	10000 ERASE/PROGRAM CYCLES; CAN ALSO BE CONFIGURED AS 128K X 16	10000 ERASE/PROGRAM CYCLES; CAN ALSO BE CONFIGURED AS 128K X 16	10000 ERASE/PROGRAM CYCLES; CAN ALSO BE CONFIGURED AS 128K X 16	10000 ERASE/PROGRAM CYCLES; CAN ALSO BE CONFIGURED AS 128K X 16	10000 ERASE/PROGRAM CYCLES; CAN ALSO BE CONFIGURED AS 128K X 16
JESD-30 code	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48
length	28.49 mm	28.49 mm	28.49 mm	18.4 mm	18.4 mm	18.4 mm
memory density	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit
Memory IC Type	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH
memory width	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	44	44	44	48	48	48
word count	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	256KX8	256KX8	256KX8	256KX8	256KX8	256KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	TSOP1	TSOP1	TSOP1
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Programming voltage	12 V	12 V	12 V	12 V	12 V	12 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3 mm	3 mm	3 mm	1.2 mm	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	0.5 mm	0.5 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	12.6 mm	12.6 mm	12.6 mm	12 mm	12 mm	12 mm
Maker	Macronix	-	Macronix	Macronix	Macronix	Macronix
