LB1024BC datasheet, PDF - EEWORLD Datasheet

LB1024BC: DescriptionIC,LINE TRANSCEIVER,2 DRIVER,2 RCVR,DIP,16PIN,PLASTIC; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size333KB，5 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

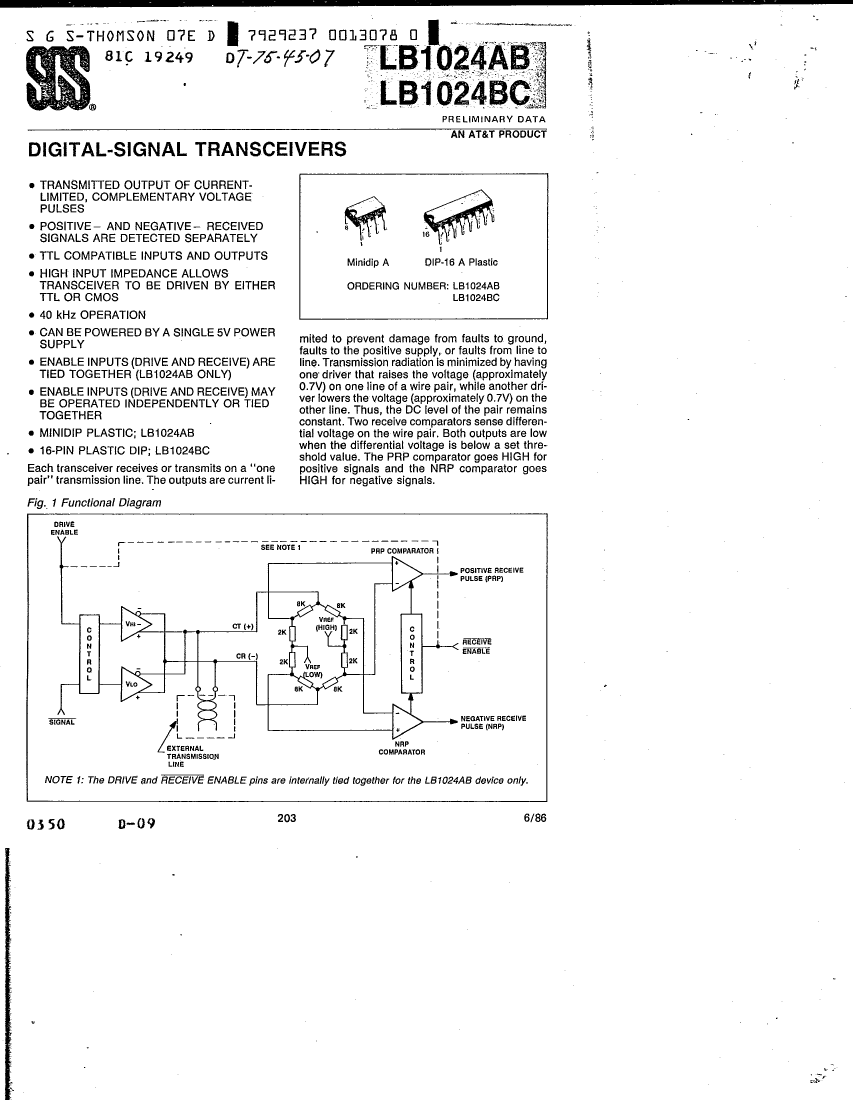

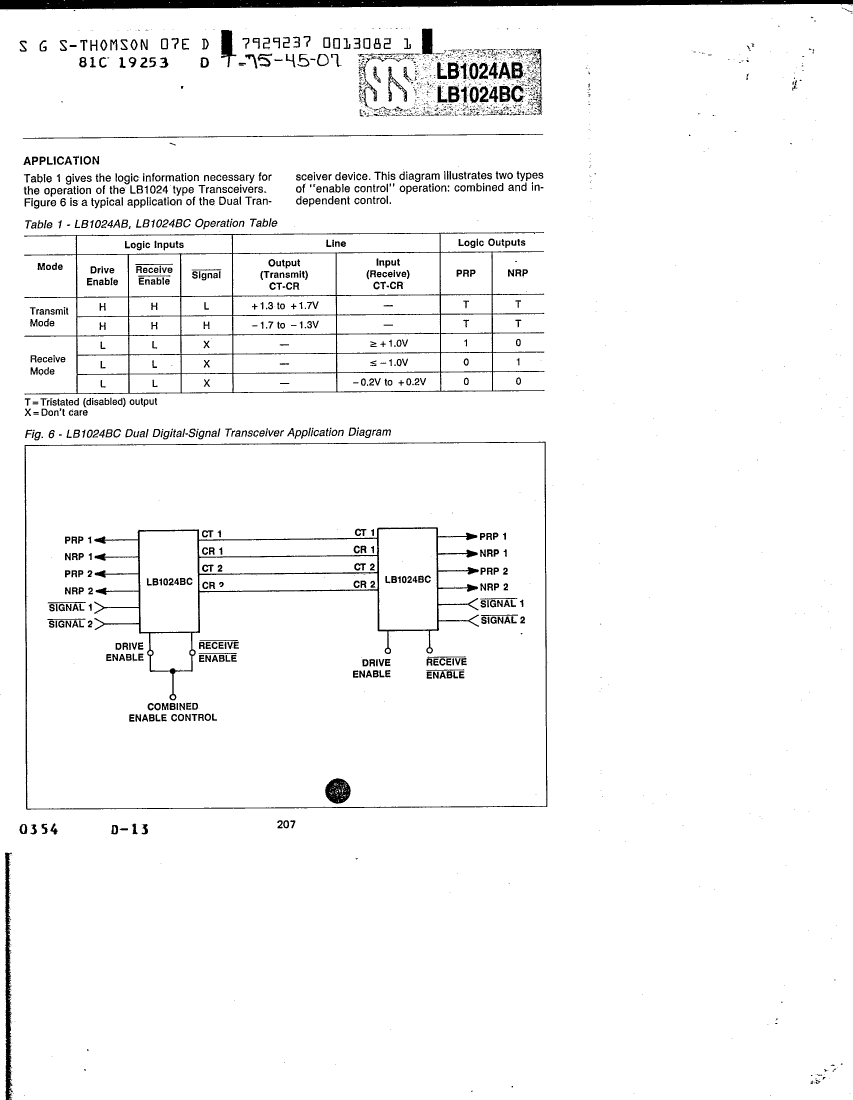

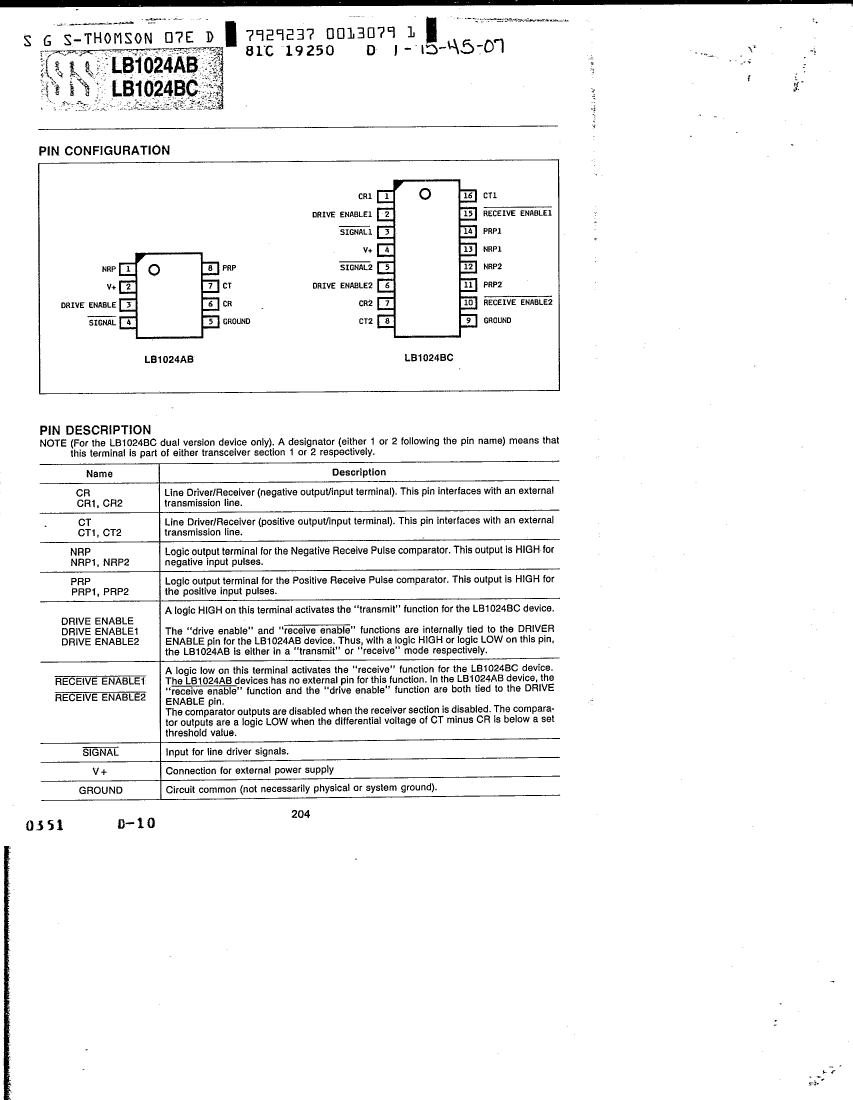

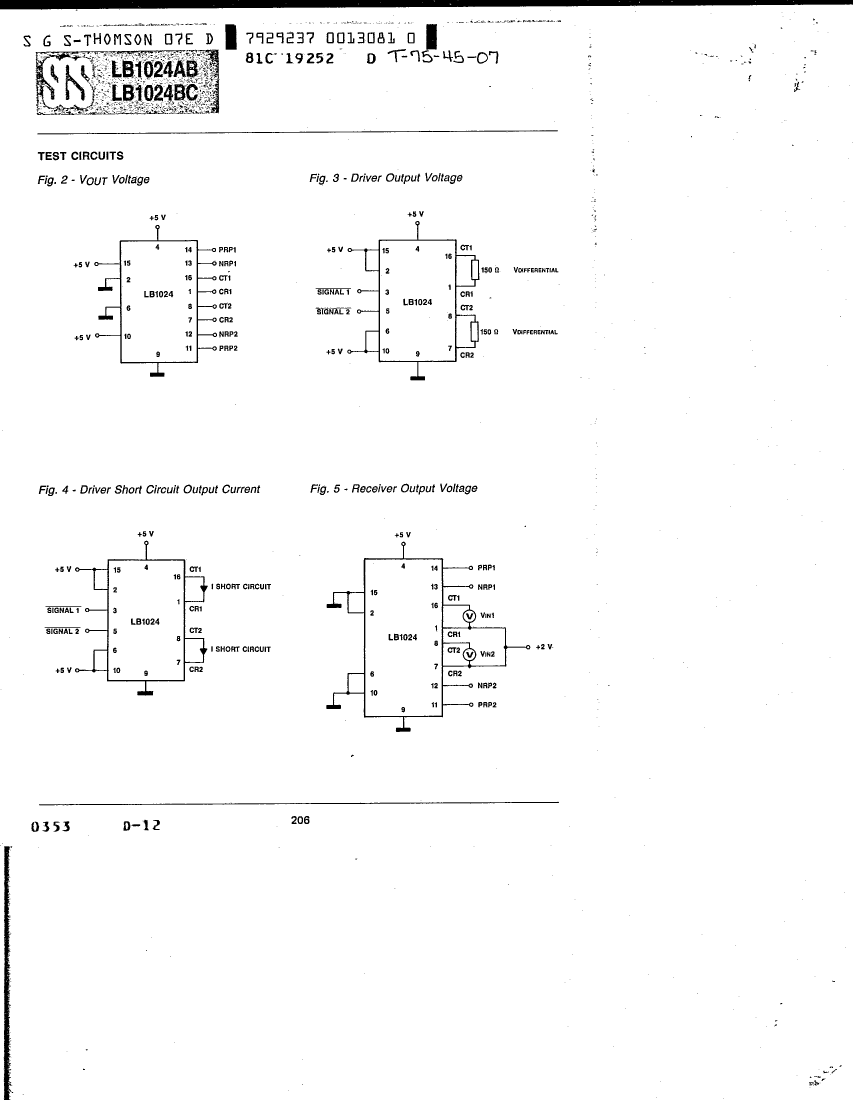

LB1024BC Overview

IC,LINE TRANSCEIVER,2 DRIVER,2 RCVR,DIP,16PIN,PLASTIC

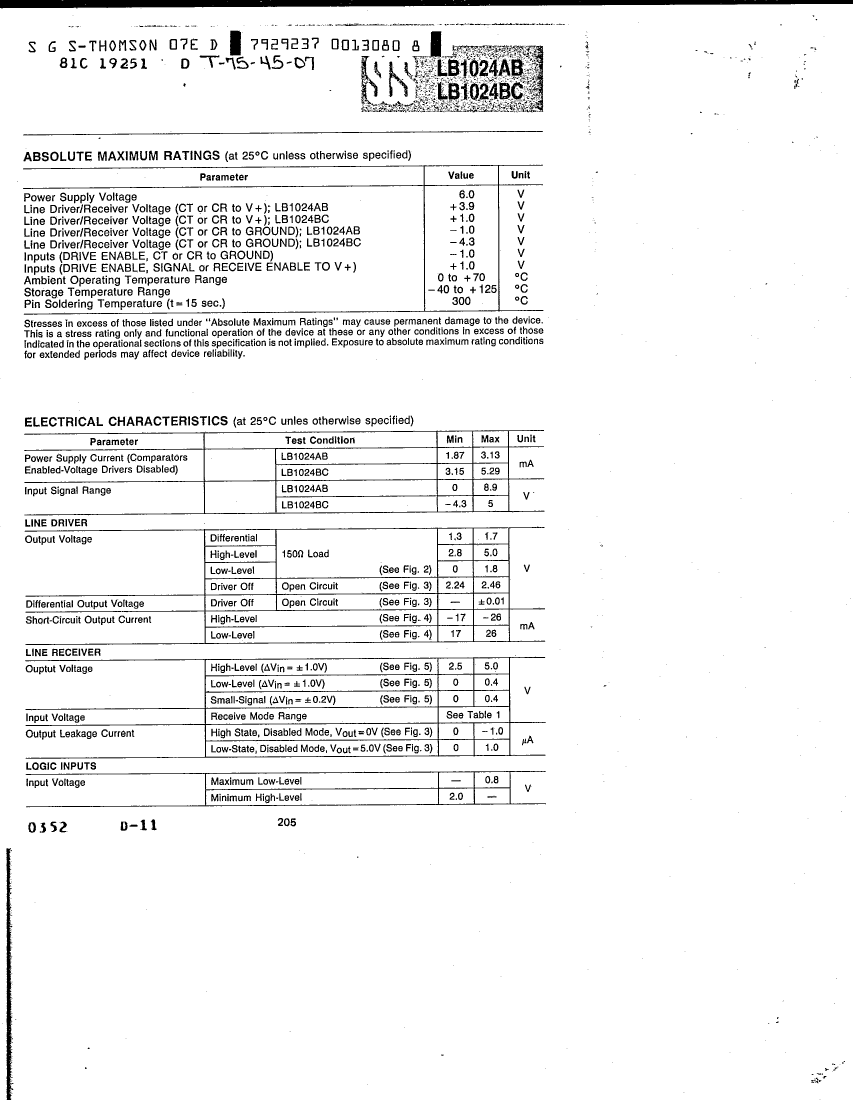

Parameter Name	Attribute value
Maker	STMicroelectronics
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Differential output	YES
Number of drives	2
JESD-30 code	R-PDIP-T16
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Minimum output swing	1.3 V
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	5.29 mA
Nominal supply voltage	5 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	LB1024BC	LB1024AB
Description	IC,LINE TRANSCEIVER,2 DRIVER,2 RCVR,DIP,16PIN,PLASTIC	IC,LINE TRANSCEIVER,1 DRIVER,1 RCVR,DIP,8PIN,PLASTIC
Maker	STMicroelectronics	STMicroelectronics
package instruction	DIP, DIP16,.3	DIP, DIP8,.3
Reach Compliance Code	unknown	unknown
Differential output	YES	YES
Number of drives	2	1
JESD-30 code	R-PDIP-T16	R-PDIP-T8
Number of terminals	16	8
Maximum operating temperature	70 °C	70 °C
Minimum output swing	1.3 V	1.3 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum slew rate	5.29 mA	3.13 mA
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
