TC74HC4351AF datasheet, PDF - EEWORLD Datasheet

TC74HC4351AF: DescriptionIC 8-CHANNEL, SGL ENDED MULTIPLEXER, PDSO20, 0.300 INCH, PLASTIC, SOP-20, Multiplexer or Switch; CategoryAnalog mixed-signal IC The signal circuit; File Size226KB，8 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

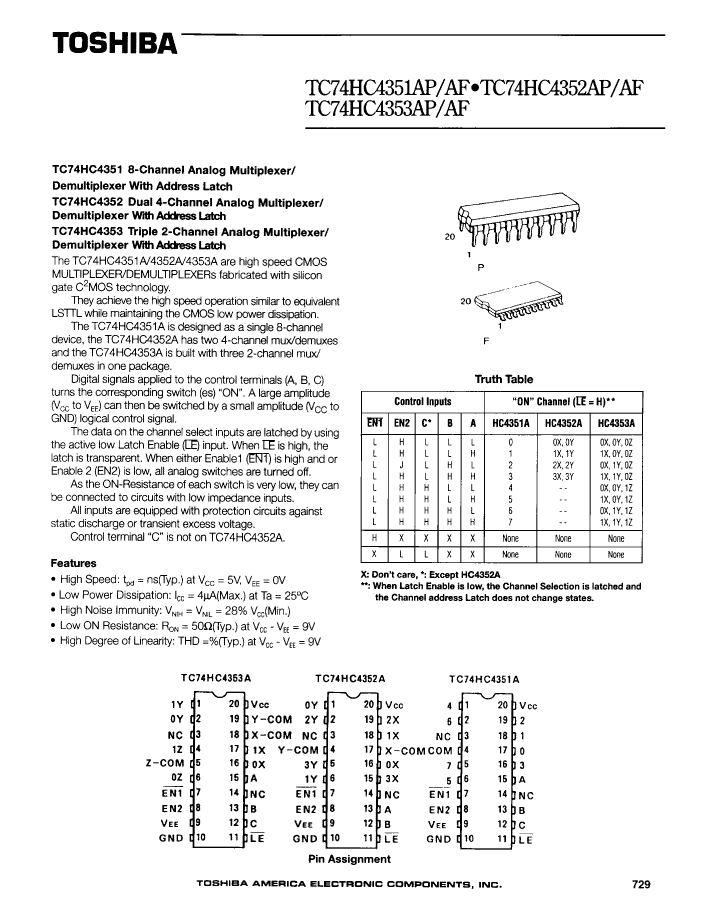

TC74HC4351AF Overview

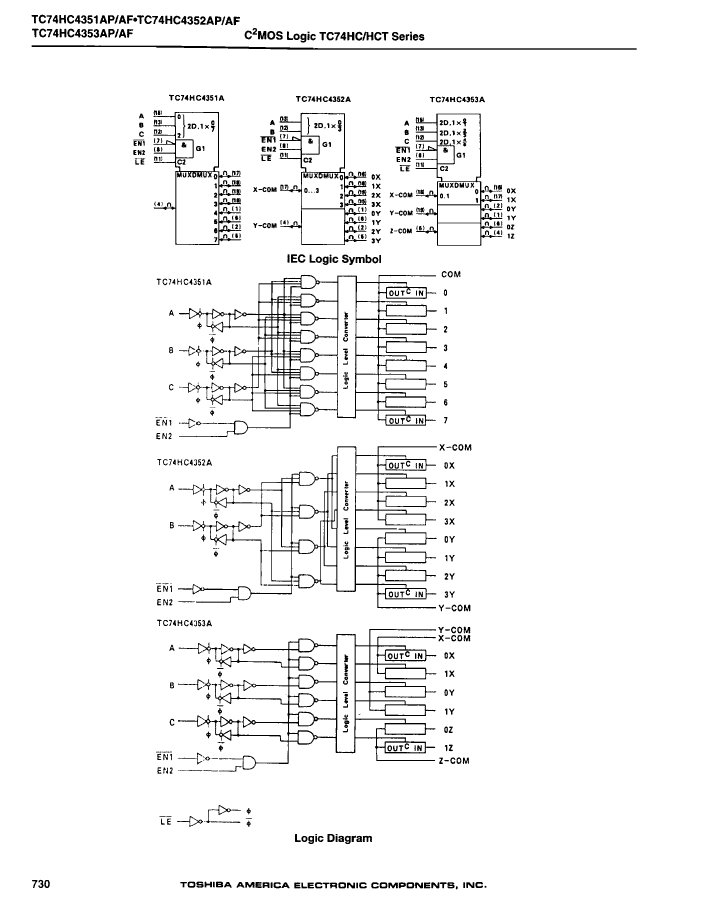

IC 8-CHANNEL, SGL ENDED MULTIPLEXER, PDSO20, 0.300 INCH, PLASTIC, SOP-20, Multiplexer or Switch

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	0.300 INCH, PLASTIC, SOP-20
Contacts	20
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
length	12.8 mm
Nominal Negative Supply Voltage (Vsup)	-6 V
Number of channels	8
Number of functions	1
Number of terminals	20

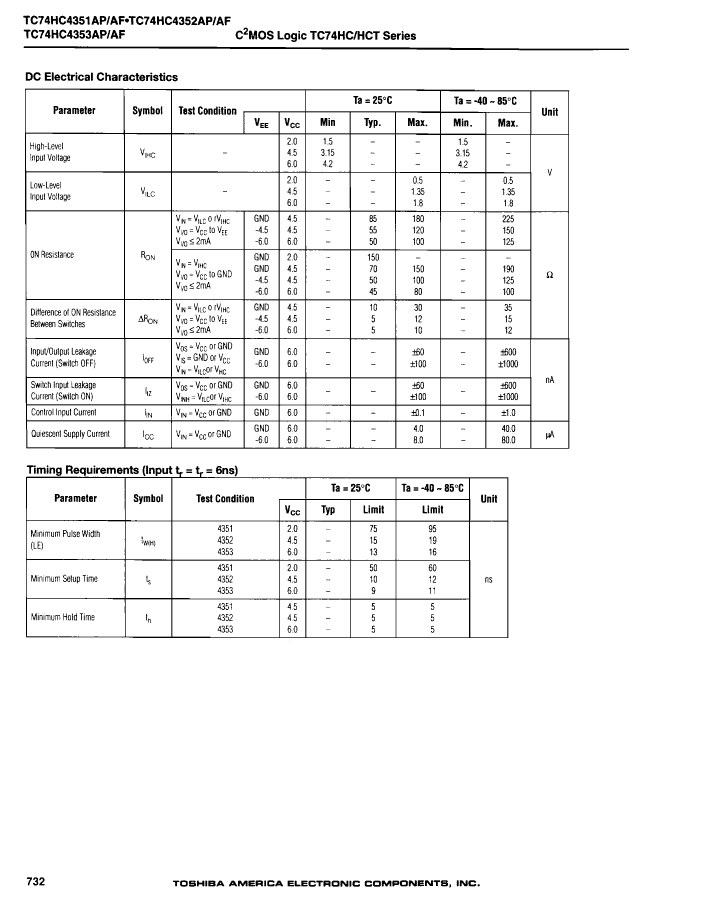

Nominal off-state isolation	50 dB
On-state resistance matching specifications	5 Ω
Maximum on-state resistance (Ron)	100 Ω

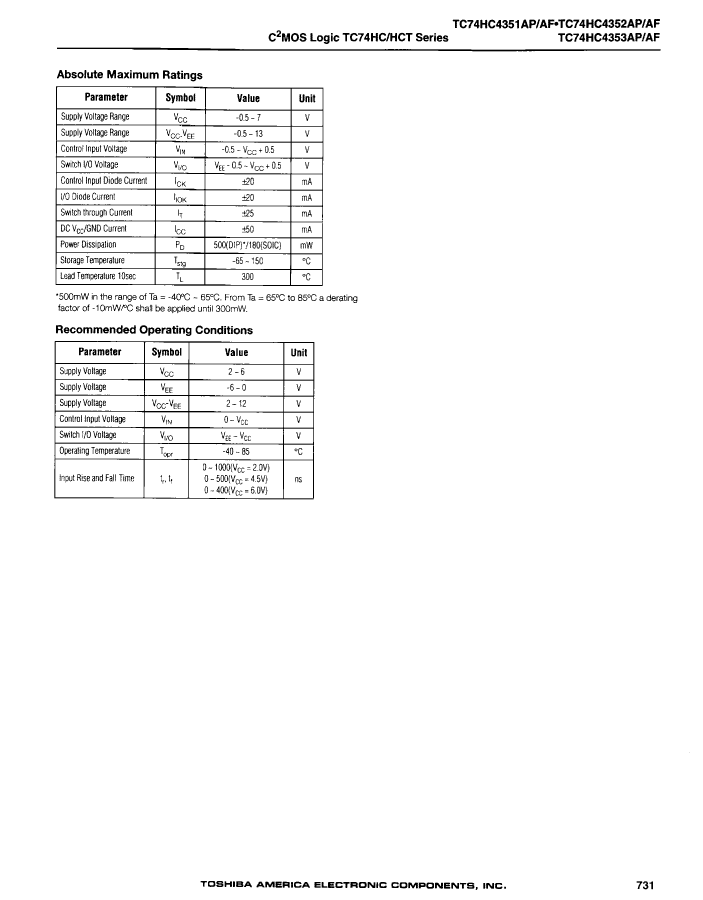

Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP20,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
power supply	2/6,GND/-6 V
Certification status	Not Qualified
Maximum seat height	1.8 mm
Maximum signal current	0.025 A
Maximum supply current (Isup)	0.08 mA
Nominal supply voltage (Vsup)	6 V
surface mount	YES

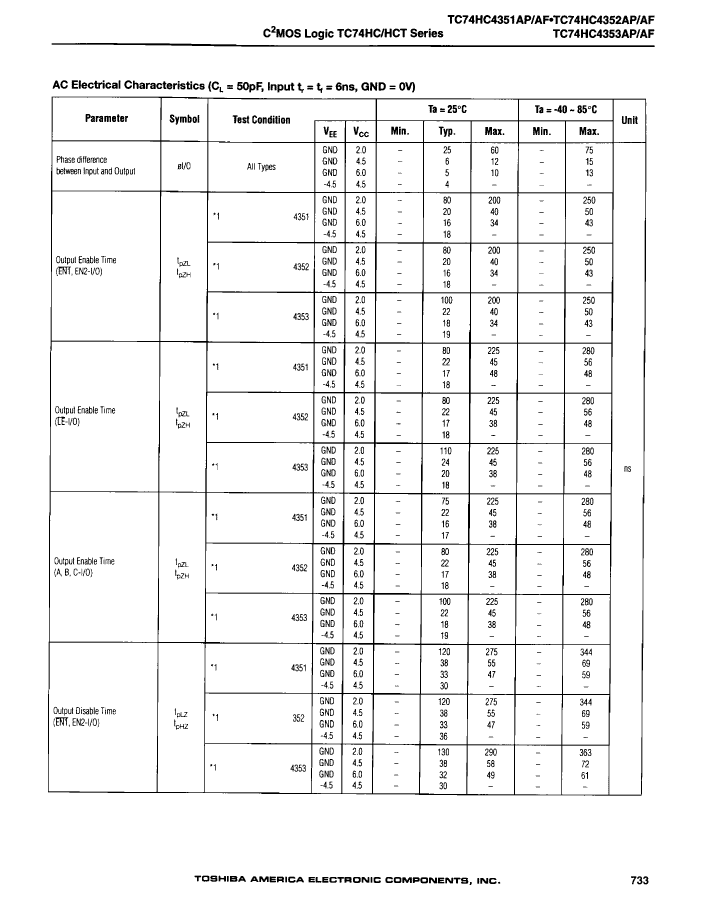

Maximum disconnect time	47 ns
Maximum connection time	34 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	5.3 mm
