Connectors for Power Supply Voltage (ISO Standard)
CAM-D21, CAM-D22, CCM-D23
Connectors

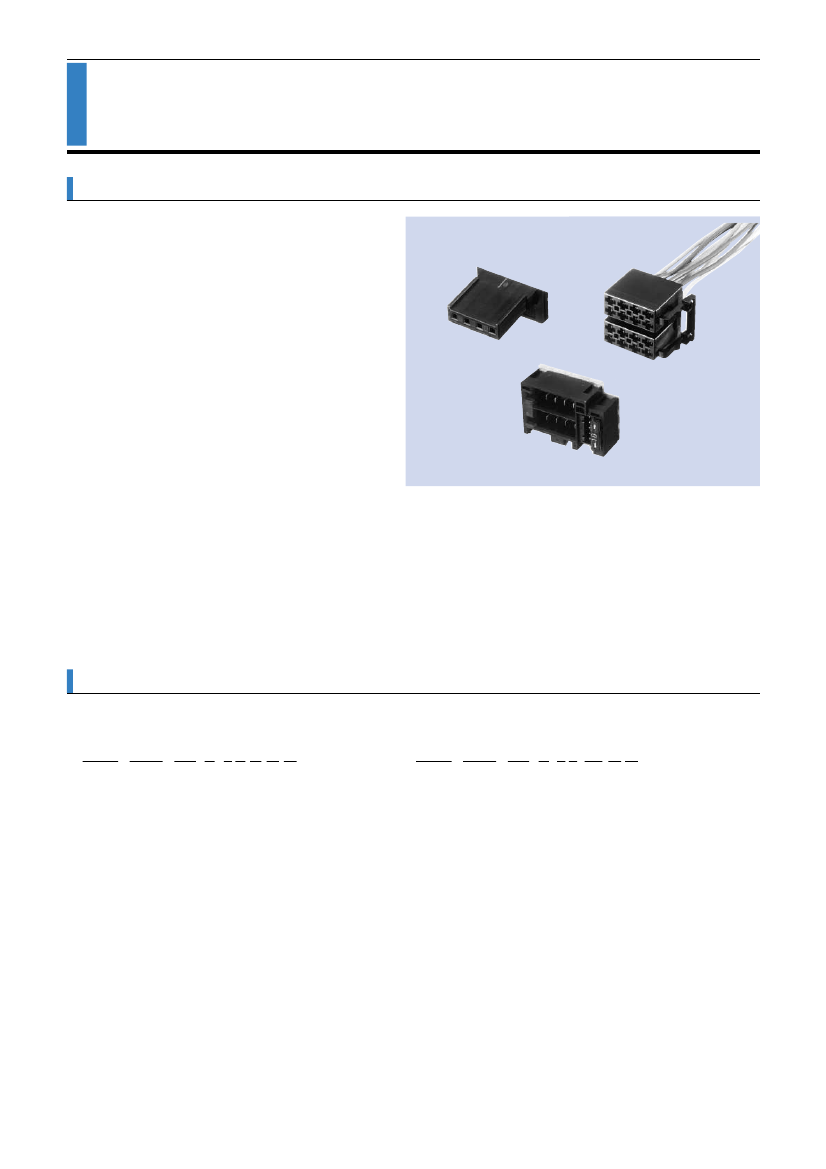

FEATURES
1. Connectors for power supplies, conforming to
ISO standards.
The CAM-D21 is a plug connector used in
board mounting. The CAM-D22 is a
conversion connector capable of circuit
switching, and connects to the CAM-D21.
The CCM-D23 is a socket connector for use
with cable assemblies.
2. The plug connector can accept fuses.
3. The insertion position of the conversion
connector can be modified to switch the set
circuit.
4. The socket connector integrated A and B part
locks to enhance operation.
CAM-D22(Socket)
CCM-D23(Socket)
CAM-D21(Plug)
HOW TO ORDER

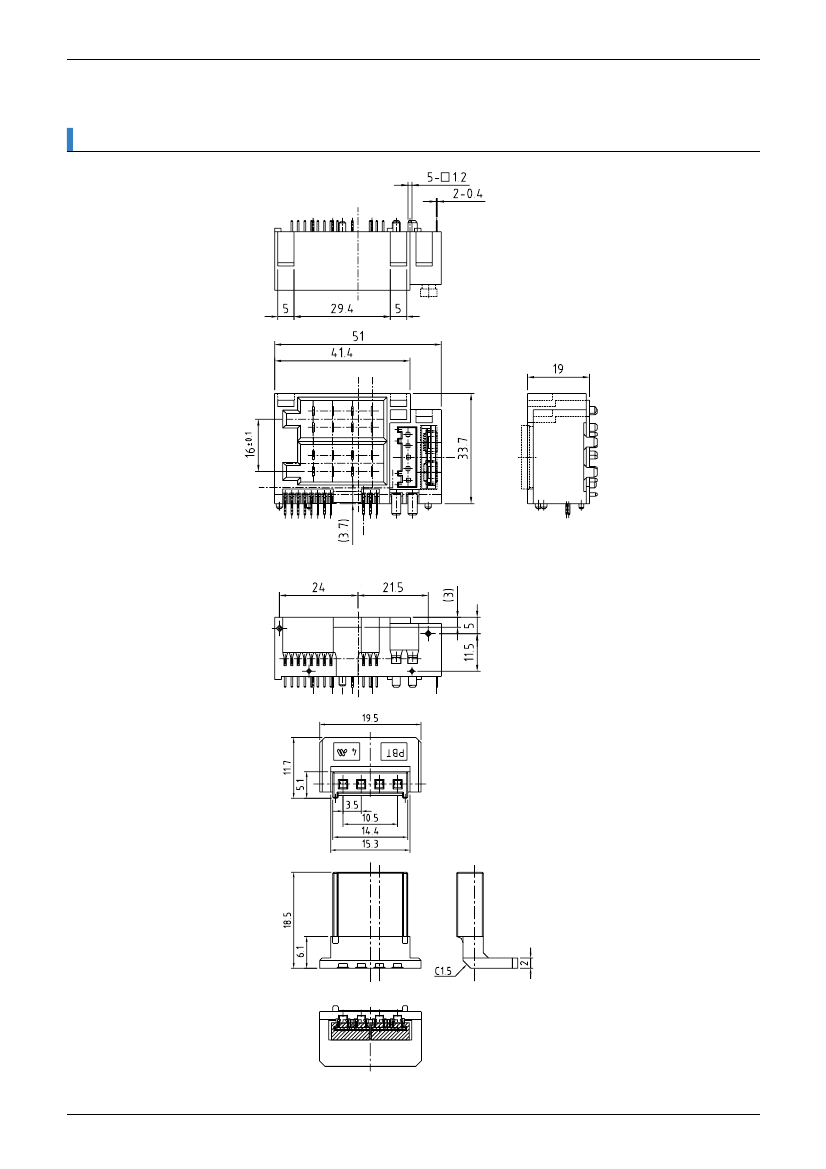

1. CAM-D21 Series (Plug)
2. CAM-D22 Series (Socket)
D21-036-02 0-I J B A A
1
1
2
3
4
5
6
7
8
9
2
3
4 56 7 8 9
Series No.
No. of contacts
Housing material (02 : PBT resin)
Housing UL grade (0 : UL94V-0)
Contact finish (H : Tin reflow)
Contact plating thickness (J : 3.0µ)
Contact tail style (B : Angle)
Accesory for connector outside (A : none)
Accesory for connector inside (A : none)
D22-004-02 0-I I B A A
1
1
2
3
4
5
6
7
8
9
2
3
4 56 7
8 9
Series No.
No. of contacts
Housing material (02 : PBT resin)
Housing UL grade (0 : UL94V-0)
Contact finish (H : Tin reflow)
Contact plating thickness (I : 1.0µm)
Contact tail style (B : none)
Accesory for connector outside (A : none)
Accesory for connector inside (A : none)
MITSUMI
ISO-Standard Connectors
3. CCM-D23 Series (Socket)
D23-016-2339A
1
2
3
1 Series No.
2 No. of contacts
3 Product Specifications.
SPECIFICATIONS
ELECTRICAL CHARACTERISTICS
Rated Voltage
Rated Current
Withstanding Voltage
Insulation Resistance
Contact Resistance
DC 14V
Contact for power supply : 8.5A, Contact for signal : 5A
500V AC (rms) 1 minute
100MΩ min. (at 500V DC)
15m
Ω
max.
MECHANICAL CHARACTERISTICS
CAM-D21 Connector Series
Life (Matching Cycle)
Total Insertion Force
Total Withdrawal Force
Using Temprature Range
49.0N (5kgf) max.
4.9N (0.5kgf) min.
-30~+85
˚C
CAM-D22
200 times
78.4N (8kgf) max.
6.86 (0.7kgf) min.
-30~+85
˚C
CAM-D23
