Surge arrester

3-electrode arrester

Series/Type:

Ordering code:

Version/Date:

Version:

T23-A420XF4

B88069X7140B502

Issue 06 / 2007-04-23

Content of header bars 1 and 2 of data sheet will be automatically entered in headers and footers! Please fill in the

table and then change the color to "white" (or invisible). This ensures that the table disappears for the customer

PDF. To update the data sheet, click on the symbol "Preview" and then "Close". Please do not alter the header or

footer when copying the content.

Identification/Classification 1:

(header 1 + top left header bar)

Identification/Classification 2:

(header 2 + bottom left header bar)

Ordering code:

(top right header bar)

Series/Type:

(top right header bar)

Surge arrester

3-electrode arrester

B88069X7140B502

T23-A420XF4



EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information

contained therein without EPCOS' prior express consent is prohibited.

EPCOS AG is a TDK Group Company.

Surge arrester

3-electrode arrester

B88069X7140B502

T23-A420XF4

Features

Standard size

Fast response time

Very high current rating

Stable performance over life

Very low capacitance

High insulation resistance

RoHS-compatible

Electrical specifications

DC spark-over voltage

1) 2) 4)

Applications

Line protection

Station protection

Base stations

350 ... 550

Impulse spark-over voltage

at 100 V/µs - for 99 % of measured values

- typical values of distribution

at 1 kV/µs

Service life

- for 99 % of measured values

- typical values of distribution

50 Hz; 1 s

50 Hz; 9 cycles

8/20 µs

10/350 µs

< 750

< 700

< 850

< 800

> 10

< 1.5

< 0.2

~ 30

~ 200

~ 2.5

-40 ... +90

40/ 90/ 21

420 YY M O

420

- Nominal voltage

- Year of production

- Month of production

(1 ... 9 = Jan ... Sep;

O ... D = Oct ... Dec)

- Non radioactive

GΩ

µs

°C

operations

operation

operations

operation

Insulation resistance at 100 V

dc 4)

Capacitance at 1 MHz

Transverse delay time

Arc voltage at 1 A

Glow to arc transition current

Glow voltage

Weight

Storage temperature

Climatic category (IEC 60068-1)

Marking, blue negative

KB AB E / KB AB PM

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 2 of 4

Issue 06 / 2007-04-23

Surge arrester

3-electrode arrester

B88069X7140B502

T23-A420XF4

At delivery AQL 0.65 level II, DIN ISO 2859

In ionized mode

Test according to ITU-T Rec. K.12

Tip or ring electrode to center electrode

Total current through center electrode, half value through

tip respectively ring electrode.

Terms in accordance with ITU-T Rec. K.12 and DIN 57845/VDE0845

The arrester failsafe mechanism contains a solder pellet with a melting

temperature between 193 and 203 °C.

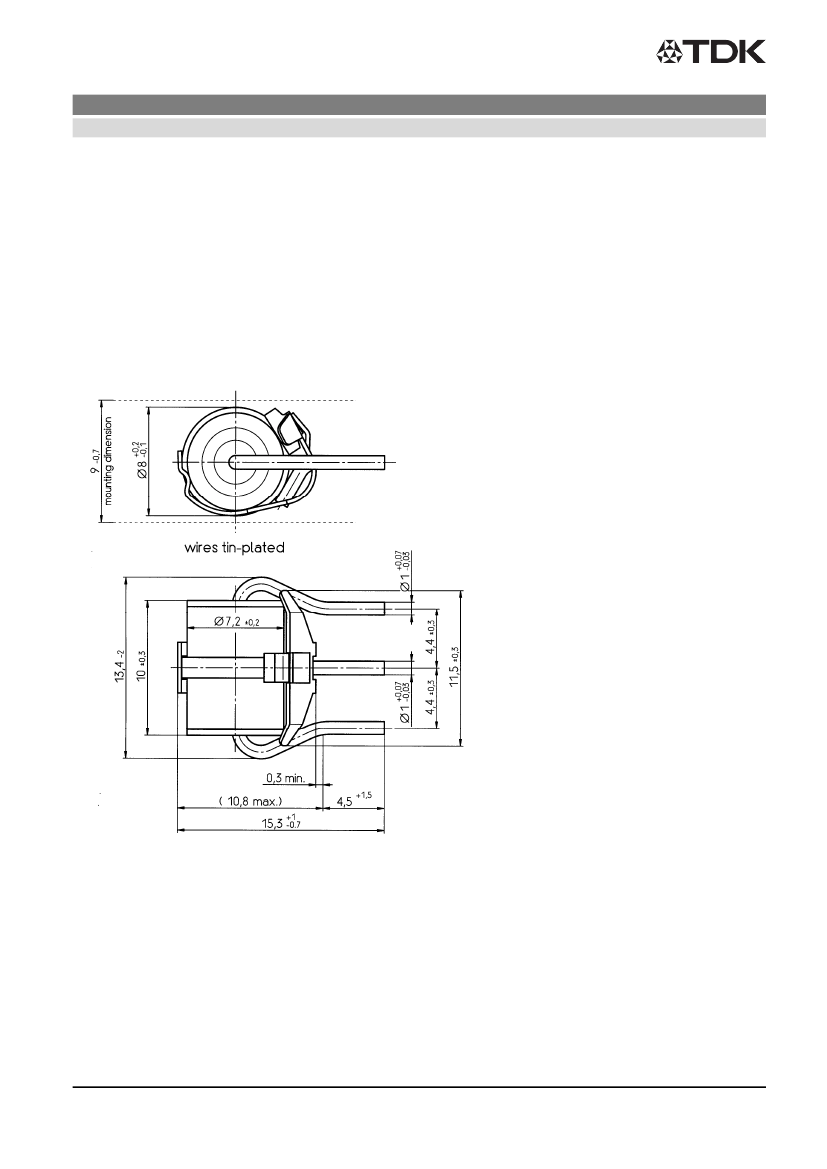

Dimensional drawing

Not to scale

Dimensions in mm

Non controlled document

Cautions and warnings

The short-circuit spring does not trigger until 180 °C is reached depending on the material. Care

must be taken to limit the thermal radiation onto adjacent parts to safe values.

Surge arresters must not be operated directly in power supply networks.

Surge arresters may become hot in case of longer periods of current stress (danger of burning).

Surge arresters may be used only within their specified values. In case of overload, the head

contacts may fail or the component may be destroyed.

Damaged surge arresters must not be re-used.

KB AB E / KB AB PM

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 3 of 4

Issue 06 / 2007-04-23

Important notes
