747420-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 747420-4

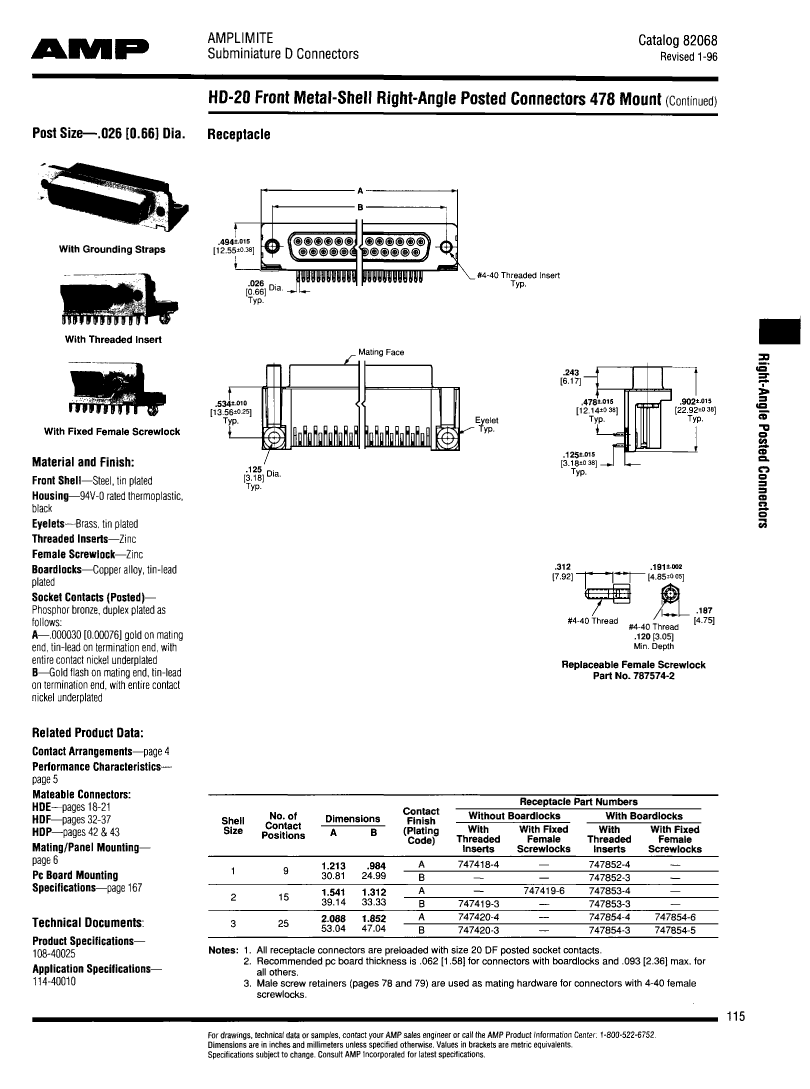

747420-4: DescriptionCONNECTOR,D-SHELL,PCB MNT,PLUG,25 CONTACTS,SKT,0.109 PITCH,PC TAIL TERMINAL,#4-40; CategoryThe connector The connector; File Size48KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

747420-4 Overview

CONNECTOR,D-SHELL,PCB MNT,PLUG,25 CONTACTS,SKT,0.109 PITCH,PC TAIL TERMINAL,#4-40

747420-4 Parametric

Parameter Name	Attribute value
Objectid	300067531
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0
Other features	GNDING STRAP
body width	0.494 inch
subject depth	0.659 inch
body length	2.088 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
MIL compliance	YES
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	30u inch
Rated current (signal)	2.9 A
Guideline	UL, CSA
Shell surface	TIN
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	25

747420-4 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

747420-4 Related Products

	747420-4	747420-3	747419-3	747419-6
Description	CONNECTOR,D-SHELL,PCB MNT,PLUG,25 CONTACTS,SKT,0.109 PITCH,PC TAIL TERMINAL,#4-40	CONNECTOR,D-SHELL,PCB MNT,PLUG,25 CONTACTS,SKT,0.109 PITCH,PC TAIL TERMINAL,#4-40	CONNECTOR,D-SHELL,PCB MNT,PLUG,15 CONTACTS,SKT,0.109 PITCH,PC TAIL TERMINAL,#4-40	CONNECTOR,D-SHELL,PCB MNT,PLUG,15 CONTACTS,SKT,0.109 PITCH,PC TAIL TERMINAL,#4-40
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	GNDING STRAP	GNDING STRAP	GNDING STRAP	GNDING STRAP
body width	0.494 inch	0.494 inch	0.494 inch	0.494 inch
subject depth	0.659 inch	0.659 inch	0.659 inch	0.659 inch
body length	2.088 inch	2.088 inch	1.541 inch	1.541 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK
insulator material	POLYETHYLENE	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
MIL compliance	YES	YES	YES	YES
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch	0.112 inch
Installation option 1	#4-40	#4-40	#4-40	#4-40
Installation option 2	THREADED	THREADED	THREADED	ROUND STANDOFF
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	2
Number of rows loaded	2	2	2	2
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm
Plating thickness	30u inch	FLASH inch	FLASH inch	30u inch
Rated current (signal)	2.9 A	2.9 A	2.9 A	2.9 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA
Shell surface	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL
Terminal length	0.125 inch	0.125 inch	0.125 inch	0.125 inch
Terminal pitch	2.7686 mm	2.7686 mm	2.7432 mm	2.7432 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	25	25	15	15
Maker	-	TE Connectivity	TE Connectivity	TE Connectivity
reliability	-	MIL-C-24308	MIL-C-24308	MIL-C-24308
