9RSM5156-19-38-P datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 9RSM5156-19-38-P

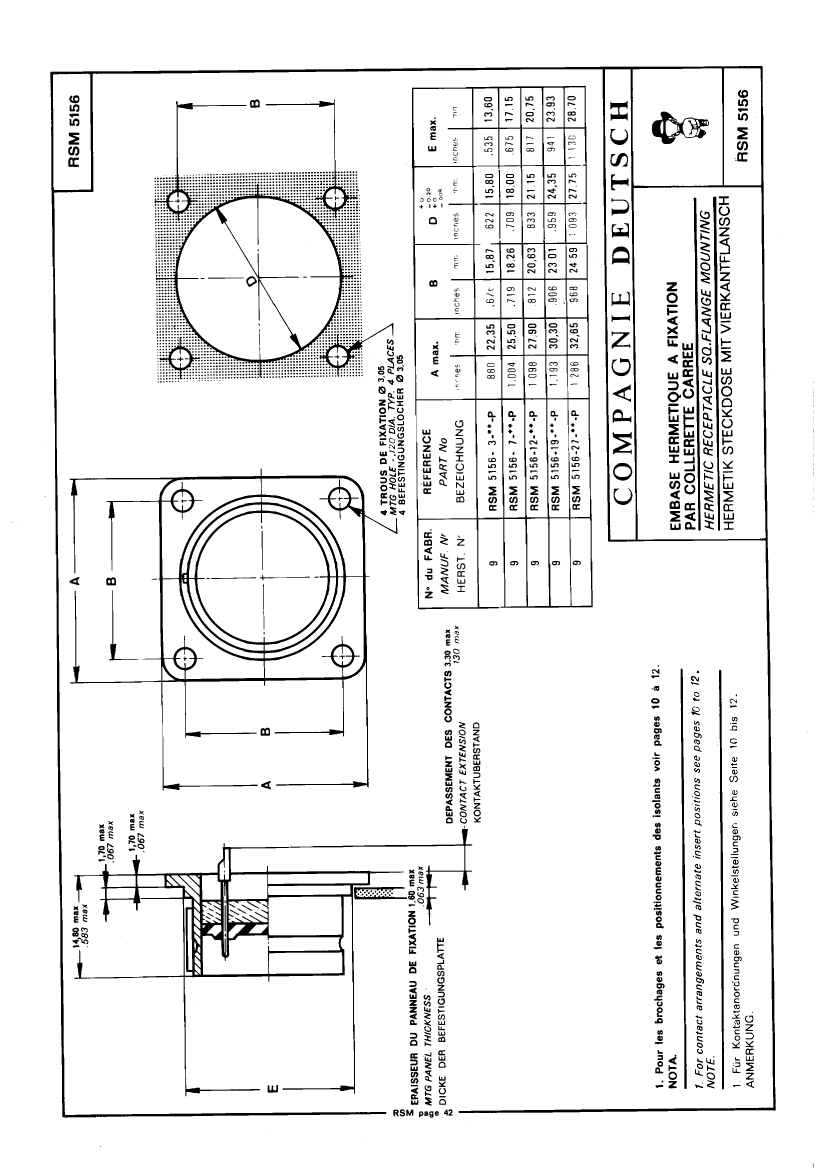

Preview

9RSM5156-19-38-P: Description33 CONTACT(S), ALUMINUM, CADMIUM PLATED, MALE, MIL SERIES CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size48KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

9RSM5156-19-38-P Overview

33 CONTACT(S), ALUMINUM, CADMIUM PLATED, MALE, MIL SERIES CONNECTOR, SOLDER, RECEPTACLE

9RSM5156-19-38-P Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Other features	STANDARD:MIL-C-26482, SEAL MATERIAL:SILICON ELASTOMER, CONTACT MATERIAL:COPPER, LEAKAGE RATE:<6 MM CUBE/HR
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	RSM
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation type	PANEL
Options	HERMETIC
Shell material	ALUMINUM, CADMIUM PLATED
Termination type	SOLDER
Total number of contacts	33

Preview

Download Datasheet

View All

9RSM5156-19-38-P Related Products

	9RSM5156-19-38-P	9RSM5156-12-14-P	9RSM5156-19-33-P	9RSM5156-19-40-P	9RSM5156-27-30-P	9RSM5156-27-34-P	9RSM5156-3-9-P	9RSM5156-7-15-P	B80K2400
Description	33 CONTACT(S), ALUMINUM, CADMIUM PLATED, MALE, MIL SERIES CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, 37 CONTACT(S), ALUMINUM, CADMIUM PLATED, MALE, MIL SERIES CONNECTOR, SOLDER, RECEPTACLE	61 CONTACT(S), ALUMINUM, CADMIUM PLATED, MALE, MIL SERIES CONNECTOR, SOLDER, RECEPTACLE	22 CONTACT(S), ALUMINUM, CADMIUM PLATED, MALE, MIL SERIES CONNECTOR, SOLDER, RECEPTACLE	91 CONTACT(S), ALUMINUM, CADMIUM PLATED, MALE, MIL SERIES CONNECTOR, SOLDER, RECEPTACLE	32 CONTACT(S), ALUMINUM, CADMIUM PLATED, MALE, MIL SERIES CONNECTOR, SOLDER, RECEPTACLE	7 CONTACT(S), ALUMINUM, CADMIUM PLATED, MALE, MIL SERIES CONNECTOR, SOLDER, RECEPTACLE	19 CONTACT(S), ALUMINUM, CADMIUM PLATED, MALE, MIL SERIES CONNECTOR, SOLDER, RECEPTACLE	Metal Oxide Varistors
Maker	TE Connectivity	-	TE Connectivity	TE Connectivity	TE Connectivity	-	TE Connectivity	TE Connectivity	-
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	-
Other features	STANDARD:MIL-C-26482, SEAL MATERIAL:SILICON ELASTOMER, CONTACT MATERIAL:COPPER, LEAKAGE RATE:<6 MM CUBE/HR	STANDARD:MIL-C-26482, SEAL MATERIAL:SILICON ELASTOMER, CONTACT MATERIAL:COPPER, LEAKAGE RATE:<6 MM CUBE/HR	STANDARD:MIL-C-26482, SEAL MATERIAL:SILICON ELASTOMER, CONTACT MATERIAL:COPPER, LEAKAGE RATE:<6 MM CUBE/HR	STANDARD:MIL-C-26482, SEAL MATERIAL:SILICON ELASTOMER, CONTACT MATERIAL:COPPER, LEAKAGE RATE:<6 MM CUBE/HR	STANDARD:MIL-C-26482, SEAL MATERIAL:SILICON ELASTOMER, CONTACT MATERIAL:COPPER, LEAKAGE RATE:<6 MM CUBE/HR	STANDARD:MIL-C-26482, SEAL MATERIAL:SILICON ELASTOMER, CONTACT MATERIAL:COPPER, LEAKAGE RATE:<6 MM CUBE/HR	STANDARD:MIL-C-26482, SEAL MATERIAL:SILICON ELASTOMER, CONTACT MATERIAL:COPPER, LEAKAGE RATE:<6 MM CUBE/HR	STANDARD:MIL-C-26482, SEAL MATERIAL:SILICON ELASTOMER, CONTACT MATERIAL:COPPER, LEAKAGE RATE:<6 MM CUBE/HR	-
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	-
Connector type	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	-
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	-
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	-
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	-
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	-
MIL compliance	YES	YES	YES	YES	YES	YES	YES	YES	-
Manufacturer's serial number	RSM	RSM	RSM	RSM	RSM	RSM	RSM	RSM	-
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-
Installation type	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	-
Options	HERMETIC	HERMETIC	HERMETIC	HERMETIC	HERMETIC	HERMETIC	HERMETIC	HERMETIC	-
Shell material	ALUMINUM, CADMIUM PLATED	ALUMINUM ALLOY	ALUMINUM, CADMIUM PLATED	ALUMINUM, CADMIUM PLATED	ALUMINUM, CADMIUM PLATED	ALUMINUM ALLOY	ALUMINUM, CADMIUM PLATED	ALUMINUM, CADMIUM PLATED	-
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	-
Total number of contacts	33	37	61	22	91	32	7	19	-
