HA2-2622/883 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> HA2-2622/883

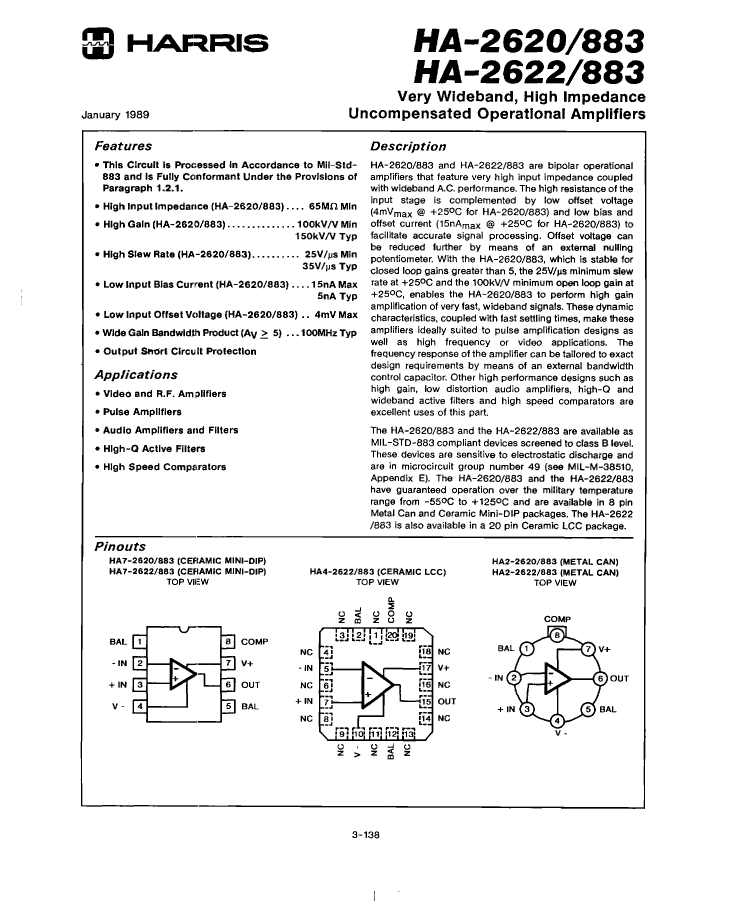

Preview

HA2-2622/883: DescriptionHA2-2622/883 amplifier basic information: HA2-2622/883 is an OPERATIONAL AMPLIFIER. The commonly used packaging method is CAN8,.2 HA2-2622/883 amplifier core information: The minimum operating temperature of HA2-2622/883 is -55 °C and the maximum operating temperature is 125 °C. Maximum bias current at 25°C: 0.025 µA The manufacturer specifies a maximum slew rate of 4 mA for the HA2-2622/883 and a minimum slew rate of 15 V/us. Its minimum voltage gain is 60000. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the HA2-2622/883 gain becomes 0.707 times the low-frequency gain is 100000 kHz. The nominal supply voltage of HA2-2622/883 is 15 V, and its corresponding nominal negative supply voltage is -15 V. The power supply range is: +-15 V. The input offset voltage of HA2-2622/883 is 7000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).) Related dimensions of HA2-2622/883: HA2-2622/883 has 8 terminals. Its terminal position type is: BOTTOM. Total pins: 8 HA2-2622/883 amplifier additional information: HA2-2622/883 adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of HA2-2622/883 is: YES (AVCL>=5). Its temperature grade is: MILITARY. HA2-2622/883 is not Rohs certified. The corresponding JESD-30 code is: O-MBCY-W8. The corresponding JESD-609 code is: e0. HA2-2622/883 packaging materials are mostly METAL. And its package shape is ROUND. HA2-2622/883 package pin formats are: CYLINDRICAL. Its terminal form is: WIRE.; CategoryAnalog mixed-signal IC Amplifier circuit; File Size338KB，12 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/; Alternative parts：HA2-2622/883

Download Datasheet Parametric Compare View All

HA2-2622/883 Overview

HA2-2622/883 amplifier basic information:

HA2-2622/883 is an OPERATIONAL AMPLIFIER. The commonly used packaging method is CAN8,.2

HA2-2622/883 amplifier core information:

The minimum operating temperature of HA2-2622/883 is -55 °C and the maximum operating temperature is 125 °C. Maximum bias current at 25°C: 0.025 µA

The manufacturer specifies a maximum slew rate of 4 mA for the HA2-2622/883 and a minimum slew rate of 15 V/us. Its minimum voltage gain is 60000. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the HA2-2622/883 gain becomes 0.707 times the low-frequency gain is 100000 kHz.

The nominal supply voltage of HA2-2622/883 is 15 V, and its corresponding nominal negative supply voltage is -15 V. The power supply range is: +-15 V. The input offset voltage of HA2-2622/883 is 7000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

Related dimensions of HA2-2622/883:

HA2-2622/883 has 8 terminals. Its terminal position type is: BOTTOM. Total pins: 8

HA2-2622/883 amplifier additional information:

HA2-2622/883 adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of HA2-2622/883 is: YES (AVCL>=5). Its temperature grade is: MILITARY. HA2-2622/883 is not Rohs certified.

The corresponding JESD-30 code is: O-MBCY-W8. The corresponding JESD-609 code is: e0. HA2-2622/883 packaging materials are mostly METAL. And its package shape is ROUND. HA2-2622/883 package pin formats are: CYLINDRICAL.

Its terminal form is: WIRE.

HA2-2622/883 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	BCY
package instruction	, CAN8,.2
Contacts	8
Reach Compliance Code	_compli
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.025 µA
frequency compensation	YES (AVCL>=5)
Maximum input offset voltage	7000 µV
JESD-30 code	O-MBCY-W8
JESD-609 code	e0
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Encapsulate equivalent code	CAN8,.2
Package shape	ROUND
Package form	CYLINDRICAL
power supply	+-15 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
minimum slew rate	15 V/us
Maximum slew rate	4 mA
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Nominal Uniform Gain Bandwidth	100000 kHz
Minimum voltage gain	60000
broadband	YES
Base Number Matches	1

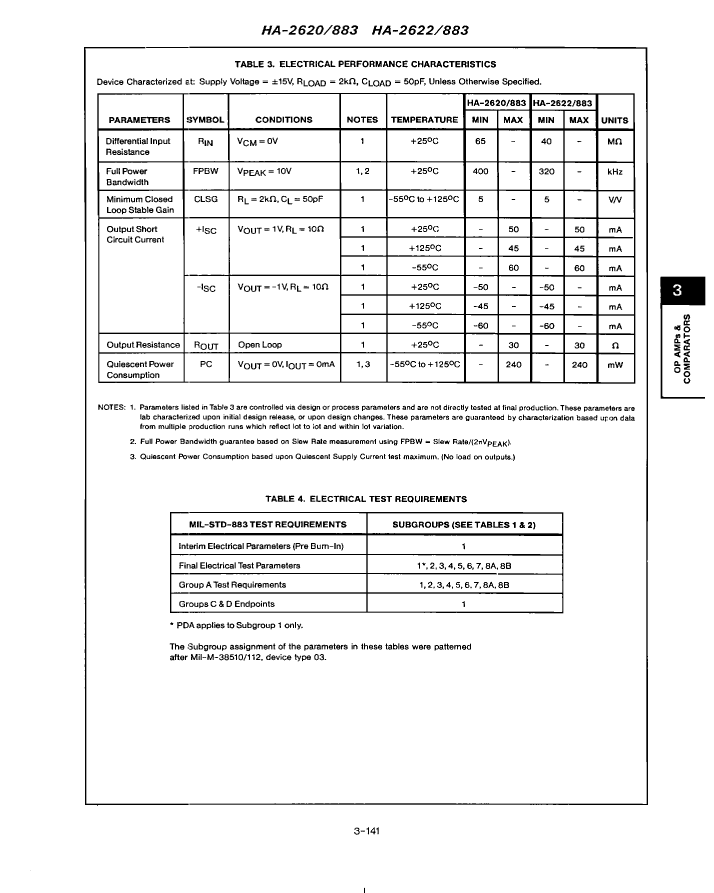

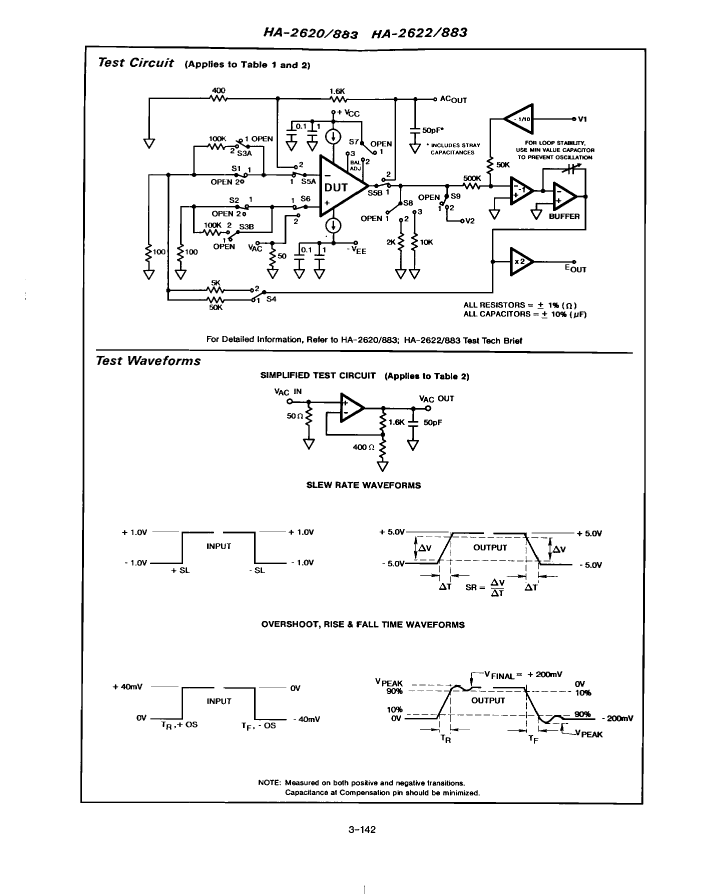

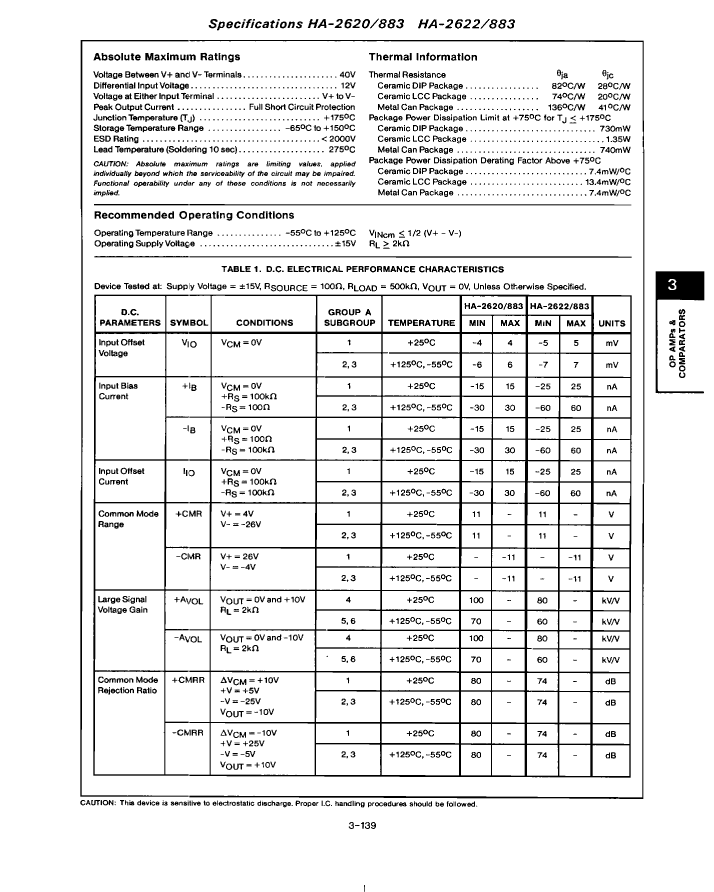

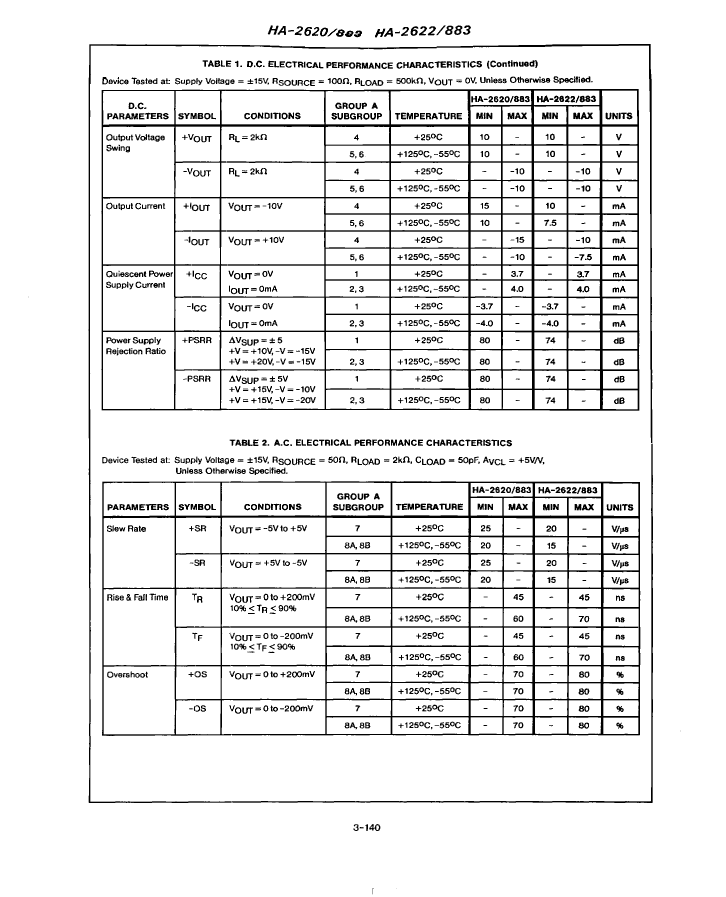

Preview

Download Datasheet

View All

HA2-2622/883 Related Products

	HA2-2622/883	HA7-2622/883	HA4-2622/883	HA7-2620/883	HA2-2620/883
Description	IC,OP-AMP,SINGLE,BIPOLAR,CAN,8PIN,METAL	IC,OP-AMP,SINGLE,BIPOLAR,DIP,8PIN,CERAMIC	IC,OP-AMP,SINGLE,BIPOLAR,LLCC,20PIN,CERAMIC	IC,OP-AMP,SINGLE,BIPOLAR,DIP,8PIN,CERAMIC	IC,OP-AMP,SINGLE,BIPOLAR,CAN,8PIN,METAL
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	BCY	DIP	QLCC	DIP	BCY
package instruction	, CAN8,.2	DIP, DIP8,.3	QCCN, LCC20,.35SQ	DIP, DIP8,.3	, CAN8,.2
Contacts	8	8	20	8	8
Reach Compliance Code	_compli	_compli	_compli	not_compliant	_compli
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.025 µA	0.025 µA	0.025 µA	0.015 µA	0.015 µA
frequency compensation	YES (AVCL>=5)	YES (AVCL>=5)	YES (AVCL>=5)	YES (AVCL>=5)	YES (AVCL>=5)
Maximum input offset voltage	7000 µV	7000 µV	7000 µV	6000 µV	6000 µV
JESD-30 code	O-MBCY-W8	R-XDIP-T8	S-XQCC-N20	R-XDIP-T8	O-MBCY-W8
JESD-609 code	e0	e0	e0	e0	e0
low-dissonance	NO	NO	NO	NO	NO
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1	1
Number of terminals	8	8	20	8	8
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	METAL	CERAMIC	CERAMIC	CERAMIC	METAL
Encapsulate equivalent code	CAN8,.2	DIP8,.3	LCC20,.35SQ	DIP8,.3	CAN8,.2
Package shape	ROUND	RECTANGULAR	SQUARE	RECTANGULAR	ROUND
Package form	CYLINDRICAL	IN-LINE	CHIP CARRIER	IN-LINE	CYLINDRICAL
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
minimum slew rate	15 V/us	15 V/us	15 V/us	20 V/us	20 V/us
Maximum slew rate	4 mA	4 mA	4 mA	4 mA	4 mA
Supply voltage upper limit	20 V	20 V	20 V	20 V	20 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	WIRE
Terminal location	BOTTOM	DUAL	QUAD	DUAL	BOTTOM
Nominal Uniform Gain Bandwidth	100000 kHz	100000 kHz	100000 kHz	100000 kHz	100000 kHz
Minimum voltage gain	60000	60000	60000	70000	70000
broadband	YES	YES	YES	YES	YES
Base Number Matches	1	1	1	-	-
encapsulated code	-	DIP	QCCN	DIP	-
surface mount	-	NO	YES	NO	-
Terminal pitch	-	2.54 mm	1.27 mm	2.54 mm	-
