Datasheet> All Categories > storage> storage> UM23C4100F-100

Preview

UM23C4100F-100: DescriptionMASK ROM, 512KX8, 100ns, CMOS, PQFP44; Categorystorage storage; File Size132KB，6 Pages; ManufacturerUnited Microelectronics Corporation; Websitehttp://www.umc.com/

Download Datasheet Parametric Compare View All

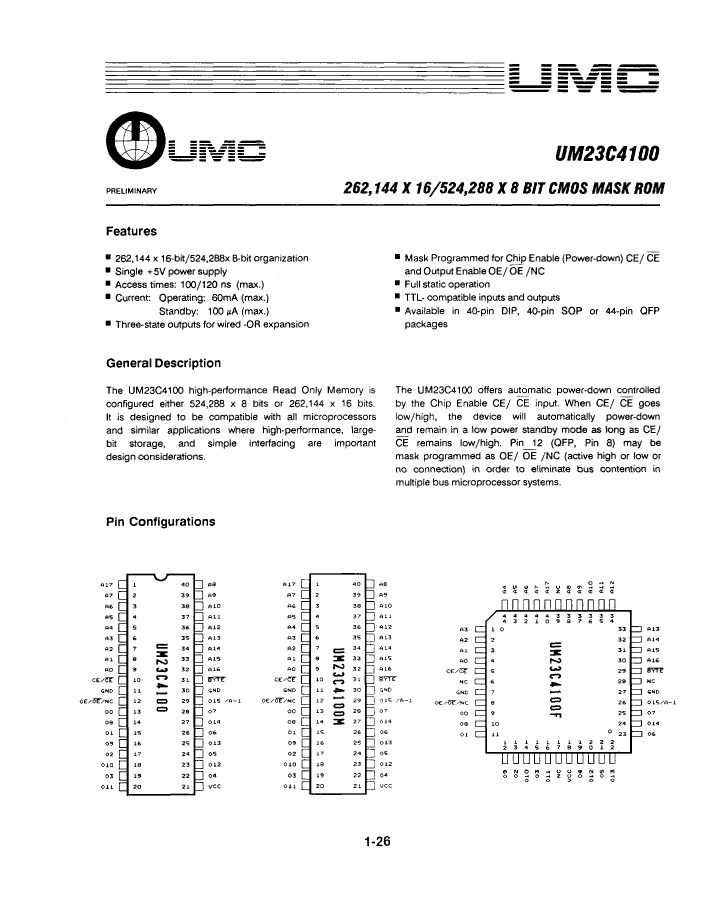

UM23C4100F-100 Overview

MASK ROM, 512KX8, 100ns, CMOS, PQFP44

UM23C4100F-100 Parametric

Parameter Name	Attribute value
Maker	United Microelectronics Corporation
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99

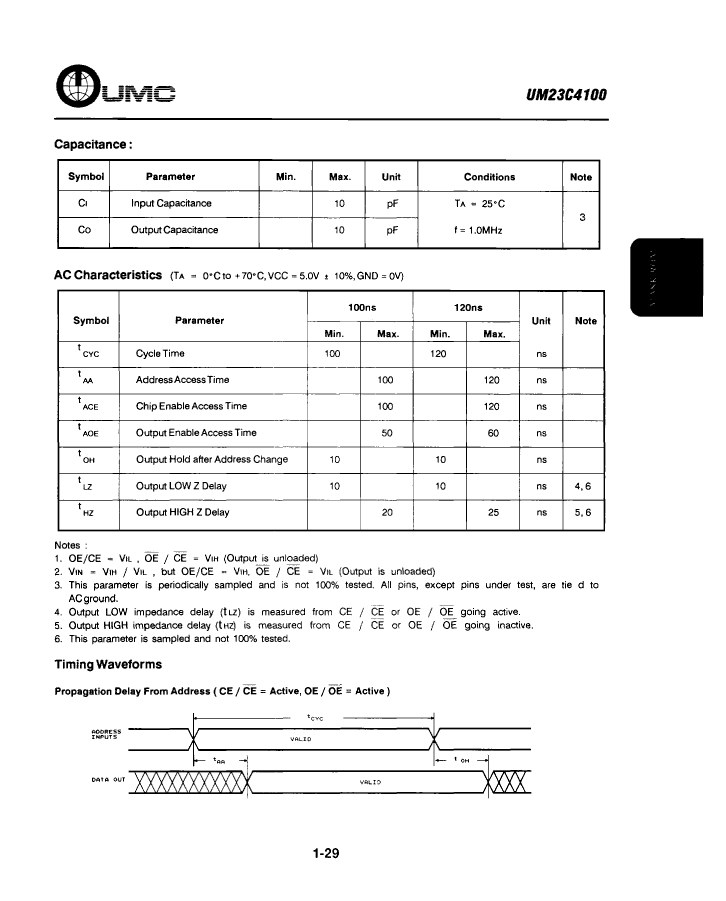

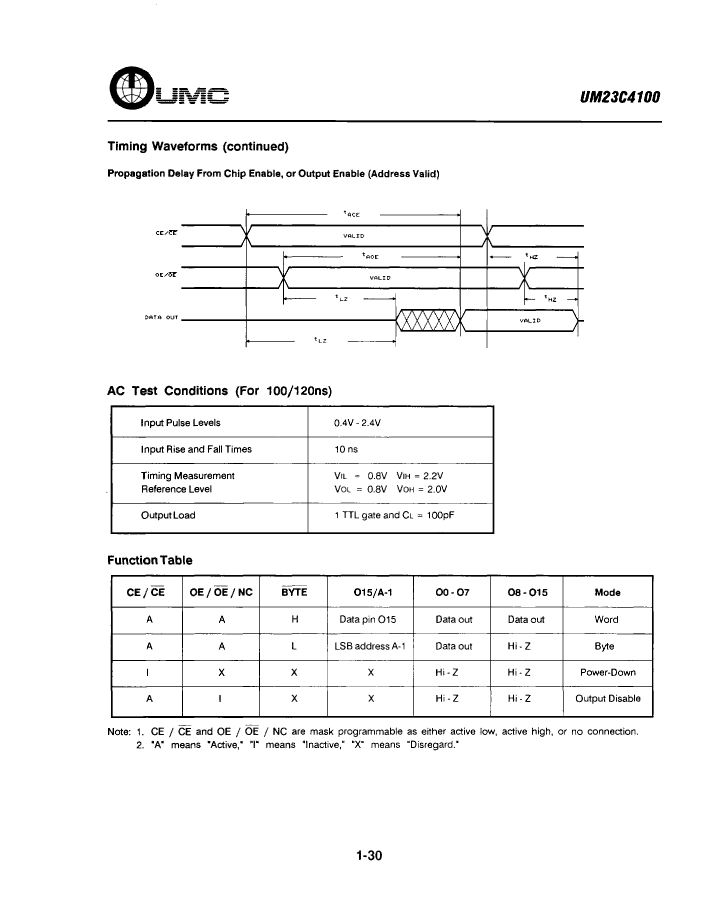

Maximum access time	100 ns
Spare memory width	16
JESD-30 code	S-PQFP-G44
memory density	4194304 bit
Memory IC Type	MASK ROM
memory width	8
Number of functions	1

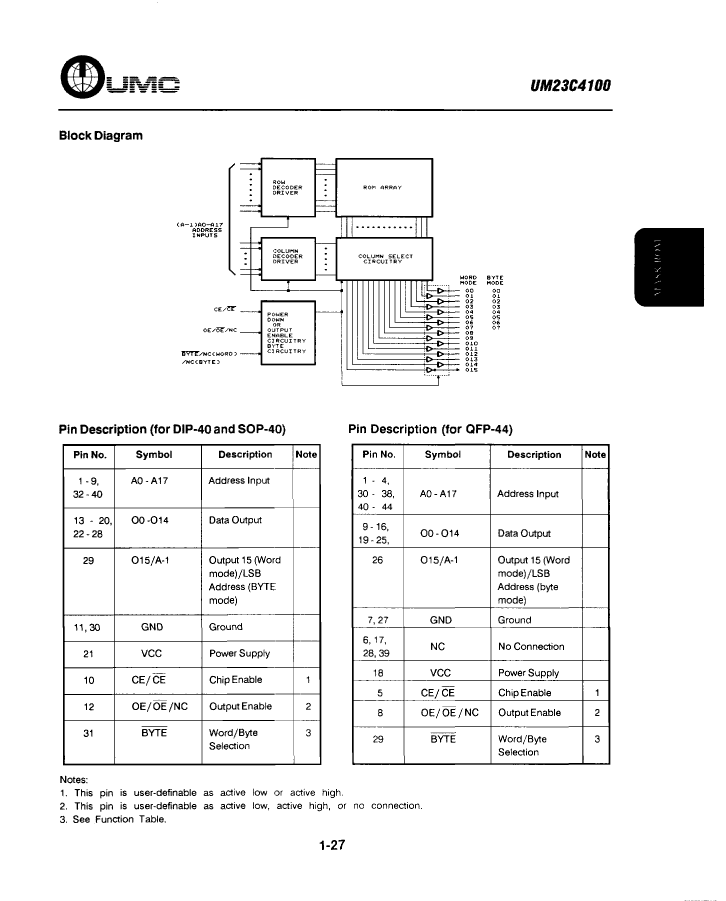

Number of terminals	44
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	FLATPACK
Parallel/Serial	PARALLEL
Certification status	Not Qualified

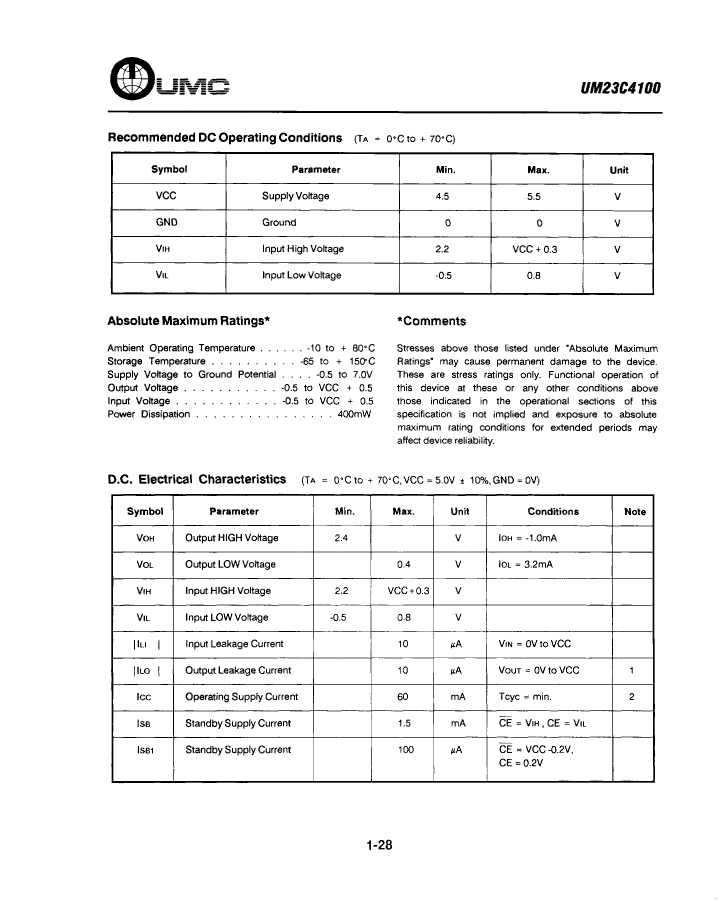

Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	QUAD

Preview

Download Datasheet

View All

UM23C4100F-100 Related Products

	UM23C4100F-100	UM23C4100-120	UM23C4100-100	UM23C4100F-120	UM23C4100M-120	UM23C4100M-100
Description	MASK ROM, 512KX8, 100ns, CMOS, PQFP44	MASK ROM, 512KX8, 120ns, CMOS, PDIP40,	MASK ROM, 512KX8, 100ns, CMOS, PDIP40,	MASK ROM, 512KX8, 120ns, CMOS, PQFP44	MASK ROM, 512KX8, 120ns, CMOS, PDSO40	MASK ROM, 512KX8, 100ns, CMOS, PDSO40
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	100 ns	120 ns	100 ns	120 ns	120 ns	100 ns
Spare memory width	16	16	16	16	16	16
JESD-30 code	S-PQFP-G44	R-PDIP-T40	R-PDIP-T40	S-PQFP-G44	R-PDSO-G40	R-PDSO-G40
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	44	40	40	44	40	40
word count	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	512KX8	512KX8	512KX8	512KX8	512KX8	512KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	IN-LINE	FLATPACK	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	GULL WING
Terminal location	QUAD	DUAL	DUAL	QUAD	DUAL	DUAL
Maker	United Microelectronics Corporation	-	-	United Microelectronics Corporation	United Microelectronics Corporation	United Microelectronics Corporation
