UC7912AIG/883BC datasheet, PDF

UC7912AIG/883BC: DescriptionFixed Negative Standard Regulator, 12V, BIPolar, CSFM3,; CategoryPower/power management The power supply circuit; File Size128KB，4 Pages; ManufacturerUnitrode Corporation

Download Datasheet Parametric Compare View All

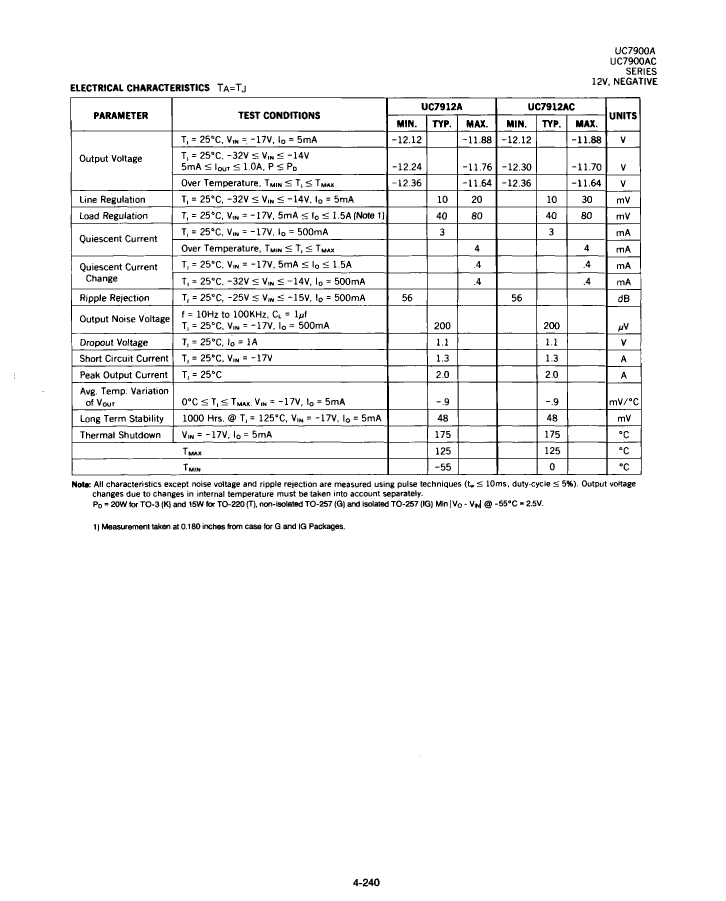

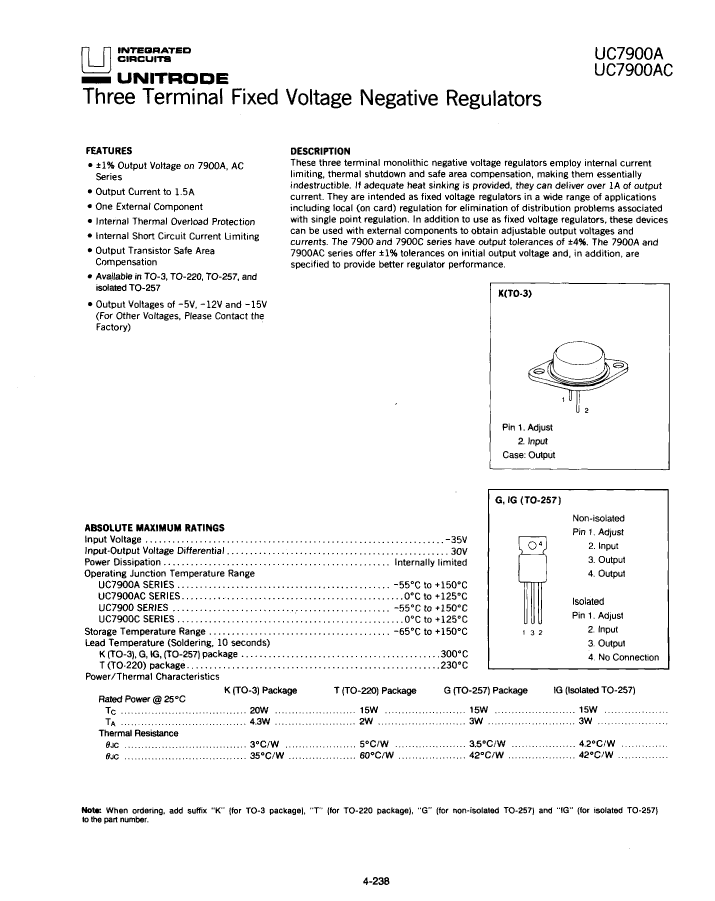

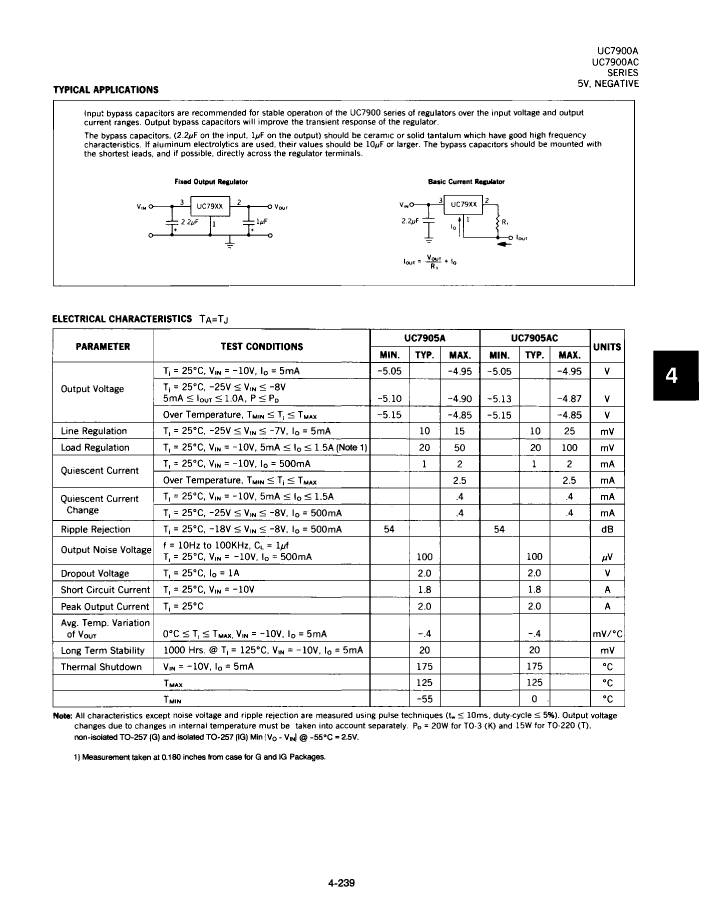

UC7912AIG/883BC Overview

Fixed Negative Standard Regulator, 12V, BIPolar, CSFM3,

Parameter Name	Attribute value
Maker	Unitrode Corporation
Reach Compliance Code	unknown
Maximum input voltage	32 V
Minimum input voltage	14 V
JESD-30 code	R-CSFM-T3
Number of functions	1
Number of terminals	3
Maximum output current 1	1.5 A
Maximum output voltage 1	12.36 V
Minimum output voltage 1	11.64 V
Nominal output voltage 1	12 V
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Regulator type	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO
technology	BIPOLAR
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

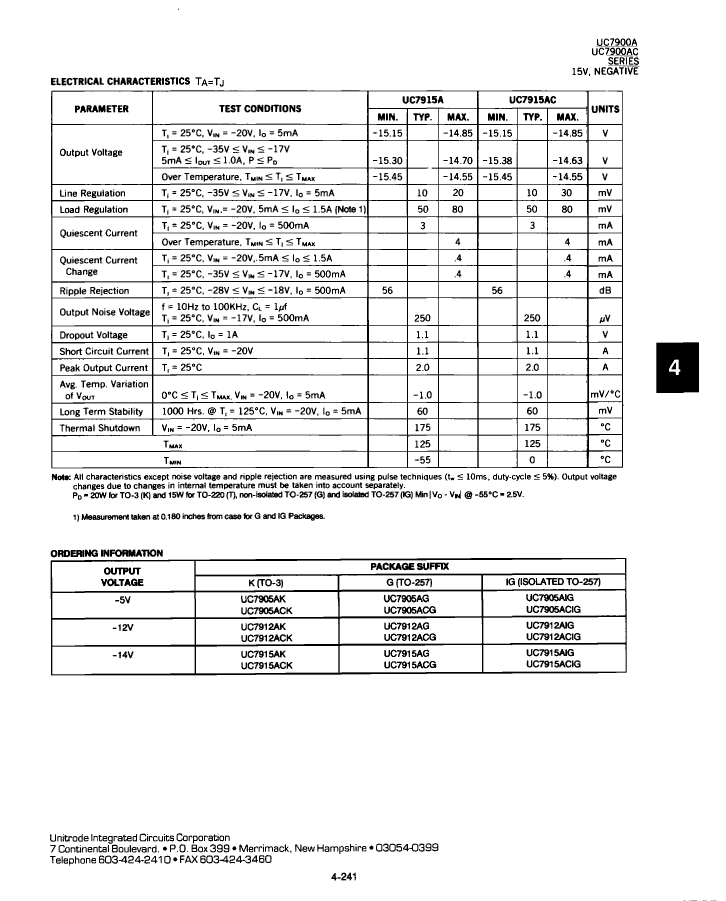

	UC7912AIG/883BC	UC7915AIG/883BC	UC7905AIG/883BC
Description	Fixed Negative Standard Regulator, 12V, BIPolar, CSFM3,	Fixed Negative Standard Regulator, 15V, BIPolar, CSFM3,	Fixed Negative Standard Regulator, 5V, BIPolar, CSFM3,
Maker	Unitrode Corporation	Unitrode Corporation	Unitrode Corporation
Reach Compliance Code	unknown	unknown	unknown
Maximum input voltage	32 V	35 V	25 V
Minimum input voltage	14 V	17 V	7 V
JESD-30 code	R-CSFM-T3	R-CSFM-T3	R-CSFM-T3
Number of functions	1	1	1
Number of terminals	3	3	3
Maximum output current 1	1.5 A	1.5 A	1.5 A
Maximum output voltage 1	12.36 V	15.45 V	5.15 V
Minimum output voltage 1	11.64 V	14.55 V	4.85 V
Nominal output voltage 1	12 V	15 V	5 V
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
