THR0JM103 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> THR0JM103

THR0JM103: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 6.3V, 20% +Tol, 20% -Tol, 10000uF; CategoryPassive components capacitor; File Size250KB，3 Pages; ManufacturerLuminous Town Electric Co., Ltd.

Download Datasheet Parametric View All

THR0JM103 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 6.3V, 20% +Tol, 20% -Tol, 10000uF

THR0JM103 Parametric

Parameter Name	Attribute value
Maker	Luminous Town Electric Co., Ltd.
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	10000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	16 mm
dielectric materials	ALUMINUM
length	31.5 mm
Manufacturer's serial number	TH(6.3V)
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	6.3 V
series	TH(6.3V)
Terminal pitch	7.5 mm

Preview

Download Datasheet

View All

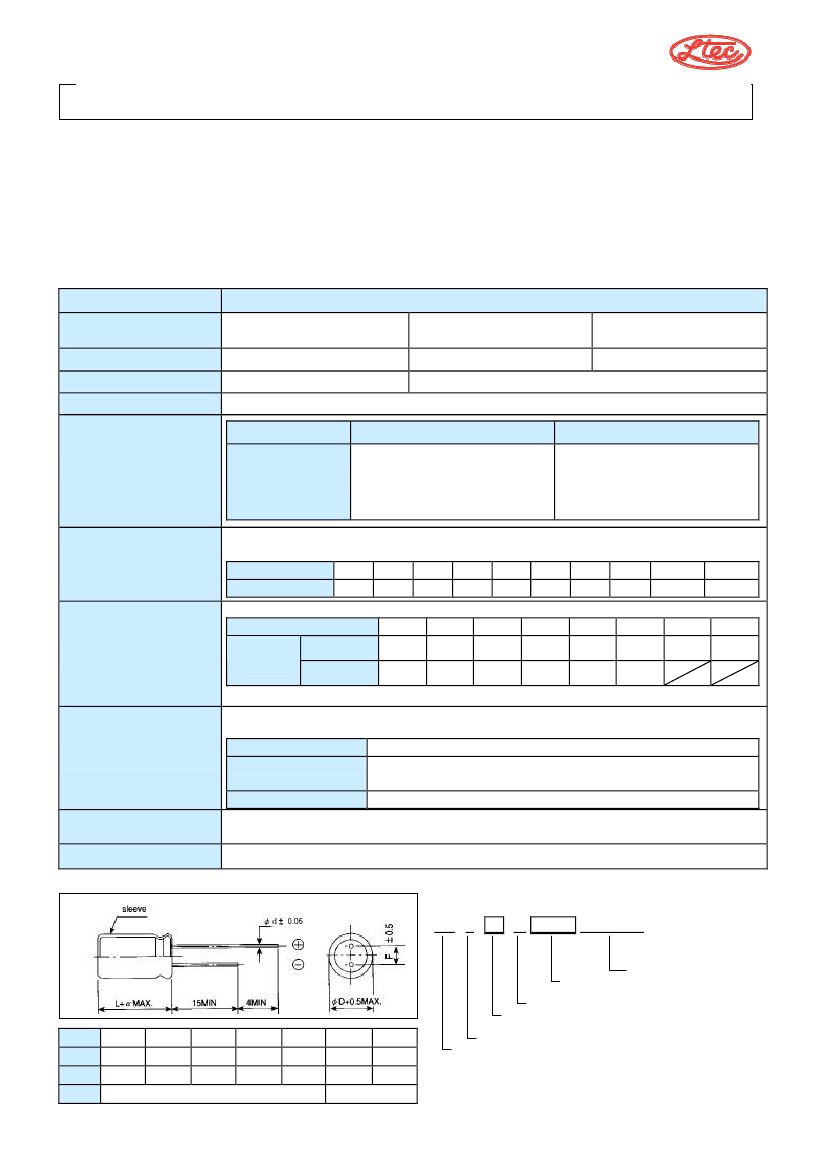

ALUMINUM ELECTROLYTIC CAPACITORS

Goback

series

105℃ LONG LIFE TYPE

Load life of 2000 hours at 105℃

Has characteristics of withstanding high temperature 105℃ and good reliability

Suitable for communication equipment and industrial measurement instruments.

■SPECIFICATIONS

Item

Operating Temperature

Range

Rated Voltage Range

Capacitance Range

Capacitance Tolerance

Performance Characteristics

-40~+105℃

6.3~100W.V.

0.47~22000uF

Rated Voltage(V)

Leakage Current(MAX)

-40~+105℃

-25~+105℃

160~250 W.V.

350~450 W.V.

0.47~330uF

±20%

(M) at 120Hz , 25℃

6.3-100

160-450

lAfter

1 minutes application of rated voltage,

lAfter

1 minute’s application of rated voltage,

leakage current is not more than 0.03CV or CV≦1000:1≦0.1CV+40uA

4uA, whichever is greater.

CV>1000:1≦0.04CV+100(uA)

lAfter

2 minutes application of rated voltage,

leakage current is not more than 0.01CV or

3uA, whichever is greater.

(tanδ)

For capacitance of more than 1000uF, add 0.02 for every increase of 1000uF,

Measurement frequence:120Hz, Temperature:25℃

0.26 0.22 0.18 0.16 0.14 0.12 0.10 0.08 0.20

0.25

Measurement frequency: 120Hz

Rated Voltage(V)

6.3

16 25-100

160-200 250-315 350-400

450

Impedance ratio Z(-25℃)/Z(+20℃)

ZT/Z20(MAX)

Z(-40℃)/Z(+20℃)

Rated voltage (V)

Tan

(MAX)

6.3

100

160-250 350-450

Stability at Low

Temperature

Load Life

After 2000

hours’ application of rated voltage at 105

℃

, capacitors meet the characteristics

requirement listed as following.

Leakage Current

Specified value or less

Capacitance

Within ±25% of initial value.

Change

tan ä

200% or less of specified value

After leaving capacitors under no load at 105℃ for 1000 hours and applying voltage according to JIS

C-5102 4-3, they meet the specified value for load life characteristics listed above.

Shelf Life

Standard

According to JIS C 5141

CATALOG NUMBERING SYSTEM (Example:10v 100uF)

1 2 3 4 5 6 7 8 9 10 11 12

TH R 1C M 1

1 E

■DIMENSIONS

(mm)

φD

φd

0.5

2.0

6.3

0.5

2.5

0.6

3.5

1.5

0.6

5.0

12.5

0.6

5.0

0.8

7.5

2.0

0.8

7.5

Case size(φDxL)

Nominal capacitance in uF

Capacitance tolerance

Rated working voltage in volt

Terminal type

Series name

TH-0401
