TS83102G0CGL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> TS83102G0CGL

TS83102G0CGL: DescriptionA/D Converter,; CategoryAnalog mixed-signal IC converter; File Size23KB，1 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric View All

TS83102G0CGL Overview

A/D Converter,

TS83102G0CGL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Atmel (Microchip)
package instruction	,
Reach Compliance Code	compliant

TS83102G0CGL Preview

Released under NDA

TS83102G0

MAIN FEATURES

10-bit resolution.

2 GSPS sampling rate.

3 GHz full power input bandwidth.

Band flatness:

0.2 dB (from DC up to 1.5 GHz).

Very low input VSWR : 1.15 max from DC to 2GHz (packaged device).

Phase error: 0.2° (from 750MHz to 1.5GHz)

Power consumption : 4.6 W.

SFDR= 59 dBc ; 7.6 Effective Bits @F

= 1.4 GSPS, F

= 700 MHz [-1dBFS].

SFDR = 52dBc ; 7.2 Effective Bits @Fs = 1.4 GSPS, F

= 1950 MHz [-1dBFS].

SFDR= 56 dBc ; 6.4 Effective Bits @F

= 2 GSPS, F

= 950 MHz [-1dBFS].

DNL =

±1.1

LSB, INL =

±2.3

LSB.

Low Bit Error Rate (10

-12

) @ 2 GSPS and Tj = 110°C

500 mVpp differential 100Ω or single-ended 50Ω

(±1 %)

analog inputs.

Differential 100Ω or single-ended 50Ω ECL compatible clock inputs.

ECL or LVDS output compatibility.

50Ω differential outputs with common mode independent on temperature.

Data ready output with asynchronous reset.

Out-of-Range output bit.

Gray or Binary selectable output data ; NRZ output mode.

Pattern generator output (for acquisition system monitoring).

ADC gain adjust.

Sampling delay adjust.

Offset control capability.

Radiation tolerance oriented design (more than 100Krad (Si) expected).

ADC 10-bit 2 Gsps

Converter

TS83102G0

APPLICATION

Direct RF down conversion.

Wide band satellite receiver.

High speed instrumentation.

High speed acquisition systems.

High energy physics.

Automatic test equipment.

1/ CBGA148 down

TS83102G0CGL

2/ Die form : JTS83102G0

3/ Hermetic ceramic package :

to be defined on request

4/ DMUX 10 bit 1:4/1:8 2Gsps

TS81102G0 :

Companion device available

5/ CBGA package Evaluation

Board TSEV83102G0GL

SCREENING

Standard die flow

Package Temperature range : To be defined

DESCRIPTION

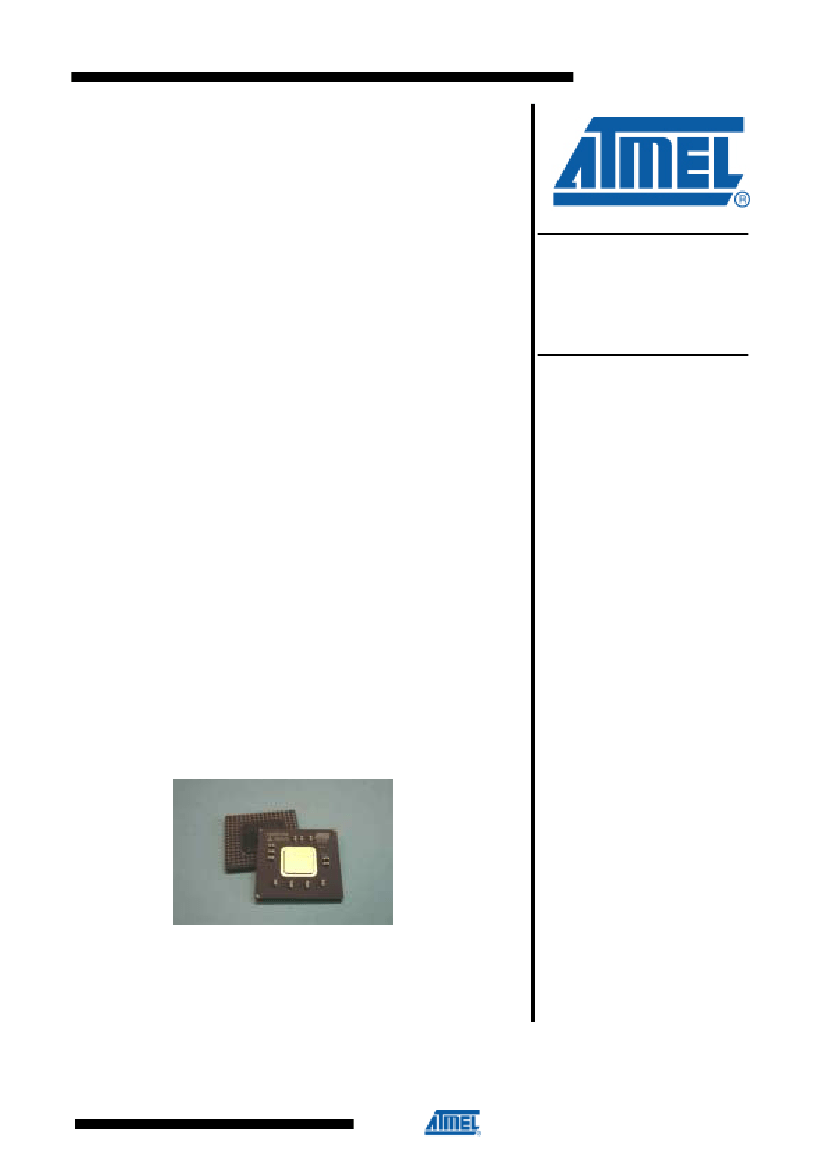

The TS83102G0 is a monolithic 10-bit analog-to-digital converter, designed for digitizing

wide bandwidth analog signals at very high sampling rates of up to 2 Gsps.

The TS83102G0 is using an innovative architecture, including an on-chip Sample and

Hold (S/H), and is fabricated with an advanced high speed bipolar SiGe heterojunction

process, featuring 75GHz cutoff frequency.

The 3 GHz full power input bandwidth and the band flatness performances enables the

digitizing of high IF and large bandwidth signals.

CBGA 148 Packaged device

January 2002

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
