LH538000-SD-50 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> LH538000-SD-50

LH538000-SD-50: DescriptionMASK ROM, 1MX8, 200ns, CMOS, PDIP42, 0.600 INCH, PLASTIC, DIP-42; Categorystorage storage; File Size140KB，6 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

LH538000-SD-50 Overview

MASK ROM, 1MX8, 200ns, CMOS, PDIP42, 0.600 INCH, PLASTIC, DIP-42

LH538000-SD-50 Parametric

Parameter Name	Attribute value
Maker	SHARP
package instruction	0.600 INCH, PLASTIC, DIP-42
Reach Compliance Code	unknown
Maximum access time	200 ns
Spare memory width	16
JESD-30 code	R-PDIP-T42
length	53.8 mm
memory density	8388608 bit
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	42
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX8
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	5.4 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.6 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm

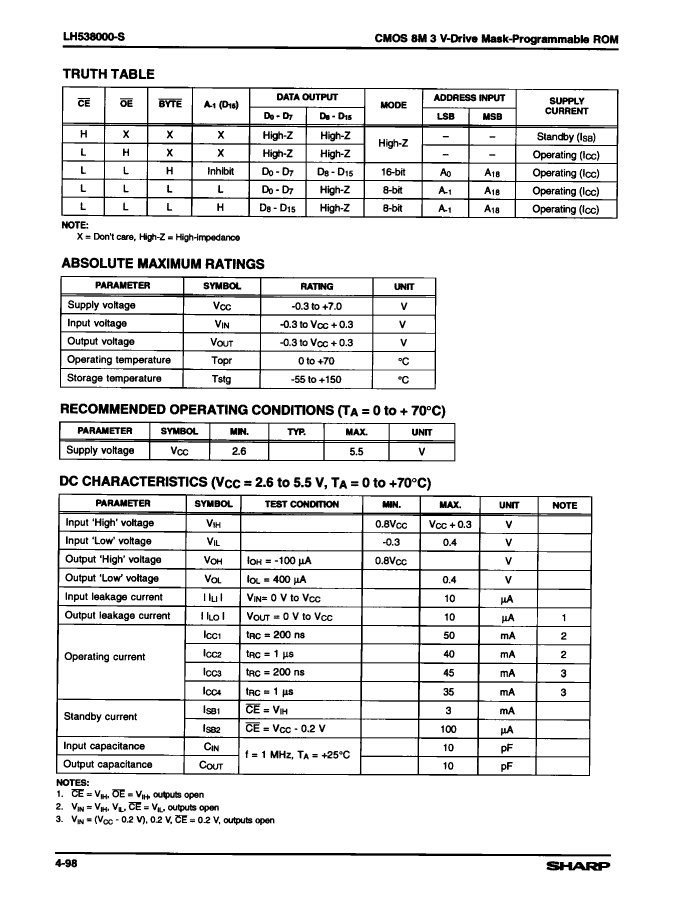

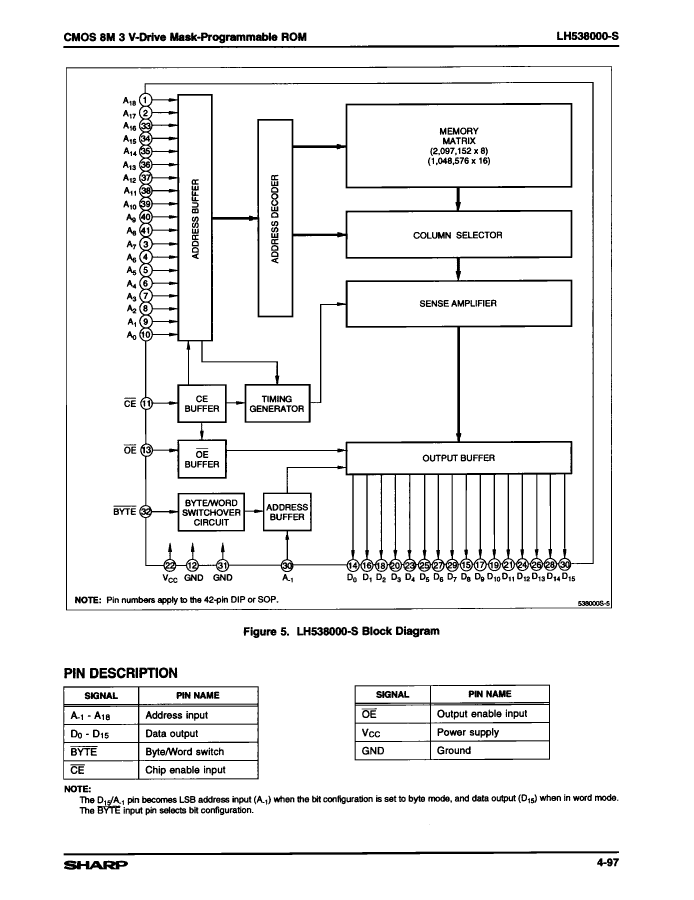

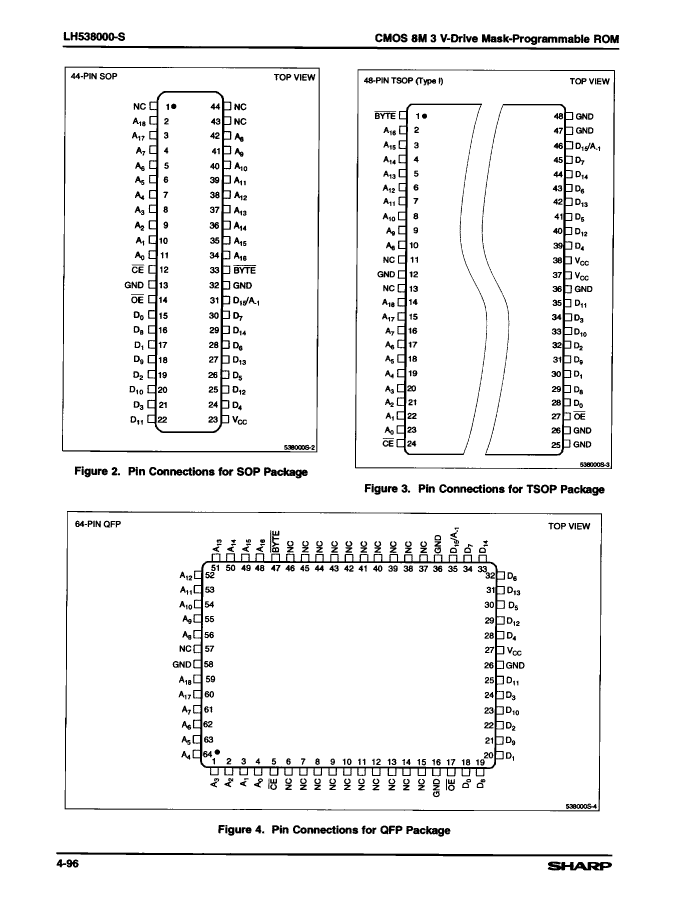

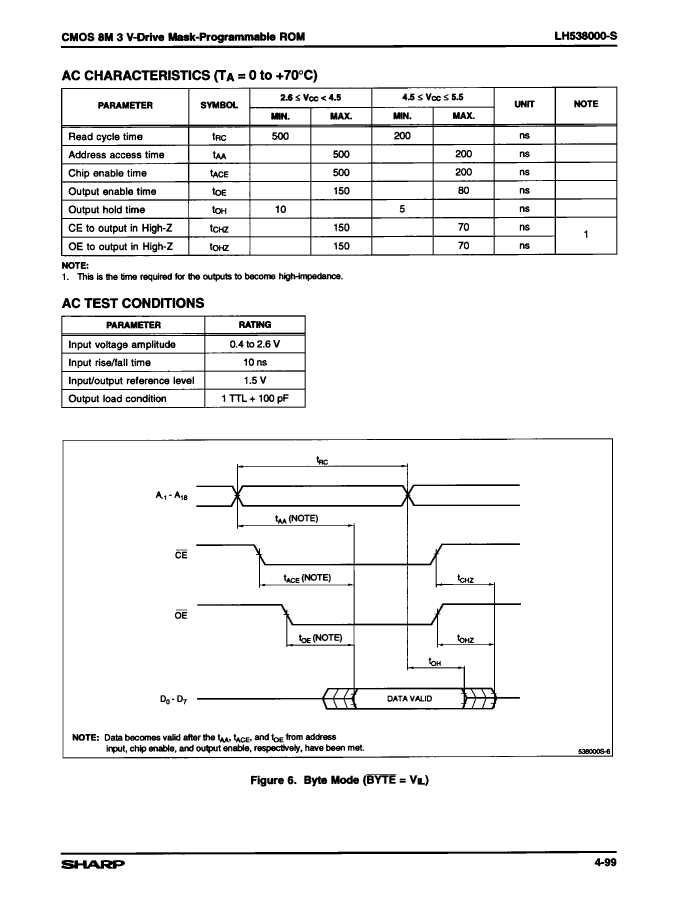

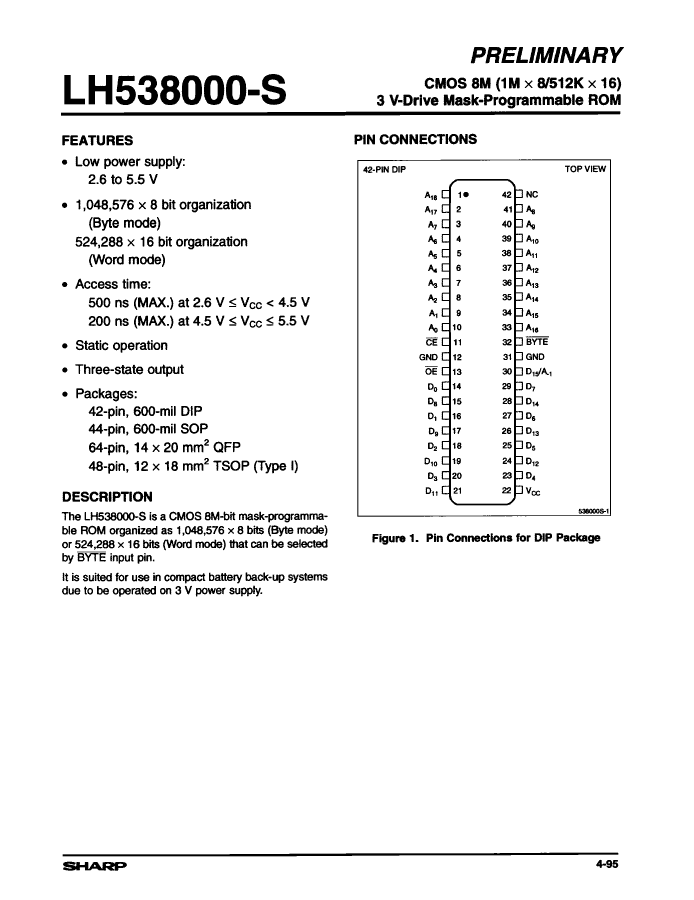

LH538000-SD-50 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

LH538000-SD-50 Related Products

	LH538000-SD-50	LH538000-SN-50	LH538000-SM-50	LH538000-ST-50
Description	MASK ROM, 1MX8, 200ns, CMOS, PDIP42, 0.600 INCH, PLASTIC, DIP-42	MASK ROM, 1MX8, 200ns, CMOS, PDSO44, 0.600 INCH, PLASTIC, SOP-44	MASK ROM, 1MX8, 200ns, CMOS, PQFP64, 14 X 20 MM, PLASTIC, QFP-64	MASK ROM, 1MX8, 200ns, CMOS, PDSO48, 12 X 18 MM, PLASTIC, TSOP1-48
Maker	SHARP	SHARP	SHARP	SHARP
package instruction	0.600 INCH, PLASTIC, DIP-42	0.600 INCH, PLASTIC, SOP-44	14 X 20 MM, PLASTIC, QFP-64	12 X 18 MM, PLASTIC, TSOP1-48
Reach Compliance Code	unknown	unknown	unknown	unknow
Maximum access time	200 ns	200 ns	200 ns	200 ns
Spare memory width	16	16	16	16
JESD-30 code	R-PDIP-T42	R-PDSO-G44	R-PQFP-G64	R-PDSO-G48
length	53.8 mm	28.2 mm	20 mm	16.4 mm
memory density	8388608 bit	8388608 bit	8388608 bit	8388608 bi
Memory IC Type	MASK ROM	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	42	44	64	48
word count	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	1MX8	1MX8	1MX8	1MX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	QFP	TSOP1
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	FLATPACK	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.4 mm	3.25 mm	3.15 mm	1.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2.6 V	2.6 V	2.6 V	2.6 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	GULL WING
Terminal pitch	2.54 mm	1.27 mm	1 mm	0.5 mm
Terminal location	DUAL	DUAL	QUAD	DUAL
width	15.24 mm	13.2 mm	14 mm	12 mm
