Power DIN
Type H
D
ESCRIPTION
/A
PPLICATION

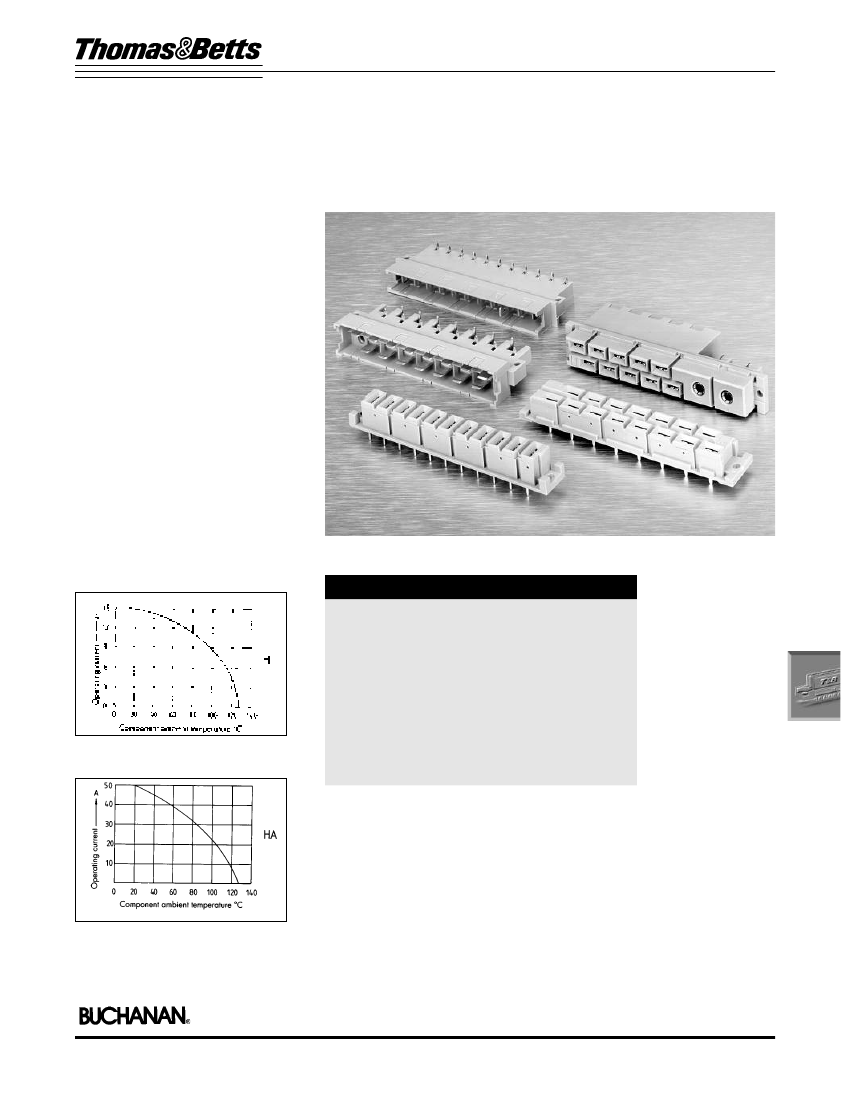

The Buchanan
®
Type H connector
complies with the application
requirements of DIN 41612 sections
1 and 4. A variety of styles and
designs makes the Type H connector
suitable for a wide range of power
supply sub-assembly needs.
TYPE H
POWER DIN CONNECTORS
D
ESIGN
A
DVANTAGES
• Sturdy mechanical coding keys are
integrated into the connectors. This
allows field coding of the connector
with little additional work.
• The H15 male slimline connectors
with one and two rows of contacts
provide space saving on the PCB of
up to approx. 700mm
2
.
• Male connector versions with fully
shrouded contacts provide a
closed insulator on termination side
of the PCB.
D
ERATING
C
URVES
CONNECTOR INDEX
H15 Double Row Male ..........................................................120
H15 Slimline Male ..................................................................121
H15 Double Row Female ..............................................122-123
H15/HA Male ........................................................................124
H15/HA Female......................................................................125
H11 Single Row Male ............................................................126
H11 Single Row Female ........................................................127
H11 Single Row, Half Size Male ............................................128
H11 Single Row, Half Size Female ........................................129
Thomas & Betts Electronics/OEM Division Tel: 901-252-7766 Fax: 901-252-1312
119

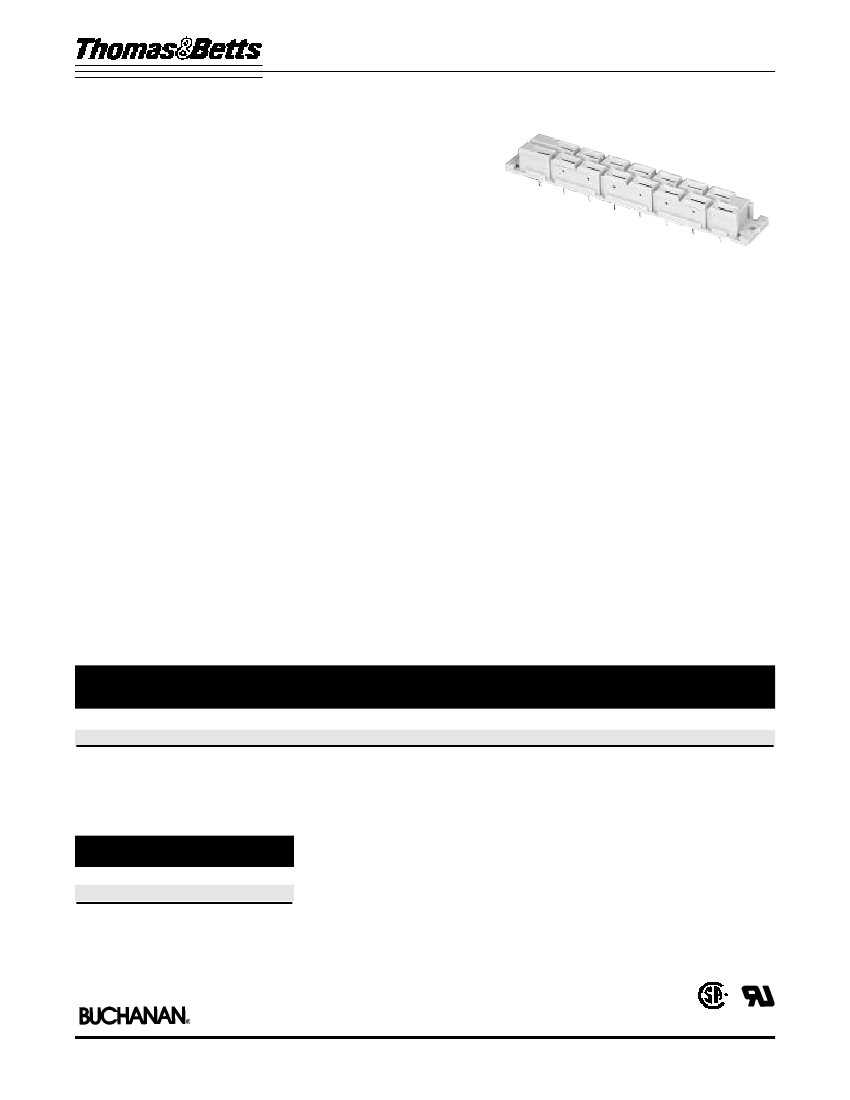

Power DIN
Type H
SERIES H15
DOUBLE ROW
FEMALE CONNECTOR
P
HYSICAL
P
ROPERTIES
H
OUSING
M
ATERIAL
:
Connectors w/o screw termi-
nation: Polyester (PBTP)
Connectors with screw
termination: Polycarbonate (PC)
C
OLOR
:
Beige
F
LAMMABILITY
R
ATING
:
UL94V-1 for PC
ULV94V-0 for PBTP
I
NSERTION
/W
ITHDRAWAL
F
ORCE
:
90N Max.
E
LECTRICAL
P
ROPERTIES
M
AX
. C
URRENT
:
15 A
C
ONTACT
S
URFACE
:
Hard silver plated 6µm Ag or
tinned
P
ERFORMANCE
L
EVEL
:
1
C
REEPING
C
URRENT PER
DIN IEC 112 PBTP:
CTI
275/CTI 175 - PC: CTI 150 - 175/CTI 100M
T
EST
V
OLTAGE
:
50 Hz, 1 min.
C
ONTACT TO
C
ONTACT
:
3100V
C
ONTACT TO
G
ROUND
:
3100V
E
NVIRONMENTAL
P
ROPERTIES
O
PERATING
T
EMPERATURE
R
ANGE
:
-65º C to 125º C
A
IR
L
EAKAGE
D
ISTANCE
:
≥4.5mm
(contact/ground)
C
REEPAGE
D
ISTANCE
:
≥8.0mm
(contact/ground)
C
ONTACT
R
ESISTANCE
:
≤8.0m Ω
I
NSULATION
R
ESISTANCE
:
≥10
12
Ω
at 100 VDC
Ordering Information — Polyester
#
CONTACT
OF
PLATING
CONTACTS
15
15
Silver
Tinned
FASTON
(6.3 X 0.8)
H15F FAC
H15F FATC
SOLDER PIN
VERTICAL
4 MM
H15F T4C
H15F T4TC
SOLDER PIN
VERTICAL
13 MM
H15F T13C
H15F T13TC
SOLDER PIN
VERTICAL
24MM
H15F T24C
H15F T24TC
SOLDER PIN
DOUBLE PIN
H15F TD4C
H15F TD4TC
SOLDER
EYELET
H15F LC
H15F LTC
REVERSED
FEMALE 90˚
H15F WC
H15F WTC
PRESS FIT
H15F DP
H15F DPT
C
ODING
K
EY
O
PTION
:
HCOD
Ordering Information — Polycarbonate
OF
CONTACT
CONTACTS PLATING
15
15
Silver
Tinned
SCREW
TERMINATION
H15F SR
H15F SRT
C
ODING
K
EY
O
PTION
:
HCOD
LR49571
E60980
Thomas & Betts Electronics/OEM Division Tel: 901-252-7766 Fax: 901-252-1312
Dimensions shown are for reference only. Dimensions are in millimeters.
122
Power DIN
Type H
SERIES H15
DOUBLE ROW
FEMALE CONNECTOR

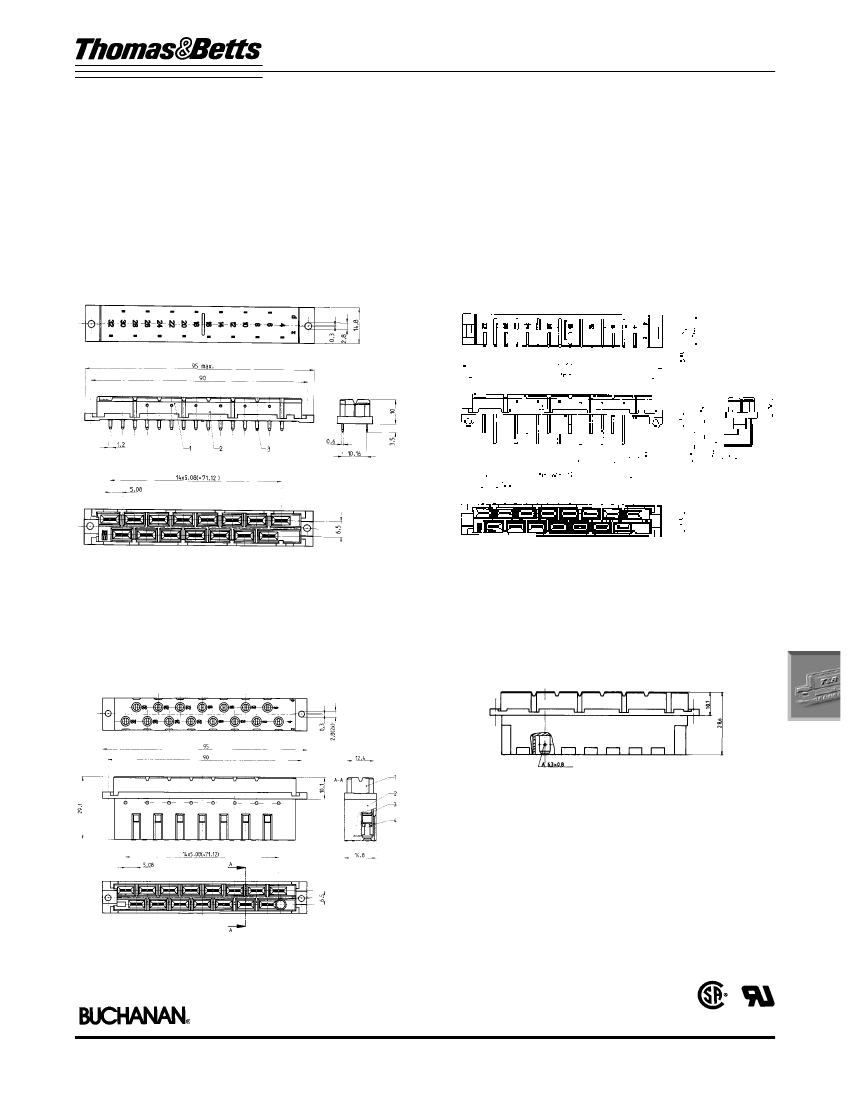

Female Connector
with Solder Pin
Female Connector
with Angled Termination
Female Connector
with Screw Terminal
Female Connector
with Faston Termination
LR49571
E60980
Thomas & Betts Electronics/OEM Division Tel: 901-252-7766 Fax: 901-252-1312
Dimensions shown are for reference only. Dimensions are in millimeters.
123
