CA82C52-16EL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> CA82C52-16EL

CA82C52-16EL: DescriptionSerial I/O Controller, 1 Channel(s), 0.125MBps, CMOS, CQCC28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size715KB，15 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

CA82C52-16EL Overview

Serial I/O Controller, 1 Channel(s), 0.125MBps, CMOS, CQCC28

CA82C52-16EL Parametric

Parameter Name	Attribute value
Maker	IDT (Integrated Device Technology)
package instruction	,
Reach Compliance Code	unknown
Address bus width	2
boundary scan	NO
Bus compatibility	80C86; 80C88
letter of agreement	ASYNC, BIT
Data encoding/decoding methods	NRZ
Maximum data transfer rate	0.125 MBps
External data bus width	8
JESD-30 code	S-CQCC-N28
low power mode	NO
Number of DMA channels
Number of I/O lines
Number of serial I/Os	1
Number of terminals	28
On-chip data RAM width
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
RAM (number of words)	0
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

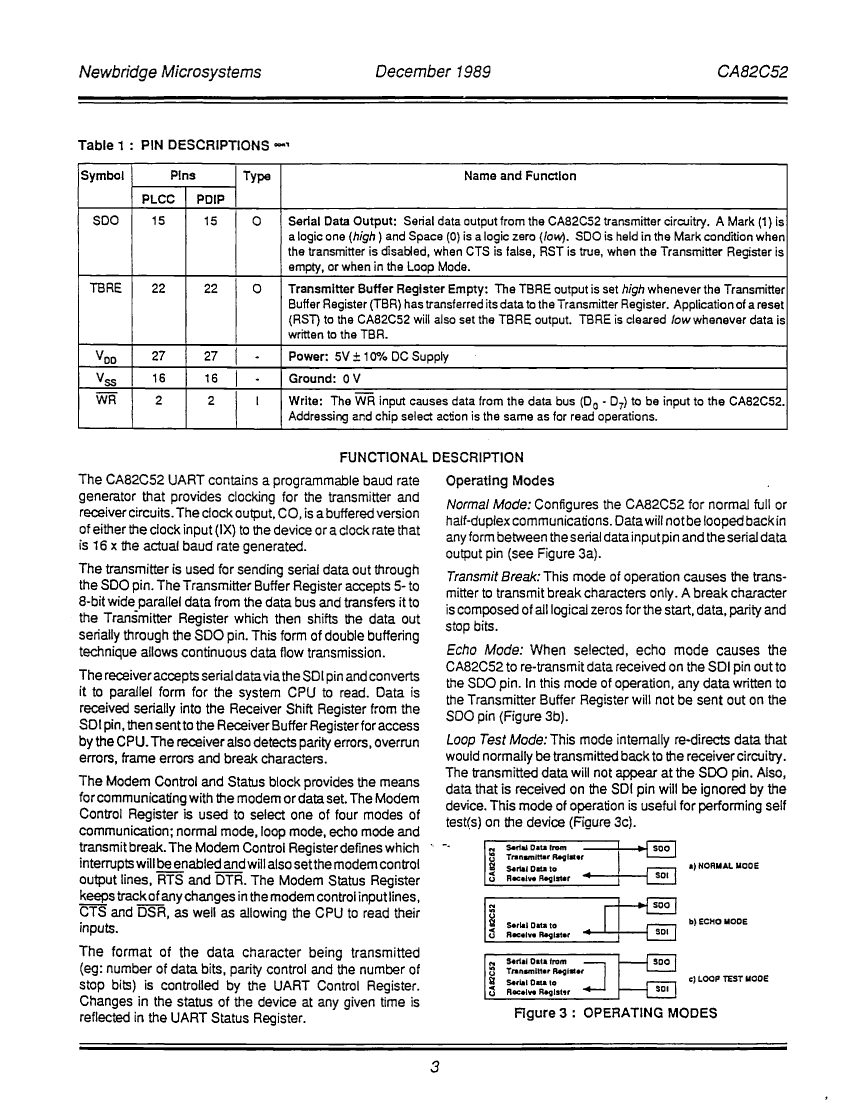

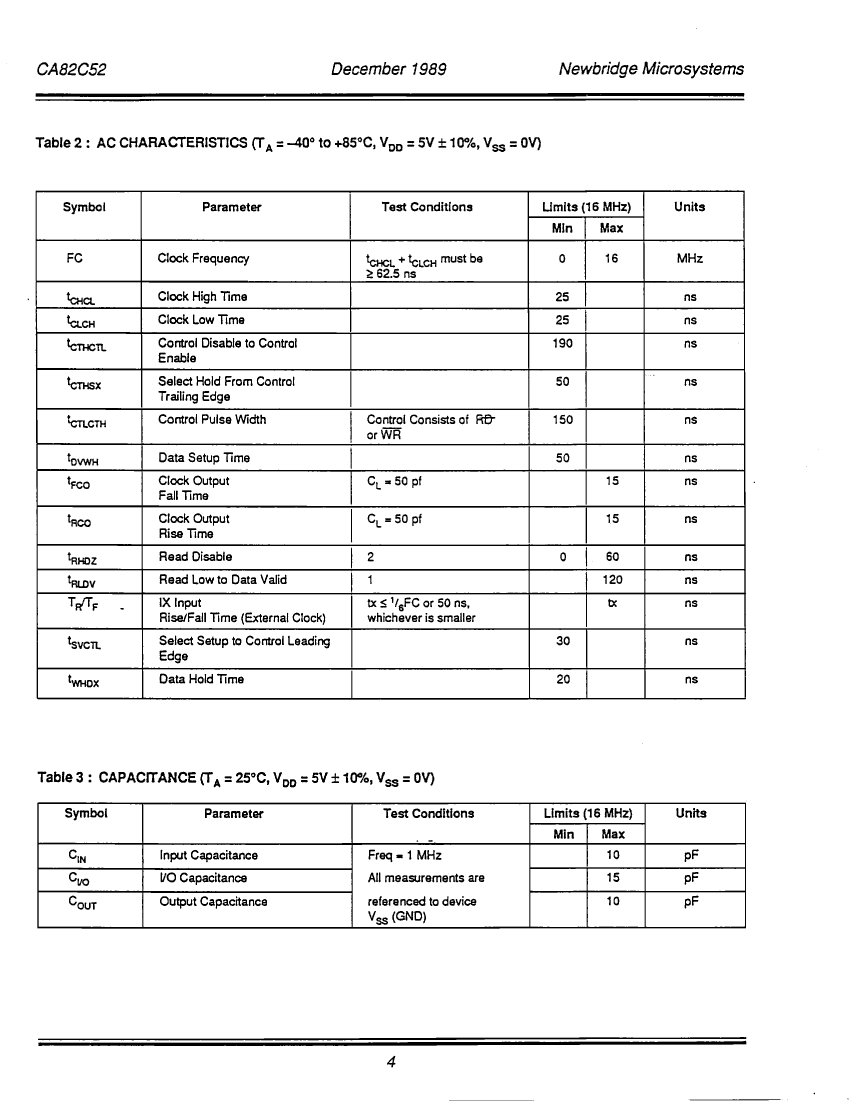

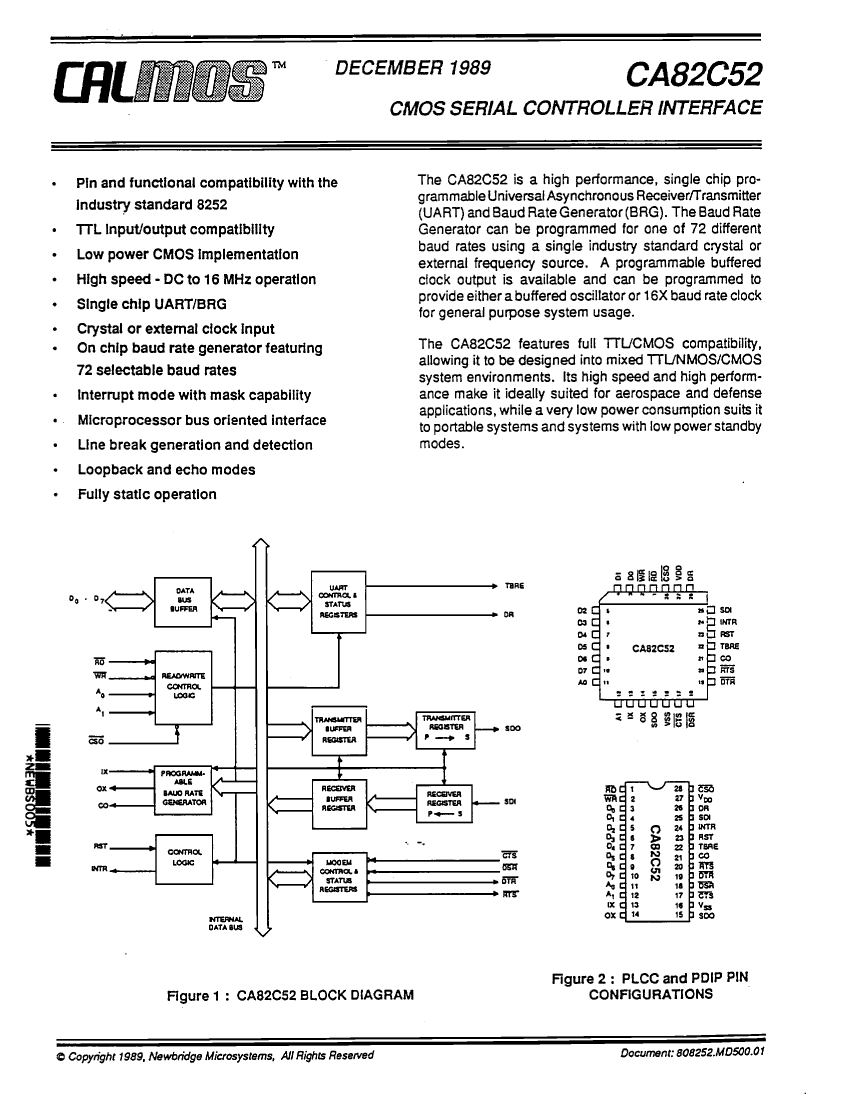

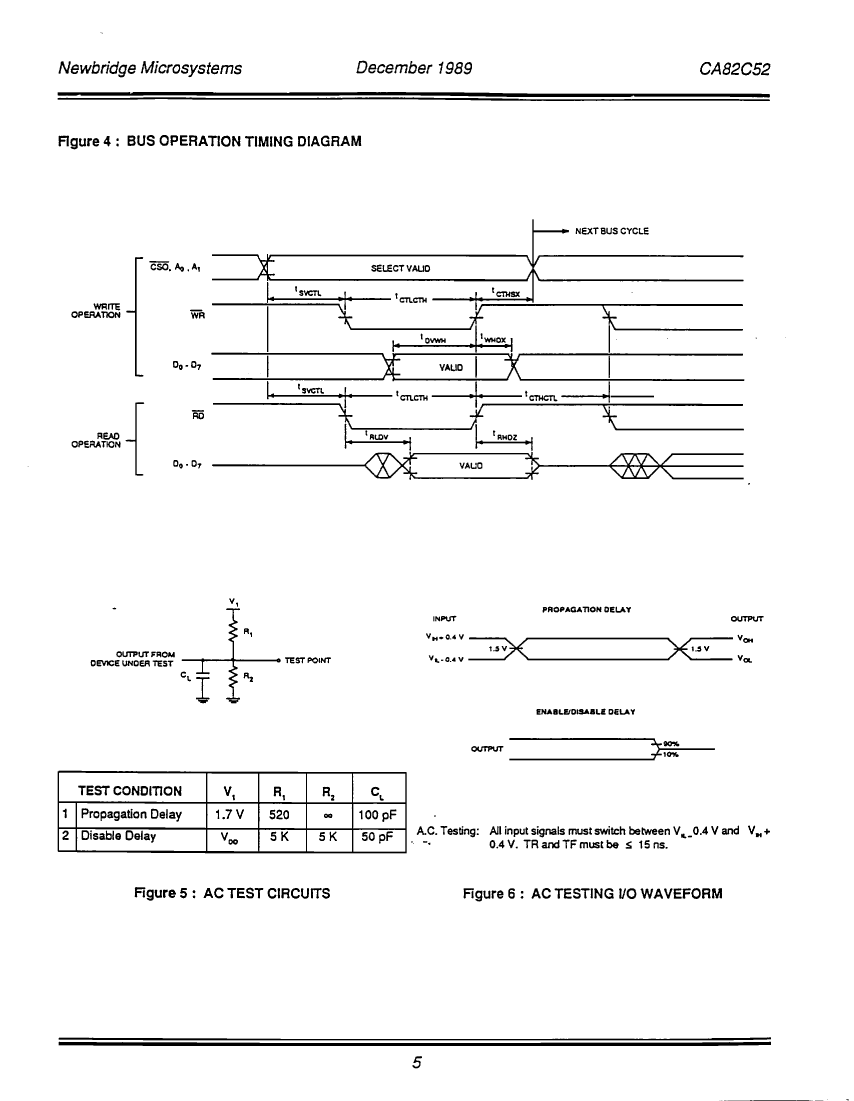

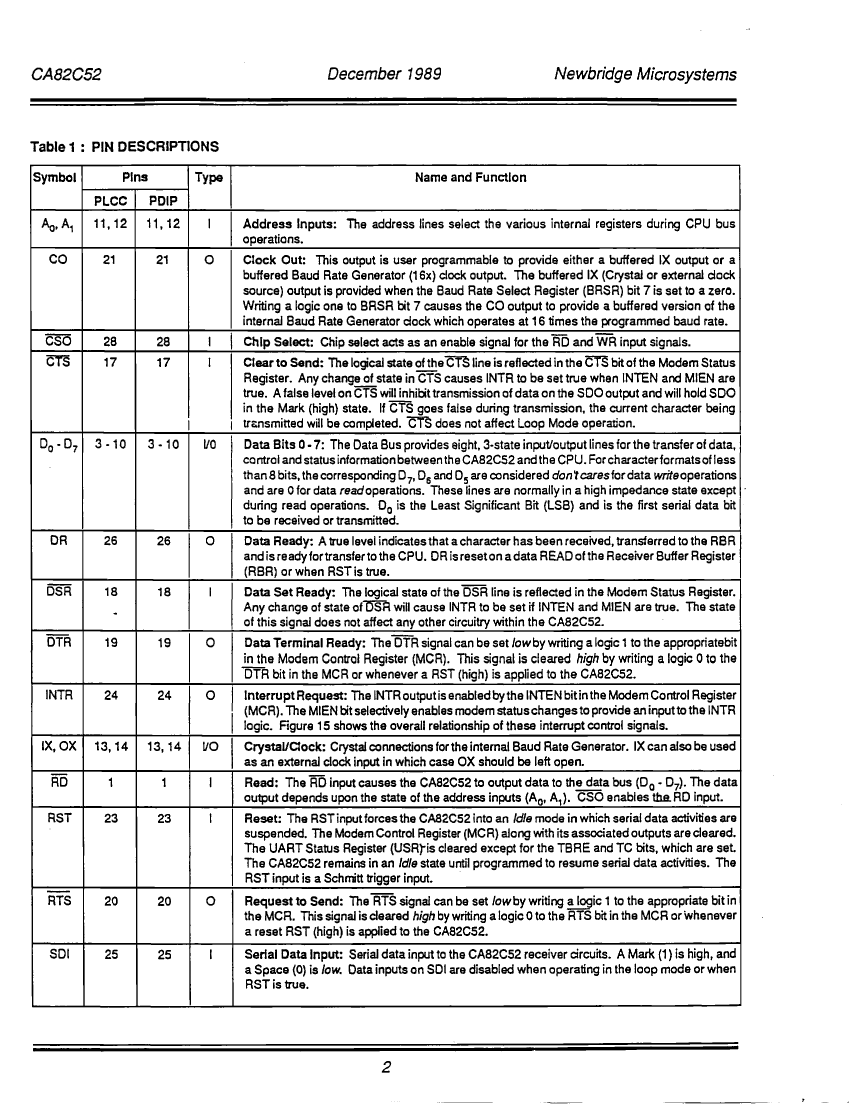

Preview

Download Datasheet

View All

CA82C52-16EL Related Products

	CA82C52-16EL	CA82C52-16MD	CA82C52-16CJ	CA82C52-16ED	CA82C52-16IJ	CA82C52-16MJ	CA82C52-16ML	CA82C52-16EJ	CA82C52-16CL	CA82C52-16IL
Description	Serial I/O Controller, 1 Channel(s), 0.125MBps, CMOS, CQCC28	Serial I/O Controller, 1 Channel(s), 0.125MBps, CMOS, CDIP28	Serial I/O Controller, 1 Channel(s), 0.125MBps, CMOS, CDIP28	Serial I/O Controller, 1 Channel(s), 0.125MBps, CMOS, CDIP28	Serial I/O Controller, 1 Channel(s), 0.125MBps, CMOS, CDIP28	Serial I/O Controller, 1 Channel(s), 0.125MBps, CMOS, CDIP28	Serial I/O Controller, 1 Channel(s), 0.125MBps, CMOS, CQCC28	Serial I/O Controller, 1 Channel(s), 0.125MBps, CMOS, CDIP28	Serial I/O Controller, 1 Channel(s), 0.125MBps, CMOS, CQCC28	Serial I/O Controller, 1 Channel(s), 0.125MBps, CMOS, CQCC28
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Address bus width	2	2	2	2	2	2	2	2	2	2
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Bus compatibility	80C86; 80C88	80C86; 80C88	80C86; 80C88	80C86; 80C88	80C86; 80C88	80C86; 80C88	80C86; 80C88	80C86; 80C88	80C86; 80C88	80C86; 80C88
letter of agreement	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT	ASYNC, BIT
Data encoding/decoding methods	NRZ	NRZ	NRZ	NRZ	NRZ	NRZ	NRZ	NRZ	NRZ	NRZ
Maximum data transfer rate	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps
External data bus width	8	8	8	8	8	8	8	8	8	8
JESD-30 code	S-CQCC-N28	R-CDIP-T28	R-GDIP-T28	R-CDIP-T28	R-GDIP-T28	R-GDIP-T28	S-CQCC-N28	R-GDIP-T28	S-CQCC-N28	S-CQCC-N28
low power mode	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Number of serial I/Os	1	1	1	1	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28	28	28	28	28
Maximum operating temperature	125 °C	125 °C	70 °C	125 °C	85 °C	125 °C	125 °C	125 °C	70 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C	-40 °C	-55 °C	-55 °C	-55 °C	-	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	SQUARE
Package form	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO	NO	NO	YES	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	COMMERCIAL	MILITARY	INDUSTRIAL	MILITARY	MILITARY	MILITARY	COMMERCIAL	INDUSTRIAL
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	NO LEAD	NO LEAD
Terminal location	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL	QUAD	DUAL	QUAD	QUAD
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
