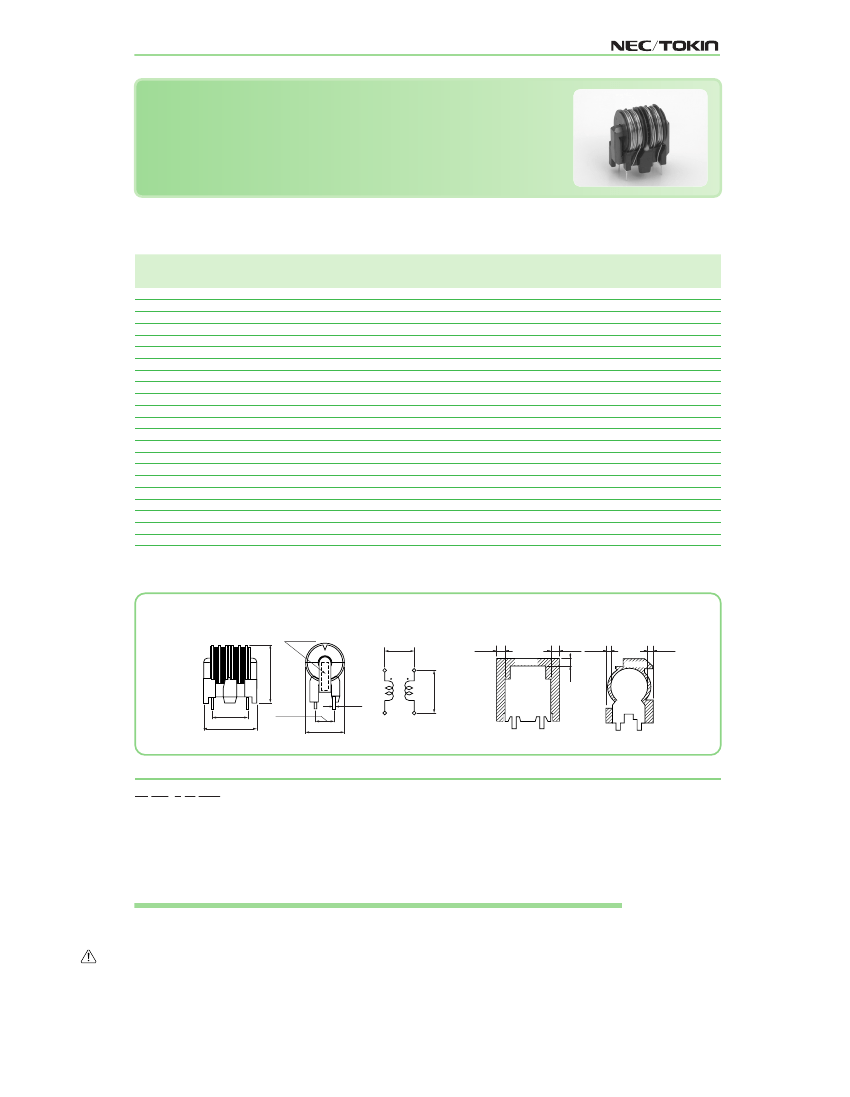

Common mode
SS Coils
SS30V Type
[RoHS Compliant]
[RoHS Compliant]
<Features> ½
½
½
½
High inductance yet compact design enables replacement for SS35V-type and SS28V-type
Approx. 36% reduced volume and covers approx. 60 to 100% inductance compared with SS35V-type.
Approx. only 0.2% volume increase when compared with SS28V-type; however, MAX inductance is approx. 60% increase.
Please be advised that the pin pitch is different from SS35V-type and SS28V-type
※The comparison is with same rated current product's standard specification.
Model
SS30V-080730
SS30V-100530
SS30V-120290
SS30V-150200
SS30V-180145
SS30V-200100
SS30V-250070
SS30V-300054
SS30V-350036
SS30V-400021
SS30V-450013
SS30V-R080960
SS30V-R100700
SS30V-R120380
SS30V-R150270
SS30V-R180190
SS30V-R200132
SS30V-R250092
SS30V-R300071
SS30V-R350047
SS30V-R400028
SS30V-R450017
Rated
current
AC(A)
0.8
1.0
1.2
1.5
1.8
2.0
2.5
3.0
3.5
4.0
4.5
0.8
1.0
1.2
1.5
1.8
2.0
2.5
3.0
3.5
4.0
4.5
Inductance
(mH)
min.
73.0
53.0
29.0
20.0
14.5
10.0
7.0
5.4
3.6
2.1
1.3
96.0
70.0
38.0
27.0
19.0
13.2
9.2
7.1
4.7
2.8
1.7
DC resistance
( /line)
max.
1.5
1.1
0.6
0.5
0.23
0.21
0.16
0.12
0.10
0.07
0.06
1.5
1.1
0.6
0.5
0.23
0.21
0.16
0.12
0.10
0.07
0.06
Temperature
rise(K)
max.
50
50
45
45
50
45
45
45
50
50
50
50
50
45
45
50
45
45
45
50
50
50
Marking
08 LOT No.
10 LOT No.
12 LOT No.
15 LOT No.
18 LOT No.
20 LOT No.
25 LOT No.
30 LOT No.
35 LOT No.
40 LOT No.
45 LOT No.
R08 LOT No.
R10 LOT No.
R12 LOT No.
R15 LOT No.
R18 LOT No.
R20 LOT No.
R25 LOT No.
R30 LOT No.
R35 LOT No.
R40 LOT No.
R45 LOT No.
Weight
approx.
(g)
35.1
36.8
35.0
35.3
35.2
34.9
34.1
34.6
30.6
29.0
26.1
35.1
36.8
35.0
35.3
35.2
34.9
34.1
34.6
30.6
29.0
26.1
• Rated voltage:250V AC/DC • Withstanding voltage: 2400VAC (2sec between lines)
• Insulation resistance: at 500VDC, more than 100M (between lines) • Thermal class: E (120˚C)
• Operating temperature range (˚C): –25 to T (T=120–temperature rise) • Inductance measurement condition: 1kHz, 1V, KC530
Shape and Dimensions
bSS30V
33.0±1.0
Marking
19.5
bSize
comparison with SS35 V-type
(2.5)
SS35V
(7)
(2.5) (1.5)
SS35V
SS30V
(1.5)
N1
ø0.8
19.5±0.5
31.0±1.0
11.0±0.5
22.5±1.0
N2
11
SS30V
[mm]
Numbering System
SS 30V-
08 0730
Series
Core size ; shupe (V : vertical)
Core Type (no marking stands for standard type)
Rated current (08 stands for 0.8A)
Inductance (0730 stands for 73.0mH)
AC Line Filters VOL.09
●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact NEC TOKIN for updated product data.
●Please request for a specification sheet for detailed product data prior to the purchase.
●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.
2008.08.29 P0938MCAF10VOL09E
Common mode
Impedance vs. Frequency
1M
1
6
3
1M
1
080730
100530
120290
150200
180145
6
3
100K
1
100K
1
Impedance ( )
Impedance ( )
6
3
6
3
200100
250070
300054
350036
400021
10K
1
6
3
10K
1
6
3
1K
1
6
3
1K
1
6
3
100
1
6
3
100
1
6
3
10
1
1
1K
6
3
3
6
1
3
6
1
3
6
1
3
6
1
3
10
1
1
1K
6
3
3
6
1
3
6
1
3
6
1
3
6
1
3
10K
100K
1M
10M
30M
10K
100K
1M
10M
30M
Frequency (Hz)
Frequency (Hz)
1M
1
6
3
1M
1
R080960
R100700
6
3
100K
1
100K
1
Impedance ( )
10K
1
6
3
Impedance ( )
6
3
6
3
R200132
R250092
R300071
R350047
R400028
1K
1
6
3
R120380
R150270
R180190
10K
1
6
3
1K
1
6
3
100
1
6
3
100
1
6
3
10
1
1
1K
6
3
3
6
1
3
6
1
3
6
1
3
6
1
3
10
1
1
1K
6
3
3
6
1
3
6
1
3
6
1
3
6
1
3
10K
100K
1M
10M
30M
10K
100K
1M
10M
30M
Frequency (Hz)
Frequency (Hz)
AC Line Filters VOL.09
●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact NEC TOKIN for updated product data.
●Please request for a specification sheet for detailed product data prior to the purchase.
●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.
2008.08.29 P0938MCAF10VOL09E
