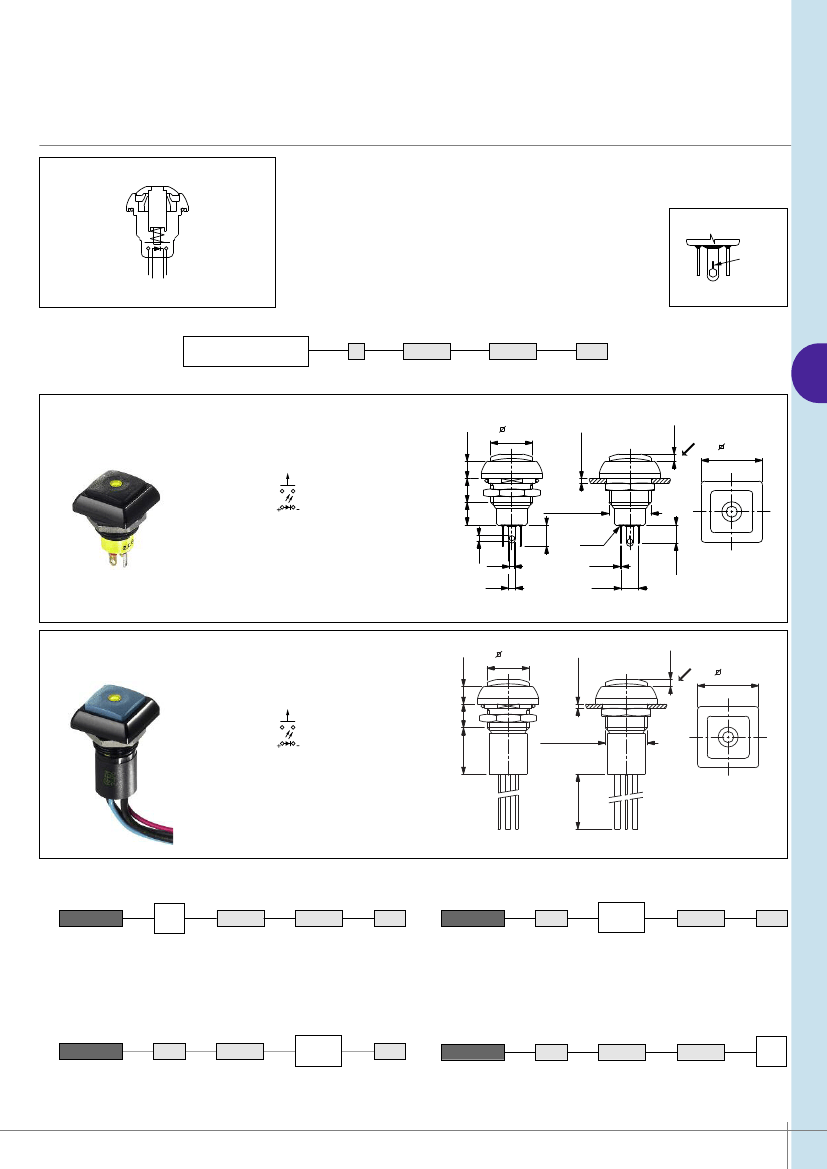

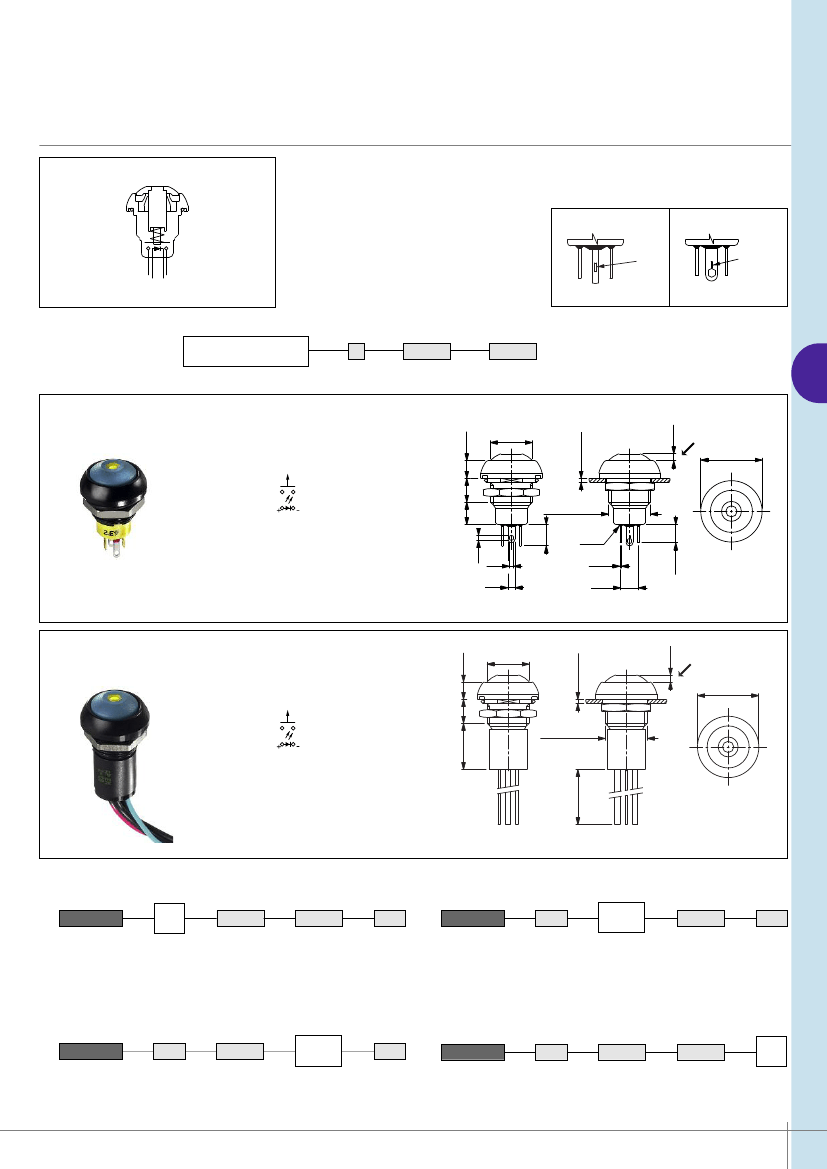

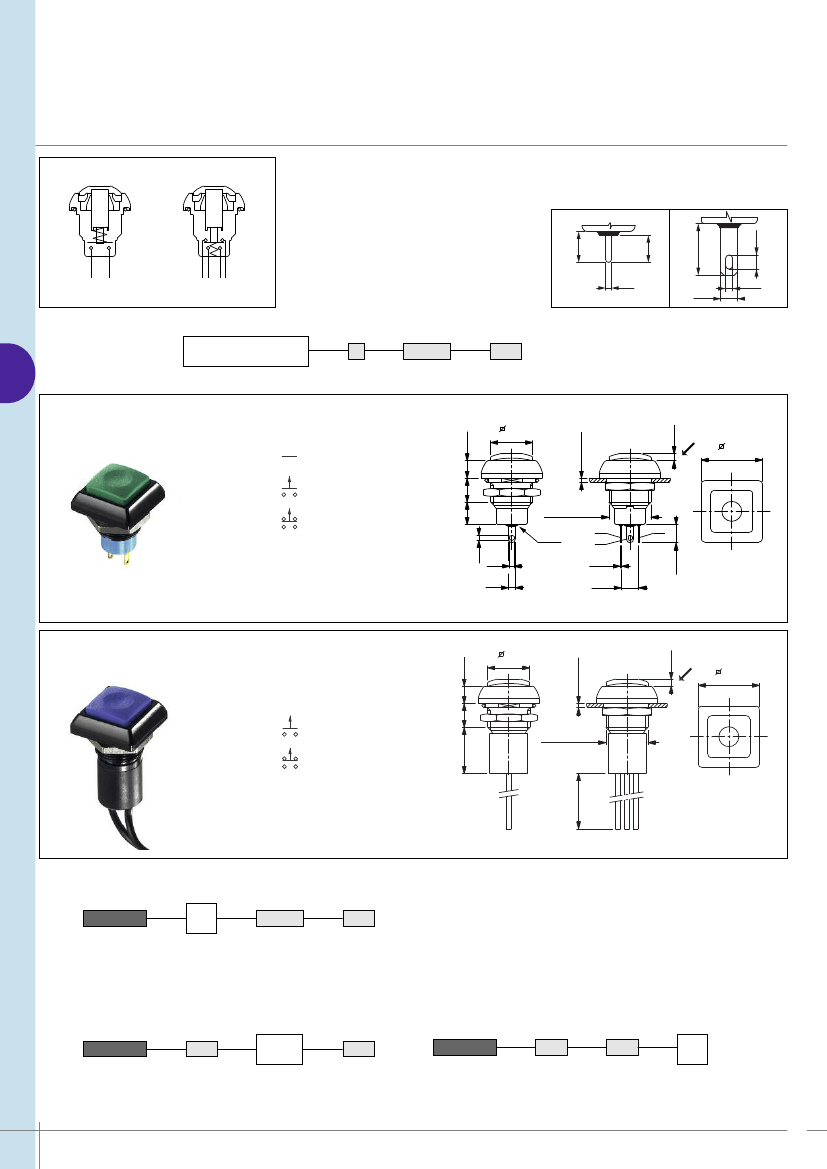

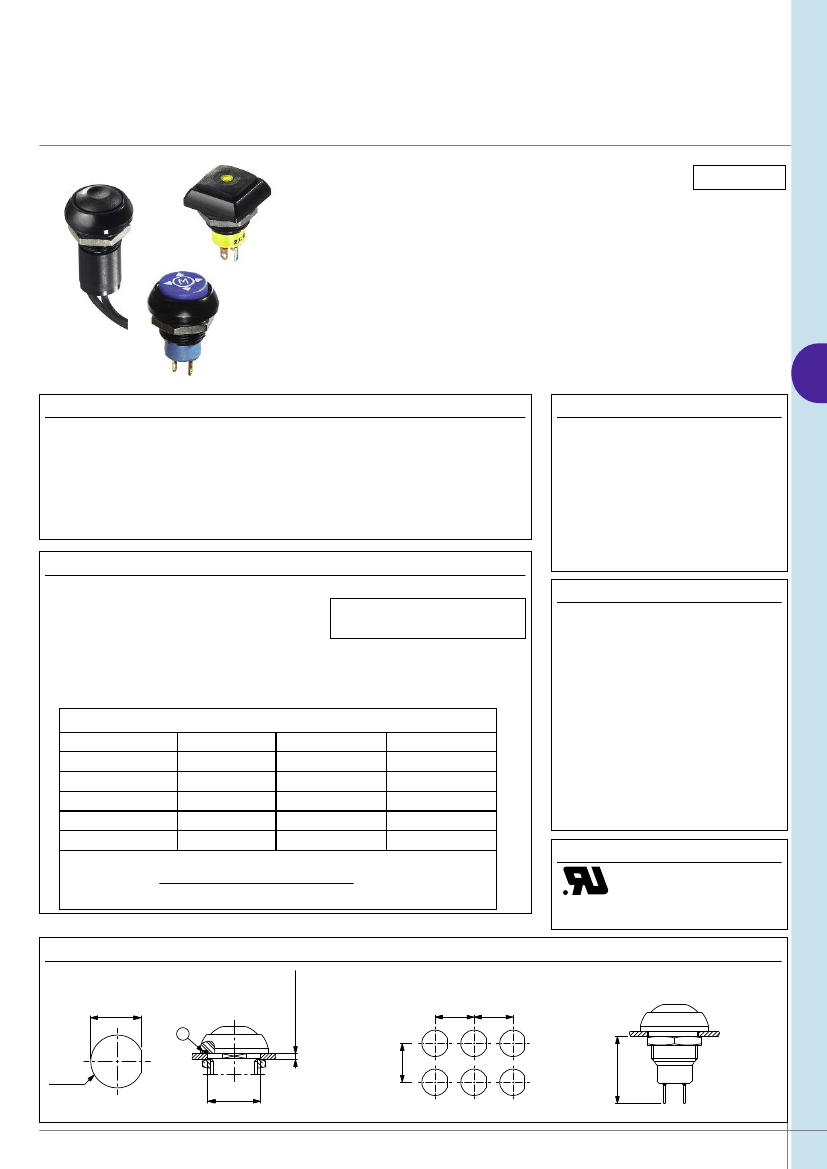

IP series
Pushbutton switches for harsh environments - bushing Ø 12 mm - momentary
Distinctive features and specifications
UG1212-A-R1
K
Illuminated or non-illuminated
K
Tactile feedback
K
Wide variety of configurations
K
Flat round actuator for optional marking
K
Sealed to IP67
B1
ENVIRONMENTAL SPECIFICATIONS
GENERAL SPECIFICATIONS
• Front panel sealing : IP67 according to IEC 60529
IP69K according to DIN 40050-9 (non-illuminated) with cap U5125
• Shock resistance : 100 g according to IEC 512-4, test 6c
• Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d
• Salt spray : IEC 512-6, test 11f
• Robustness (non-illuminated) : IK06 according to EN 50102 (1 joule)
• Operating temperature : -40°C to +85°C
ELECTRICAL SPECIFICATIONS
• Panel thickness : 1,5 mm (.059) min.
4 mm (.157 max.)
• Total travel :
Funct. 3 : 1,7 mm (.067)
+/- 0,3 mm
Funct. 5 : 1,3 mm (.051)
+/- 0,3 mm
• Typical operating force : 6N
+/- 2N
• Low level/mech. life : 1.000.000 cycles
• Torque : 1,5 Nm max. applied to nut
• Soldering : 320°C max. for 3 sec.
MATERIALS
• Max. current/voltage rating with resistive load (gold plated silver contacts):
5A 28VDC, 70.000 cycles
For W terminals, current has to
0,2A 48VDC, 500.000 cycles
be limited to 400mA.
0,5A 48VAC, 500.000 cycles
• Initial contact resistance : 100 mΩ max.
• Insulation resistance : 1 GΩ min. at 500VDC
• Dielectric strength : 1.500 Vrms
• Contact bounce : 10 ms
LED COMPONENT SPECIFICATIONS
LED colour
Super red (L0S)
Yellow (L0Y)
Green (L0G)
Blue (L0B)
White (L0W)
Forward current
20mA
20mA
20mA
20mA
20mA
Typ. forward voltage Max. forward voltage
2,1V
2,1V
2,1V
3,2V
3,35V
2,3V
2,3V
2,3V
3,8V
4,25V
• Case : thermoplastic UL94-V0
• Actuator : polyamide 6/6
• Bushing/bezel : zinc die-cast
(zamac), black painted
• Contacts : silver, gold plated (std)
brass, gold plated (for option 104)
• Output wires (flying lead terminals) :
F version : AWG20, section 0,6 mm
2
W version : AWG24, section 0,23 mm
2
• LED wires :
F version : AWG26, section 0,12 mm
2
W version : AWG24, section 0,23 mm
2
• Lens : polycarbonate
• Terminal seal : epoxy
AGENCY APPROVAL
2A 125VAC/250VAC
File E83438
Se
e following pages.
A resistor must be series-connected by the user.
Resistor value = supply voltage - LED forward voltage
LED forward current
MOUNTING
Panel cut-out
1.50min-4Max
(.059 min-.157max)
12.90
(.507)
Matrix mounting
20.00
(.787)
20.00
(.787)
Back of panel space requirement
1
Ø13.60
(.535DIA)
20.00
(.787)
O-ring
APEM
Ø13.50
(.531DIA)
17.50
(.688)
www.apem.com
CIPCE1
B1-15
IP series
Pushbutton switches for harsh environments - bushing Ø 12 mm - momentary
Overview
IP
SERIES
Actuator shapes
C
R
P
Square
Round, curved
Round, flat
3
5
Electrical functions
Normally open
(NO)
NC/NO combined
(non-illuminated)
S
F
W
P
Z1
Terminals
Solder lugs
Flying leads, standard
Flying leads, thin NEW!
Straight PC
Quick-connect
(non-ill., NO only )
Contacts
AD
Silver, gold
plated (standard)
CD
Brass, gold
plated (option 104)
B1
Actuator colours
1
B
2
3
4
5
6
7/1
8
9
A
Blue
Dark blue
Black
Green
Grey
Yellow
Red
White
Bright chrome
Orange
Satin chrome
LED colours
Blank
L0S
L0Y
L0G
L0B
L0W
Non-illum.
Super red
Yellow
Green
Blue
White
100
101
104
Options
Satin chrome
bezel
Bright chrome
bezel
High actuator
(non-illum. round
models only)
UL
Approval
Consult factory for
detail of approved
models.
Option 104
If combined with electrical function 5 (NC/NO), this
option should be ordered with
CD
contacts (brass, gold
plated). Current/voltage rating : 100mA 30VDC
ABOUT THIS SERIES
On the following pages, you will find successively :
model structure of switches and options in the same order as in above chart
Dimensions :
first dimensions are in mm while inches are shown as bracketed numbers.
: please note that not all combinations of above numbers are available.
Refer to the following pages for further information.
NOTICE
A sealing boot
is available to protect the switches against frost and sand. It is presented after the IA series and in section H.
Mounting accessories
: Standard hardware supplied : 1 hex nut 14 mm (.551) across flats and 1 O-ring.
Hex nut part number U166.
Packaging unit
: 25 pieces
B1-16
www.apem.com
APEM
IP series
Pushbutton switches for harsh environments - bushing Ø 12 mm - momentary
Square - illuminated
• High brightness illumination
• Five LED colours
• Tin plated LED terminals
LED
Cathode
(-)
MODEL
STRUCTURE
Shown with standard flying lead terminals.
B1
Solder lug terminals
©
Flat
5.00
(.196)
1.50 Min
(.059 Min)
12.00
(.472SQ)
2.00
(.078)
17.50
(.688SQ)
IPC3SAD
Normally Open
6.40 6.80
(.251) (.267)
Ø12.00x0.75SI
(.472DIAx0.75IS)
EPOXY
6.10
(.240)
Also available with straight PC terminals :
IPC3PAD
LED colour is indicated by the bottom of the switch.
2.00
(.078)
5.08
(.200)
5.00
(.196)
1.50 Min
(.059 Min)
12.00
(.472SQ)
2.00
(.078)
Sealed flying lead terminals
©
Flat
17.50
(.688SQ)
For THIN flying leads, replace F with W.
16.00 Max
(.629 Max)
IPC3FAD
Normally Open
6.80
(.267)
Ø12.00x0.75SI
(.472DIAx0.75IS)
Wire colours : black : NO contact, red : LED anode(+), blue : LED cathode(-)
ACTUATOR COLOURS
LED COLOURS
1
: blue -
B
: dark blue -
2
: black -
3
: green -
4
: grey
5
: yellow -
6
: red -
7/1
: white -
8
: bright chrome
9
: orange -
A
: satin chrome
L0S
: super red -
L0Y
: yellow -
L0G
: green -
L0B
: blue
L0W
: white
OPTIONS
APPROVAL
100
: Satin chrome bezel
101
: Bright chrome bezel
APEM
UL
Consult factory for details of approved models. To order
switches marked UL, complete above box with ”UL”.
www.apem.com
B1-17
500±10
(19.68±.393)
5.20
(.204)
1.20
(.047)
0.40
(.015)
1.50
(.059)
IP series
Pushbutton switches for harsh environments - bushing Ø 12 mm - momentary
Square - non-illuminated
• Double function (NC/NO combined)
with a short behind-panel depth
Straight
P
5.20
5.20
(.204)
(.204)
4.55
4.55
(.179)
(.179)
Quick-connect
Z1
8.70
8.70
(.342)
(.342)
2.40
2.40
(.094)
(.094)
1.20
1.20
(.047)
(.047)
1.00
1.00
(.039)
(.039)
Function 3 (N0)
Function 5 (NC/NO)
2.80
2.80
(.110)
(.110)
B1
MODEL
STRUCTURE
CIPCOSP
CIPCOSP
CIPCOSZ1
CIPCOSZ1
Shown with standard flying lead terminals.
Solder lug terminals
©
Flat
5.00
(.196)
1.50 Min
(.059 Min)
12.00
(.472SQ)
2.00
(.078)
17.50
(.688SQ)
IPC3SAD
IPC5SAD
Normally Open
NC/NO combined
6.40 6.80
(.251) (.267)
Ø12.00x0.75SI
(.472DIAx0.75IS)
1.20
(.047)
EPOXY
NO
NC
NO
5.20
(.204)
2.00
(.078)
Also available with straight PC terminals :
IPC3PAD
(NO) or
IPC5PAD
(NC/NO)
and quick-connect terminals :
IPC3Z1AD
(NO only)
2.00
(.078)
NO
0.40
(.015)
1.50
(.059)
5.08
(.200)
NC/NO
Sealed flying lead terminals
©
Flat
5.00
(.196)
1.50 Min
(.059 Min)
12.00
(.472SQ)
17.50
(.688SQ)
IPC3FAD
IPC5FAD
Normally Open
NC/NO combined
6.80
(.267)
16.00 Max
(.629 Max)
Ø12.00x0.75SI
(.472DIAx0.75IS)
For THIN flying leads, replace F with W.
NO
500±10
(19.68±.393)
NC/NO
Wire colours (NC/NO) : black : NO, blue : NC
ACTUATOR COLOURS
1
: blue -
B
: dark blue -2 : black -
3
: green -
4
: grey -
5
: yellow -
6
: red -
7/1
: white -
8
: bright chrome
9
: orange -
A
: satin chrome
OPTIONS
APPROVAL
100
: Satin chrome bezel
101
: Bright chrome bezel
B1-18
UL
Consult factory for details of approved models. To order
switches marked UL, complete above box with ”UL”.
www.apem.com
APEM
IP series
Pushbutton switches for harsh environments - bushing Ø 12 mm - momentary
Round - illuminated
• High brightness illumination
• Five LED colours
• Tin plated LED terminals
LED
Cathode
(-)
LED
Cathode
(-)
MODEL
STRUCTURE
Shown with standard flying lead terminals.
B1
Solder lug terminals
©
Flat
5.00
(.196)
1.50 Min
(.059 Min)
Ø12.00
(.472DIA)
2.00
(.078)
Ø17.50
(.688DIA)
IPR3SAD
Normally Open
6.40 6.80
(.251) (.267)
Ø12.00x0.75SI
(.472DIAx0.75IS)
EPOXY
6.10
(.240)
Also available with straight PC terminals :
IPR3PAD
LED colour is indicated by the bottom of the switch.
2.00
(.078)
5.08
(.200)
5.00
(.196)
1.50 Min
(.059 Min)
Ø12.00
(.472DIA)
2.00
(.078)
Sealed flying lead terminals
©
Flat
Ø17.50
(.688DIA)
Wire colours : black : NO contact, red : LED anode(+), blue : LED cathode(-)
ACTUATOR COLOURS
LED COLOURS
1
: blue -
B
: dark blue -
2
: black -
3
: green -
4
: grey
5
: yellow -
6
: red -
7/1
: white -
8
: bright chrome
9
: orange -
A
: satin chrome
L0S
: super red -
L0Y
: yellow -
L0G
: green -
L0B
: blue
L0W
: white
OPTIONS
APPROVAL
100
: Satin chrome bezel
101
: Bright chrome bezel
APEM
UL
Consult factory for details of approved models. To order
switches marked UL, complete above box with ”UL”.
www.apem.com
B1-19
500±10
(19.68±.393)
For THIN flying leads, replace F with W.
16.00 Max
(.629 Max)
IPR3FAD
Normally Open
6.80
(.267)
Ø12.00x0.75SI
(.472DIAx0.75IS)
5.20
(.204)
1.20
(.047)
0.40
(.015)
1.50
(.059)
