I N D U C T O R S
Inductors for Power Circuits
Wound Ferrite
Product compatible with RoHS directive
Halogen-free
Compatible with lead-free solders
FEATURES
Magnetic shield type wound inductor for power circuits.
Magnetic shield construction with ferrite resin material.
APPLICATION
Thin-screen TVs, printers, laptop computers, other
PART NUMBER CONSTRUCTION
VLP
Series name
OPERATING TEMPERATURE RANGE, PACKAGE QUANTITY, PRODUCT WEIGHT
Temperature range
Package quantity
Individual weight
Operating
Storage
temperature
temperature
(pieces/reel)
（°C）
（°C）
VLP8040
–40 to +105
–40 to +105
1000
Operating temperature range includes self-temperature rise.
The Storage temperature range is for after the circuit board is mounted.
Type
RoHS Directive Compliant Product: See the following for more details.https://product.tdk.com/info/en/environment/rohs/index.html
Halogen-free: Indicates that Cl content is less than 900ppm, Br content is less than 900ppm, and that the total Cl and Br content is less than 1500ppm.
Th
e
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
pr
od
uc
st ts
op w
pe il
d lb
pr e
od or
uc ha
tio ve
n
be
en
8040
L
T
-
1R0
N

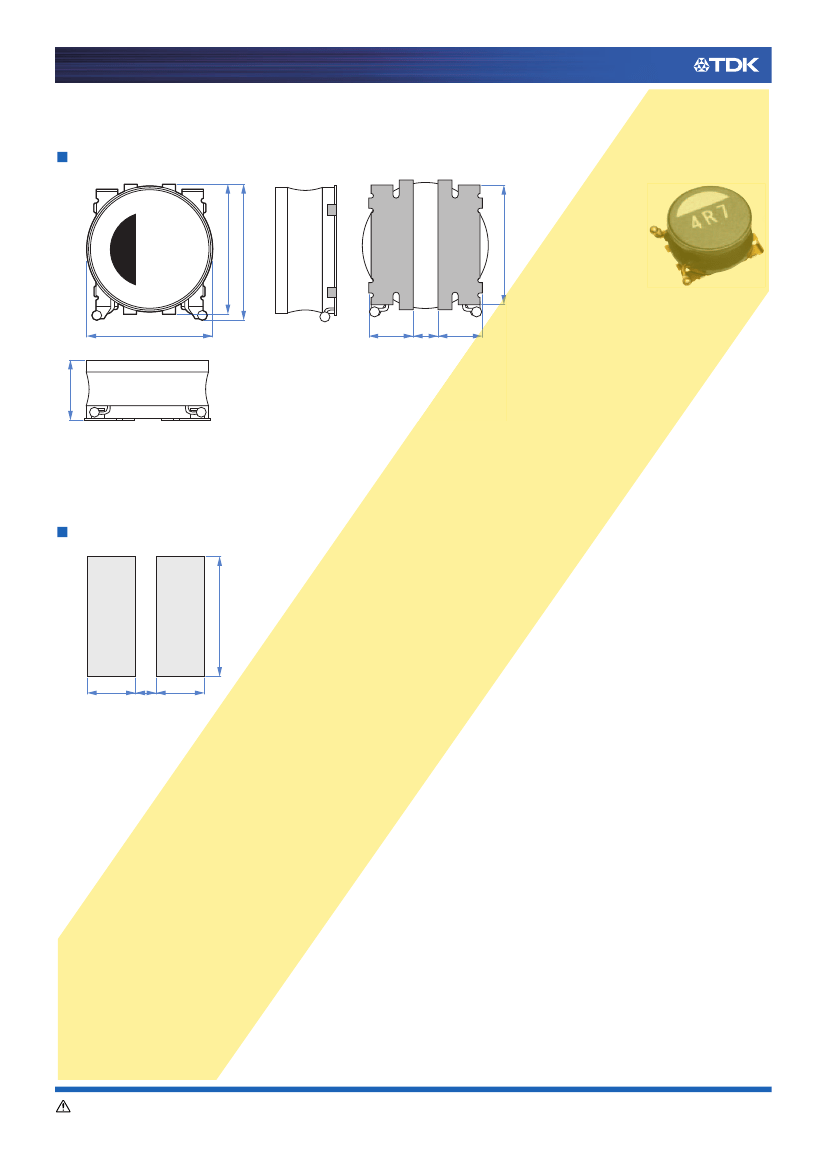

L×W×H Dimensions
(mm max.)
8040
8.6×8.7×4.0
internal code
Packaging style
T
Taping
Inductance
(µH)
1R0
1.0
100
10
101
100
Inductance
tolerance
M
±20%
N
±30%
（mg）
840
Overview of VLP8040 Type
