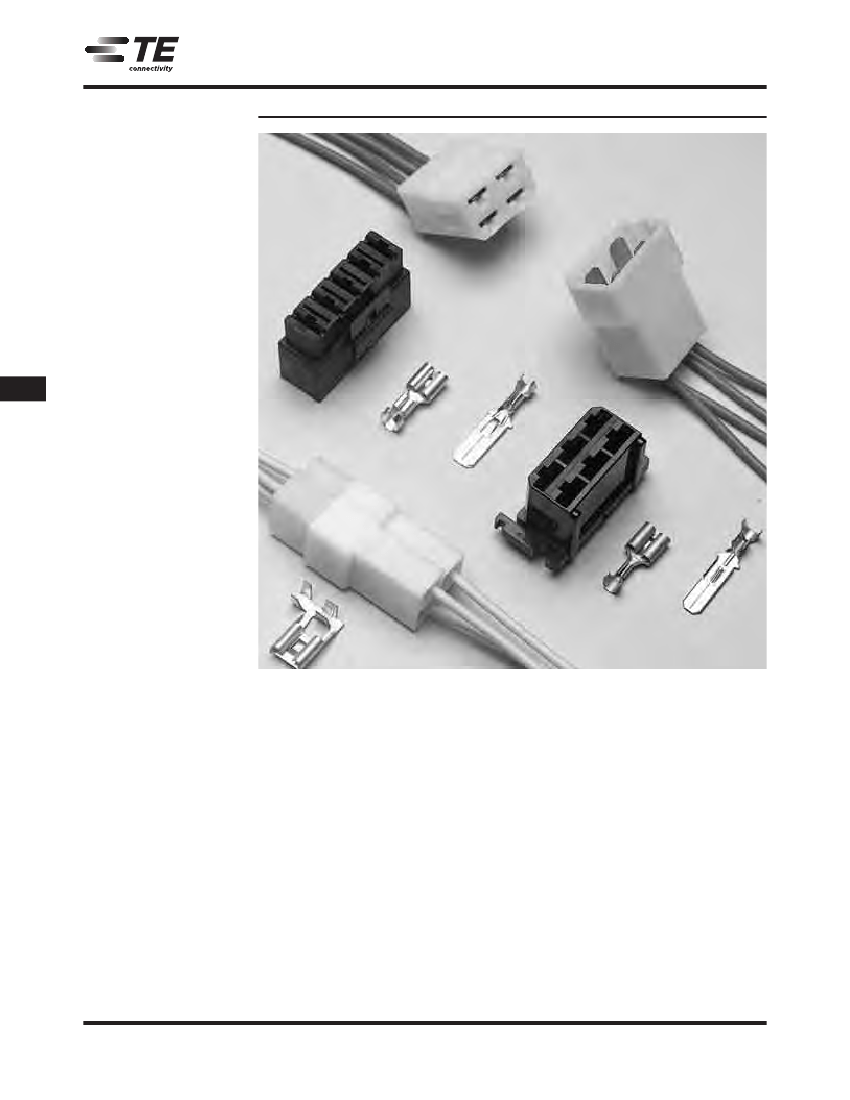

FASTON Terminals (Insulated and Uninsulated)
FASTIN-FASTON Product Line
Product Facts
■
■
Used for single and multiple
connections
Receptacles and tabs
available for 6.3, 4.8 and
2.8 mm size (.250 – .187
and .110 Series)
Receptacles mate with
0.5 and 0.8 thick tabs
IEC 60335-1, Glow Wire
750° No Flame housings
available
RoHS Compliant
■
■
■
Material and Finish
FASTIN-FASTON Product Line
Contacts
— Brass, and phosphor
bronze base material. Tin and nickel
plated products available
Housings
— Polyamide UL 94 V2 and
UL 94 V0
Technical Documents
Application Specifications
114-2025 FASTIN-FASTON Product Line
TE FASTIN-FASTON
connectors offer the
advantage of the FASTON
receptacles technology in
multiple applications. In
wiring harnesses, they are
mainly used as multiposition
and coupling connectors.
Up to 8 position connectors
can be mated in one
operation with a maximum
of 20 leads terminated.
Locking Contacts
Receptacles and tabs in
this version comply fully
with the FASTON
receptacles product
technology. The only
difference is the addition of
a locking lance, which helps
ensure firm retention of
contacts when snapped into
housings. Wiring harnesses
prefabricated with male or
female connectors can be
easily connected to mating
counterparts, even if
manufacturing occurred at
a different site. Any
application of this
technology leads to
essential time savings in
final assembly.
60
Catalog 82004
Revised 3-11
www.te.com
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
Dimensions are in inches and
millimeters unless otherwise
specified.
USA: +1 (800) 522-6752
Canada: +1 (905) 475-6222
Mexico/C. Am.: +52 (0) 55-1106-0800
Latin/S. Am.: +54 (0) 11-4733-2200
Germany: +49 (0) 6251-133-1999
UK: +44 (0) 800-267666
France: +33 (0) 1-3420-8686
Netherlands: +31 (0) 73-6246-999
China: +86 (0) 400-820-6015
FASTON Terminals (Insulated and Uninsulated)
FASTIN-FASTON Product Line
(Continued)
250 Series (6.3 mm)
Single Position Connectors
(Housings)
.260
[6.60]
1.280
[32.51]
.529
Max.
[13.44]
.410
Max.
[10.41]
.320
[8.12]
.262
[6.65]
.368
[3.92]
.393
[9.98]
.945
[24.00]
.392
[9.95]
.945
[24.00]
.500
[12.70]
1.280
[32.51]
A — Receptacle Housing
Style
B — Tab Housing
Material
Color
Natural
Black
Red
Natural
Natural
Black
Red
Natural
Natural
Natural
C — Receptacle Housing
UL 94
V2
V2
V2
V0
V2
V2
V2
V0
V2
V2
Note
—
—
—
—
—
—
—
—
—
—
D — Tab Housing
Part Number
480054-3
480054-4
480054-5
521290-1
480053-3
480053-4
480053-5
521289-1
521743-1
521744-1
R
R
A
Nylon
B
Nylon
C
D
1
Nylon
Nylon
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
FASTIN-FASTON Product Line
Flammability rating.
W
250 Series (6.3 mm)
2 Position Connectors
H
H
L
L
W
D — Receptacle Housing
Style
Material
Color
Natural
Black
Natural
Natural
Black
Natural
UL 94
V2
V2
V0
V2
V2
V0
Note
—
—
GWT 750° No Flame
—
—
GWT 750° No Flame
Dimensions (mm)
L
H
.902
22.9
1.224
31.1
.654
16.6
.791
20.1
E — Tab Housing
Part Number
180907-0
180907-5
1-180907-0
180908-0
180908-5
880310-8
R
R
W
.402
10.2
.500
12.7
D
Nylon
E
Nylon
—
—
—
—
—
—
—
—
—
—
—
—
250 Series (6.3 mm)
2 Position Connectors
H
H
L
L
W
W
F — Receptacle Housing
Style
Material
Color
Natural
Black
Natural
Natural
Black
Natural
UL 94
V2
V2
V0
V2
V2
V0
Note
—
—
—
—
—
—
Dimensions (mm)
W
L
H
.492
12.50
.598
15.2
.902
22.9
1.240
31.5
.394
10.0
.520
13.2
G — Tab Housing
Part Number
180923-0
180923-5
4-180923-0
180924-0
180924-5
4-180924-0
R
R
F
Nylon
G
Nylon
X
X
X
X
X
X
—
—
—
—
—
—
Note:
All part numbers are RoHS compliant.
61
Catalog 82004
Revised 3-11
www.te.com
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
Dimensions are in inches and
millimeters unless otherwise
specified.
USA: +1 (800) 522-6752
Canada: +1 (905) 475-6222
Mexico/C. Am.: +52 (0) 55-1106-0800
Latin/S. Am.: +54 (0) 11-4733-2200
Germany: +49 (0) 6251-133-1999
UK: +44 (0) 800-267666
France: +33 (0) 1-3420-8686
Netherlands: +31 (0) 73-6246-999
China: +86 (0) 400-820-6015
