PA20SO20D-EO-210 Overview

20 PIN SOP SOCKET ADAPTER

Preview

Download Datasheet

View All

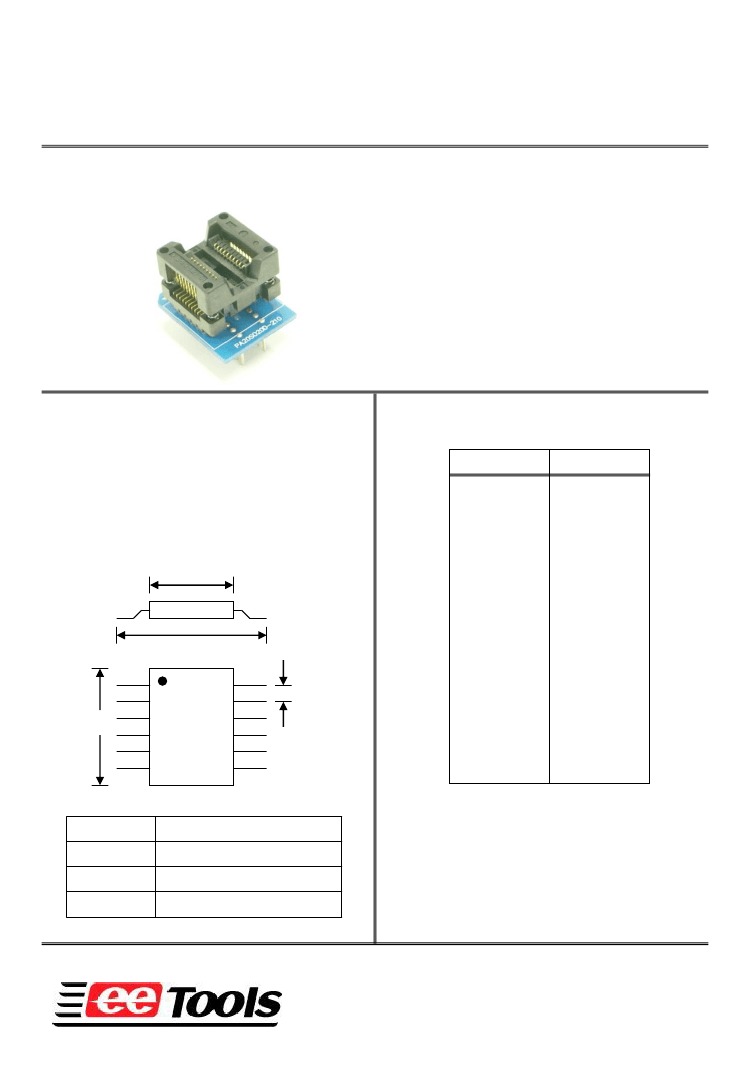

20 PIN SOP SOCKET ADAPTER

Model : PA20SO20D-EO-210

These adapters connect the pins of a 20 pin SOP device to a 20 pin DIP equivalent.

They accept a SOP device and plug into a DIP socket.

Order No.

▶

PA20SO20D-EO-210

Socket manufacture (Enplas), Socket type (Open)

The PA20SO20D-EO-210 socket adapter accepts

with the device family below :

ATMEL AT25128

ATMEL AT25256

The following chart shows the connections

from the SOP socket to the adapter’s DIP plug.

SOP20

DIP20

The SOP socket accepts packages

with the dimensions listed below :

PIN 1

Body

Tip

Length

Pitch

5.3mm typ ( 200~210mil )

7.8mm

n/a

1.27mm

( 50mil )

E.E. Tools, Inc.

4620 Fortran Dr. Ste 102

San Jose, CA 95134, USA

Tel: (408)263-2221 Fax: (408)263-2230

Web : www.eetools.com

Email : sales@eetools.com

Date 12/26/02

Page 1 of 1

Rev 1.0
