82C43G-AB3-E-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> 82C43G-AB3-E-R

82C43G-AB3-E-R: DescriptionPower Supply Support Circuit, Fixed, 1 Channel, CMOS, PSSO3, SOT-89, 3 PIN; CategoryPower/power management The power supply circuit; File Size373KB，18 Pages; ManufacturerUNISONIC TECHNOLOGIES CO.,LTD; Websitehttp://www.unisonic.com.tw/; Environmental Compliance

Download Datasheet Parametric Compare View All

82C43G-AB3-E-R Overview

Power Supply Support Circuit, Fixed, 1 Channel, CMOS, PSSO3, SOT-89, 3 PIN

82C43G-AB3-E-R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	UNISONIC TECHNOLOGIES CO.,LTD
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Adjustable threshold	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PSSO-F3
Number of channels	1
Number of functions	1
Number of terminals	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum supply voltage (Vsup)	10 V
Minimum supply voltage (Vsup)	0.7 V
Nominal supply voltage (Vsup)	1 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	FLAT
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

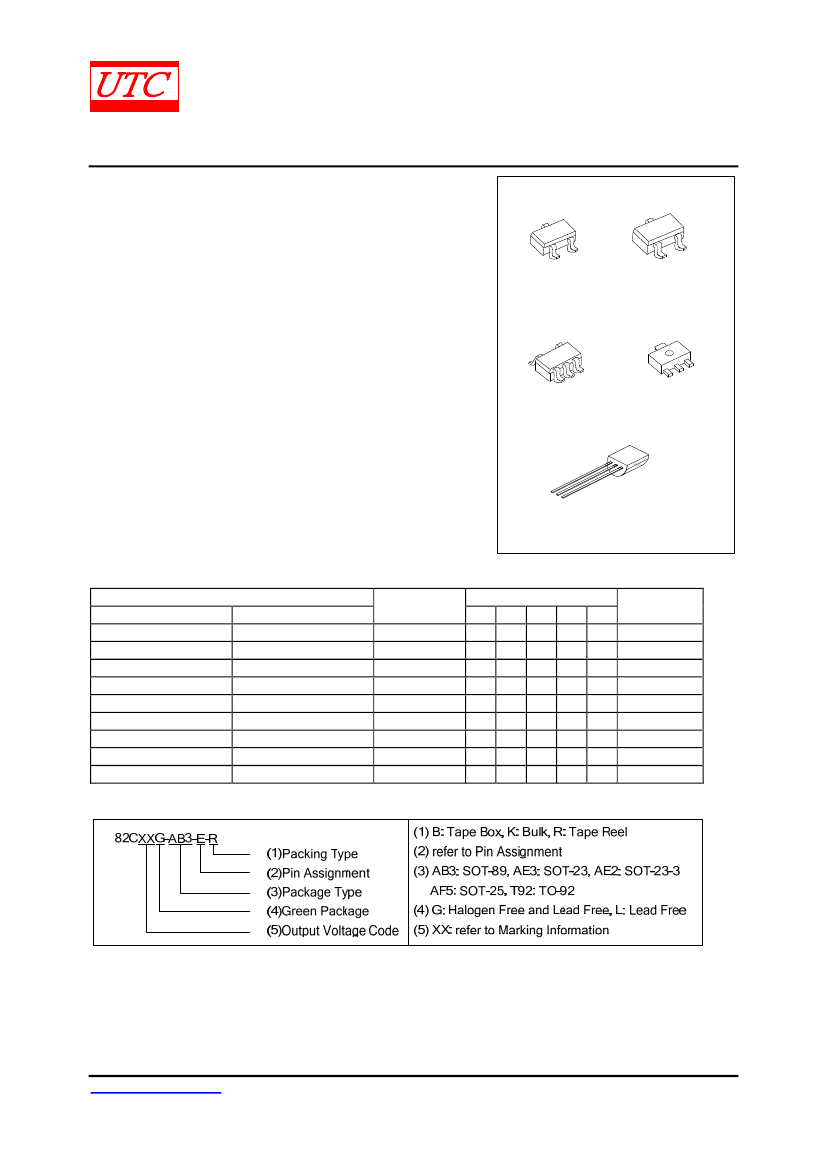

UNISONIC TECHNOLOGIES CO., LTD

82CXX

VOLTAGE DETECTORS

CMOS IC



DESCRIPTION

The UTC

82CXX

series are good performance 3-terminals

voltage detectors and manufactured by CMOS technologies with

highly accurate, low power consumption. The detection voltage is

extremely accurate with minimal temperature drift.

SOT-23-3

(JEDEC TO-236)

SOT-23

(JEDEC SC-59)



FEATURES

*High-accuracy detection voltage : ±2%

*Detect voltage range : 1.1V to 6.2V in 0.1V increments

*Detect voltage temperature characteristics: TYP. ±100ppm/°С.

*Wide operating voltage range : 0.7V to 10.0V

*Low current consumption : TYP 0.7μA(at V

=1.5V)

1 2

SOT-89

SOT-25

TO-92



ORDERING INFORMATION

Pin Assignment

Packing

Tape Reel

Tape Box

Bulk

Tape Box

Bulk

Ordering Number

Package

Lead Free

Halogen-Free

82CXXG-AB3-5-R

SOT-89

82CXXG-AB3-E-R

SOT-89

82CXXG-AE3-5-R

SOT-23

82CXXG-AE2-5-R

SOT-23-3

82CXXG-AF5-R

SOT-25

82CXXL-T92-D-B

82CXXG-T92-D-B

TO-92

82CXXL-T92-D-K

82CXXG-T92-D-K

TO-92

82CXXL-T92-E-B

82CXXG-T92-E-B

TO-92

82CXXL-T92-E-K

82CXXG-T92-E-K

TO-92

Note: 1. Pin assignment: I: V

O: V

OUT

G: V

N: NC

2. XX: Output Voltage, refer to Marking Information

www.unisonic.com.tw

1 of 18

QW-R119-010.P

82C43G-AB3-E-R Related Products

	82C43G-AB3-E-R	82C55G-AB3-E-R	82C54G-AB3-E-R	82C37G-AB3-E-R	82C50G-AB3-E-R	82C52G-AB3-E-R	82C28G-AB3-E-R
Description	Power Supply Support Circuit, Fixed, 1 Channel, CMOS, PSSO3, SOT-89, 3 PIN	Power Supply Support Circuit, Fixed, 1 Channel, CMOS, PSSO3, SOT-89, 3 PIN	Power Supply Support Circuit, Fixed, 1 Channel, CMOS, PSSO3, SOT-89, 3 PIN	Power Supply Support Circuit, Fixed, 1 Channel, CMOS, PSSO3, SOT-89, 3 PIN	Power Supply Support Circuit, Fixed, 1 Channel, CMOS, PSSO3, SOT-89, 3 PIN	Power Supply Support Circuit, Fixed, 1 Channel, CMOS, PSSO3, SOT-89, 3 PIN	Power Supply Support Circuit, Fixed, 1 Channel, CMOS, PSSO3, SOT-89, 3 PIN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Adjustable threshold	NO	NO	NO	NO	NO	NO	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3
Number of channels	1	1	1	1	1	1	1
Number of functions	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum supply voltage (Vsup)	10 V	10 V	10 V	10 V	10 V	10 V	10 V
Minimum supply voltage (Vsup)	0.7 V	0.7 V	0.7 V	0.7 V	0.7 V	0.7 V	0.7 V
Nominal supply voltage (Vsup)	1 V	1 V	1 V	1 V	1 V	1 V	1 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD	-	-	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD	UNISONIC TECHNOLOGIES CO.,LTD
