BZX55-C5V6 Overview

Zener Diode, 5.6V V(Z), 5%, 0.5W,

BZX55-C5V6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Galaxy Semi-Conductor Co., Ltd.
package instruction	O-LALF-W2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	25 Ω
JEDEC-95 code	DO-35
JESD-30 code	O-LALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.5 W
Nominal reference voltage	5.6 V
surface mount	NO
technology	ZENER
Terminal form	WIRE
Terminal location	AXIAL
Maximum voltage tolerance	5%
Working test current	5 mA

Preview

Download Datasheet

View All

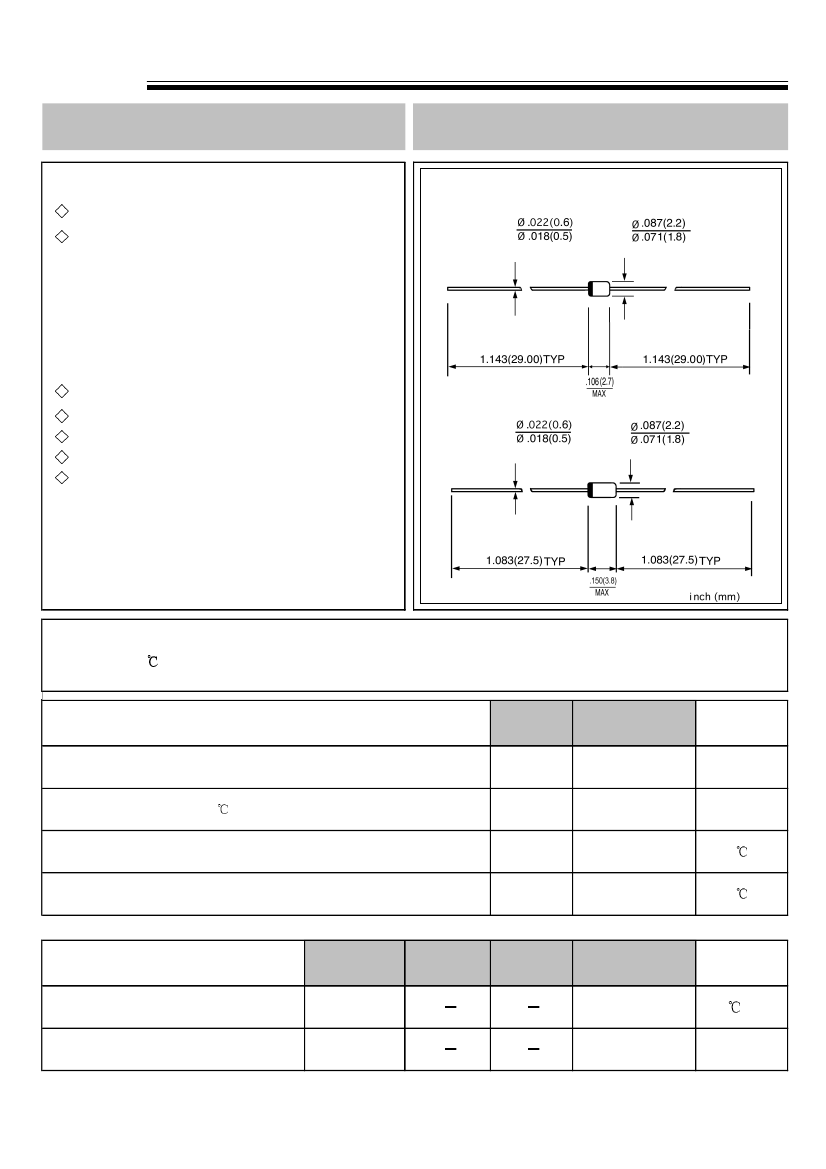

GALAXY ELECTRICAL

ZENER DIODES

FEATURES

Silicon planar power zener diodes

The

zener

voltages are graded according to the

international E 24 standard. Standard

zener

voltage

tolerance is ±5%. Replace suffix "C" with "B" for ±2%,

other voltage tolerance and other

zener

voltage are

available upon request.

BZX55 --- SERIES

POWER DISSIPATION: 500 mW

DO-34(GLASS)

MECHANICAL DATA

Case:DO-35, Glass Case

Terminals: Solderable per MIL-STD-202,

method

208

Polarity: Cathode

band

Marking: Type

number

Approx. Weight: 0.013 grams.

DO-35(GLASS)

MAXIMUM RATINGS AND

ELECTRICAL CHARACTERISTICS

Ratings at 25

ambient temperature unless otherwise specified.

SYMBOL

Zener current (see

Table

"Characteristics")

Pow er dissipation @ T

amb

=25

Junction temperature

Storage temperature

range

VALUE

UNIT

tot

500

175

-55---+175

SYMBOL

Thermal resistance junction to ambient

Forw ard voltage at I

=100mA

MIN

TYP

MAX

300

1.0

UNIT

www.galaxycn.com

NOTES:

(1) Valid provided that leads at a distance of 10 mm from case are kept at ambient temperature.

Document Number 0284002
