LS632-29GG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> LS632-29GG

LS632-29GG: DescriptionIC Socket, DIP32, 32 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder; CategoryThe connector socket; File Size195KB，2 Pages; ManufacturerAdvanced Interconnections Corp.; Environmental Compliance

Download Datasheet Parametric View All

LS632-29GG Overview

IC Socket, DIP32, 32 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder

LS632-29GG Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Advanced Interconnections Corp.
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: UL 94V-0, LOW PROFILE
body width	0.7 inch
subject depth	0.165 inch
body length	1.6 inch
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	BERYLLIUM COPPER
Contact style	RND PIN-SKT
Device slot type	IC SOCKET
Type of equipment used	DIP32
Shell material	POLYETHYLENE POLYESTER
JESD-609 code	e4
Manufacturer's serial number	LS
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	32
Maximum operating temperature	140 °C
Minimum operating temperature	-60 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.6 mm
Terminal pitch	2.54 mm
Termination type	SOLDER

Preview

Download Datasheet

View All

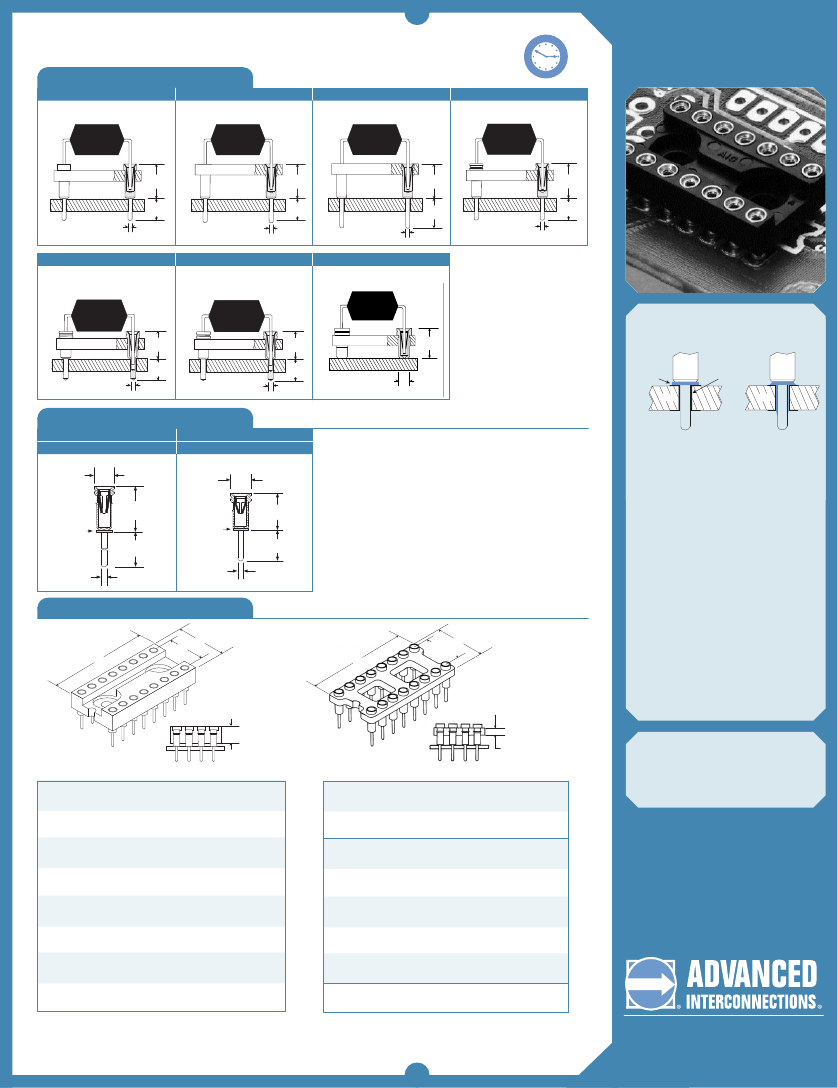

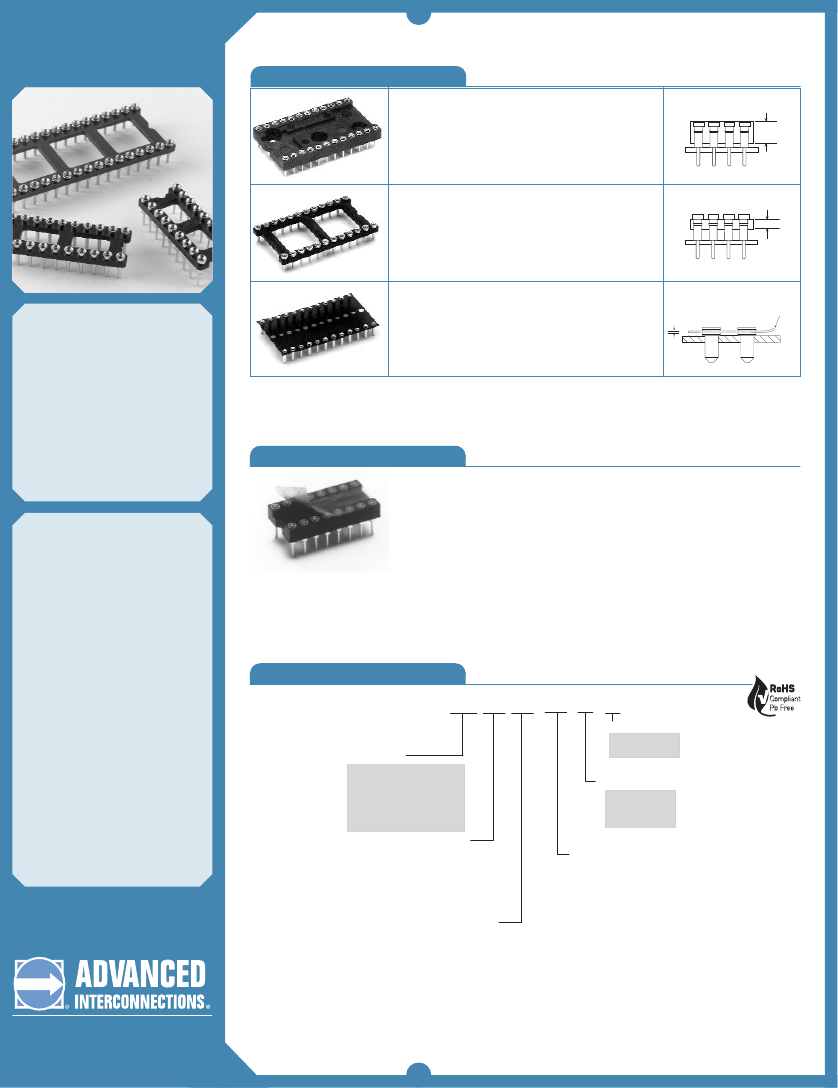

DIP Sockets

Table of Models

Molded DIP Sockets

Closed Frame and Open Frame

Description:

Closed Frame Socket (RDS)

Mat’l: High Temp. Liquid Crystal Polymer (LCP)

Index: -40°C to 260°C (-40°F to 500°F)

.125

(3.18)

Description:

Open Frame Socket (RLS)

Mat’l: High Temp. Liquid Crystal Polymer (LCP)

Index: -40°C to 260°C (-40°F to 500°F)

.050

(1.27)

.100/(2.54) for 48 and 60 pos.

Description:

Peel-A-Way

Socket (KS)

Material: Polyimide Film

Index: -269°C to 400°C (-452°F to 752°F)

For more information, refer to the Peel-A-Way

DIP Sockets pages (30-31).

RDS replaces DS and HDS.

RLS replaces LS and HLS.

.005

(.13)

Polyimide

Film

Features:

• Multiple finger contact on all

sockets assures maximum

reliability.

• Tapered entry for ease of insertion.

• Closed bottom sleeve for 100%

anti-wicking of solder.

• To fit .100/(2.54mm) pitch.

• Easily customized to fit your

application.

Options

Tape Seal - add 3M to end of part number

• Removable tape seal protects plated contact in harsh environments

• Sealed socket will not allow dirt and other contaminants to enter

socket chamber and become entrapped behind contact fingers

• Spray flux without contaminating contact area

Specifications:

Terminals:

Brass - Copper Alloy

(C36000) ASTM-B-16

Contacts:

Beryllium Copper - Copper Alloy

(C17200) ASTM-B-194

Solder Preform:

Standard: 63Sn/37Pb

Lead-free: 95.5Sn/4.0Ag/0.5Cu

Plating:

G - Gold over Nickel

M - Matte Tin over Nickel

T - Tin/Lead over Nickel

Gold per ASTM-B-488

Matte Tin per ASTM545-97

Tin/Lead per MIL-P-81728

Nickel per QQ-N-290

Material

Silicone Backed Polyimide Film, -74°C to 260°C (-100°F to 500°F)

Intermittent to 371°C (700°F)

How To Order

RDS 3

16 - 01

Contact Plating

RoHS Compliant:

Body Type

RoHS Compliant:

G - Gold

T - Tin/Lead

Terminal Plating

RoHS Compliant:

RDS - Hi-Temp LCP

Closed Frame Molded

RLS - Hi-Temp LCP

Open Frame Molded

DIP Spacing

3 - .300/(7.62mm)

4 - .400/(10.16mm)

6 - .600/(15.24mm)

9 - .900/(22.86mm)*

*Open Frame only

G - Gold

M - Matte Tin

T - Tin/Lead

Terminal Type

See options on next page

Number of Pins

Closed Frame 8 - 40

Open Frame 8 - 64

(see table on next page for standard pin counts)

Note: Terminals plated with Matte Tin are available only with Gold plated contacts.

Quick-Turn delivery is not available on products with Matte Tin plating.

5 Energy Way, West Warwick, RI 02893 USA

Tel: 800.424.9850 | 401.823.5200

Fax: 401.823.8723

info@advanced.com | www.advanced.com

Catalog 16

rev. Sept. 07

Products shown covered by patents issued and/or pending. Specifications subject to change without notice.
