MV21V1AD-R25.0000MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> MV21V1AD-R25.0000MHZ

MV21V1AD-R25.0000MHZ: DescriptionCMOS/TTL Output Clock Oscillator, 25MHz Nom, ROHS COMPLIANT, DIP-14/4; CategoryPassive components oscillator; File Size394KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

MV21V1AD-R25.0000MHZ Overview

CMOS/TTL Output Clock Oscillator, 25MHz Nom, ROHS COMPLIANT, DIP-14/4

MV21V1AD-R25.0000MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MtronPTI
Reach Compliance Code	unknown
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	50 ppm
frequency stability	1000%
JESD-609 code	e1
linearity	10%
Manufacturer's serial number	MV
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	25 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS/TTL
Output load	10 TTL, 50 pF
physical size	20.8mm x 13.2mm x 5.08mm
longest rise time	10 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	40/60 %
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)

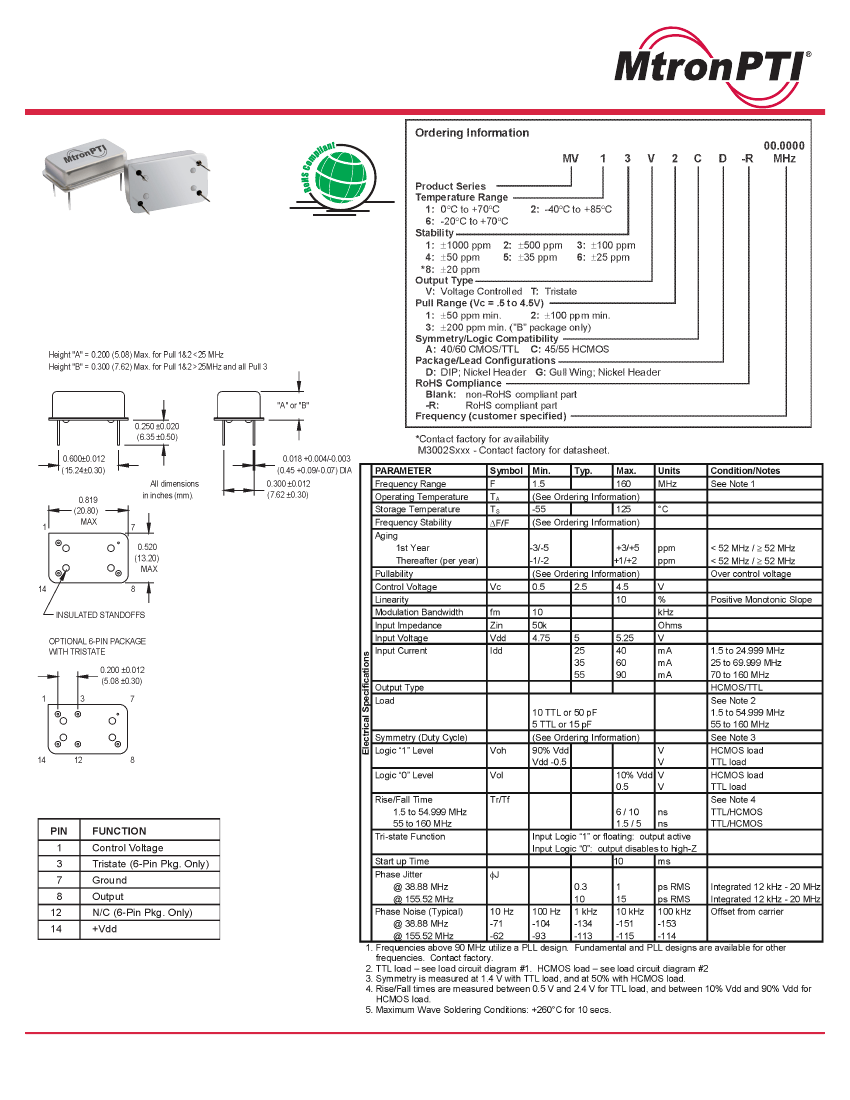

Preview

Download Datasheet

View All

MV Series

14 DIP, 5.0 Volt, HCMOS/TTL, VCXO

•

General purpose VCXO for Phase Lock Loops

(PLLs), Clock Recovery, Reference Signal Tracking,

and Synthesizers

Frequencies up to 160 MHz

Tri-state Option Available

Pin Connections

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Revision: 8-14-07
