D8202A datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> D8202A

Preview

D8202A: DescriptionDRAM Controller, CMOS, CDIP40,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size385KB，14 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

D8202A Overview

DRAM Controller, CMOS, CDIP40,

D8202A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Intel
Reach Compliance Code	unknown
Address bus width	14
boundary scan	NO
Bus compatibility	8080A; 8085A; IPAX88; IPAX86 FAMILY
External data bus width
JESD-30 code	R-GDIP-T40
JESD-609 code	e0
length	52.325 mm
low power mode	NO
Number of blocks	4
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	WDIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE, WINDOW
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	5.72 mm
Maximum slew rate	270 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MEMORY CONTROLLER, DRAM

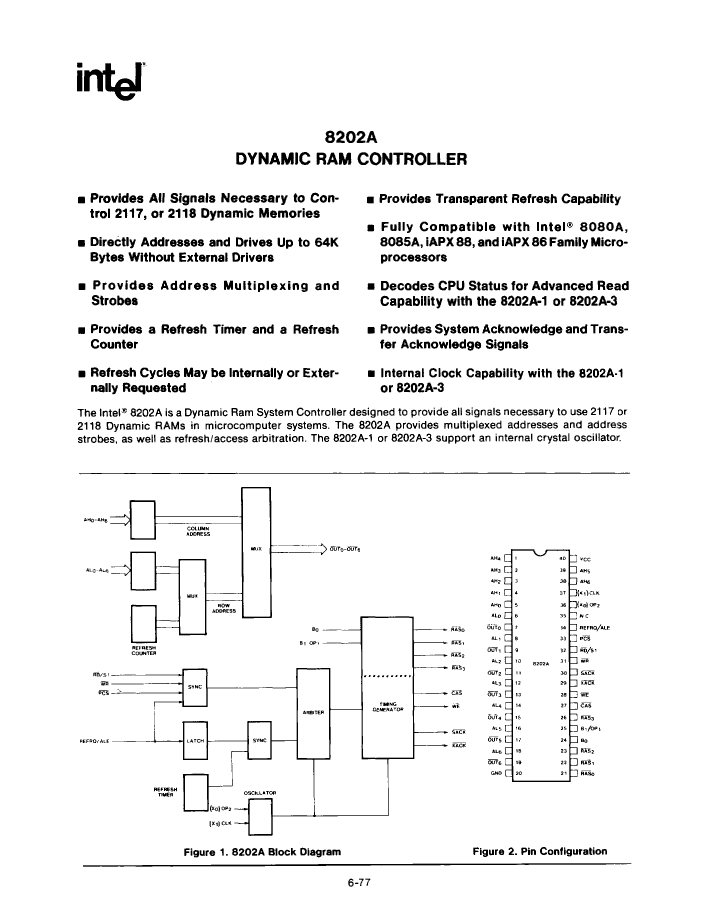

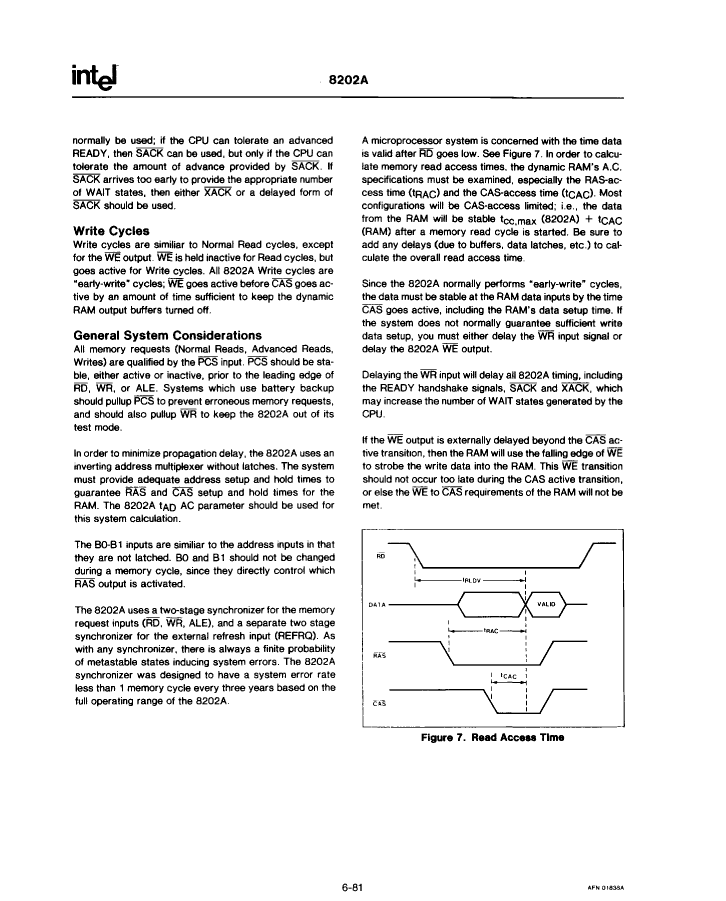

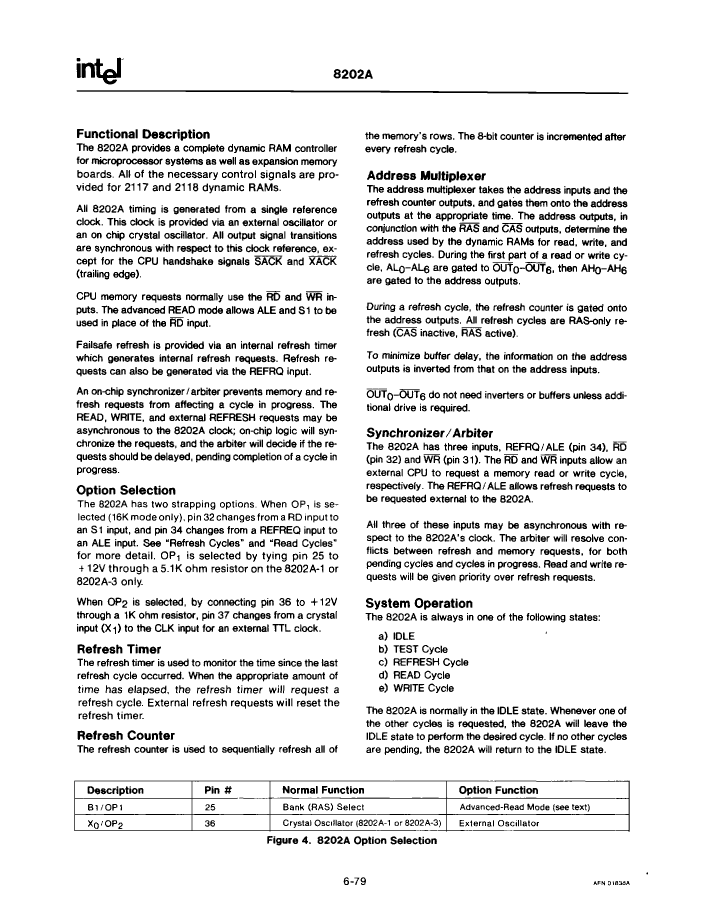

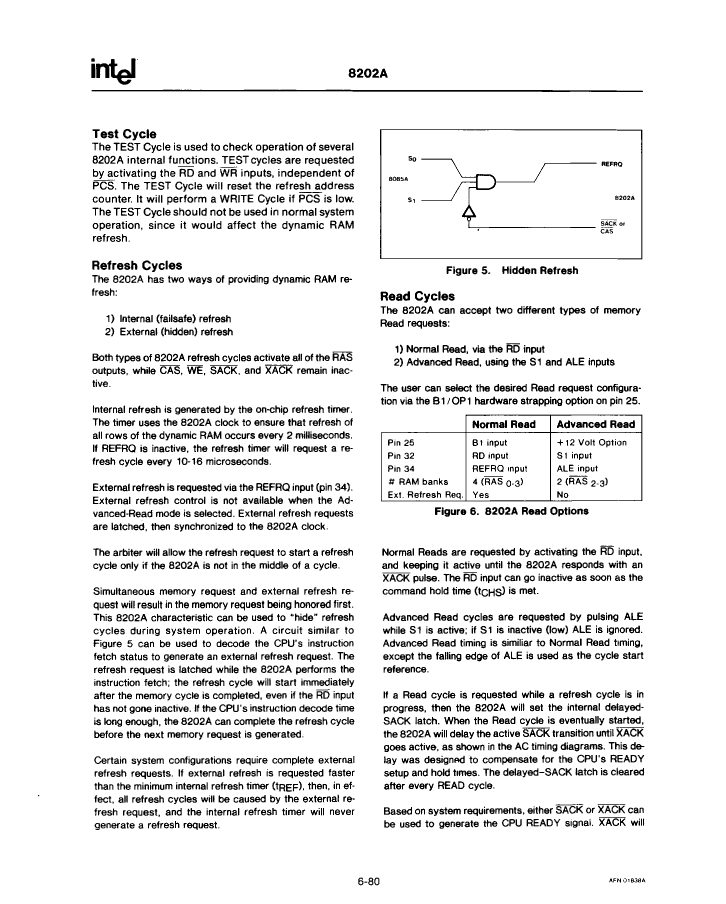

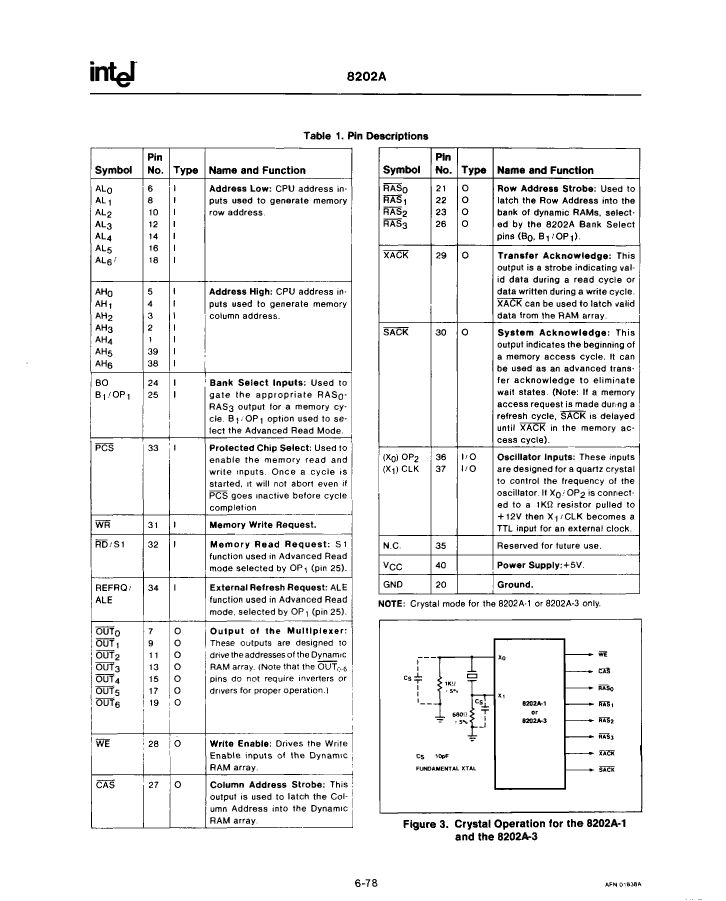

D8202A Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

D8202A Related Products

	D8202A	P8202A	P8202A-3	D8202A-3	D8202A-1	P8202A-1
Description	DRAM Controller, CMOS, CDIP40,	DRAM Controller, CMOS, PDIP40	DRAM Controller, CMOS, PDIP40	DRAM Controller, CMOS, CDIP40,	DRAM Controller, CMOS, CDIP40	DRAM Controller, CMOS, PDIP40
Maker	Intel	Intel	Intel	Intel	Intel	Intel
Reach Compliance Code	unknown	unknown	unknown	compliant	unknown	unknown
Address bus width	14	14	14	14	14	14
boundary scan	NO	NO	NO	NO	NO	NO
Bus compatibility	8080A; 8085A; IPAX88; IPAX86 FAMILY	8080A; 8085A; IPAX88; IPAX86 FAMILY	8080A; 8085A; IPAX88; IPAX86 FAMILY	8080A; 8085A; IPAX88; IPAX86 FAMILY	8080A; 8085A; IPAX88; IPAX86 FAMILY	8080A; 8085A; IPAX88; IPAX86 FAMILY
JESD-30 code	R-GDIP-T40	R-PDIP-T40	R-PDIP-T40	R-GDIP-T40	R-GDIP-T40	R-PDIP-T40
length	52.325 mm	52.26 mm	52.26 mm	52.325 mm	52.325 mm	52.26 mm
low power mode	NO	NO	NO	NO	NO	NO
Number of blocks	4	4	4	4	4	4
Number of terminals	40	40	40	40	40	40
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	WDIP	DIP	DIP	WDIP	WDIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE, WINDOW	IN-LINE	IN-LINE	IN-LINE, WINDOW	IN-LINE, WINDOW	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.72 mm	5.08 mm	5.08 mm	5.72 mm	5.72 mm	5.08 mm
Maximum supply voltage	5.5 V	5.5 V	5.25 V	5.25 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.75 V	4.75 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MEMORY CONTROLLER, DRAM	MEMORY CONTROLLER, DRAM	MEMORY CONTROLLER, DRAM	MEMORY CONTROLLER, DRAM	MEMORY CONTROLLER, DRAM	MEMORY CONTROLLER, DRAM
package instruction	-	DIP,	DIP,	WDIP, DIP40,.6	WDIP, DIP40,.6	DIP,
