PBYR16-30 datasheet, PDF - EEWORLD Datasheet

PBYR16-30: Description16A, 35V, SILICON, RECTIFIER DIODE, TO-220AC; CategoryDiscrete semiconductor diode; File Size86KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

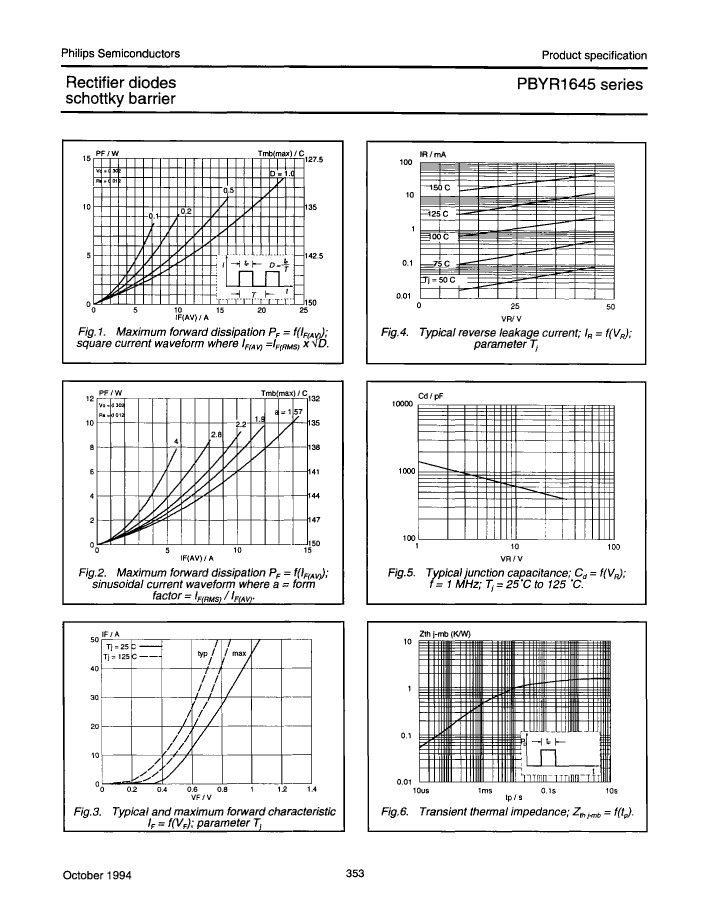

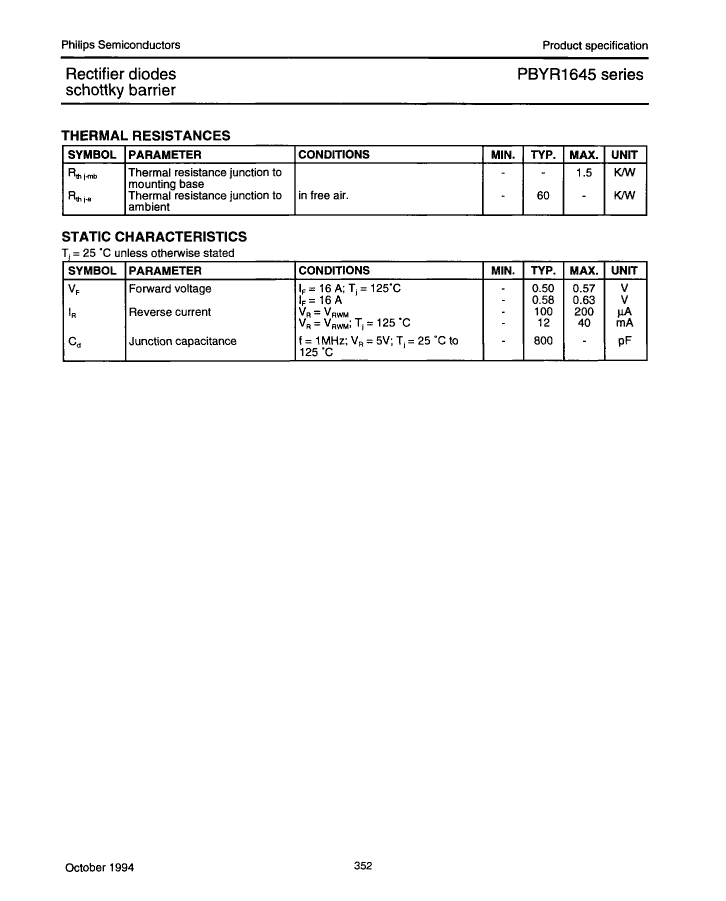

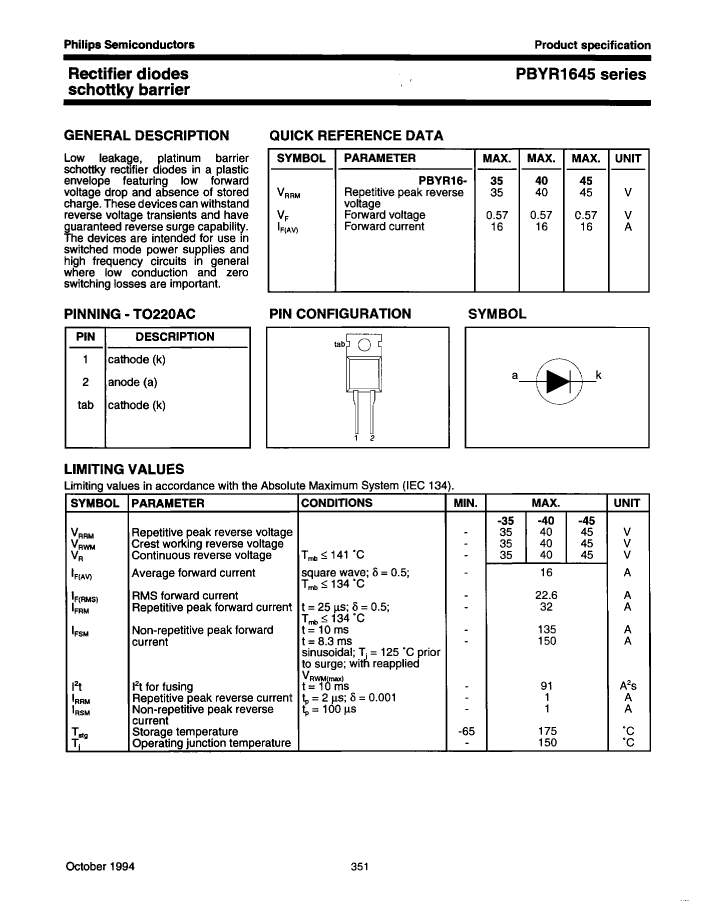

PBYR16-30 Overview

16A, 35V, SILICON, RECTIFIER DIODE, TO-220AC

Parameter Name	Attribute value
Maker	NXP
package instruction	R-PSFM-T2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITHSTAND REVERSE VOLTAGE TRANSIENTS, SURGE CAPABILITY
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	TO-220AC
JESD-30 code	R-PSFM-T2
Maximum non-repetitive peak forward current	150 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Maximum output current	16 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	35 V
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

	PBYR16-30	PBYR16-40	PBYR16-45
Description	16A, 35V, SILICON, RECTIFIER DIODE, TO-220AC	DIODE 16 A, 40 V, SILICON, RECTIFIER DIODE, TO-220AC, Rectifier Diode	DIODE 16 A, 45 V, SILICON, RECTIFIER DIODE, TO-220AC, Rectifier Diode
Maker	NXP	NXP	NXP
package instruction	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2
Reach Compliance Code	unknown	unknown	unknown
Other features	WITHSTAND REVERSE VOLTAGE TRANSIENTS, SURGE CAPABILITY	WITHSTAND REVERSE VOLTAGE TRANSIENTS, SURGE CAPABILITY	WITHSTAND REVERSE VOLTAGE TRANSIENTS, SURGE CAPABILITY
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	TO-220AC	TO-220AC	TO-220AC
JESD-30 code	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2
Maximum non-repetitive peak forward current	150 A	150 A	150 A
Number of components	1	1	1
Phase	1	1	1
Number of terminals	2	2	2
Maximum output current	16 A	16 A	16 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	35 V	40 V	45 V
surface mount	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
