Spec Sheet
Multilayer Ceramic Capacitors (Temperature compensating type)
UMK105UJ181JV-F
Features
Item Summary
180pF±5%, 50V,
U2J/UJ, 0402/1005 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping paper 10000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
Q (min)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
Temperature Characteristic (JIS)
Operating Temp. Range (JIS)
Temperature Characteristic
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
10 GΩ
Yes
Yes
Yes
Reflow
180 pF ± 5 %
0402/1005
50 V
1000 at 1MHz
U2J
-55 to +125 ℃
UJ
-55 to +125 ℃
-750 ±120 ppm/℃
200 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
1.0 ±0.05 mm
0.5 ±0.05 mm
0.5 ±0.05 mm
0.25 ±0.10 mm
2018.11.25
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

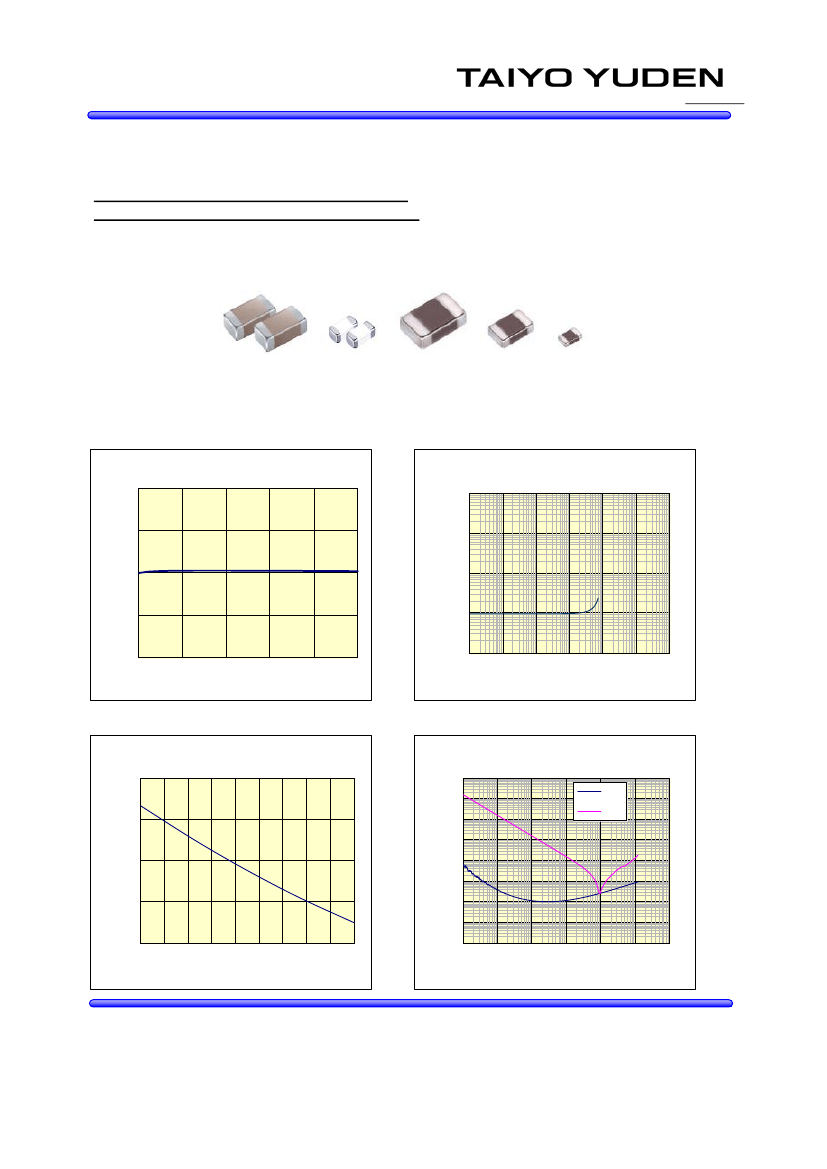

Multi Layer Ceramic Capacitor
○UMK105UJ181JV
50V 1005 UJ/U2J 180pF +/- 5% t=0.55mmMAX
50V 0402 UJ/U2J 180pF +/- 5% t=0.022inchMAX
-Electrical Characteristics Data-
16CDD02
RoHS compliance product
10
UMK105UJ181JV
DC Bias Char.
100000
UMK105UJ181JV
Capacitance Freq.
5
10000
0
Capacitance[pF]
dC/C[%]
1000
-5
100
-10
0
10
20
30
40
DC Bias Voltage[V]
50
10
0.1
1
10
100
1000 10000100000
Frequency[MHz]
UMK105UJ181JV
Capacitance Temp.
10
100000
10000
5
1000
UMK105UJ181JV
Impedance,ESR Freq.
ESR
Z
0
Z,ESR[OHM]
-55 -35 -15 5 25 45 65 85 105 125
Temperature[degreeC]
dC/C[%]
100
10
1
0.1
-5
0.01
-10
0.001
0.1
1
10
100 1000 10000100000
Frequency[MHz]
