SNT-100-BK-H datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> SNT-100-BK-H

Preview

SNT-100-BK-H: DescriptionSHUNTS JUMPERS; CategoryThe connector The connector; File Size83KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SNT-100-BK-H Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SNT-100-BK-H	-	-	View	Buy Now

SNT-100-BK-H Overview

SHUNTS JUMPERS

SNT-100-BK-H Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	8 weeks
Other features	GLASS FILLED POLYESTER
body width	0.1 inch
subject depth	0.24 inch
body length	0.2 inch
Body/casing type	PLUG
Connector type	INTERCONNECTION DEVICE
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	5 mΩ
Contact style	SQ PIN-SKT
maximum insertion force	8.896 N
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Rated current (signal)	2.5 A
reliability	COMMERCIAL
Total number of contacts	2
Evacuation force-minimum value	7.5616 N
Base Number Matches	1

Preview

Download Datasheet

View All

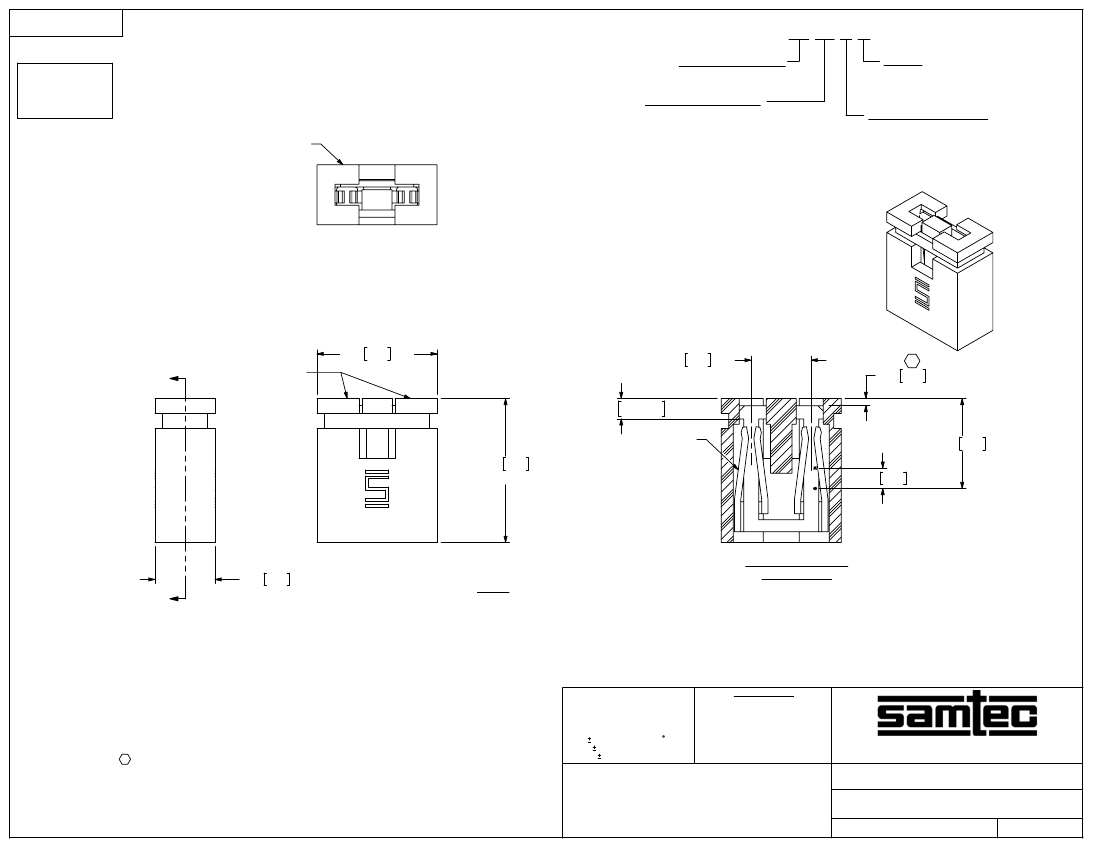

REVISION P

DO NOT

SCALE FROM

THIS PRINT

DESIGNED & DIMENSIONED

IN INCHES [MILLIMETERS]

SNT-100-XX-X-X

BODY SPECIFICATION

-100

COLOR SPECIFICATION

BK = BLACK

RD = RED

BL = BLUE

YW = YELLOW

OR = ORANGE

OPTION

-H: HANDLE

(SEE -H OPTION)

PLATING SPECIFICATION

-T: MATTE TIN CONTACT AND TAIL

-G: 10µ" GOLD IN CONTACT

AREA, 10µ" GOLD ON TAIL

-H: 30µ" HEAVY GOLD IN CONTACT

AREA, 3µ" GOLD ON TAIL.

SNT-100-XX

.200 5.08 REF

"A"

SEE NOTE 3

.100 2.54 REF

C

L

C

L

C

.012 0.30

.034

+.005

0.86

+0.13

- .000

0.00

C-37-X

.240 6.10

REF

.034 0.86

.150 3.81

"A"

.100 2.54 REF

SNT-100-XX-X-X SHOWN

FIG 1

SECTION "A"-"A"

SCALE 6 : 1

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

NOTES:

1.

C

REPRESENTS A CRITICAL DIMENSION.

2. MINIMUM PUSHOUT FORCE 1.0 LB (4.44N)

3. MAXIMUM BREAKOFF VESTIGE: .015[0.38].

DECIMALS

.XX: .01 [0.3]

2

.XXX: .005 [0.13]

.XXXX: .0020 [0.051]

ANGLES

THIS DOCUMENT CONTAINS CONFIDENTIAL AND

PROPRIETARY INFORMATION AND ALL DESIGN,

MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS

AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,

INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE

OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR

REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY

OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS

WRITTEN CONSENT OF SAMTEC, INC.

*

PROPRIETARY NOTE

*

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 8:1

INSULATOR: PBT, UL 94V-0

COLOR: SEE COLOR SPECIFICATION

CONTACT: COPPER ALLOY

F:\DWG\MISC\MKTG\SNT-100-XX-X-X-MKT.SLDDRW

.100 [2.54] C.L. SHUNT ASSEMBLY

SNT-100-XX-X-X

1/31/90

SHEET

1

OF

2

BY:

KOLB

SNT-100-BK-H Related Products

	SNT-100-BK-H	SNT-100-RD-G-H	SNT-100-YW-G-H	SNT-100-BL-T	MCA1206HC1249FP5	SNT-100-OR-T
Description	SHUNTS JUMPERS	SHUNT & JUMPERS	SHUNT & JUMPERS	SHUNT & JUMPERS	Fixed Resistor, Thin Film, 0.25W, 12.4ohm, 200V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 1206, CHIP	SHUNT & JUMPERS
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	CHIP	ROHS COMPLIANT
Reach Compliance Code	compli	compliant	compliant	compliant	unknown	compliant
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	-	Lead free
ECCN code	EAR99	-	-	EAR99	EAR99	EAR99
Factory Lead Time	8 weeks	2 weeks	8 weeks	8 weeks	-	-
Other features	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	-	RATED AC COLTAGE(V): 200	POLYESTER
body width	0.1 inch	0.1 inch	0.1 inch	-	-	0.1 inch
subject depth	0.24 inch	0.565 inch	0.565 inch	-	-	0.24 inch
body length	0.2 inch	0.2 inch	0.2 inch	-	-	0.2 inch
Body/casing type	PLUG	PLUG	PLUG	-	-	PLUG
Connector type	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE	-	-	INTERCONNECTION DEVICE
Contact to complete cooperation	AU	AU	AU	-	-	SN
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	-	-	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE	FEMALE	-	-	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-	-	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR
Contact resistance	5 mΩ	5 mΩ	5 mΩ	-	-	5 mΩ
maximum insertion force	8.896 N	8.896 N	8.896 N	-	-	8.896 N
Insulator color	BLACK	RED	YELLOW	-	-	ORANGE
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	-	-	GLASS FILLED POLYESTER
JESD-609 code	e4	e4	e4	-	-	e3
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	-	-	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	-	-	STRAIGHT
Number of connectors	ONE	ONE	ONE	-	-	ONE
Number of rows loaded	1	1	1	-	-	1
Maximum operating temperature	125 °C	125 °C	125 °C	-	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C
Rated current (signal)	2.5 A	2.5 A	2.5 A	-	-	2.5 A
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	-	COMMERCIAL
Total number of contacts	2	2	2	-	-	2
Evacuation force-minimum value	7.5616 N	7.5616 N	7.5616 N	-	-	.5282 N
