IDT74LVC162952APA8: DescriptionRegistered Bus Transceiver, LVC/LCX/Z Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56, TSSOP-56; Categorylogic logic; File Size192KB，6 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT74LVC162952APA8 Overview

Registered Bus Transceiver, LVC/LCX/Z Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56, TSSOP-56

IDT74LVC162952APA8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	TSSOP
package instruction	TSSOP-56
Contacts	56
Reach Compliance Code	not_compliant
Other features	5V TOLERANT INPUTS AND OUTPUTS
series	LVC/LCX/Z
JESD-30 code	R-PDSO-G56
JESD-609 code	e0
length	14 mm
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
Humidity sensitivity level	1
Number of digits	8
Number of functions	2
Number of ports	2
Number of terminals	56
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	240
propagation delay (tpd)	7.6 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	20
width	6.1 mm

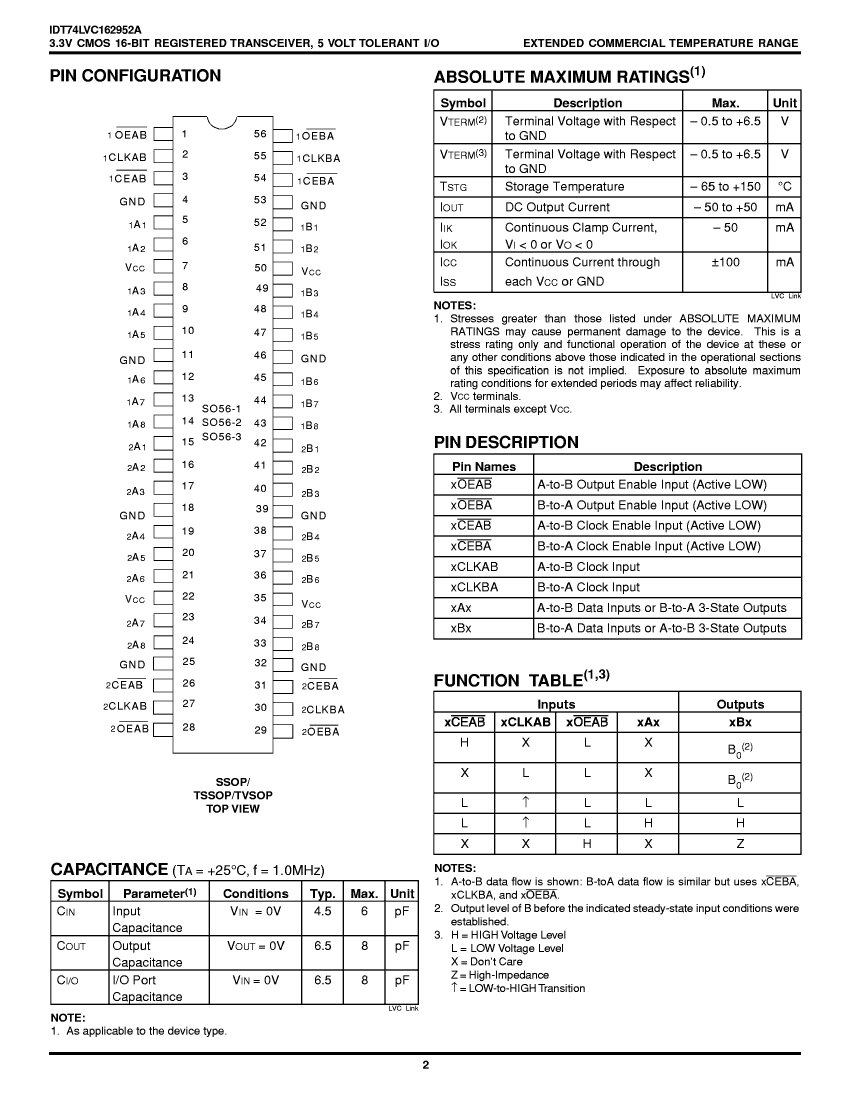

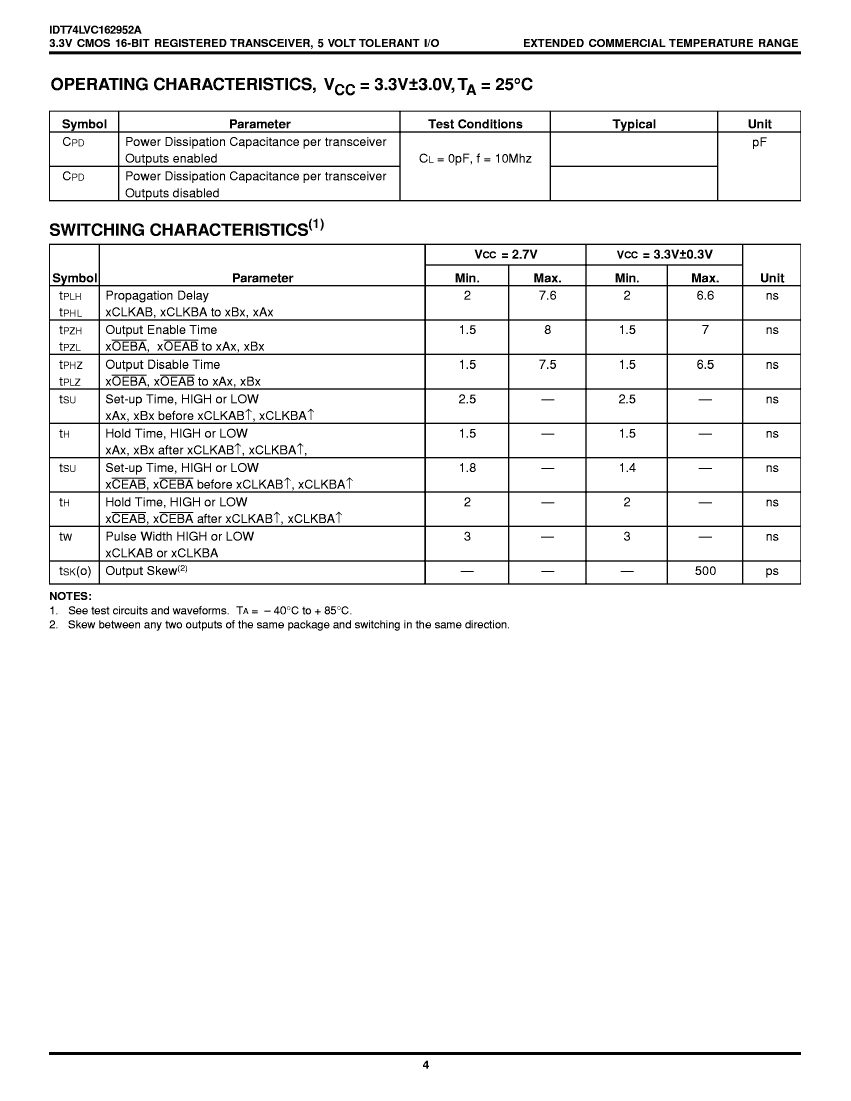

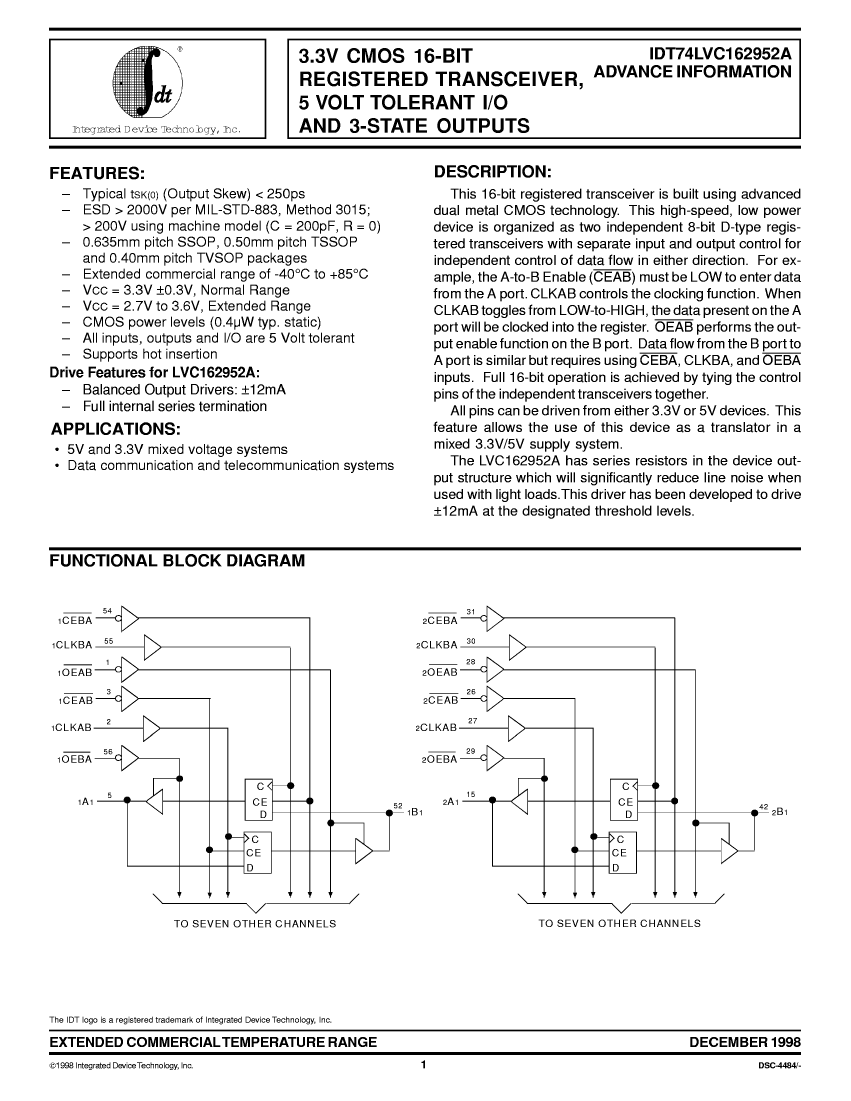

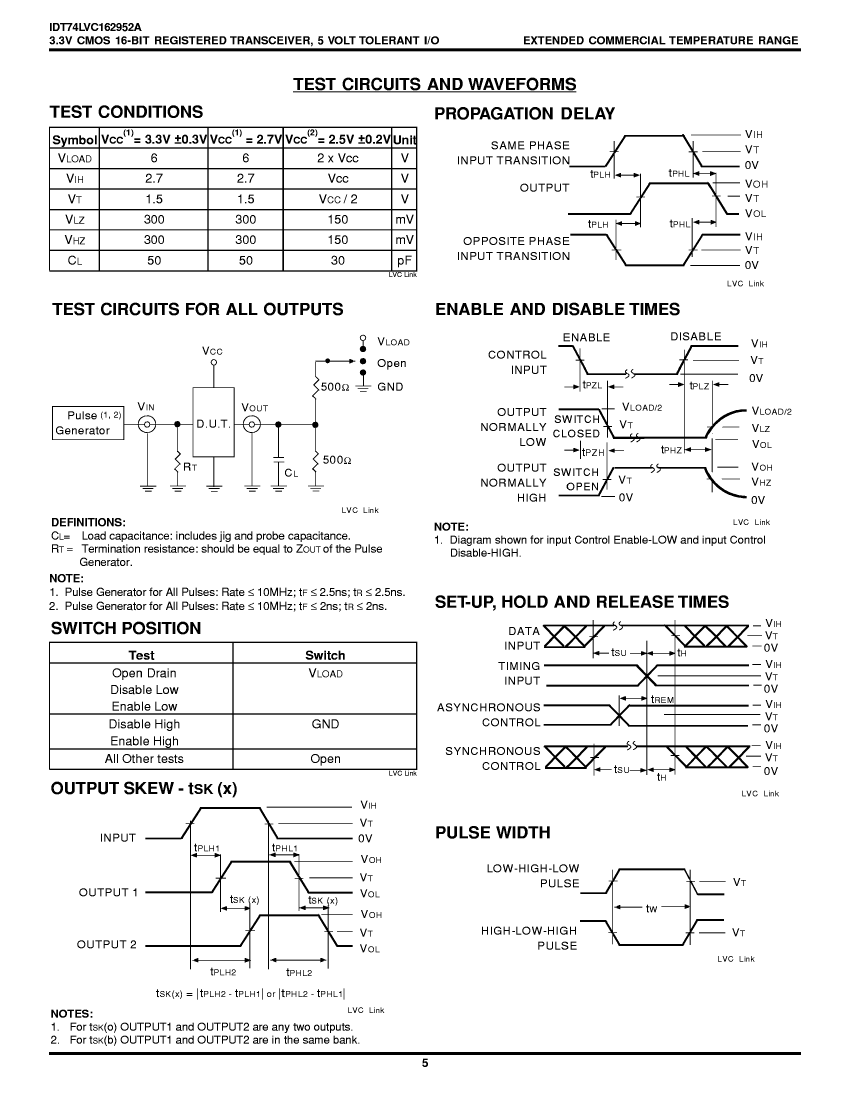

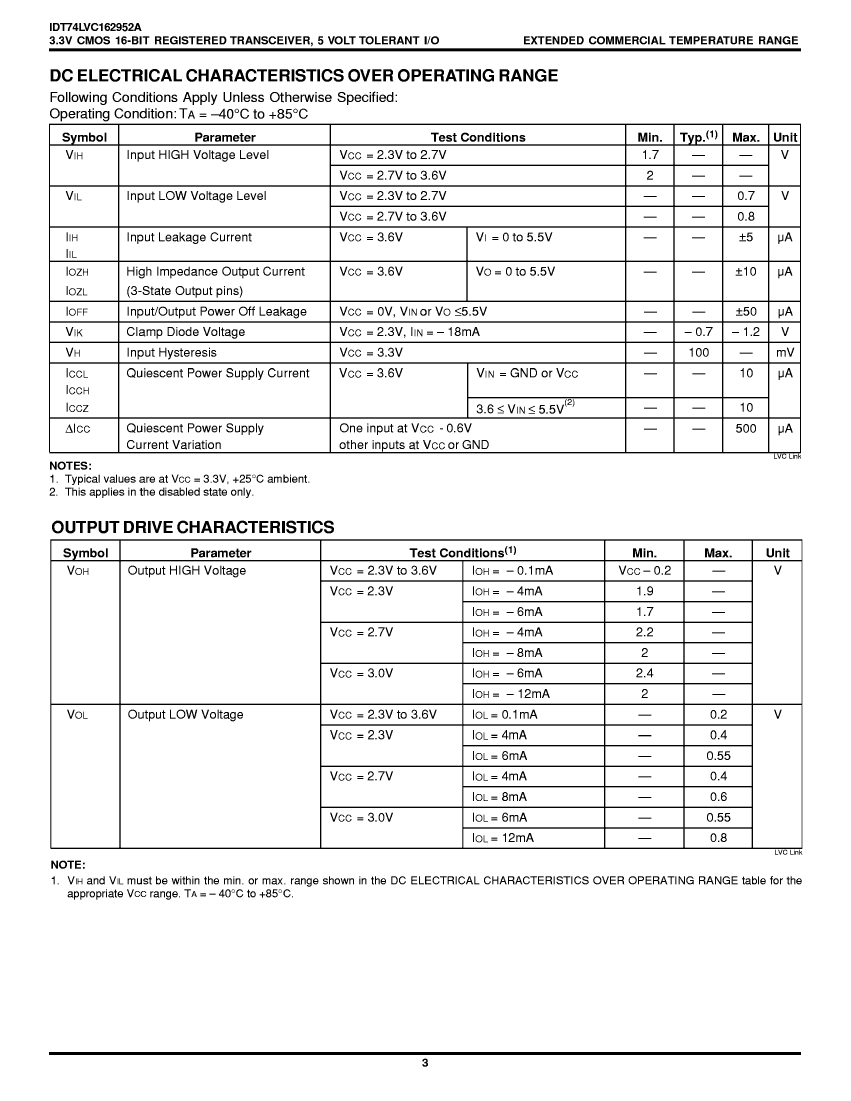

IDT74LVC162952APA8 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

IDT74LVC162952APA8 Related Products

	IDT74LVC162952APA8	IDT74LVC162952APF	IDT74LVC162952APF8	IDT74LVC162952APV8	IDT74LVC162952APA	IDT74LVC162952APV
Description	Registered Bus Transceiver, LVC/LCX/Z Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56, TSSOP-56	Registered Bus Transceiver, LVC/LCX/Z Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56, 0.40 MM PITCH, TVSOP-56	Registered Bus Transceiver, LVC/LCX/Z Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56, TVSOP-56	Registered Bus Transceiver, LVC/LCX/Z Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56, SSOP-56	Registered Bus Transceiver, LVC/LCX/Z Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56, 0.50 MM PITCH, TSSOP-56	Registered Bus Transceiver, LVC/LCX/Z Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56, 0.635 MM PITCH, SSOP-56
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	TSSOP	SSOP	SSOP	SSOP	TSSOP	SSOP
package instruction	TSSOP-56	0.40 MM PITCH, TVSOP-56	TVSOP-56	SSOP-56	TSSOP, TSSOP56,.3,20	SSOP, SSOP56,.4
Contacts	56	56	56	56	56	56
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Other features	5V TOLERANT INPUTS AND OUTPUTS	5V TOLERANT INPUTS AND OUTPUTS	5V TOLERANT INPUTS AND OUTPUTS	5V TOLERANT INPUTS AND OUTPUTS	5V TOLERANT INPUTS AND OUTPUTS	5V TOLERANT INPUTS AND OUTPUTS
series	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z
JESD-30 code	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56
JESD-609 code	e0	e0	e0	e0	e0	e0
length	14 mm	11.3 mm	11.3 mm	18.415 mm	14 mm	18.415 mm
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
Humidity sensitivity level	1	1	1	1	1	1
Number of digits	8	8	8	8	8	8
Number of functions	2	2	2	2	2	2
Number of ports	2	2	2	2	2	2
Number of terminals	56	56	56	56	56	56
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	TSSOP	TSSOP	SSOP	TSSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	240	240	240	225	240	225
propagation delay (tpd)	7.6 ns	7.6 ns	7.6 ns	7.6 ns	7.6 ns	7.6 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	2.794 mm	1.2 mm	2.794 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	TIN LEAD	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.4 mm	0.4 mm	0.635 mm	0.5 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	20	20	20	20	20	20
width	6.1 mm	4.4 mm	4.4 mm	7.5 mm	6.1 mm	7.5 mm
