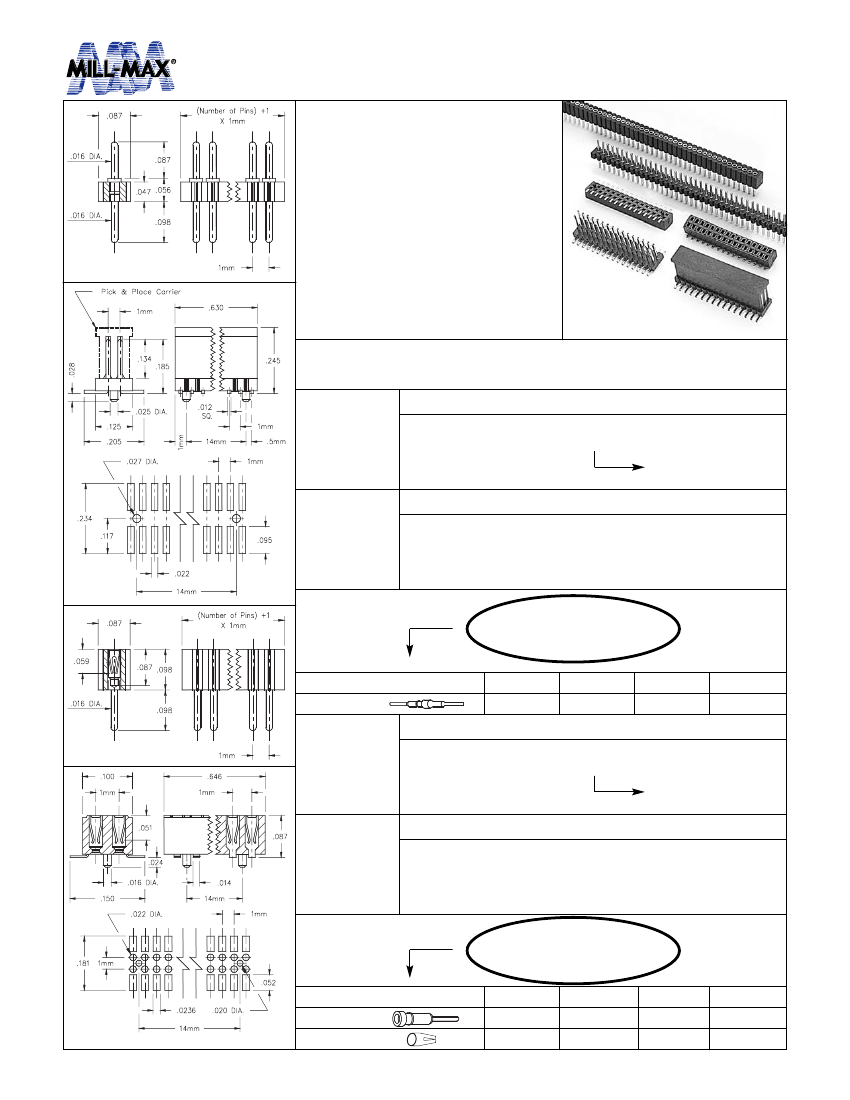

INTERCONNECTS
1mm Grid
Single & Double Row
•
Single row header and socket
have .016” dia. pins for thru-hole
mount. A mated pair achieves a
stack height of .154”.
•
Dual row header has .012” square
pins.
•
Dual row socket is designed for top
or bottom entry of the header. Top
entry achieves a stack height of
.138”, bottom entry achieves a stack
height of .051”.
•
Dual row socket and header have
location posts to permit hand place-
ment prior to soldering.
Series 86X
Fig. 1
Ordering Information
Single Row Pin Header, Thru Hole Mount
Fig. 1
860-XX-0_ _-10-001
Specify # of pins
03-50
Double Row Pin Header, Surface Mount
Fig. 2
Fig. 2
862-XX-032-10-001
32 pins (2x16)
XX= Plating Code
See Below
SPECIFY PLATING CODE XX=
10
10µ” Au
Pin Plating
Single Row Socket, Thru Hole Mount
Fig. 3
Fig. 3
861-XX-0_ _-10-001
Specify # of pins
03-50
Double Row Socket, Surface Mount
Fig. 4
863-XX-032-10-001
32 pins (2x16)
XX= Plating Code
See Below
SPECIFY PLATING CODE XX=
91
200µ” Sn/Pb
10µ” Au
Sleeve (Pin)
Fig. 4
Contact (Clip)
w w w. m i l l - m a x . c o m
69
516-922-6000
