2N7225DPBF: DescriptionPower Field-Effect Transistor, 27.4A I(D), 200V, 0.105ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA; CategoryDiscrete semiconductor The transistor; File Size232KB，8 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

2N7225DPBF Overview

Power Field-Effect Transistor, 27.4A I(D), 200V, 0.105ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA

2N7225DPBF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	International Rectifier （ Infineon ）
package instruction	FLANGE MOUNT, R-MSFM-P3
Reach Compliance Code	compliant
ECCN code	EAR99
Avalanche Energy Efficiency Rating (Eas)	500 mJ
Shell connection	ISOLATED
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	200 V
Maximum drain current (ID)	27.4 A
Maximum drain-source on-resistance	0.105 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-254AA
JESD-30 code	R-MSFM-P3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	METAL
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	150 W
Maximum pulsed drain current (IDM)	110 A
Certification status	Not Qualified
surface mount	NO
Terminal form	PIN/PEG
Terminal location	SINGLE
Maximum time at peak reflow temperature	40
transistor applications	SWITCHING
Transistor component materials	SILICON
Maximum off time (toff)	300 ns
Maximum opening time (tons)	225 ns

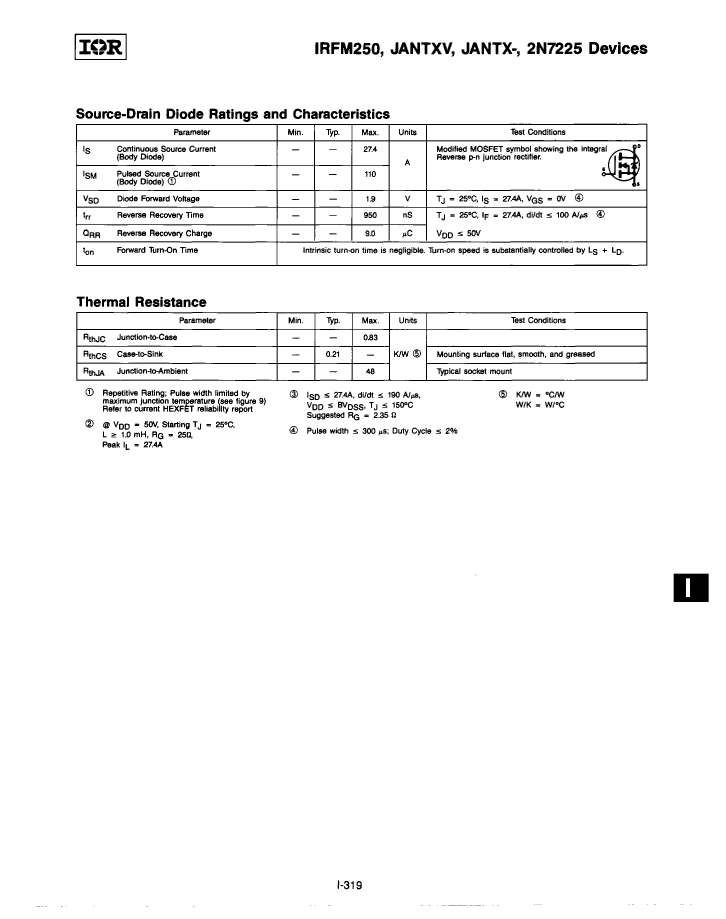

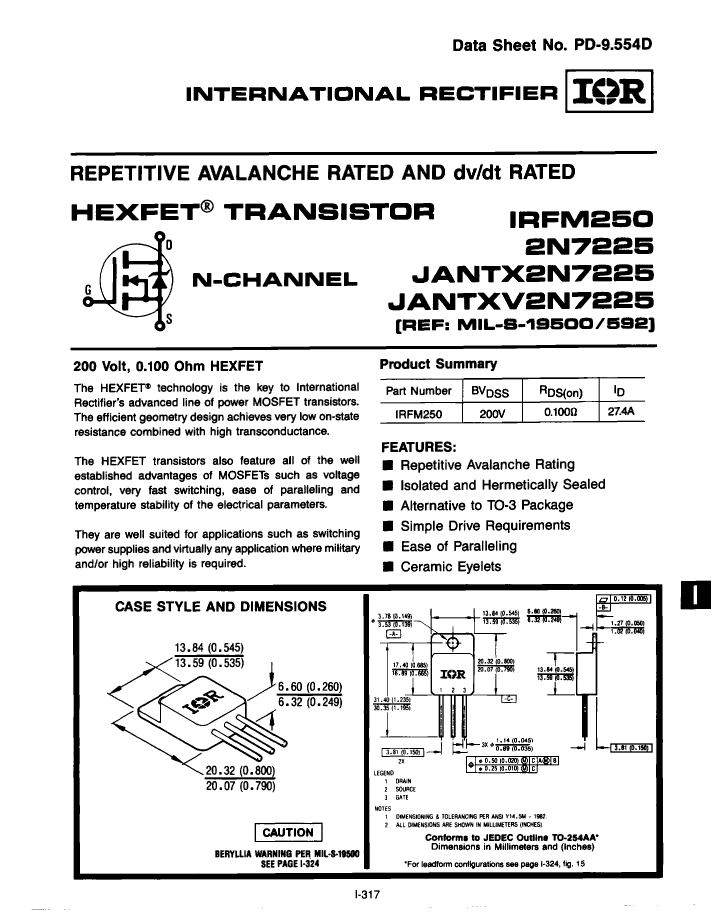

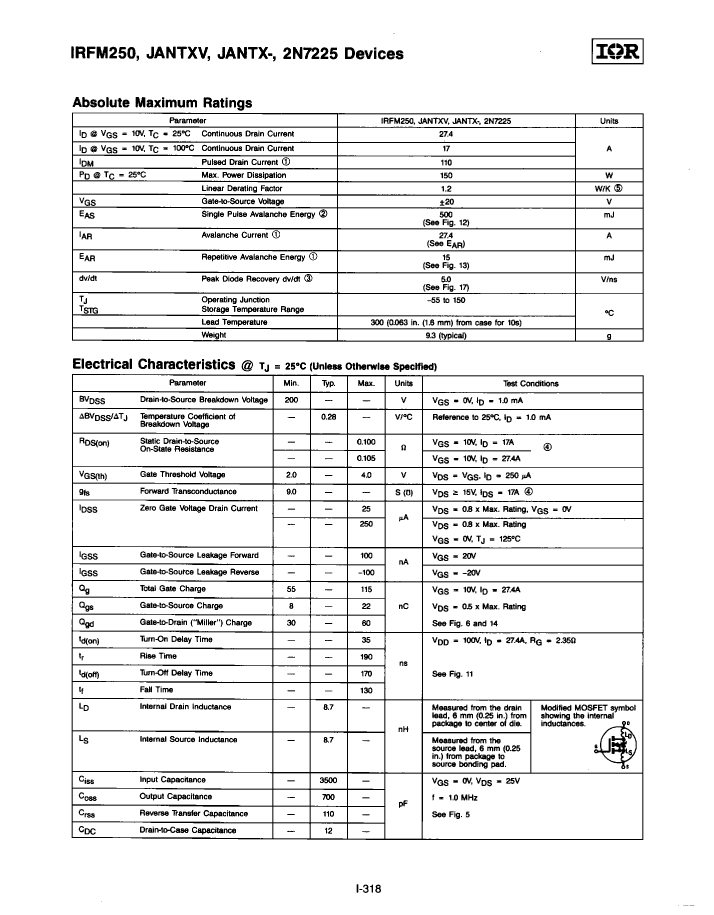

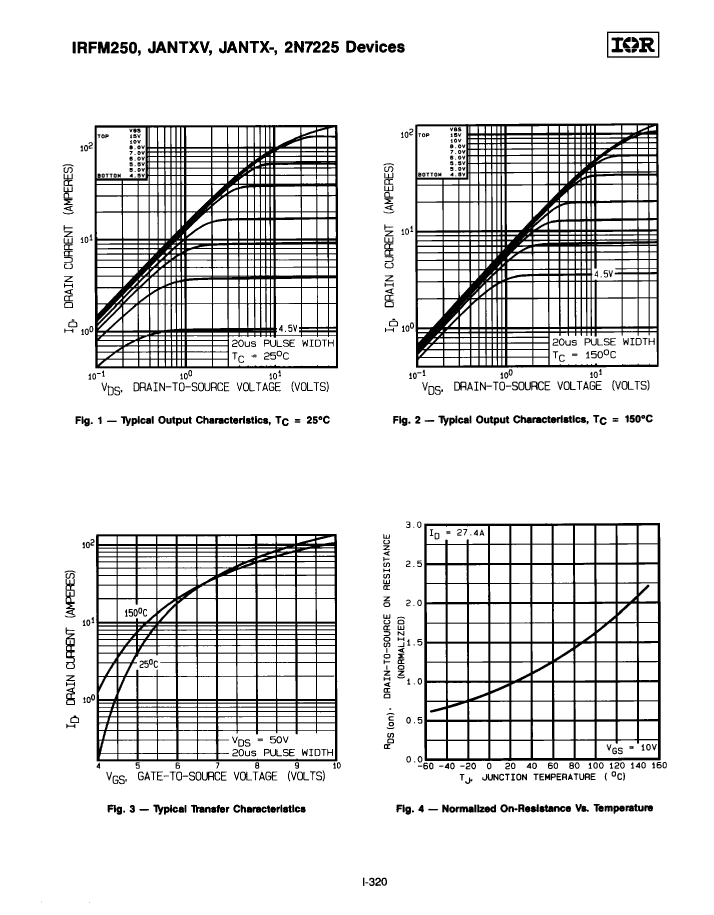

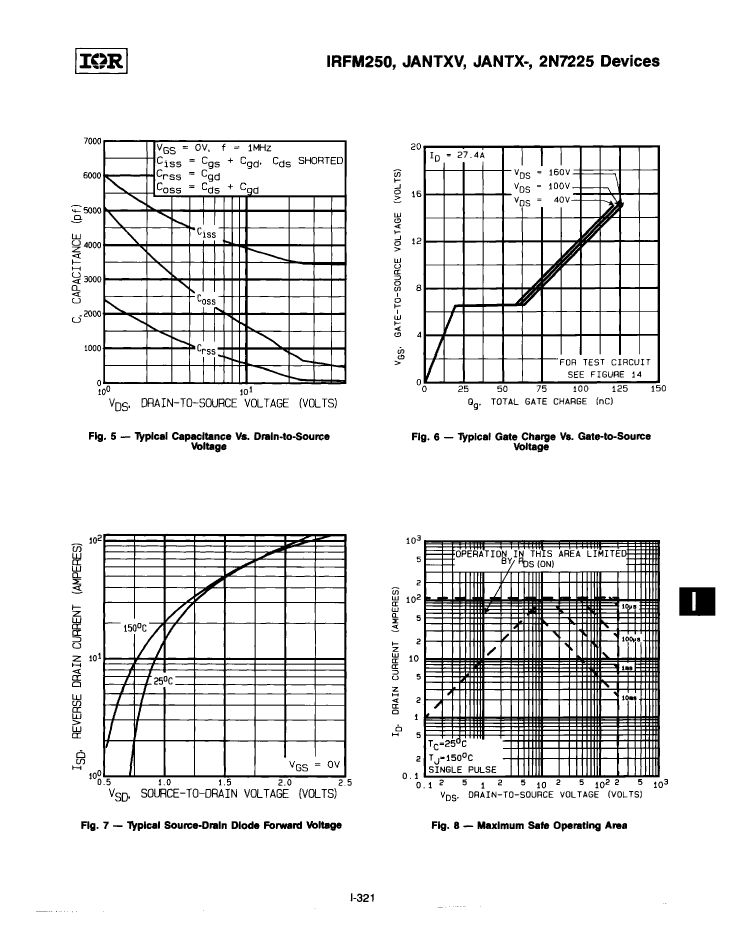

Preview

Download Datasheet

View All

2N7225DPBF Related Products

	2N7225DPBF	2N7225UPBF	2N7225U	JANTXV2N7225D	JANTX2N7225D	2N7225D
Description	Power Field-Effect Transistor, 27.4A I(D), 200V, 0.105ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA	Power Field-Effect Transistor, 27.4A I(D), 200V, 0.105ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA	Power Field-Effect Transistor, 27.4A I(D), 200V, 0.105ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA	Power Field-Effect Transistor, 27.4A I(D), 200V, 0.105ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA	Power Field-Effect Transistor, 27.4A I(D), 200V, 0.105ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA	Power Field-Effect Transistor, 27.4A I(D), 200V, 0.105ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA
Is it lead-free?	Lead free	Lead free	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	conform to	conform to	incompatible	incompatible	incompatible	incompatible
Maker	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
package instruction	FLANGE MOUNT, R-MSFM-P3	FLANGE MOUNT, R-MSFM-P3	FLANGE MOUNT, R-MSFM-P3	FLANGE MOUNT, R-MSFM-P3	FLANGE MOUNT, R-MSFM-P3	FLANGE MOUNT, R-MSFM-P3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Avalanche Energy Efficiency Rating (Eas)	500 mJ	500 mJ	500 mJ	500 mJ	500 mJ	500 mJ
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	200 V	200 V	200 V	200 V	200 V	200 V
Maximum drain current (ID)	27.4 A	27.4 A	27.4 A	27.4 A	27.4 A	27.4 A
Maximum drain-source on-resistance	0.105 Ω	0.105 Ω	0.105 Ω	0.105 Ω	0.105 Ω	0.105 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-254AA	TO-254AA	TO-254AA	TO-254AA	TO-254AA	TO-254AA
JESD-30 code	R-MSFM-P3	R-MSFM-P3	R-MSFM-P3	R-MSFM-P3	R-MSFM-P3	R-MSFM-P3
Number of components	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260	260	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL
Maximum power consumption environment	150 W	150 W	150 W	150 W	150 W	150 W
Maximum pulsed drain current (IDM)	110 A	110 A	110 A	110 A	110 A	110 A
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	40	40	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Maximum off time (toff)	300 ns	300 ns	300 ns	300 ns	300 ns	300 ns
Maximum opening time (tons)	225 ns	225 ns	225 ns	225 ns	225 ns	225 ns
JESD-609 code	-	-	e0	e0	e0	e0
Terminal surface	-	-	Tin/Lead (Sn/Pb)	TIN LEAD	TIN LEAD	TIN LEAD
