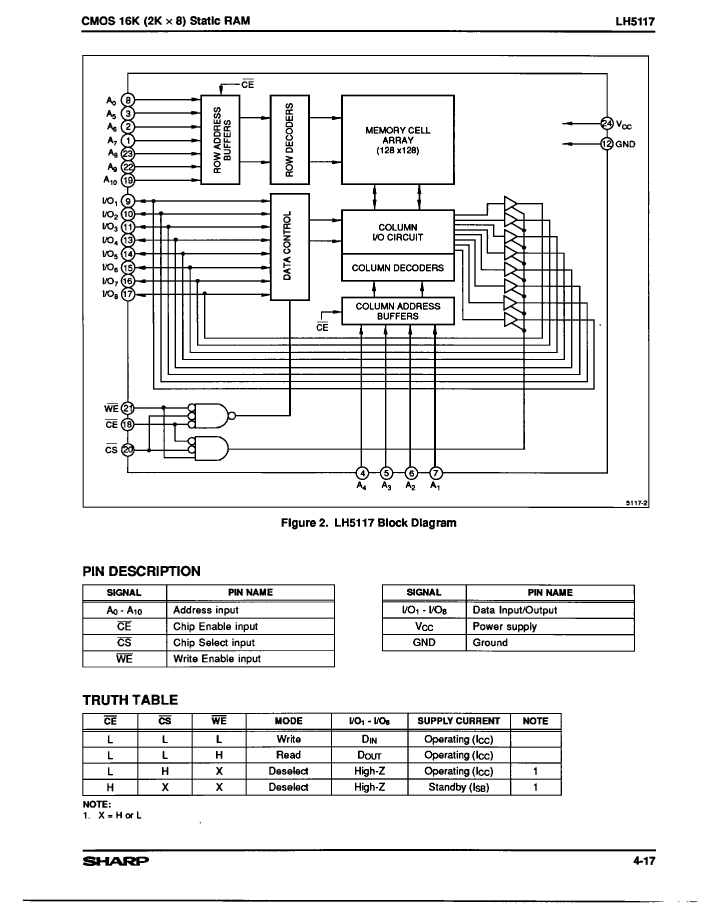

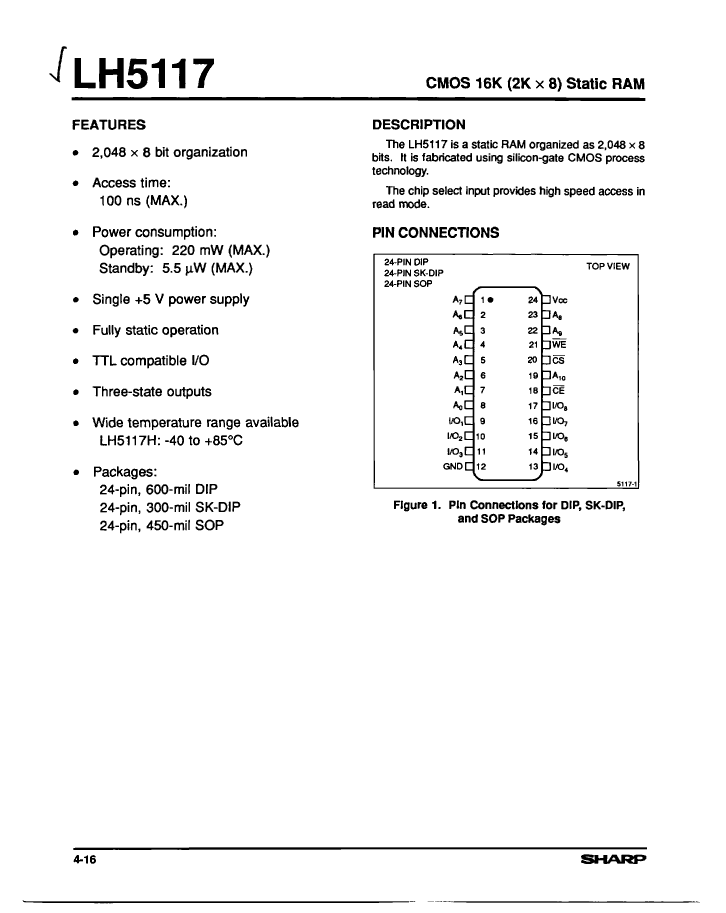

Standard SRAM, 2KX8, 100ns, CMOS, PDIP24, 0.600 INCH, PLASTIC, DIP-24

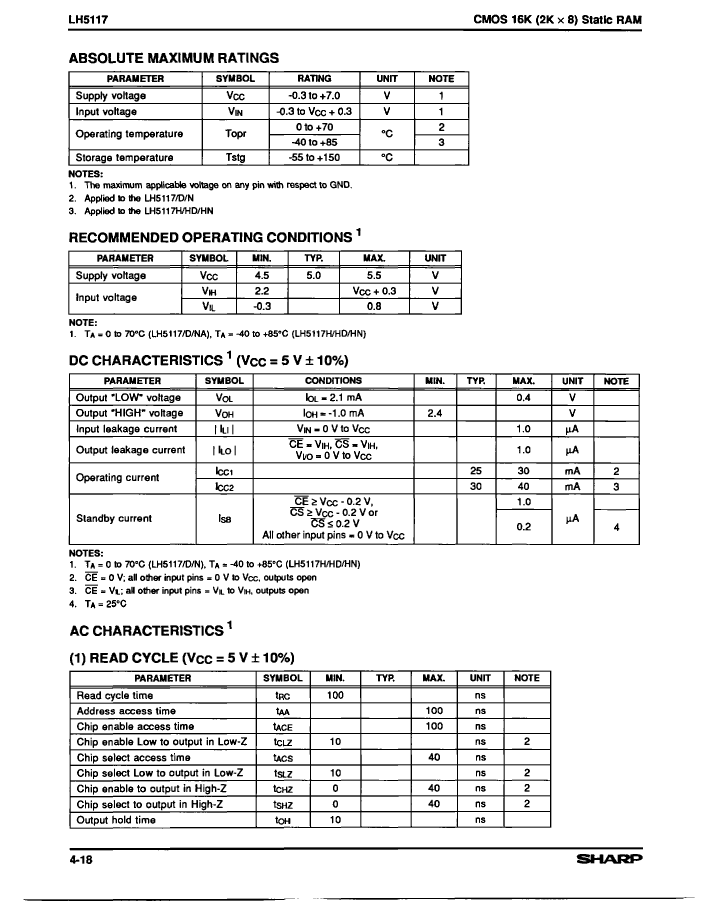

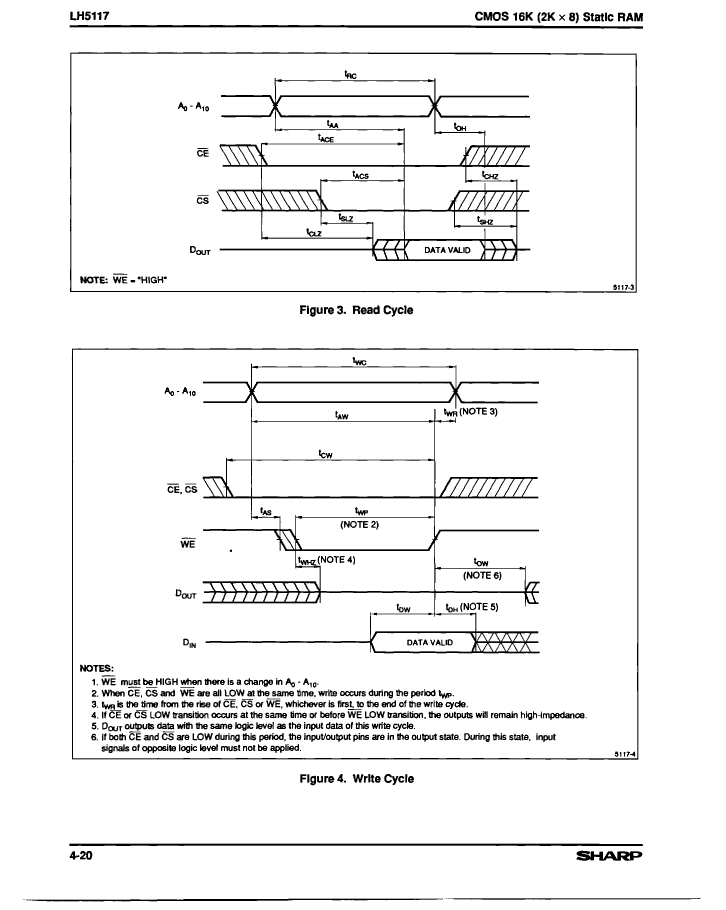

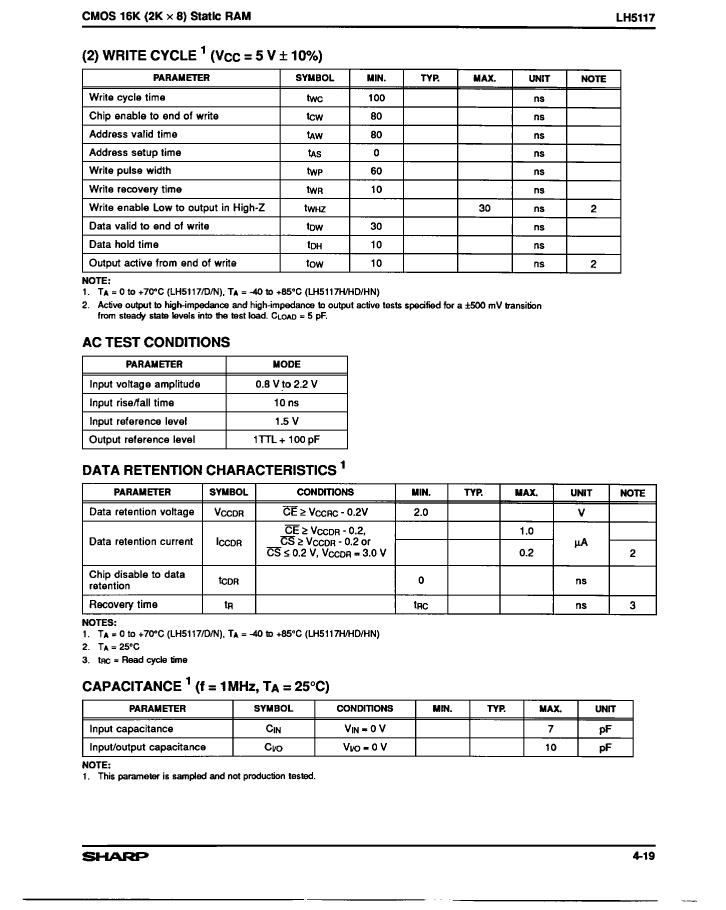

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | SHARP |
| package instruction | 0.600 INCH, PLASTIC, DIP-24 |
| Reach Compliance Code | unknown |
| Maximum access time | 100 ns |
| JESD-30 code | R-PDIP-T24 |
| JESD-609 code | e0 |
| length | 31 mm |
| memory density | 16384 bit |
| Memory IC Type | STANDARD SRAM |
| memory width | 8 |
| Number of functions | 1 |
| Number of ports | 1 |
| Number of terminals | 24 |
| word count | 2048 words |
| character code | 2000 |
| Operating mode | ASYNCHRONOUS |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| organize | 2KX8 |
| Output characteristics | 3-STATE |
| Exportable | NO |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Parallel/Serial | PARALLEL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum seat height | 5.3 mm |
| Minimum standby current | 2 V |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 15.24 mm |
| LH5117H-10 | LH5117HN-10 | LH5117-10 | LH5117D-10 | LH5117HD-10 | LH5117N-10 | |
|---|---|---|---|---|---|---|
| Description | Standard SRAM, 2KX8, 100ns, CMOS, PDIP24, 0.600 INCH, PLASTIC, DIP-24 | Standard SRAM, 2KX8, 100ns, CMOS, PDSO24, 0.450 INCH, PLASTIC, SOP-24 | Standard SRAM, 2KX8, 100ns, CMOS, PDIP24, 0.600 INCH, PLASTIC, DIP-24 | Standard SRAM, 2KX8, 100ns, CMOS, PDIP24, 0.300 INCH, SKINNY, PLASTIC, DIP-24 | Standard SRAM, 2KX8, 100ns, CMOS, PDIP24, 0.300 INCH, SKINNY, PLASTIC, DIP-24 | Standard SRAM, 2KX8, 100ns, CMOS, PDSO24, 0.450 INCH, PLASTIC, SOP-24 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | SHARP | SHARP | SHARP | SHARP | SHARP | SHARP |
| package instruction | 0.600 INCH, PLASTIC, DIP-24 | 0.450 INCH, PLASTIC, SOP-24 | 0.600 INCH, PLASTIC, DIP-24 | 0.300 INCH, SKINNY, PLASTIC, DIP-24 | 0.300 INCH, SKINNY, PLASTIC, DIP-24 | 0.450 INCH, PLASTIC, SOP-24 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| Maximum access time | 100 ns | 100 ns | 100 ns | 100 ns | 100 ns | 100 ns |
| JESD-30 code | R-PDIP-T24 | R-PDSO-G24 | R-PDIP-T24 | R-PDIP-T24 | R-PDIP-T24 | R-PDSO-G24 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| length | 31 mm | 15.4 mm | 31 mm | 29.6 mm | 29.6 mm | 15.4 mm |
| memory density | 16384 bit | 16384 bit | 16384 bit | 16384 bit | 16384 bit | 16384 bit |
| Memory IC Type | STANDARD SRAM | STANDARD SRAM | STANDARD SRAM | STANDARD SRAM | STANDARD SRAM | STANDARD SRAM |
| memory width | 8 | 8 | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of ports | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 24 | 24 | 24 | 24 | 24 | 24 |
| word count | 2048 words | 2048 words | 2048 words | 2048 words | 2048 words | 2048 words |
| character code | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Operating mode | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS |
| Maximum operating temperature | 85 °C | 85 °C | 70 °C | 70 °C | 85 °C | 70 °C |
| organize | 2KX8 | 2KX8 | 2KX8 | 2KX8 | 2KX8 | 2KX8 |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Exportable | NO | NO | NO | NO | NO | NO |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | SOP | DIP | DIP | DIP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | SMALL OUTLINE | IN-LINE | IN-LINE | IN-LINE | SMALL OUTLINE |
| Parallel/Serial | PARALLEL | PARALLEL | PARALLEL | PARALLEL | PARALLEL | PARALLEL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 5.3 mm | 2.6 mm | 5.3 mm | 4.4 mm | 4.4 mm | 2.6 mm |
| Minimum standby current | 2 V | 2 V | 2 V | 2 V | 2 V | 2 V |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | YES | NO | NO | NO | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | COMMERCIAL | COMMERCIAL | INDUSTRIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | GULL WING | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | GULL WING |
| Terminal pitch | 2.54 mm | 1.27 mm | 2.54 mm | 2.54 mm | 2.54 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 15.24 mm | 8.6 mm | 15.24 mm | 7.62 mm | 7.62 mm | 8.6 mm |
