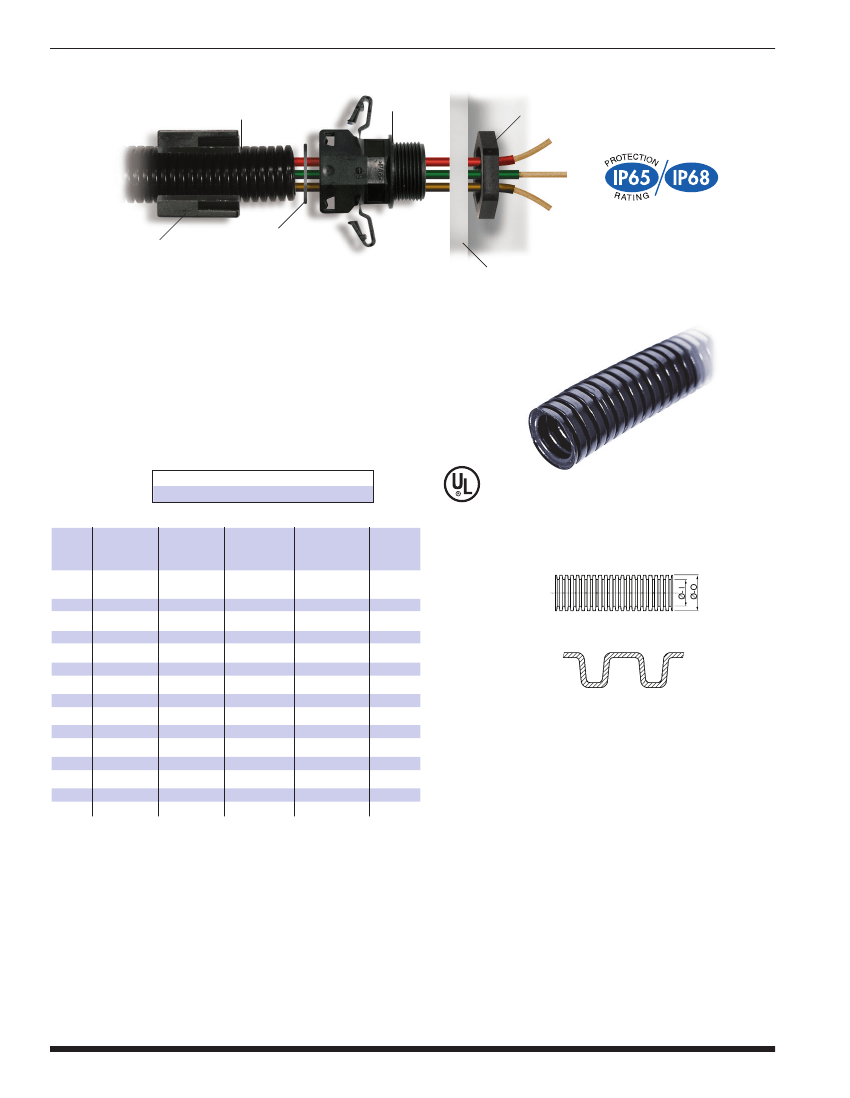

POLYFLEX
®
/
PA 6 normal profile conduit
Conduit
Connector*
Locknut*
O-Ring*
Clamping Clip*
Enclosure*
without
sealing
with
O-Ring
Material:
• Polyamide 6
Upper temperature range:
• Short-term: 150°C, (302°F)
Characteristics:
• Parallel corrugated
• Gray available
Technical properties:
• Flame retardant according
to FMVSS302 and UL94
• Halogen free
• Durable
• UV resistant according to
DIN EN ISO 8580
Applications:
Engine compartment, car body
and interior, machines,
instruments, devices, ship and
train building, switch cabinet and
movable machine parts.
Temperature Range PA 6
-40 to 120°C (-40 to 248°F)
E81472
Other materials and styles
available, please consult Altech.
Std.
Pk.
Meters
50
50
50
50
50
50
50
50
50
50
50
25
25
25
25
NW
Ø-I
mm
Ø-O
mm
10.0
11.7
13.0
15.7
15.8
18.5
18.9
21.2
24.3
25.4
28.3
31.2
34.5
42.4
54.0
Bending
Radius
mm
13
15
20
30
35
40
45
45
50
50
55
60
65
90
100
Cat. No.
Black
7.5
8.5
10
12
13
14
16
17
19
22
23
26
29
37
50
6.7
8.4
9.9
12.2
12.7
14.2
15.0
16.6
19.3
21.3
23.2
25.8
29.0
36.0
47.7
1200070
1200089
1200100
1200127
1200135
1200143
1200160
1200178
1200194
1200224
1200232
1200267
1200291
1200372
1200500
Fitting conduit glands and accessories:
see pages 37-39.
*
Locknuts sold separately, seep page 23.
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
36

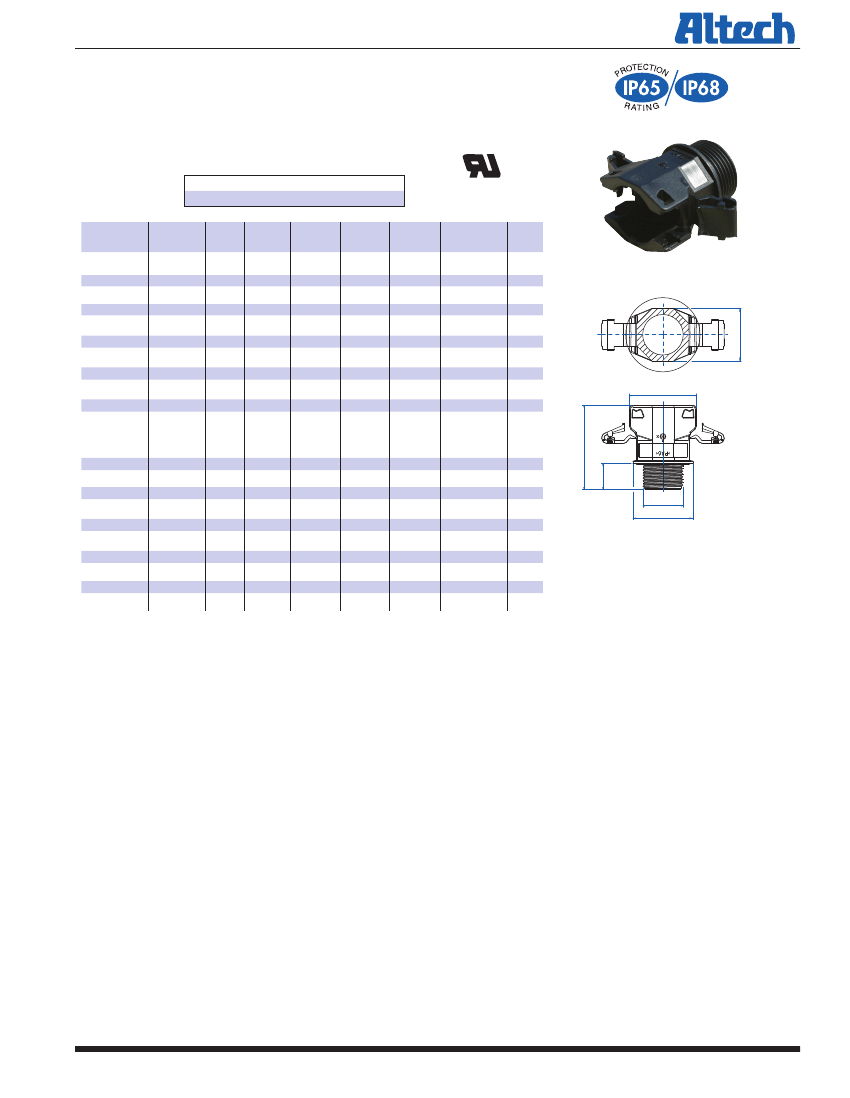

Conduit Gland SEM-FAST Straight /
Quick-Mounting System for Polyflex PA 6 Conduit
Material:
• Polyamide 66
Technical properties:
• Easy and tight single hand mounting
• Insert tube in the “closed” gland
• Special click- in system
• Conical sealing on the corrugated tube
• Gray available
• Thread side sealed by integral
sealing ridges
• Conduit can be rotated within
the mounting gland
• Halogen free
Applications:
• All fields using conduit
Mounting instructions:
Insert the conduit with a short twist all the way
into the end of the SEM conduit gland.
Pull the tube back slightly to latch it securely.
*
Temperature Range PA 6
-40 to 120°C (-40 to 248°F)
Thread
PG
PG
PG
PG
PG
PG
PG
PG
PG
PG
PG
Fits for
NW
D
mm
SW
mm
A
mm
B
mm
C
mm
Pending
Cat. No.
Black
Std.
Pk.
7
7
9
11
16
21
21
29
36
48
7.5
8.5
10
12 + 13
17
22
23
29
37
50
11.0
11.0
12.0
12.0
13.0
13.0
13.0
15.0
17.0
19.0
14.0
16.0
17.0
20.0
27.0
32.0
34.0
41.0
50.0
64.0
19.0
20.6
21.6
25.5
34.5
40.5
42.5
49.5
59.0
72.0
18.0
20.0
22.0
25.0
31.0
36.0
38.0
46.0
55.0
72.0
34.0
35.0
36.0
38.0
43.0
48.0
48.0
52.0
62.0
68.0
3805028
3805012
3805004
3805009
3805006
3805023
3805014
3805016
3805018
3805021
50
50
50
50
50
25
25
20
10
5
C
SW
SW
Metric
M 12 x
M 12 x
M 16 x
M 20 x
M 20 x
M 25 x
M 25 x
M 32 x
M 40 x
M 63 x
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
7.5
8.5
10
12 + 13
17
22
23
29
37
50
11.0
11.0
12.0
12.0
13.0
13.0
13.0
15.0
17.0
19.0
14.0
16.0
17.0
20.0
27.0
32.0
34.0
41.0
50.0
64.0
19.0
20.6
21.6
25.5
34.5
40.5
42.5
49.5
59.0
72.0
18.0
20.0
22.0
25.0
31.0
36.0
38.0
46.0
55.0
72.0
34.0
35.0
36.0
38.0
43.0
48.0
48.0
52.0
62.0
68.0
3805047
3805011
3805001
3805008
3805002
3805022
3805013
3805015
3805017
3805020
50
50
50
50
50
25
25
20
10
5
D
Thread
ØB
*With O-ring, see page 39. Locknuts sold separately, seep page 23.
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
37

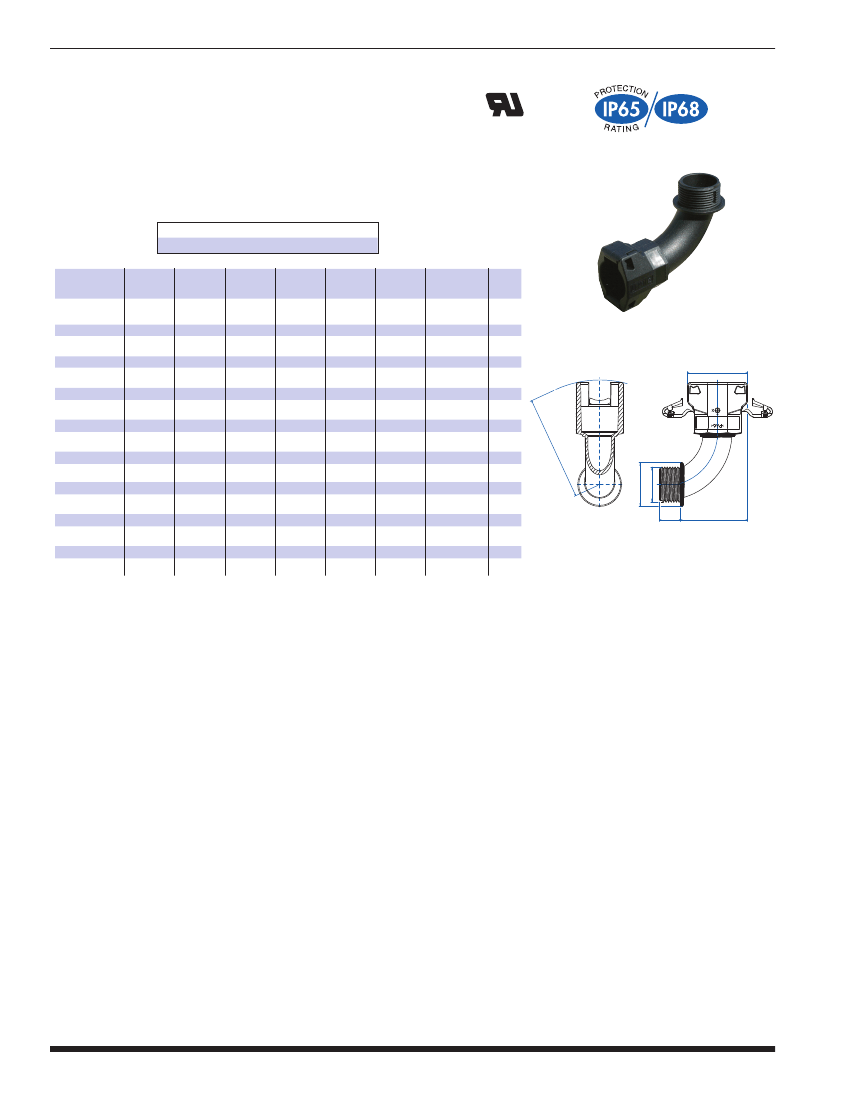

Conduit Gland SEM-FAST angled 90° /
Quick-Mounting System for Polyflex PA 6 Conduit
Material:
• Polyamide 66
Technical properties:
• Easy and tight single hand mounting
• Insert tube in “closed” gland
• Special click- in system
• Conical sealing on the corrugated tube
• Thread side sealed by integral sealing ridges
• Gray available
• Conduit can be rotated
within the mounting gland
• Halogen free
Applications:
All fields using conduit
Mounting instructions:
Insert the conduit with a short twist all the way into the
end of the SEM conduit gland.
Pull the tube back slightly to latch it securely.
*
Pending
Temperature Range PA 6
-40 to 120°C (-40 to 248°F)
Thread
Fits
NW
D
mm
L
mm
A
mm
B
mm
C
mm
Cat. No.
Black
Std.
Pk.
PG
PG
PG
PG
PG
PG
PG
PG
9
11
16
21
29
36
48
10
12 + 13
17
23
29
37
50
12.0
12.0
13.0
13.0
15.0
17.0
19.0
29.0
34.0
44.5
51.5
63.5
74.5
99.8
21.6
25.5
34.5
42.5
49.5
59.0
72.0
20.0
25.0
31.0
38.0
48.0
56.0
72.0
50.0
54.6
65.8
74.1
86.8
104.8
129.0
3805201
3805207
3805213
3805219
3805225
3805231
3805237
50
50
25
20
10
10
5
C
A
Metric
M 16 x
M 20 x
M 20 x
M 25 x
M 32 x
M 40 x
M 63 x
1.5
1.5
1.5
1.5
1.5
1.5
1.5
10
12 + 13
17
23
29
37
50
12.0
12.0
12.0
13.0
13.0
15.0
19.0
29.0
34.0
38.5
48.5
54.5
68.5
99.8
21.6
25.5
34.5
42.5
49.5
59.0
72.0
20.0
25.0
25.0
31.0
38.0
48.0
72.0
50.0
54.6
59.7
71.3
77.2
95.6
129.0
3805200
3805206
3805211
3805217
3805223
3805229
3805236
50
50
25
20
10
10
5
ØB
Thread
D
L
*With O-ring, see page 39. Locknuts sold separately, seep page 23.
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
38

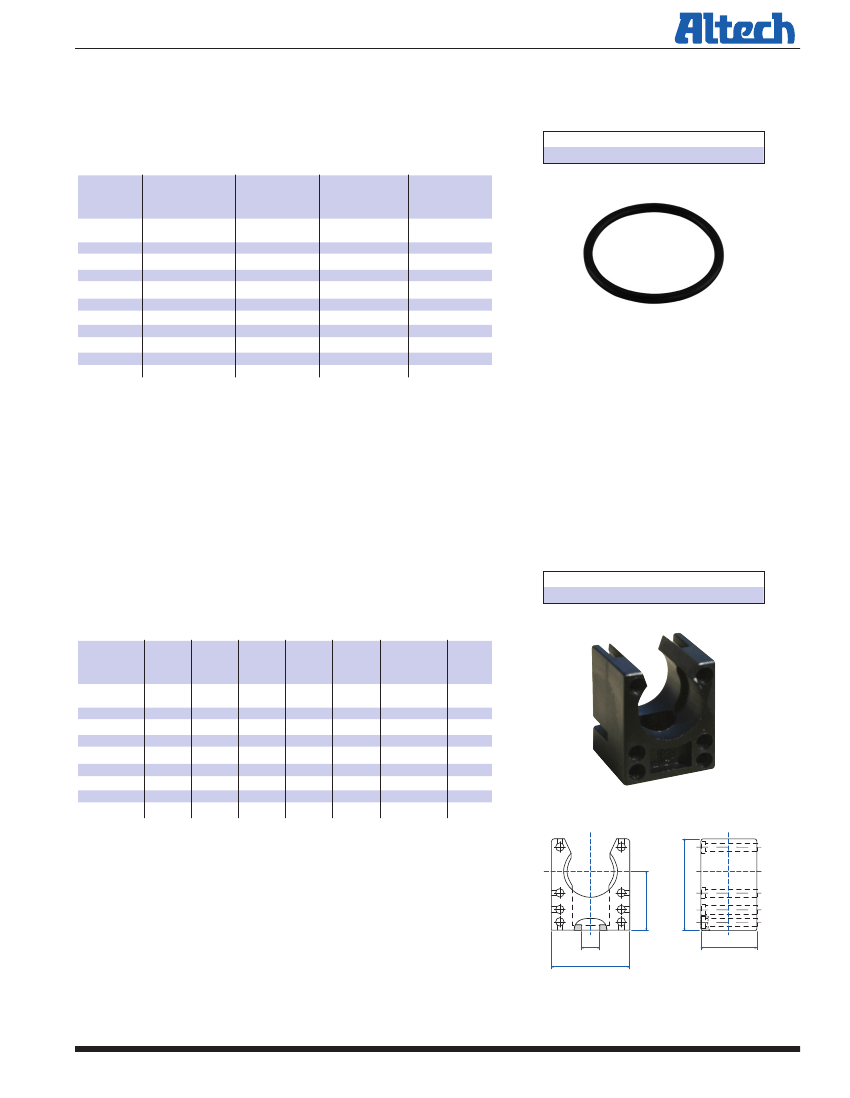

O-Ring for Corrugated Tubes and Clamping Clips
Material:
• NBR 70
Characteristics:
• Shore: 70 ± 5
Features:
The O-ring must be mounted into
the first groove of the conduit
The conduit, with its pre-mounted
sealing ring, must be inserted into
the SEM gland and simply twisted
into the end.
Temperature Range
-30 to 120°C (-22 to 248°F)
Cat. No.
Std. Pk.
Fits for
NW
Internal
Diameter
mm
5.0
7.0
7.0
9.0
8.0
14.0
14.0
18.0
20.0
24.0
28.0
Thickness
mm
7.5
8.5
10
12
13
17
22
23
29
37
50*
1.5
1.2
1.5
1.5
1.6
1.8
2.0
2.0
2.5
2.5
2.5
8112800
8112801
8112802
8112804
8112803
8112807
8112808
8112809
8112810
8112811
8112813
50
50
50
50
50
50
25
25
20
10
5
* NW50 parts require 2 o-rings (one in first and one in secon groove of corrugated tube).
Clamping clip for conduit tubes
Material:
• Polyamide
Color:
• Black
Technical Properties:
• Stackable
• Quick mounting of conduits
• Center rib for traction relief
Temperature Range
-40 to 105°C (-40 to 221°F)
Suitable for
NW
B
mm
H
mm
h
mm
L
mm
d
mm
Cat. No.
Std.
Pk.
7.5
10
12 + 13
14 + 16
17
23
29
37
50
20.0
20.0
22.0
28.0
28.0
35.0
43.0
54.0
68.0
18.0
23.0
26.0
33.0
33.0
40.0
45.0
53.0
66.0
12.0
15.5
17.1
21.1
21.4
24.8
26.8
30.8
37.8
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
20.0
4.2
5.5
5.5
6.5
6.5
6.5
6.5
6.5
6.5
8221050
8221051
8221052
8221053
8221054
8221055
8221056
8221057
8221058
100
100
50
50
50
50
50
20
20
ød
B
h
H
L
Altech Corp.® • 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com
39
