SMAJ5.0(C)A - SMAJ170(C)A
400W SURFACE MOUNT TRANSIENT VOLTAGE
SUPPRESSOR
Features
·
·
·
·
·
·
·
400W Peak Pulse Power Dissipation
5.0V - 170V Standoff Voltages
Glass Passivated Die Construction
Uni- and Bi-Directional Versions Available
Excellent Clamping Capability
Fast Response Time
Plastic Material: UL Flammability
Classification Rating 94V-0
B
Dim
SMA
Min
2.29
4.00
1.27
0.15
4.80
0.10
0.76
2.01
Max
2.92
4.60
1.63
0.31
5.59
0.20
1.52
2.62
A
C
A
B
C
D
E
G
H
J
Mechanical Data
·
·
·
·
·
·
·
Case: SMA, Transfer Molded Epoxy
Terminals: Solderable per MIL-STD-202,
Method 208
Also Available in Lead Free Plating (Matte Tin
Finish). Please see Ordering Information,
Note 5, on Page 4
Polarity Indicator: Cathode Band
(Note: Bi-directional devices have no polarity
indicator.)
Marking: Date Code and Marking Code
See Page 3
Weight: 0.064 grams (approx.)
Ordering Info: See Page 3
@ T
A
= 25°C unless otherwise specified
Symbol
P
PK
I
FSM
PM
(AV)
@ I
PP
= 35A
V
F
T
j
T
STG
Value
400
40
1.0
3.5
-55 to +150
-55 to +175
D
J
H
G
E
All Dimensions in mm
Maximum Ratings
Characteristic
Peak Pulse Power Dissipation
(Non repetitive current pulse derated above T
A
= 25°C) (Note 1)
Peak Forward Surge Current, 8.3ms Single Half Sine Wave
Superimposed on Rated Load (JEDEC Method) (Notes 1, 2, & 3)
Steady State Power Dissipation @ T
L
= 75°C
Instantaneous Forward Voltage
(Notes 1, 2, & 3)
Operating Temperature Range
Storage Temperature Range
Notes:
Unit
W
A
W
V
°C
°C
1. Valid provided that terminals are kept at ambient temperature.
2. Measured with 8.3ms single half sine-wave. Duty cycle = 4 pulses per minute maximum.
3. Unidirectional units only.
DS19005 Rev. 10 - 2
1 of 4
www.diodes.com
SMAJ5.0(C)A - SMAJ170(C)A
ã
Diodes Incorporated
100
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT
10000
T
j
= 25°C
75
C
T
, JUNCTION CAPACITANCE (pF)
Unidirectional
1000
50
Bidirectional
100
25
10 X 1000 Waveform
as defined by REA
0
0
25
50
75
100 125 150 175 200
T
A
, AMBIENT TEMPERATURE (°C)

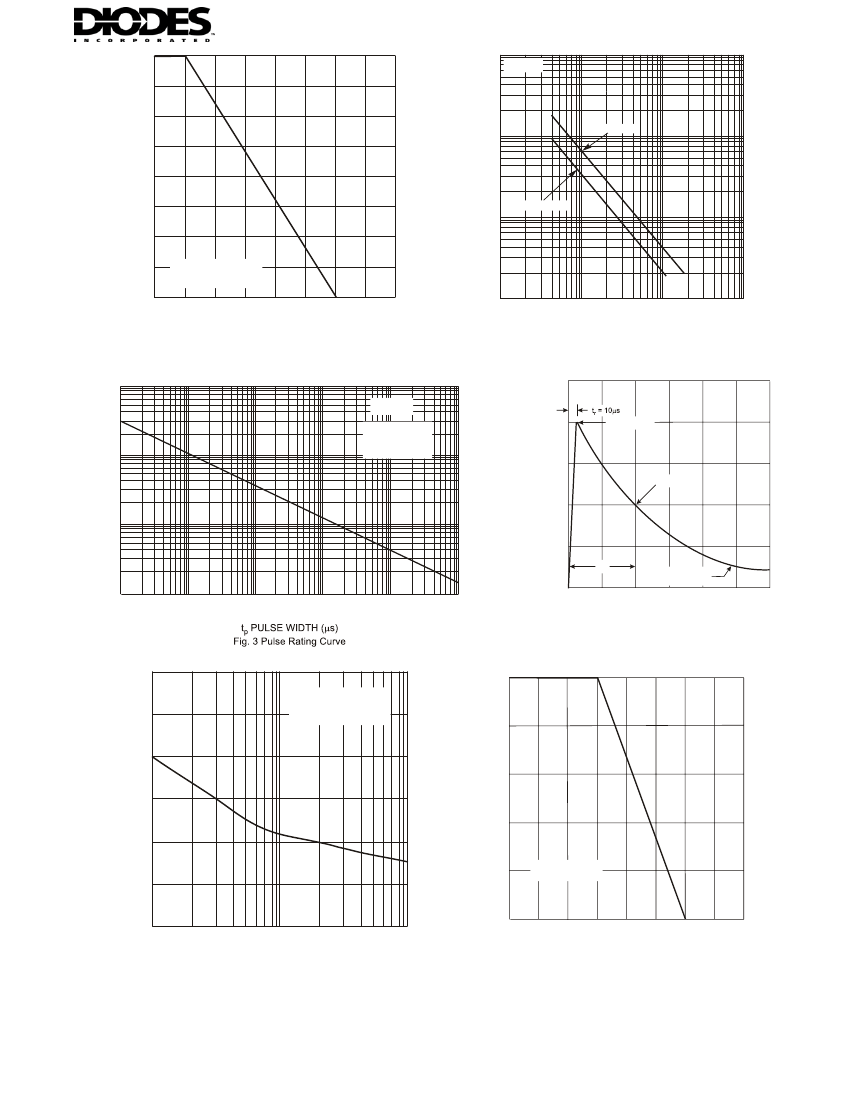

Fig. 1 Pulse Derating Curve
100
10
1
10
100
1000
V
WM
, STANDOFF VOLTAGE (V)
Fig. 2 Typical Total Capacitance
I
P
, PEAK PULSE CURRENT (%I
pp
)
P
d
, PEAK PULSE POWER (kW)
T
j
= 25°C
Non Repetitive
Pulse Waveform
Shown in Fig. 4
100
Peak Value I
pp
10
Half Value I
pp
/2
50
1.0
t
p
0.1
0.1
1.0
10
100
1000
10000
0
10 X 1000 Waveform
as defined by R.E.A.
0
1
2
3
t, TIME (ms)
Fig. 4 Pulse Waveform
PM
(AV),
STEADY STATE POWER DISSIPATION (W)
60
PEAK FORWARD SURGE CURRENT, (A)
Pulse Width 8.3ms
Single Half-Sine-Wave
(JEDEC METHOD)
1.0
50
0.8
40
0.6
30
0.4
20
0.2
60Hz Resistive or
Inductive Load
10
0
1
2
5
10
20
50
100
NUMBER OF CYCLES AT 60Hz
Fig. 5 Maximum Non-Repetitive Surge Current
0.0
0
25
50
75
100
125
150
175
200
T
L
, LEAD TEMPERATURE (°C)
Fig. 6 Steady State Power Derating Curve
DS19005 Rev. 10 - 2
3 of 4
www.diodes.com
SMAJ5.0(C)A - SMAJ170(C)A
Ordering Information
Device
SMAJXXX(C)A-13
Notes:
(Note 4)
Packaging
SMA
Shipping
5000/Tape & Reel
4. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
5. For Lead Free version (with Lead Free terminal finish) part number, please add "-F" suffix to part number above.
Example: SMAJ170A-13-F.
Marking Information
YWW
XX
XX = Product type marking code (See Page 2)
= Manufacturers’ code marking
YWW = Date code marking
Y = Last digit of year ex: 2 for 2002
WW = Week code 01 to 52
DS19005 Rev. 10 - 2
4 of 4
www.diodes.com
SMAJ5.0(C)A - SMAJ170(C)A
