LL5261A datasheet, PDF - EEWORLD Datasheet

LL5261A: DescriptionZener Diode, 47V V(Z), 10%, 0.5W, Silicon, Unidirectional, DO-213AA,; CategoryDiscrete semiconductor diode; File Size140KB，2 Pages; ManufacturerBkc Semiconductors Inc.

Download Datasheet Parametric View All

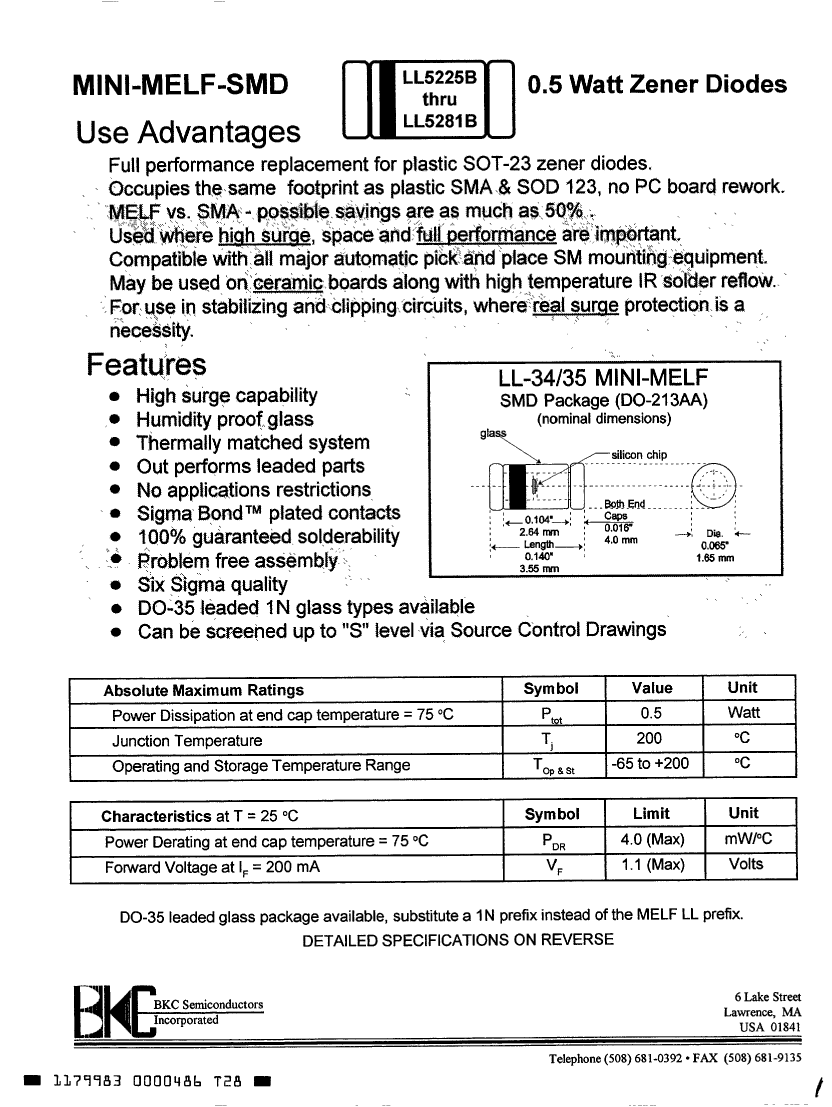

LL5261A Overview

Zener Diode, 47V V(Z), 10%, 0.5W, Silicon, Unidirectional, DO-213AA,

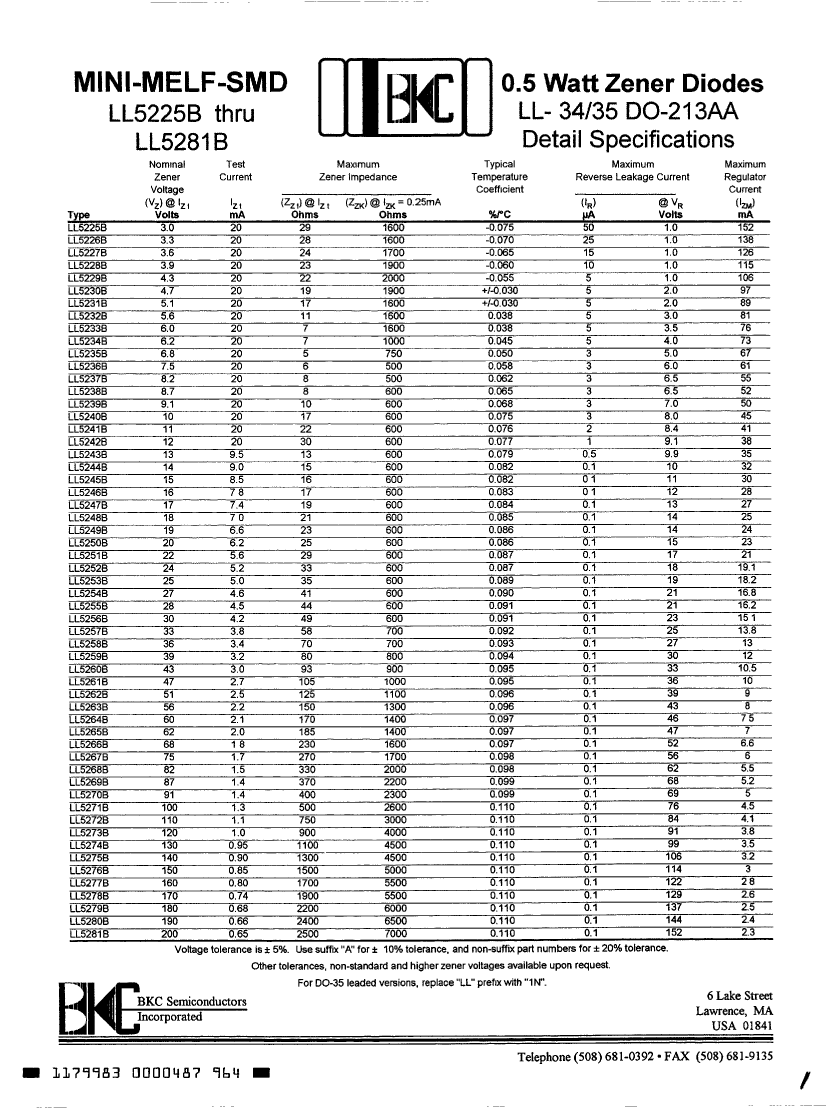

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Bkc Semiconductors Inc.
package instruction	O-LELF-R2
Reach Compliance Code	unknown
Other features	HIGH SURGE CAPABILITY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	105 Ω
JEDEC-95 code	DO-213AA
JESD-30 code	O-LELF-R2
JESD-609 code	e0
Maximum knee impedance	1000 Ω
Number of components	1
Number of terminals	2
Maximum operating temperature	200 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.5 W
Certification status	Not Qualified
Nominal reference voltage	47 V
Maximum reverse current	0.1 µA
surface mount	YES
technology	ZENER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WRAP AROUND
Terminal location	END
Voltage temperatureCoeff-Max	44.65 mV/°C
Maximum voltage tolerance	10%
Working test current	2.7 mA
