MBR2090CT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> MBR2090CT

MBR2090CT: Description10 A, 90 V, SILICON, RECTIFIER DIODE, TO-220AB; CategoryDiscrete semiconductor diode; File Size448KB，2 Pages; ManufacturerDigitron; Websitehttp://www.digitroncorp.com

Download Datasheet Parametric Compare View All

MBR2090CT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MBR2090CT	-	-	View	Buy Now

MBR2090CT Overview

10 A, 90 V, SILICON, RECTIFIER DIODE, TO-220AB

MBR2090CT Parametric

Parameter Name	Attribute value
Maker	Digitron
Reach Compliance Code	unknow
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.95 V
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	150 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	90 V
Maximum reverse current	150 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

Preview

Download Datasheet

View All

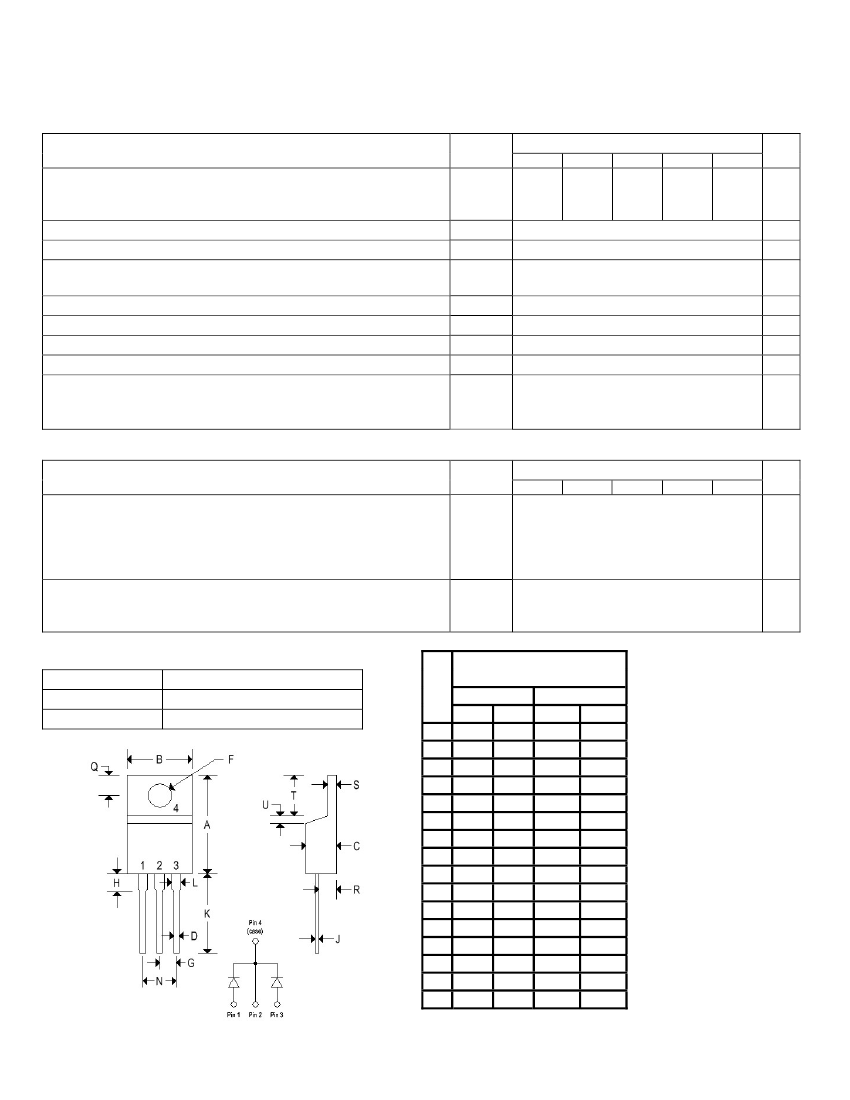

DIGITRON SEMICONDUCTORS

MBR2060CT-MBR20100CT

MAXIMUM RATINGS

Rating

Peak repetitive reverse voltage

Working peak reverse voltage

DC blocking voltage

Average rectified forward current

(Rated V

)

Peak repetitive forward current

(Rated V

square wave, 20kHz)

Non-repetitive peak surge current

(surge applied at rated load conditions, halfwave, single phase, 60Hz)

Peak repetitive reverse surge current

(2.0µs, 1.0kHz)

Operating junction temperature range

Storage temperature range

Voltage rate of change

(Rated V

)

Maximum thermal resistance

Junction to case

Junction to ambient

Symbol

RRM

RWM

F(AV)

FRM

FSM

RRM

stg

dv/dt

ӨJC

MBR

2060CT

2070CT

2080CT

2090CT

20100CT

20A SCHOTTKY RECTIFIERS

Unit

100

°C

V/µs

10 @ T

= 133°C

20 @ T

= 133°C

150

0.5

-65 to +150

-65 to +175

1000

2.0

°C/W

ELECTRICAL CHARACTERISTICS

= 25°C unless otherwise noted)

Parameter

Maximum instantaneous forward voltage

= 10A, T

= 125°C)

= 10A, T

= 25°C)

= 20A, T

= 125°C)

= 20A, T

= 25°C)

Maximum instantaneous reverse current

(Rated dc voltage, T

= 125°C)

(Rated dc voltage, T

= 25°C)

Note 1: Pulse test: Pulse width = 300ms, duty cycle

≤

2%.

(1)

Symbol

MBR

2060CT

2070CT

2080CT

2090CT

20100CT

Unit

0.75

0.85

0.95

150

0.15

(1)

MECHANICAL CHARACTERISTICS

Case

Marking

Polarity

TO-220AB

Alpha-numeric

Cathode band

TO-220AB

Inches

Min

Max

0.570 0.620

0.380 0.405

0.160 0.190

0.025 0.035

0.142 0.147

0.095 0.105

0.110 0.155

0.018 0.025

0.500 0.562

0.045 0.060

0.190 0.210

0.100 0.120

0.080 0.110

0.045 0.055

0.235 0.255

0.050

Millimeters

Min

Max

14.480 15.750

9.660 10.280

4.070

4.820

0.640

0.880

3.610

3.730

2.420

2.660

2.800

3.930

0.460

0.640

12.700 14.270

1.150

1.520

4.830

5.330

2.540

3.040

2.040

2.790

1.150

1.390

5.970

6.470

1.270

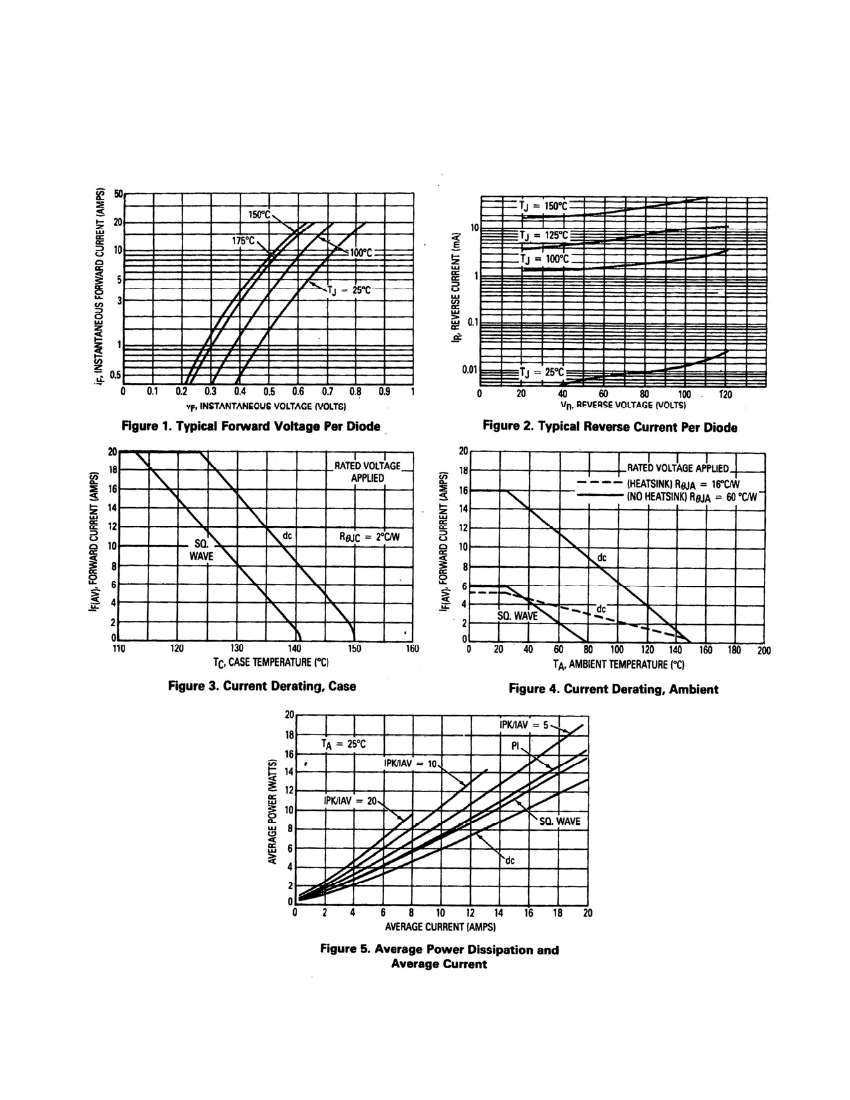

sales@digitroncorp.com

www.digitroncorp.com

Rev. 20121204

phone +1.908.245-7200

fax +1.908.245-0555

144 Market Street

Kenilworth NJ 07033 USA
