XO34DTEH6050M

Description
HCMOS/TTL Output Clock Oscillator, 50MHz Nom, ROHS COMPLIANT, METAL PACKAGE-14/4
CategoryPassive components    oscillator
File Size183KB,3 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

XO34DTEH6050M Overview

HCMOS/TTL Output Clock Oscillator, 50MHz Nom, ROHS COMPLIANT, METAL PACKAGE-14/4

XO34DTEH6050M Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerVishay
Reach Compliance Codeunknown
Other featuresTRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time8 ns
Frequency Adjustment - MechanicalNO
frequency stability50%
JESD-609 codee2
Manufacturer's serial numberXO34
Installation featuresTHROUGH HOLE MOUNT
Nominal operating frequency50 MHz
Maximum operating temperature70 °C
Minimum operating temperature
Oscillator typeHCMOS/TTL
Output load5 TTL, 30 pF
physical size20.4mm x 12.9mm x 5.08mm
longest rise time8 ns
Maximum supply voltage3.465 V
Minimum supply voltage3.135 V
Nominal supply voltage3.3 V
surface mountNO
maximum symmetry45/55 %
Terminal surfaceTin/Copper (Sn/Cu)

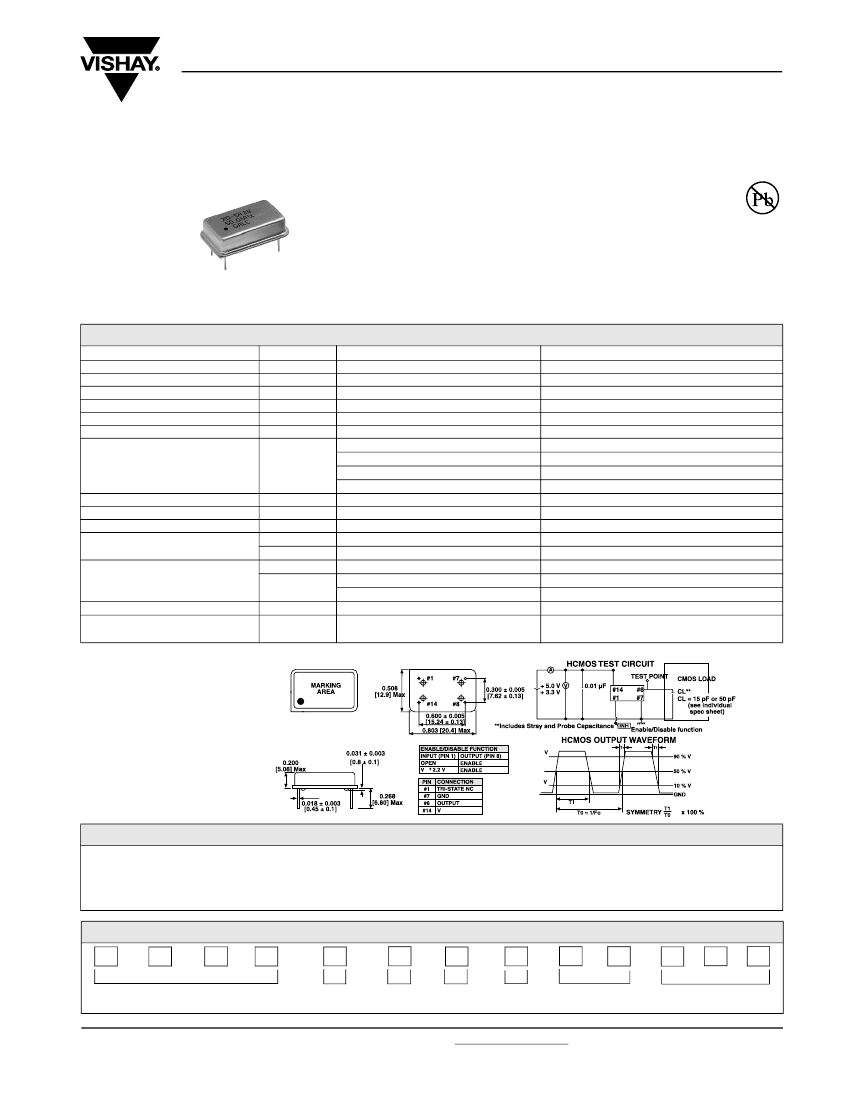

XO-543
Vishay Dale
Full Size Clock Oscillators TTL/HCMOS Compatible
FEATURES
14 pin full size
Industry standard
Wide frequency range
Low cost
Tri-State enable/disable
Resistance weld package
3.3 V
Lead (Pb)-free terminations and RoHS compliant
RoHS
COMPLIANT
The XO-543 series is with 3.3 V power supply. The metal
package with pin #7 case ground acts as shielding to
minimize EMI radiation.
STANDARD ELECTRICAL SPECIFICATIONS
XO-543
1 MHz ~ 100.00 MHz
All Condition*
± 25 ppm, ± 50 ppm, ± 100 ppm
T
OPR
0 °C ~ 70 °C (- 40 °C ~ + 85 °C option)
T
STG
- 55 °C ~ + 125 °C
V
DD
3.3 V ± 10 %
25 °C ± 3 °C
± 5 ppm
1 MHz to 23.999 MHz
15 mA Max
24.000 MHz to 49.999 MHz
20 mA Max
Supply Current
I
DD
50.000 MHz to 69.999 MHz
30 mA Max
70.000 MHz to 100.000 MHz
45 mA Max
Output Symmetry
Sym
1/2 V
DD
40/60 % (45/55 % option)
T
r
10 % V
DD
~ 90 % V
DD
Rise Time
8 ns Max
T
f
90 % V
DD
~ 10 % V
DD
Fall Time
8 ns Max
V
OH
90 % V
DD
Min
Output Voltage
V
OL
10 % V
DD
Max
TTL Load
1 ~ 5 TTL
Output Load
~ 50 M : 30 pF
HCMOS load
~ 125 M : 15 pF
Start-up Time
Ts
10 ms Max
Pin 1, Tri-State Function
Pin 1 = H or open.... Output active at pin 8
Pin 1 = L.... High Impedance at pin 8
* Include: 25 ºC tolerance, operating temperature range, input voltage change, aging, load change, shock and vibration.
SYMBOL
F
O
PARAMETER
Frequency Range
Frequency Stability*
Operating Temperature Range
Storage Temperature Range
Power Supply Voltage
Aging (first year)
CONDITION
DIMENSIONS
in millimeters
OH
DD
IH
DC
OL
DD
DD
DD
ORDERING INFORMATION
XO-543
MODEL
B
FREQUENCY STABILITY
AA = 0.0025 % (25 ppm)
A = 0.005 % (50 ppm)
B = 0.01 % (100 ppm)
R
OTR
Blank = 0 °C to + 70 °C
R = - 40 °C to + 85 °C
E
ENABLE/DISABLE
Blank = Pin 1 open
E = Disable or Tristate
40 M
FREQUENCY/MHz
e2
JEDEC
LEAD (Pb)-FREE
STANDARD
GLOBAL PART NUMBER
X
O
MODEL
3
4
C
FREQUENCY
STABILITY
T
OTR
E
ENABLE/
DISABLE
D
PACKAGE
N
A
4
0
M
OPTIONS
FREQUENCY
Document Number: 35038
Revision: 05-Mar-07
For technical questions contact: frequency@vishay.com
www.vishay.com
25
